Oce Repro Desk User Manual page 418

Scanning with removed filing strip along the left hand side (right hand side
in the feed direction, face-down)
Press the catch underneath the original guide, and move it to the right.
1

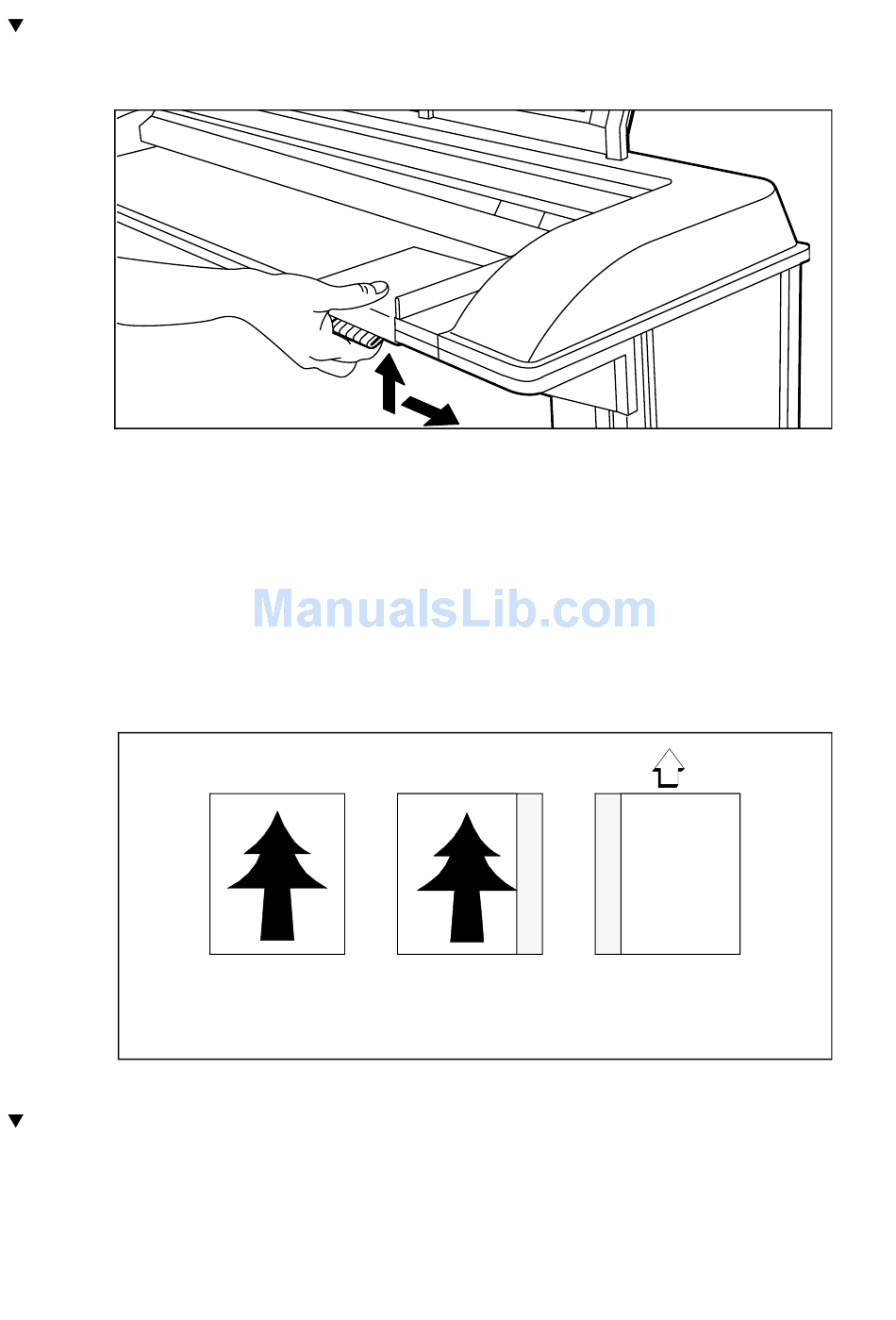

[300] Adjusting the original guide to add or remove a filing strip along the left hand side
Make all required settings.
2
Insert the original face down, right aligned along with the original guide on the
3
scanner feed table.
You can also remove the filing strip along the right hand side (left hand side in
the feed direction, face-down) by selecting a specific roll. If the paper width of
the original is larger than the paper width of the selected roll, the remaining
paper part on the right hand side will not be scanned (see figure 301).
[301] Example of removing the right hand side of an original
Scanning with removed filing strip along the right hand side (left hand side
in the feed direction, face-down)
Select one of the roll selection buttons on the operating panel.
1
Select the 100% button.
2
418 Océ Repro Desk User Manual
Face up:
Right hand side
- 40 mm
Face down:
left hand side in
feed direction
