Output (Océ 9400)
You can select the printer you want to send the output to, or you can specify a
directory or queue to save the output as CALS/TIFF file. Specifying Output
settings for the Océ 9400 printer
If not already selected, click the 'Output' tab at the top of the Océ 9400 print
1
window (Group4 Out).
The following window will appear:
2
3671-144

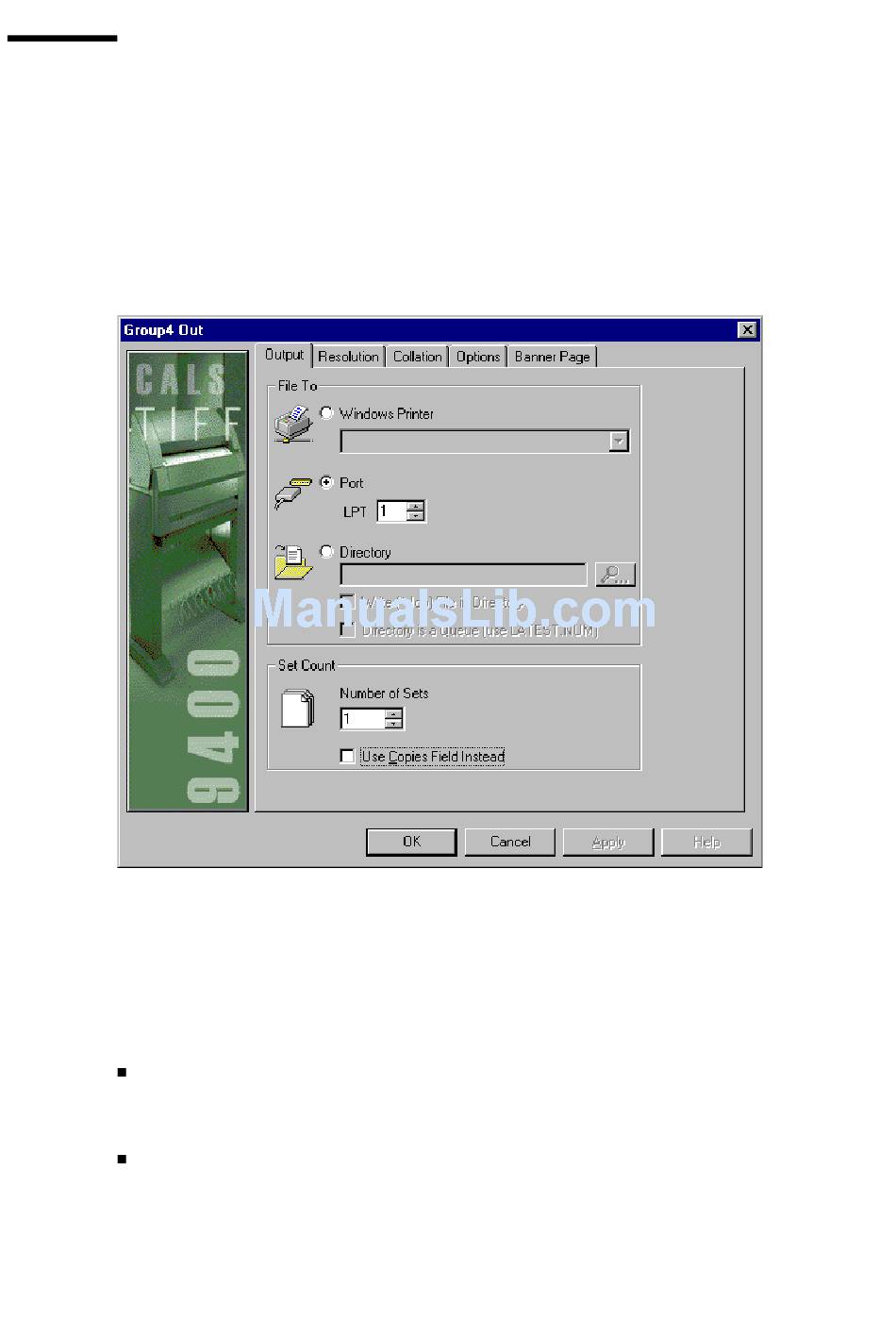

[165] Océ 9400 print window (Group4 Out): Output
If the Océ 9400 is installed as remote printer, select 'Windows Printer', and
3
choose the Océ 9400 from the list of available Windows printers.
If the Océ 9400 is installed as local printer, select 'Port' and specify the
according port number.
Specify the number of copies:
4
Number of Sets: You can specify the number of sets yourself. Each set will
contain one copy of each drawing in the print job. The Copies column in the
job window will be ignored.
Use Copies Field Instead: The number of copies as defined for each drawing
in the Copies column of the job window will be used.
Click Apply.
5
290 Océ Repro Desk Server User Manual
