SECTION 10 : THE AUDIO CUBE

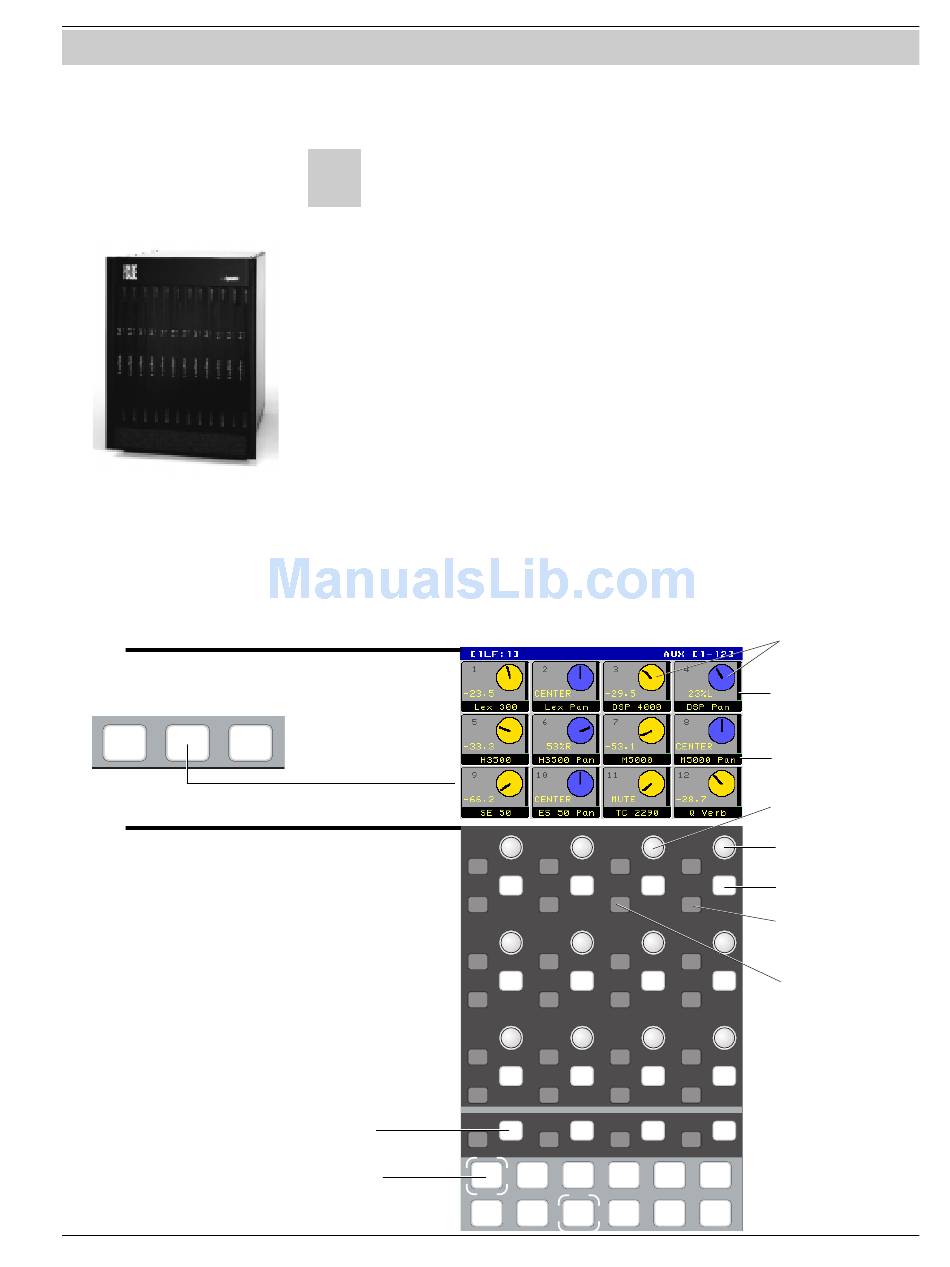

Overview

Additional Aux
Sends
DSC Screen Display
Dyn Aux Pan
Assign
Page 1 shows 1st 12 Aux controls.
Page 2, the 2nd 12 auxes, etc...
Euphonix CS3000/2000 Operation Manual
A
n important option available for the Euphonix console is the Audio Cube
System. The Audio Cube is a digitally controlled level/routing matrix
which allows the addition of multi-format buses to any Euphonix console;
multitrack buses, auxiliary send buses, and film panning buses can be made
available from any fader.
The operational interface to the Audio Cube is accessed via the DSC screen
display and SmartDisplay, allowing the Audio Cube to function seamlessly as
an integral part of any Euphonix system. The Cube hardware resides in the
machine area with the Audio Tower. Inputs connect to existing channel
patchbays and outputs connect to additional Audio Cube patchbays supplied
with the system. We will explore aspects of the hardware later in this section,
but first let's outline two primary applications for the Audio Cube. They are:
• Providing additional auxiliary sends from up to 48 faders.
• Providing Hyper Surround panning from up to 48 faders.
Once configured, the additional aux sends are accessed by pressing the DSC
[Aux] key. While in the DSC Aux menu & screen, calling attention to any fader
block will display the additional aux sends available to that fader.
i d t
i d t
i d t
i d t
i d t
i d t
i d t
Bus Kill
Pg 1
EQ
Section 10: The Audio Cube
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
Pg 2 Pg 3 Pg 4
Dyn Aux Pan Bus
Assign Master
Stereo Linked
controls
Aux bus meters
Aux bus name
Aux 3/4 Level
Aux 3/4 Pan
Aux 3/4 ON/OFF
Centers the pan
Stereo Link
List
Chan
10 - 3
