Auto Null Selected (A); Manual Null Selected (M) - Euphonix CS3000 Operation Manual

Auto Null Selected (a)

Manual Null
Selected (m)
* Nulling requires
pressing the block key
Euphonix CS3000/2000 Operation Manual

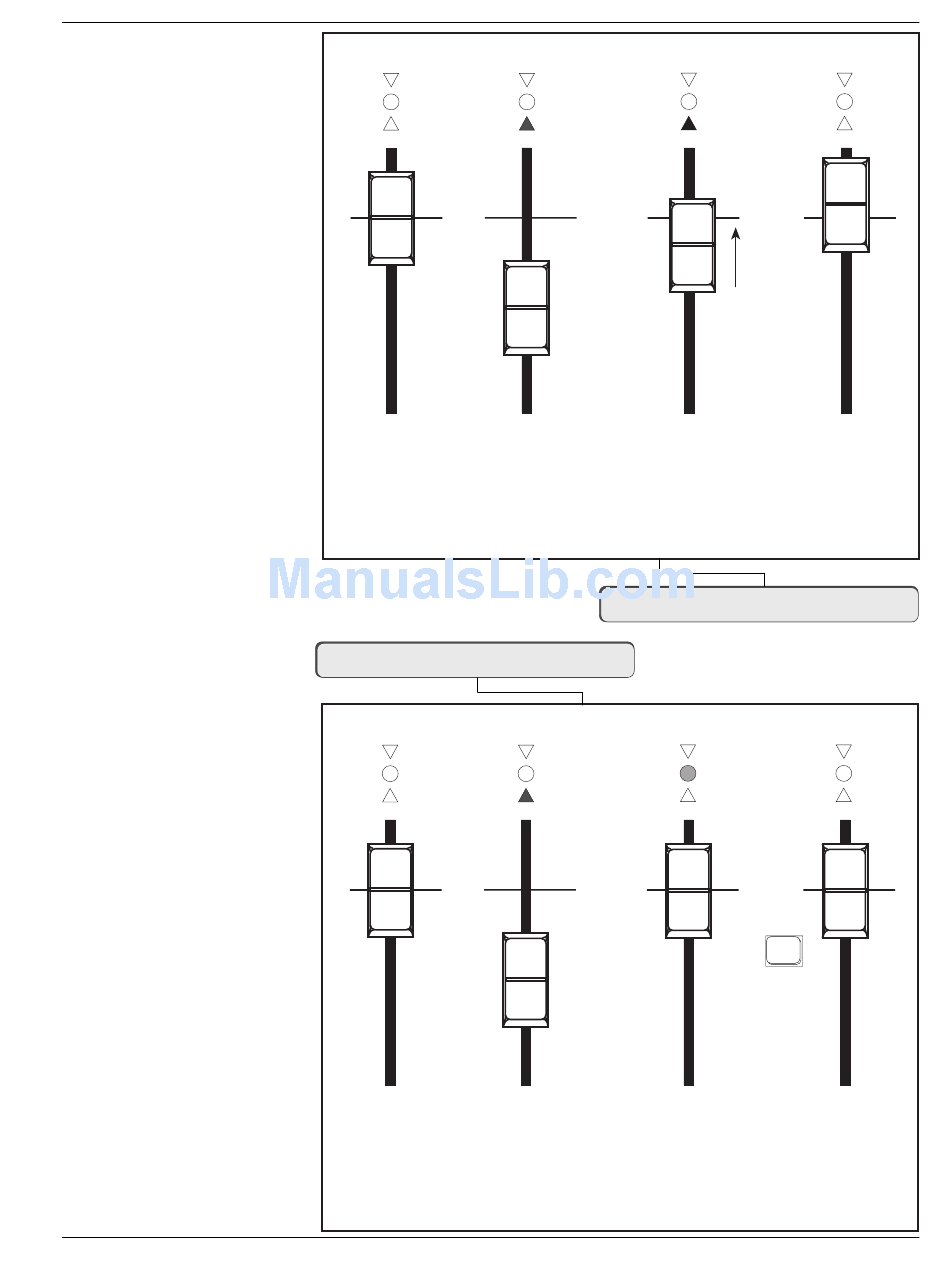

Fader AutoTakeover from a Snapshot
Red
Green
Red
Recall Snapshot.
Store
Snapshot
Fader has been moved
so RED indicator
shows direction the
fader has to be moved
to reach the null point.
Fader is disconnected
from audio.
m = Manual Null*
**SS=11 m
Fader Nulling - Manual Null Mode
Red
Green
Red
Recall Snapshot.
Store
Snapshot
Fader has been moved
so RED indicator
shows direction the
fader has to be moved
to reach the null point.
Fader is disconnected
from audio.
Move fader
towards the null
position shown by
the red arrow.
**SS=11
RCL 11
Move fader to the
null position shown
by the green
indicator.
Section 3: SnapShot Recall
As the fader passes
through the null
point, control is
automatically
regained and the
fader becomes
active. The red
indicators go out.
a RCL 11
a = Auto Null
Fader Block
Key
Press the Block Key to
null and restore control
to the fader. All indicators
go out.
3 - 9
