View menu

Pass 1
F1
Clr?
F1

View Scale

Full/Half Screen

Show Automation Viewer

Euphonix CS3000/2000 Operation Manual

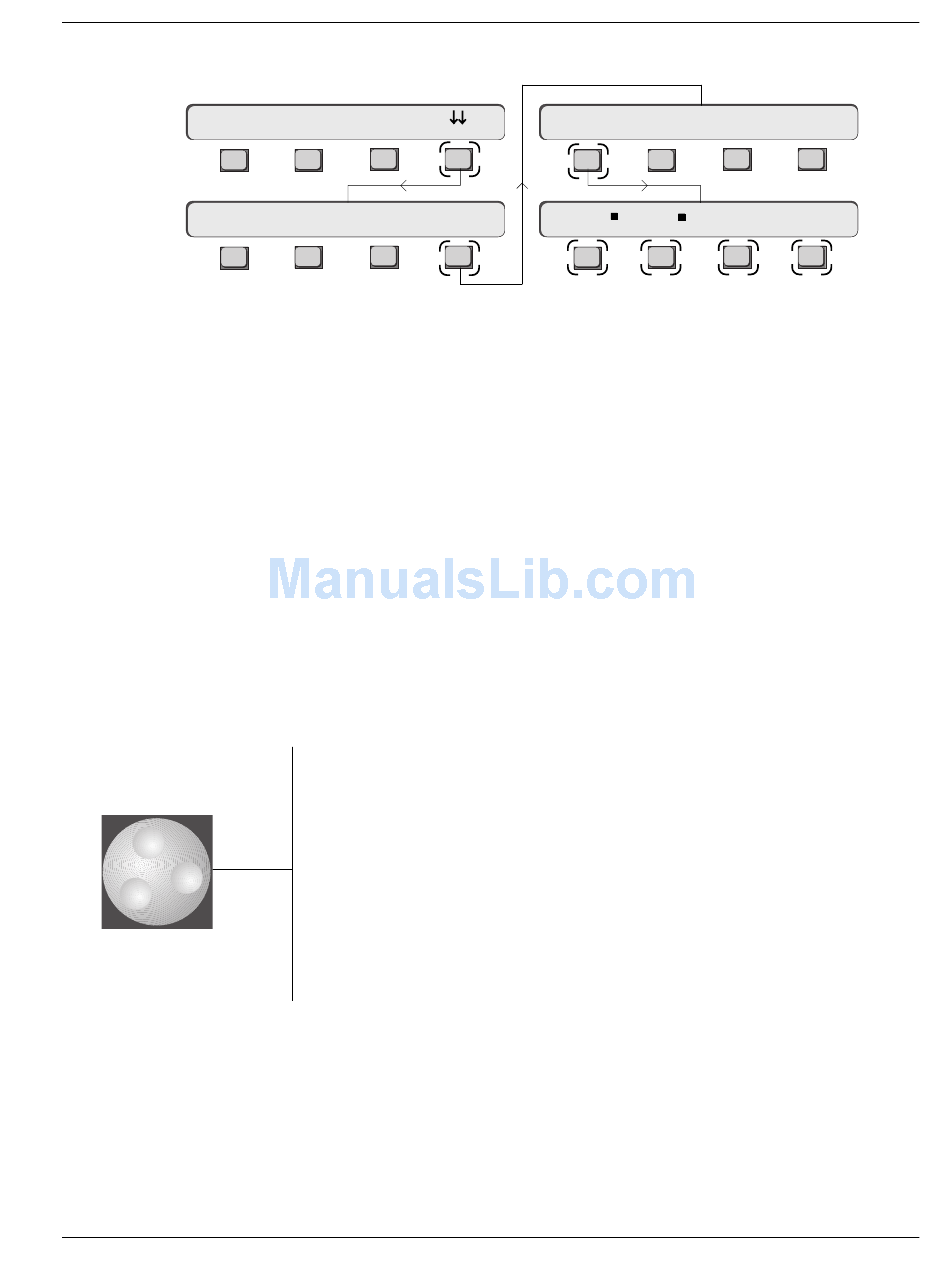

To vary certain viewing parameters of the Pass Control screen, press [F3]
(View):
Undo? Redo?
F2 F3 F4
Pack? Edit Util
F2 F3 F4
[F1] (Zoom) sets the VIEWSCALE. The screen can show the entire mix from
head to tail or zoom in on a narrow region of the mix. Head ->Tail mode can be
seen previously. Observe the Title Head and Title Tail markers in the CUES row.
When the square flag is visible in the menu, the screen is in Zoom mode.
Numeric key [1] also toggles the zoom function.
[F2] (Full) sets the Pass Control screen to occupy the full width of the console
screen display. If the square flag is visible in the menu, the Pass Control
screen occupies the right half of the screen display only. Numeric key [2] also
toggles the Full/Half function.
[F3] (Show) sets which combination of automation data is displayed in the four
assignable A, B, C and D display rows of the Pass Control screen. You can
choose to display several EQ automation parameters and their automation
moves and the data is displayed in a similar style to auxes, pans and faders.
They can also show combinations of EQ and Aux moves if desired. Use the
SpinKnob to view and set the displayable combinations:
Independently for EQ1 and EQ2:
LG / lG / hG / HG Low Gain / lo-mid Gain / hi-mid Gain / High Gain
LF / lF / hF / HF
lG / lF / lQ / IN
hG / hF / hQ / IN
LG / LF / HG / HF Low Gain / Low Freq / High Gain / High Freq
Aux:
A / B / C / D
EQ1 & EQ2 combinations:
lG / lF / lG / lF
hG / hF / hG / hF
View Join
F1 F2
Zoom Full
F1 F2
Low Freq / lo-mid Freq / hi-mid Freq / High Freq
lo-mid Gain / lo-mid Freq / lo-mid Q / IN-OUT
hi-mid Gain / hi-mid Freq / hi-mid Q / IN-OUT
Aux Send A / Aux Send B / Aux Send C / Aux Send D
lo-mid Gain / lo-mid Freq / lo-mid Gain / lo-mid Freq
hi-mid Gain / hi-mid Freq / hi-mid Gain / hi-mid Freq
