Exercise 8

Stereo Balance mode

M1 M2 DIR
L1 L2 ST1
L3 L4 ST2
7 8 9
4 5 6
1 2 3
Euphonix CS3000/2000 Operation Manual
In this exercise, we will setup channel 16's aux send A & B as a stereo in/
stereo out level and pan feed.

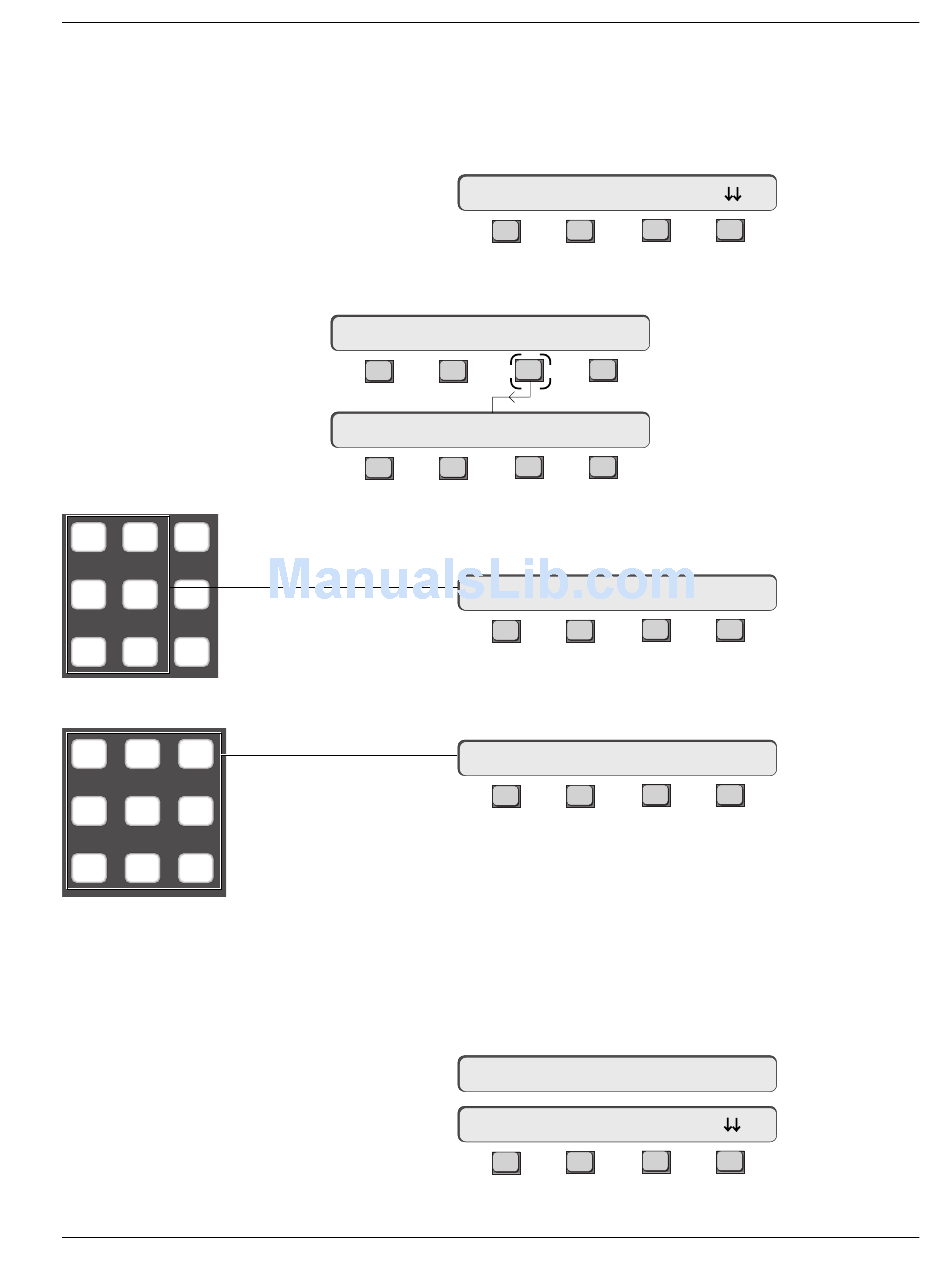

Press channel 16's aux A/B block attention key to display the Aux Status menu
and confirm that console attention is directed to aux send A:
16A->
Press the [*ST] key and then [F3] (Yes) to change to stereo linked mode:
AB Stereo Aux ?
F1 F2
*
16AB-> Stereo
F1 F2
The most commonly used stereo mode is Stereo Balance mode. Press the
DSC [L3] & [L4] key to directly assign the aux source routing:
16AB->
Press the DSC keypad [1] & [2] keys to directly assign the aux send to aux bus
1 & 2:
16AB->
As with the mono in/stereo out modes, the aux A (C) pot becomes the pan
control and the aux B (D) pot becomes the level control. The aux send is now
ready for use.
Whenever a stereo-in mode has been selected, an asterisk appears in the
SmartDisplay menu to remind you that stereo mode has been selected. To
verify this, press the [Esc] key to backup to the Aux Config menu and/or press
the aux send A block attention key to view the Aux Status menu:
Aux Config Menu
16AB-> * SRC
Aux Status menu
16AB-> * ON
This concludes Exercise 8.
