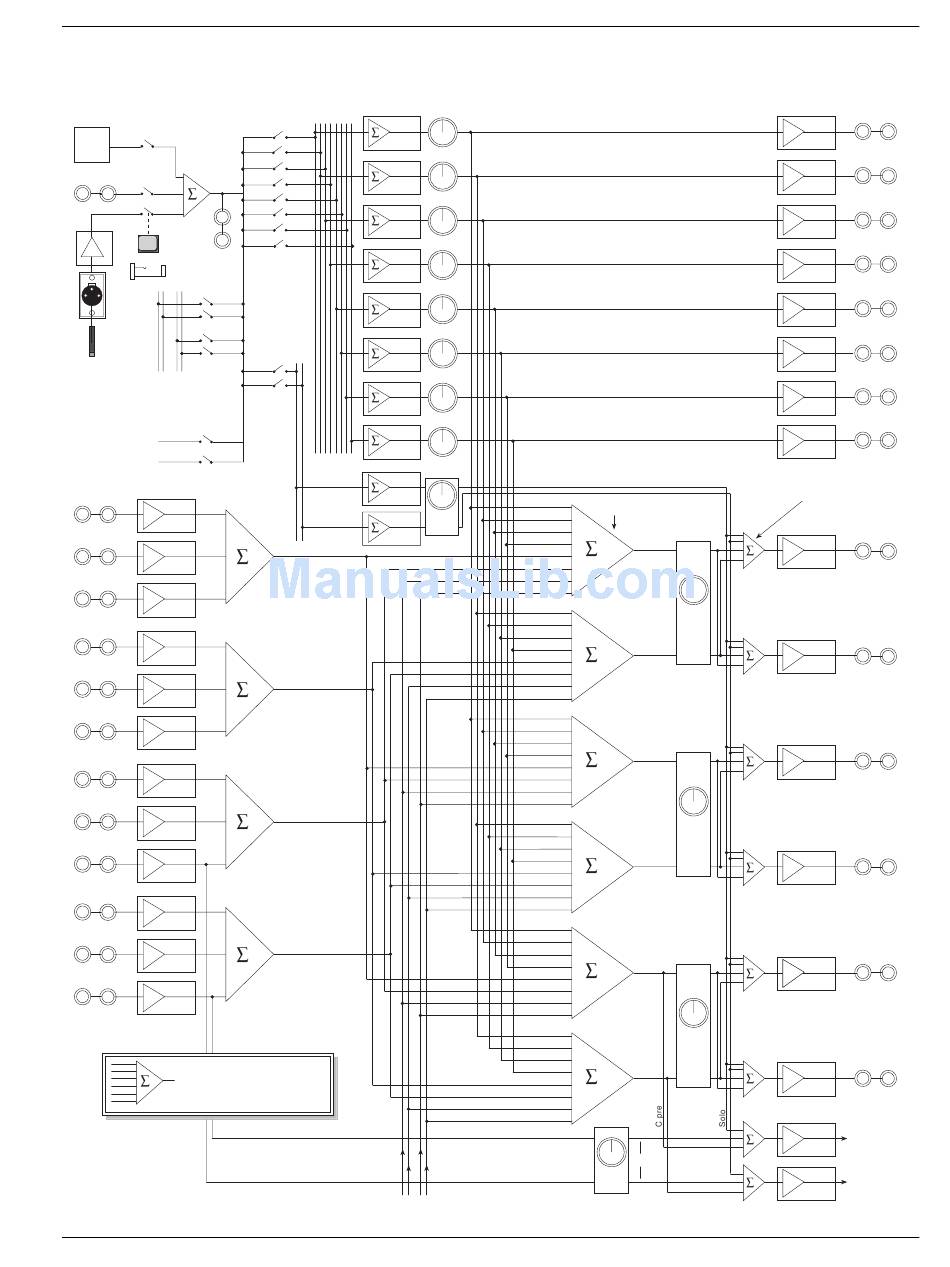

CS3000 Master Audio Block Diagram (Aux & Monitor Outputs)
Talkback Select and
Feeds to Buses
Sine
Osc
EXT TB IN
Mic
Amp
TB OUT
or
TalkBack
Mic
ST1 ST2
Bus
Odd
MultiTrack
Bus 1-24 Even
EXT1A L
Ext
A
In
EXT1B L
Ext
B
In
EXT1C L
Ext
C
In
EXT1A R
Ext
A
In
EXT1B R
Ext
B
In
EXT1C R
Ext
C
In
EXT2A L
Ext
A
In
EXT2B L
Ext
B
In
EXT2C L
Ext
C
In
EXT2A R
Ext
A
In
EXT2B R
Ext
B
In
EXT2C R
Ext
C
In
This symbol represents a
multiple input selector/summing
circuit. It can select and sum any
combination of the inputs.
Euphonix CS3000/2000 Operation Manual
Aux Bus
Aux Masters
1 - 8
Bus
Amp
Bus
Amp
Bus
Amp
Bus
Amp
Bus
Amp
AFL/
PFL
Bus
Bus
Amp
Bus
Amp
Bus
Amp
Left Bus
Amp
SOLO
Right Bus
Amp
EXT1 (L)
EXT1 (R)
EXT2 (L)
EXT2 (R)
ST1 Post Fader Feed ST2 Post Fader Feed
Solo Bus
A1
Monitor Select
A3
A5
A7
(L)
EXT1 L
EXT2 L
ST1 L
ST2 L
A2
A4 Mon
A
A6
A8
(R)
EXT1 R
EXT2 R
ST1 R
ST2 R
A1
A3
A5
A7
(L)
EXT1 L
EXT2 L
ST1 L
ST2 L
A2
A4 Mon
B
A6
A8
(R)
EXT1 R
EXT2 R
ST1 R
ST2 R
A1
A3
A5
A7
(L)
EXT1 L
EXT2 L
ST1 L
ST2 L
A2
A4
Mon
C
A6
A8
(R)
EXT1 R
EXT2 R
ST1 R
ST2 R
Ext2C
Mon
D
Section 1: Introduction
AUX 1
Bal
Out
AUX 2
Bal
Out
AUX 3
Bal
Out
AUX 4
Bal
Out
AUX 5
Bal
Out
AUX 6
Bal
Out
AUX 7
Bal
Out
AUX 8
Bal
Out
AFL/PFL Select
Stereo, Mono, Left, Right Select
MON A (L)
Bal
Out
MON A (R)
Bal
Out
MON B (L)
Bal
Out
MON B (R)
Bal
Out
MON C (L)
Bal Bal
Out Out
MON C (R)
Bal
Out
Bal
Out
MAIN & PHASE
METER MODULE
(optional)
Bal
Out
1 - 27
