Stereo Linking Eqs - Euphonix CS3000 Operation Manual

Section 4: Tutorial

Stereo Linking EQs

Indicates stereo link
SIDE NOTE:
The Page 1 and Page 2
buttons on the DSC both
illuminate to indicate
when a pair of EQs is
stereo linked.
Signal path after
stereo linking EQs
4 - 12
Select EQ2's source in a similar manner by pressing the EQ•Dyn 2 attention
key then the [M2] Source Dedicated Key. As before, this routing selection is
also seen in the far right of the SmartDisplay within the insert icon.
16E2–>
F1
The EQ may be switched in and out of circuit by pressing [F4] or by pressing
the rightmost of the 4 Function keys just below the Assignable Rotary Control
Set. (See the Introduction Section.)

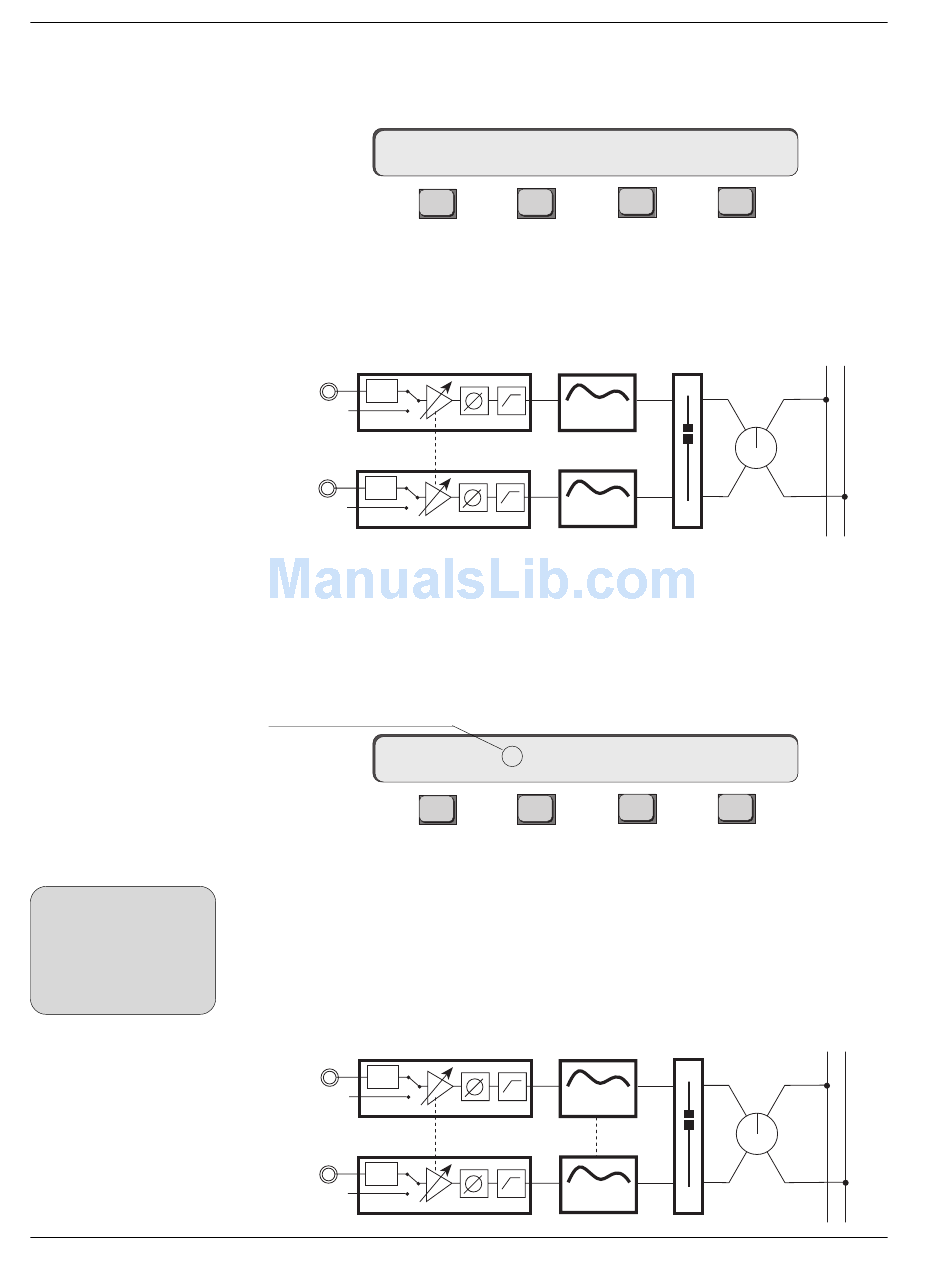

This is our signal path now:
M1 PWR
Stereo Link
M2 PWR
As mentioned earlier, the two EQs may be linked together to form a stereo
pair. When in the EQ menu, press the [*ST] key on the Master Control Panel.
When stereo linked, both EQs are adjusted in tandem to give you a true stereo
4-band parametric. At any time you can unlink the two EQs by pressing the
[*ST] key again. When the two EQs are working in stereo, the SmartDisplay
indicates this with a "*".
16E2–>
F1
In addition, the screen display indicates "Stereo EQ 1" instead of "EQ 1" on
the EQ title bar.
When you stereo link EQs by pressing the [*ST] key, all of the parameters of
the selected EQ are copied into the other EQ. For example, if EQ1 is selected
when you press the [*ST] key, EQ1's curve is copied into EQ2. Likewise, if EQ2
is selected when you press the [*ST] key, EQ2's curve is copied into EQ1.
M1 PWR
M2 PWR
lmG 0.0dB
F2 F3
EQ1
4 Band EQ
4 Band EQ
EQ2
*lmG 0.0dB
F2 F3
EQ1
4 Band EQ
Stereo Links
4 Band EQ
EQ2
Euphonix CS3000/2000 Operation Manual
–>M2>-
F4
STEREO 1 BUS
L R
BAL
LF
–>M2>-
F4
STEREO 1 BUS
L R
BAL
LF
