Oscillator Menu
Euphonix CS3000/2000 Operation Manual

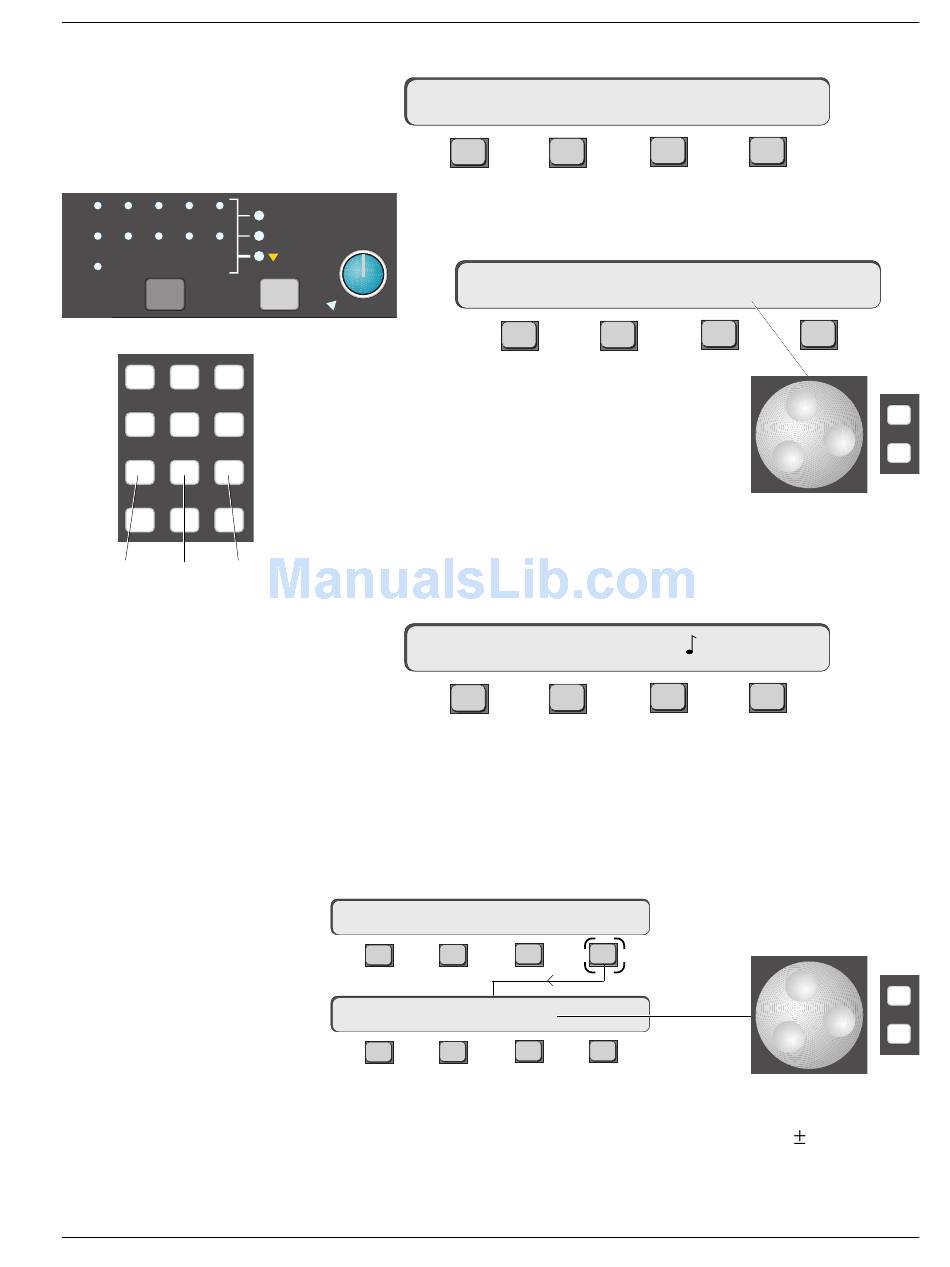

Pressing [F3] selects the Oscillator Frequency menu:
mTB–>
F4 allows the oscillator to be swiched on or off, with indication
Oscillator
in the SmartDisplay and in the Talkback block:
Patch
TB MIC
The SpinKnob selects the frequency. Note that keys 1,
2, and 3 on the DSC Numeric keypad select 100Hz,
1kHz and 10kHz respectively for fast tone selection.
The [+]/[–] keys can also be used to increase or decrease the frequency, 1/12th
octave step with each keypush.
If you hit [F3] the freqency reading changes from Hz to notes on an A440 scale.
mTB–>
The SpinKnob now selects notes which are indicated in standard MIDI nota-
tion (middle C is C3). The SpinKnob and DSC [+]/[–] keys, only select frequen-
cies which match notes, hence they cannot be used to select the 100Hz, 1kHz
and 10kHz frequencies because these don't match a note value.
From the Oscillator menu, press [F4] (LEVEL):
mTB–> OSC
F1
mTB–> OSC
F1
The SpinKnob selects the level and F4 toggles the oscillator on and off. Again,
the [+]/[–] keys can be also used to change the level. Range is 20dB, where
0dB = +4dBu.
OSC
F1 F2
mTB–> OSC
F1 F2
OSC
F1 F2
FREQ LEVEL
F2 F3 F4
0.0dB ON
F2 F3 F4
Section 4: Tutorial
100Hz OFF
F3 F4
100Hz ON
F3 F4
B5 ON
F3 F4
+
Bus
-
DIR
+
Bus
-
DIR
