Assignable Rotary Control Set - Euphonix CS3000 Operation Manual

Assignable Rotary
Control Set
12 Assignable
Rotary Controls
and Function keys
Euphonix CS3000/2000 Operation Manual

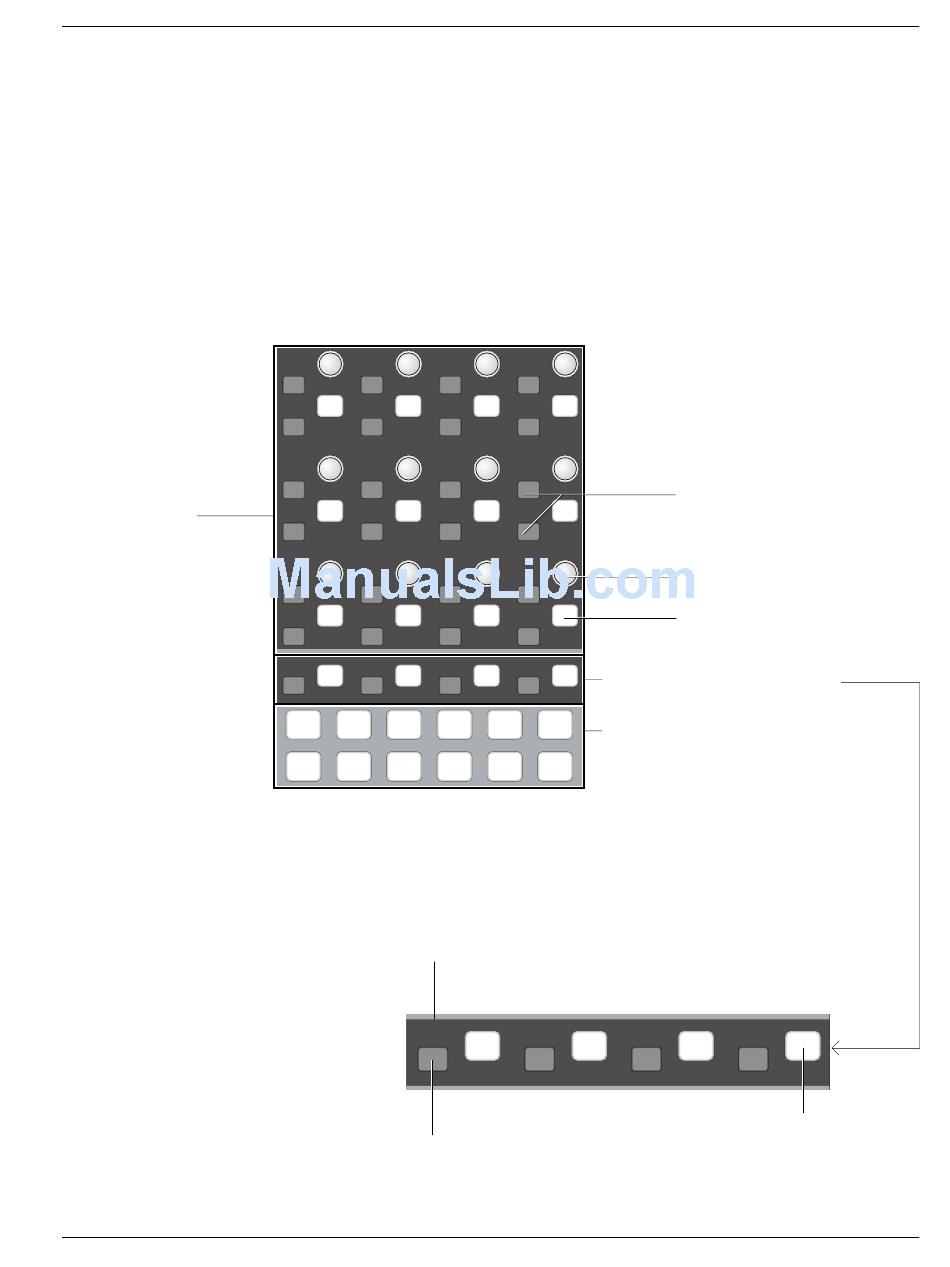

Located at the top of the DSC, the 12 continuous-turn encoder controls that
make up the Assignable Rotary Control Set are mapped to the screen display.
They are used to control EQ, dynamics, CUBE aux sends, CUBE multi-format
buses, and master CUBE bus trim levels. Each of the 12 rotary controls has a
Function key associated with it. The operation of these rotary controls and
Function keys depends on the mode selected. The actual function of both the
knob and the key is indicated by the graphics on the screen display. On some
screens only the knob is active, as in the EQ. On other screens only the key is
active, as in the dynamics Side Chain Listen key (DYN, Page 2). Sometimes
both control and key are active as in the case of Bus Master Level & Mute.
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
i d t i d t i d t
Pg 1 Pg 2 Pg 3 Pg 4
EQ Dyn Aux Pan
Assign
The four Function keys are used for general assignable switching functions
defined by software. Their function depends on which screen is displayed.
More detailed examples are given in the following pages.
Automation Status Indication: Iso, Dynamic, Trim (if applicable)
i d t
Automation Punch key
for the assignable switch
i d t
i d t
i d t
i d t
i d t
i d t
i d t
4 Special Function Keys
List
Assignable Rotary Control
Select keys
Bus Chan
Master
i d t i d t
Section 1: Introduction
For future development
Assignable Rotary Control
Associated Function key
i d t
Assignable
Function key
1 - 15
