Metering Presets - Euphonix CS3000 Operation Manual

Global Channel (I/O)
Meter Mode Selection
SIDE NOTE:
Assigning meter modes
globally by using the DSC
Mtrs key, always overrides
and changes any individual
channel meter assignments.
Metering Mode Presets
7 8 9
4 5 6
1 2 3
Individual Channel (I/O)
Meter Mode Selection
B
M M M
1 2 1 2 1 2
L L L
1 2 1 2 1 2
L L L
3 4 3 4 3 4
Out 1 Out 2 Out 3
M1
Pwr
Pad
ovld
M2
Pwr
Pad
ovld
Euphonix CS3000/2000 Operation Manual

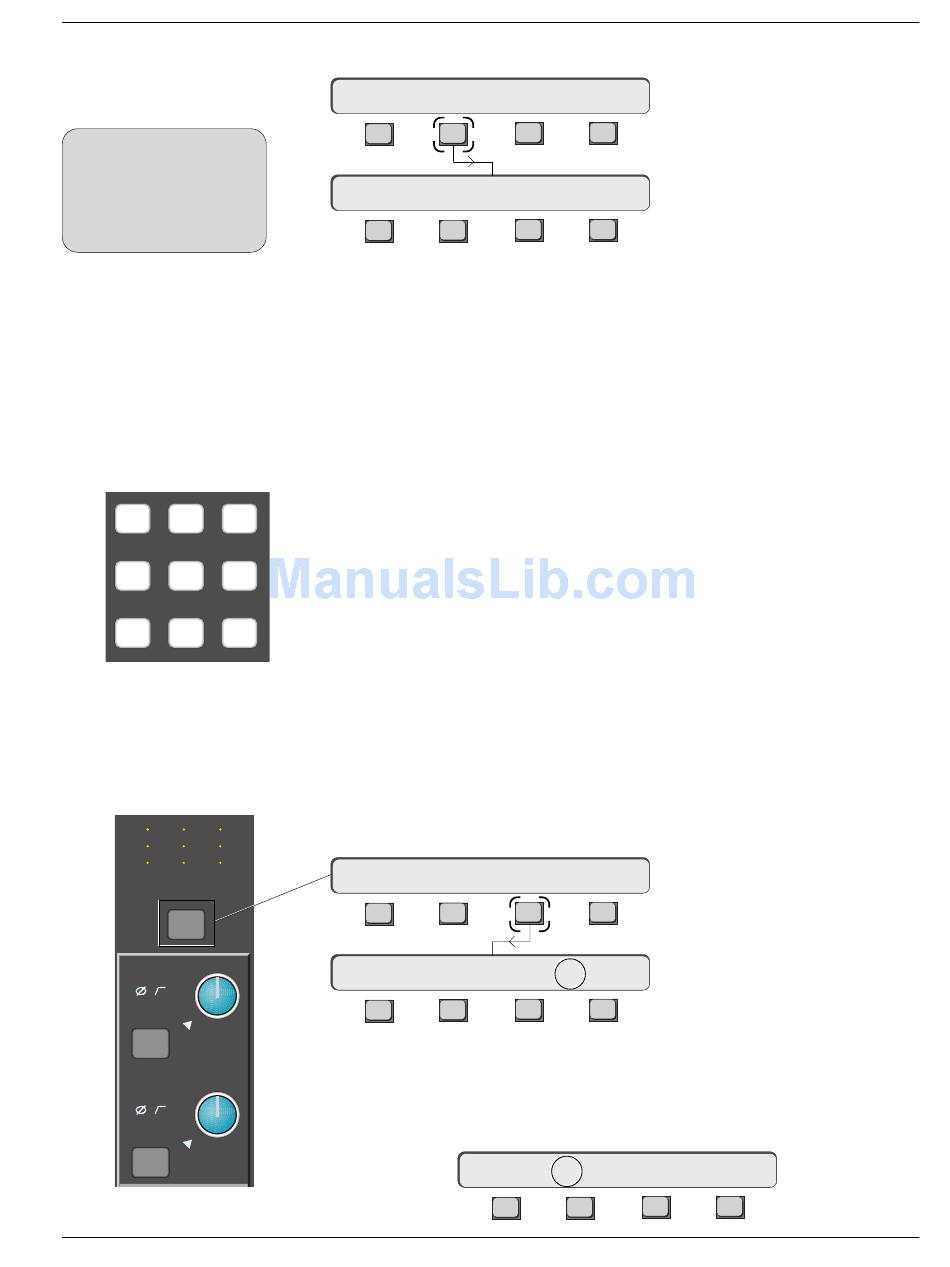

For the global setup, press the DSC [Mtrs] key, then [F2] (I/O):
Mode I/O
F1 F2
**CH->Aud:OFF
F1 F2
The two asterisks (**) preceding the channel designator indicate that we are
affecting all I/O meters simultaneously.
Metering presets allow you to easily configure meter pairs. Pressing any of the
DSC Numeric keypad keys recalls these Meter selection presets. Following is
a list of the available presets:
KEY LEFT METER:
E Rev
[0] — Aud:OFF
[1] — Aud:M1
[2] — Aud:L3
[3] — Aud:MT
[4] — Aud:LFL
[5] — Aud:UFL
[6] — Lvl:UF
[7] — Lvl:M1
[8] — - - -
[9] — - - -
Pressing the DSC [*ST] key while the Meter Config menu is visible, switches
you into individual meter config mode. There is another way to set meter
modes for individual channels. Press a channel's attention key located just
under the I/O channel's meter array, then press [F3] (METER):
1CH-> OUTs
F1 F2
1CH->Aud:OFF
F1 F2
Starting with unconfigured meters, attention is initially directed to the right
channel meter as indicated by the arrow between Aud and OFF shown above.
Press [F2] to direct attention to the left meter:
1CH->Aud->OFF
Meter Menu
Master
F3 F4
Meter Config Menu
Aud->OFF
F3 F4
RIGHT METER:
F Rev E Rev
Aud:OFF Aud:OFF
Aud:M1 Aud:M2
Aud:L1 Aud:L4
Aud:L3 Aud:L4
Aud:CMB Aud:LFR
Aud:MT Aud:UFR
Aud:LFL Lvl:LF
Aud:UFL Lvl:M2
Lvl:UF - - -
Lvl:M1 - - -
METER Route
F3 F4
Aud->OFF
F3 F4
Aud:OFF
F1 F2 F3
Section 4: Tutorial
F Rev
Aud:OFF
Aud:M2
Aud:L2
Aud:L4
Aud:MT
Aud:CMB
Aud:LFR
Aud:UFR
Lvl:LF
Lvl:M2
F4
4 - 7
