Mode Select Keys

1 - 16

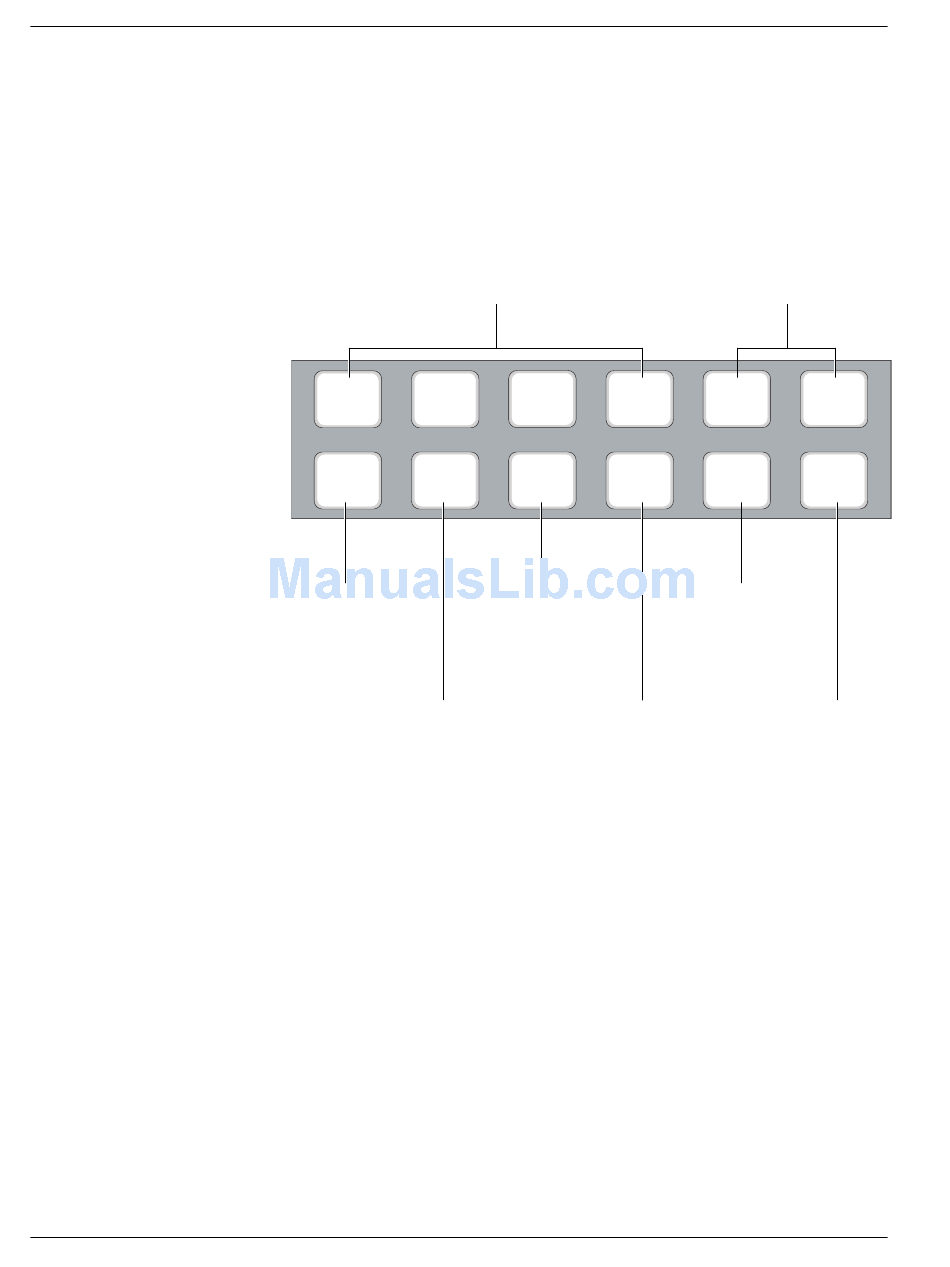

At the bottom of the Rotary Assign area are the Rotary Control Select keys.
These keys select different control functions for the assignable control set,
such as EQ, dynamics, auxes, multi-format panning, etc.
Four Page keys switch between pages/screens
of functions. Sometimes only Page 1 is used.
In Dynamics mode, for example, Page 1 shows
gate/compress parameter controls and Page 2
shows filter adjustment controls.
Pg 1 Pg 2
EQ Dyn
Selects EQ Selects Audio Cube
control mode Aux Send control mode
Selects ES108A
Dynamics/Filters
control mode
Not yet implemented
Pg 3 Pg 4
Aux Pan
Assign
Selects Audio Cube
Bus Master control
mode for auxes or
multi-format pans
Selects Audio Cube
Multi-Format Bus
Panning screens &
controls
