Section 9: Dynamics
Crosspatching
Dynamics
Assignments
L4
Dynamics Assign Menu
9 - 20
Assign dynamics 1/channel. Assume there are only 8 processors fitted and
normalled into channels 1-8. Imagine you want to take the 8th processor and
use it in channel 15. Crosspatch the processor from channel 8 to channel 15. If
the ES108As have been wired as suggested for 1-per-channel operation, then
the input (send) of the 8th processor should be the jack under OUT1 on
patchbay channel 8. Patch into this from the bottom OUT1 jack on channel 15.
The output (return) of the 8th processor should be on the jack above L1 on

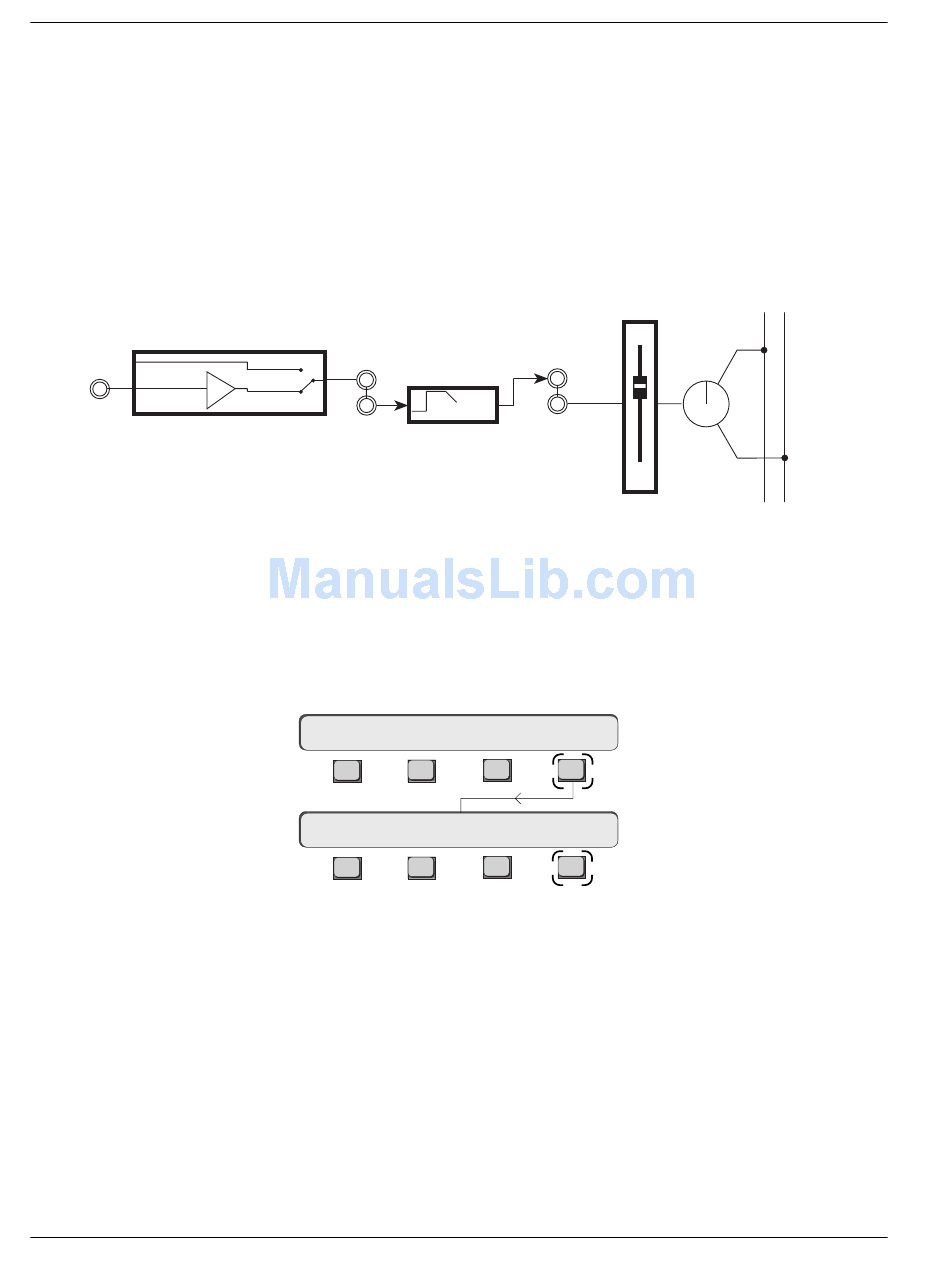

channel 8. Crosspatch this to the L1 jack on channel 15. The diagram below
shows the normal wiring for a single dynamics in a channel.
OUT1
BUS
Line Input 4
Having crosspatched the processor you now need to tell the system that
Dynamics 8 should be accessed from channel 15 Dyn1. The easiest way to do
this is to access the Dynamics Assign menu. Enter the Patch menu by pressing
[F4] and then press the [EQ1•Dyn] key on channel 15, type 8 from the DSC
Numeric keypad followed by [Enter] or [F4] which will assign processor 8 to
the EQ•Dyn(1) key on channel 15:
Clear
F1
Patch Menu
15D1->
F1
You should now be able to access processor 8 from channel 15's Dyn1 con-
trols.
Take care that you do not have the processor patched into one channel and
software-assigned to a different channel. If you assign to an EQ•Dyn key
(Dyn1 or Dyn2 location) that already has an assignment, it will undo the old
assignment. Also, if you assign a processor already assigned elsewhere, it will
undo the other assignment. Use the Dynamics Assignment/Configuration
window to visually confirm all the assignments as you set up your title.
DYN
L1
1/Ch 2/Ch Patch
F2 F3 F4
DYN CHAN -> [8]
F2 F3 F4
