Section 4: Tutorial

External Monitor Inputs

A monitor
SET
DIM
B monitor
SET
DIM
C monitor
SET
DIM
Setup
F1
Mstr
F1
monitor SET
A1•2 A3•4 A5•6
Ext 1 Ext 2 ST1
Left Right Stereo Mono
Toggles between the
EXT1 & EXT2 menus
4 - 48
Earlier we described the way sources can be routed to the 3 monitor outputs,
A, B, & C. Brief mention was made of the two external inputs to the monitor
matrix, EXT1 & EXT2.
Just to recap, each of the three (3) monitor outputs, A, B, & C can be fed by
any or all of the following sources: Aux 1-8, EXT1, EXT2, ST1, & ST2. These
are selected by first pressing the Monitor Set button in one of the monitor
blocks and then by selecting the appropriate source keys in the Monitor Set
area.

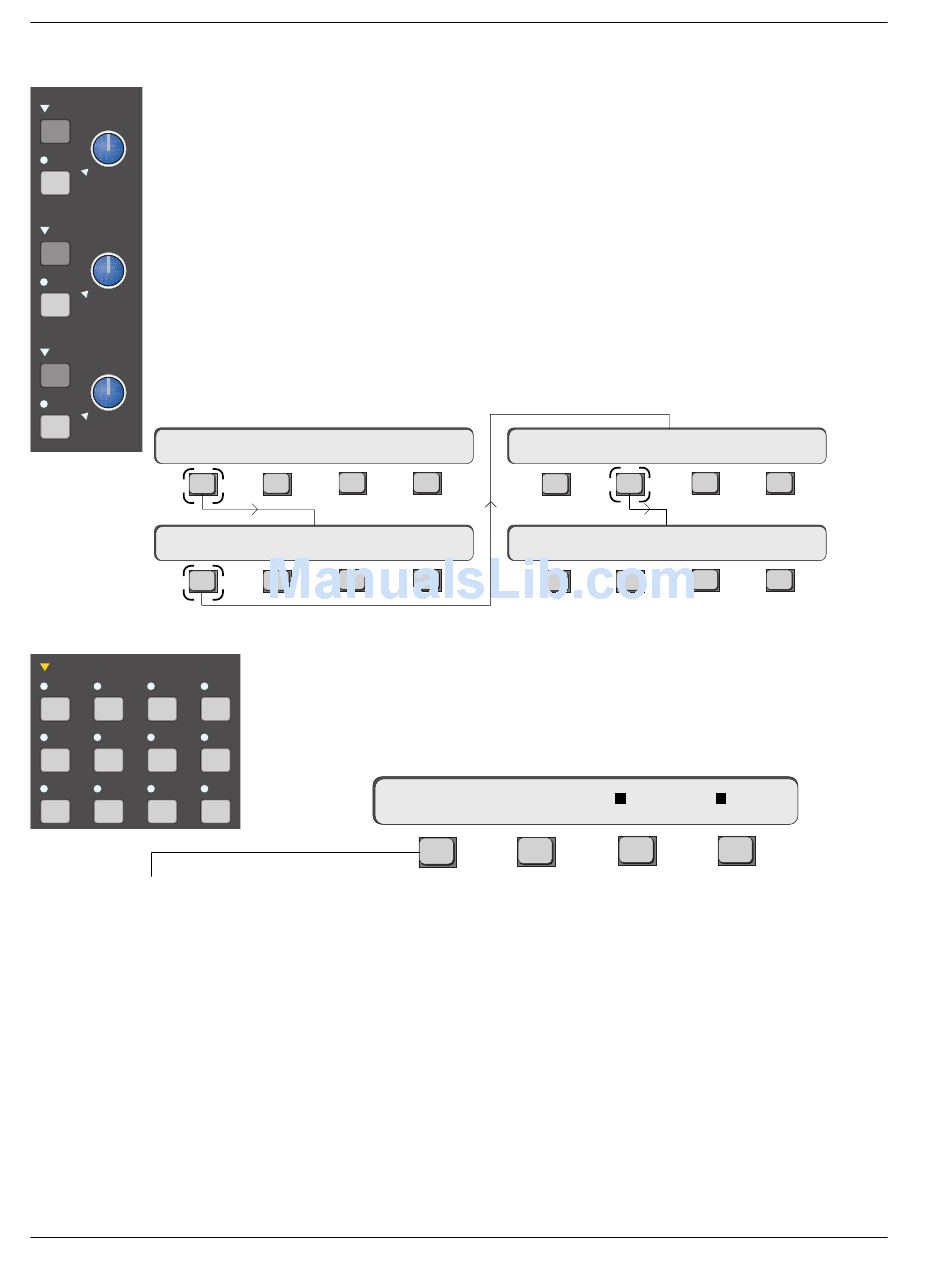

Each of the 2 EXTernal inputs will allow up to 3 stereo sources to be selected
simultaneously. The 3 inputs to EXT1 are labelled on the patch as EXT1A L/R,
B L/R, & C L/R. The 3 inputs to EXT2 are similarly labeled. From the top-level
menu, press [F1] (Setup), [F1] (Mstr) and then [F2] (EXT1) to route these inputs
to EXT1:
Snap System
F2 F3
Cnsl Meter
F2 F3
F2, F3 and F4 can each be toggled to select any combination of the three
sources to the EXT1 input. A square next to the input letter indicates that the
A7•8
source has been selected. The SmartDisplay below shows that inputs B & C
are feeding EXT1.
ST2
Routing for EXT2 is achieved in a similar manner. To get to the EXT2 menu,
press [F1] (mX1->), or [Esc]ape and then [F3] (EXT2).
This facility is very useful for post work as two sets of three stereo stems can
be simultaneously monitored as a 1:1 mix (i.e., feed off-tape stereo music into
EXT1A, effects to EXT1B and dialog into EXT1C).
Grps
TB
F4 F1
MFdr mX1->
F4 F1
mX1-> A
F1 F2
Euphonix CS3000/2000 Operation Manual
EXT1 EXT2 ...
F2 F3 F4
A B C
F2 F3 F4
B C
F3 F4
