Section 10: The Audio Cube

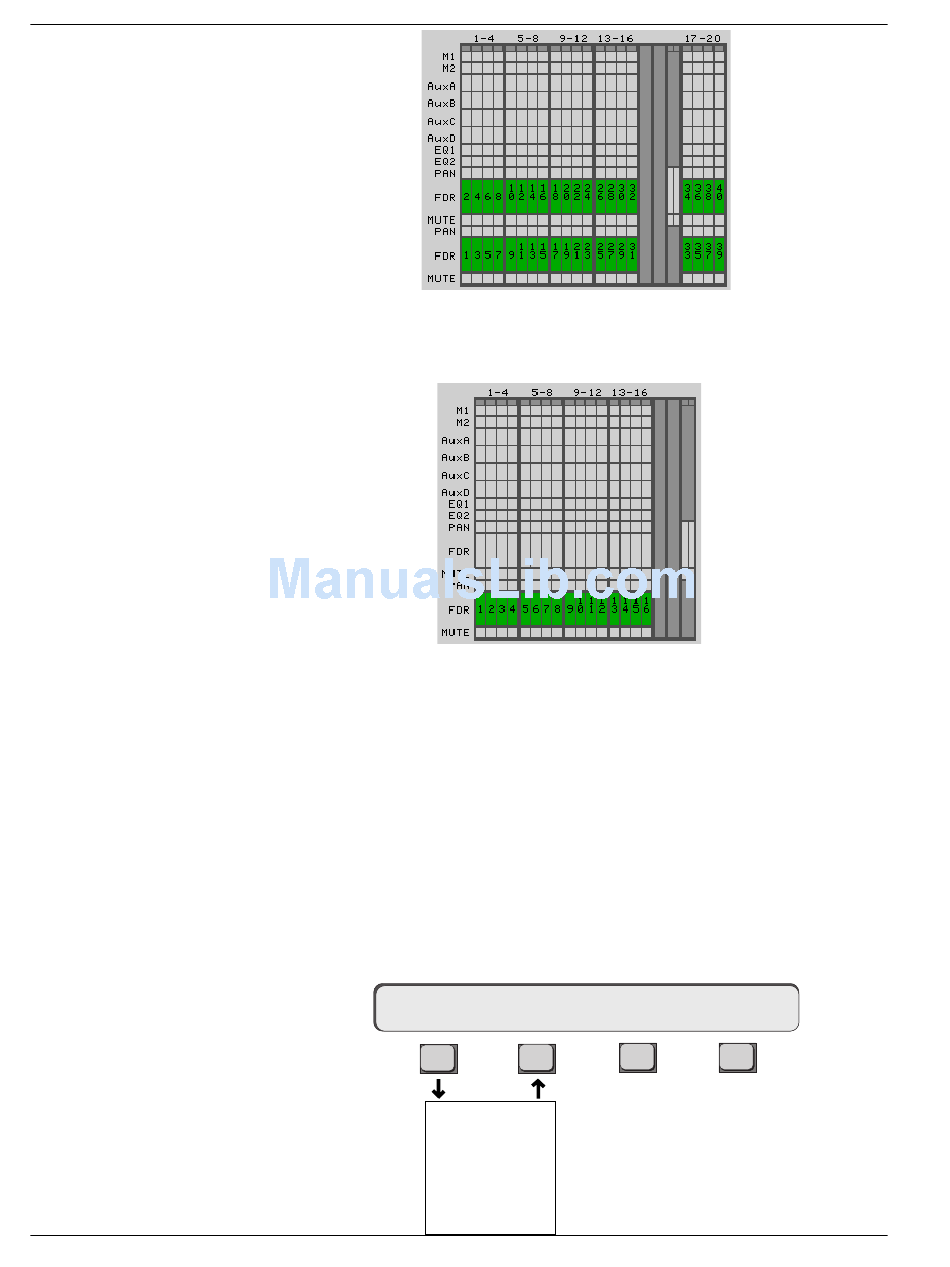

M-40 Cube Input Assignment
Template
F-32 Cube Input Assignment
Template
"Special" Cube Input
Assignment Template
10 - 8
Above is a 40 faders, M-40 system. The Cube has 48 inputs leaving 8 Cube
inputs for future console expansion.
Above is a 32 fader F-32 film system. The Cube inputs are "short loaded" to 32
in this system, instead of the usual 48. This is because typically, F systems
send only lower fader signals to the cube via the consoles DIR 1 output. Upper
fader signals reach the Cube via the consoles multitrack bus routing. The MT
buses feed the Cube bus inject inputs via the consoles DIR 2 output.
Connector specifications are provided in the Cube and Console Technical
manuals, allowing the user to design custom cabling schemes. The "Special"
selections provide templates to accommodate many nonstandard cabled
systems.
From the top-level Cube Input Assignment menu, press [F4] (Special):
[Automatic]
F1
L/U [16]
Uppers Only
Wrapped [n]
Lower/Upper
Lowers Only
F2 F3
