Exercise 2
Stereo Inserts
into Audio Path
Source indicators illuminate
as Out 1, 2, & 3 sources are
selected.
B
M M M
1 2 1 2 1 2
L 1 2 L 1 2 L 1 2
L L L
3 4 3 4 3 4
Out 1 Out 2 Out 3
M1
Pwr
Pad
ovld
Press [F2] to select the Source menu for Output 1:
M1 M2
L1 L2
L3 L4
Dedicated Source
Assign keys
Euphonix CS3000/2000 Operation Manual
In this exercise we will construct a post-EQ stereo insert point inserted into
the signal path. First we will send M1 & M2 to Out1 & Out2 respectively. Outs
1 & 2 appear at the patchbay and are now effectively the insert sends. The
fader's source will be Line Inputs 1 & 2 which are now effectively the insert
returns. This is shown in the signal flow diagrams on the next page.
Press channel 16's lower fader block key. Now deselect M1 and M2 as the
fader source and select L1 and L2 instead. The fader is now being fed from
Line Inputs 1 & 2.
The CD source, still coming in on channel 16's M1 & M2 inputs (from Exercise
1), is no longer routed anywhere. We will send it to Outs 1 & 2.

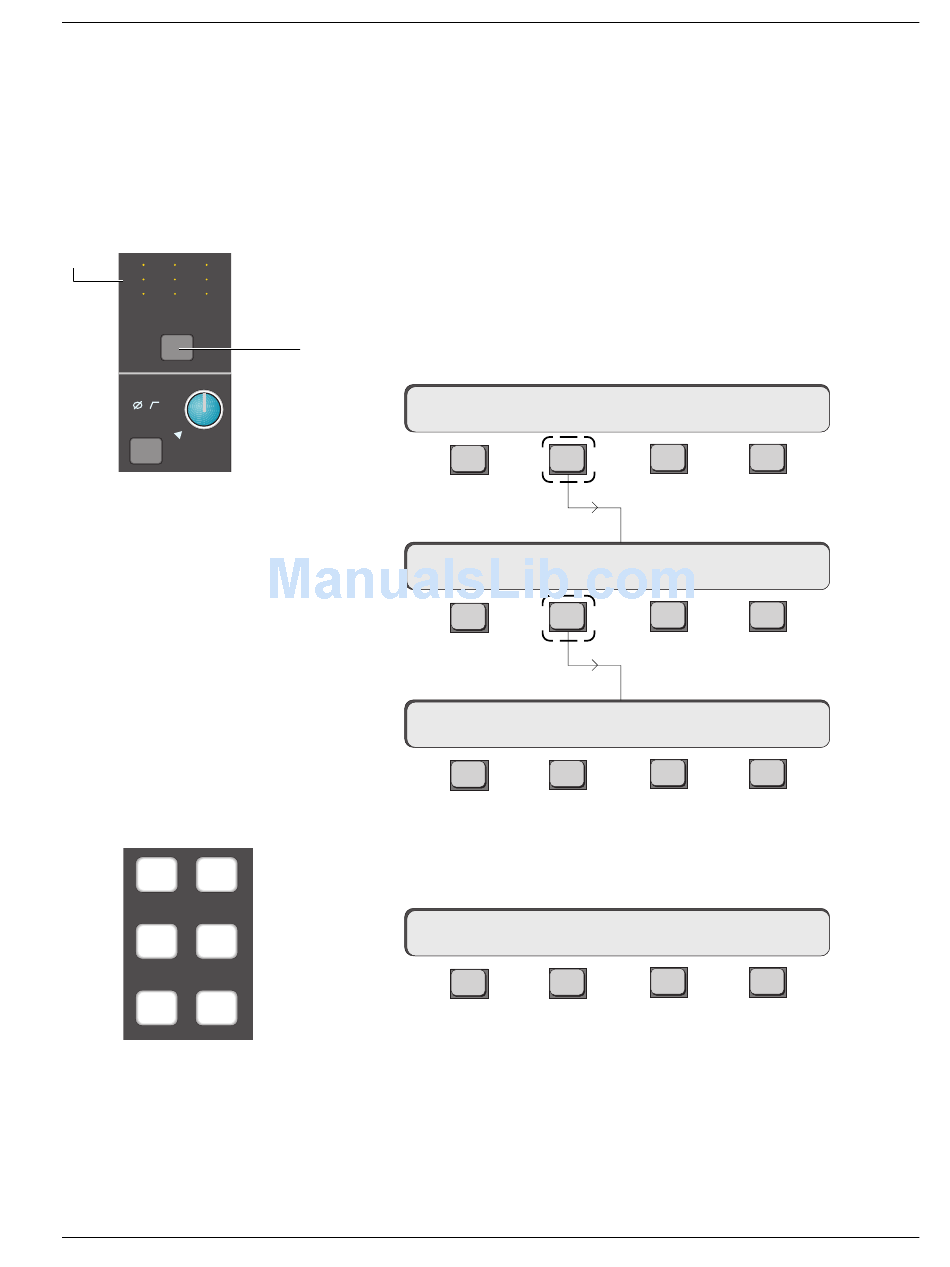

Press the channel block attention key at the top of channel 16.
16CH–>
Press [F2] to select F1
the Output menu:
16CH–>
F1
16CH–>
F1
Select [M1] using the DSC Dedicated Keys. M1 is now routed to Output 1. This
is indicated in the SmartDisplay and in the Out1 display at the head of the
channel.
16CH–>
F1
Press [Esc] once to return to the Output menu and then F3 to select the Source
menu for Output 2. Select [M2] as the source for Output 2.
OUTs METER
F2 F3
OUT1 OUT2
F2 F3
OUT1
F2 F3
OUT1 M1
F2 F3
