View the Template

Bus 1 ->
F1
Press [F1] (Standard):
"Standard" Cube Input
Assignment Template
M-56 Cube Input Assignment
Template
Euphonix CS3000/2000 Operation Manual
To view the Cube Input Assignment Templates, press the [Bus Master] DSC
key:
OFF
F2 F3 F4
Standard
F1 F2
Sys:
Use [F2] to select the system type and [F3] to select the system size. Then
press [F4] to confirm.
Cube cabling designs and templates exist for every available factory standard
console - Cube combination, as well as most custom configurations. What you
actually see in the template will depend on the type of system, the number of
console audio faders and Cube inputs.
It would be difficult to show templates for every style and size of system here
but we will review some of the more common ones.

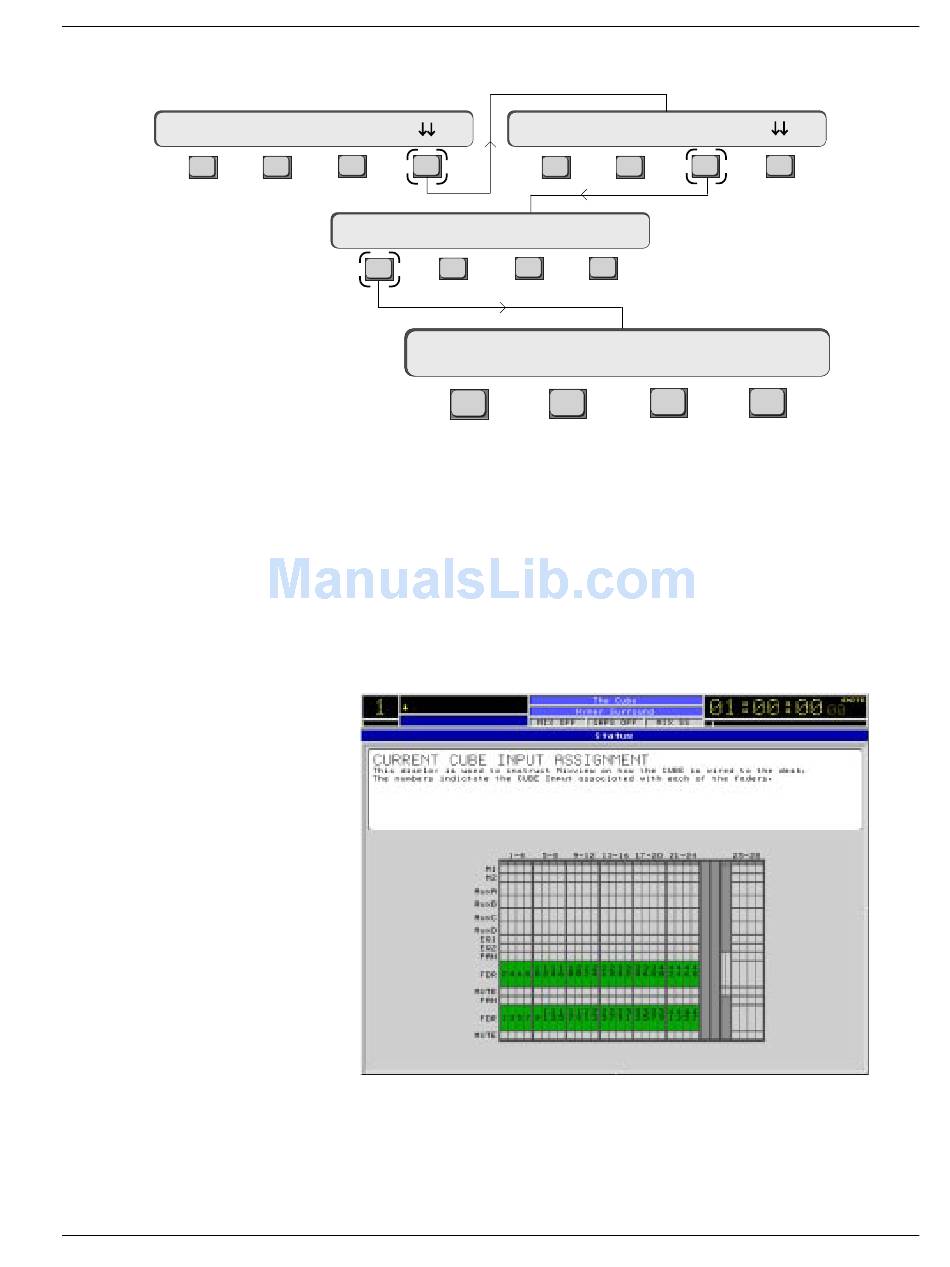

The diagram above depicts a 56 fader M system. M systems typically send
both upper and lower faders to the Cube. Since there are a maximum number
of 48 Cube inputs, the last 4 upper and 4 lower faders will not reach the Cube.
I/O Bus
F1 F2
Special
F3 F4
F
F1 F2
