Section 7: Automation
DSC Dedicated
Automation Keys
Input
M1 M2
M1 M2
L1 L2
L1 L2
L3 L4
L3 L4
BUS
A1 A2
PAN BAL
A3 A4
ovld
A5 A6
EQ•Dyn
A7 A8
1 L
2 R
M1 M2
L1 L2
BUS L3 L4
DIR
BUS
ST1
A1 A2
ST2
A3 A4
A5 A6
A7 A8
PFL
Block
AFL
attention
keys
Grp
ON
1. [Attn]: When lit, console is in Attention mode. Dark grey block keys on I/O function as Attention keys.
2. [Pnch]: When lit, console is in Punch mode. Dark grey block keys on I/O function as Automation Punch keys.
3. [Tplt]: Accesses template screen/SmartDisplay for viewing and configuring the various system templates.
4. [Auto SS]: When lit, snapshot recalls are recorded to timecode. Screen display shows recorded event list.
5. [Mix On]: Turns Mix On when a title is loaded.
6. [Pass Rec]: Indicates when automation is armed. Also initiates a new pass without stopping the tape.
7. [Pass Ctrl]: Accesses Automation Viewer screen of pass tree, cues, automated SnapShots and mix moves.
8. [Set]: Template "Set" mode. Automation will not play back on an object in Set mode.
9. [Iso]: Template "Isolate" mode. Isolates entire channel from automation Punch-in and SnapShot Recall.
10. [Dyn]: Template "Dynamic" mode. Allows automation playback & record on a console object.
11. [Safe]: Template "Safe" mode. Locks console objects into their Set, Iso, and Dyn modes.
12. [Fader/A]: Object Select key. Selects fader and Aux A for punch-in and template configuration.
13. [Pan/B]: Object Select key. Selects pan and Aux B for punch-in and template configuration.
14. [On/C]: Object Select key. Selects On and Aux C for punch-in and template configuration.
15. [D] (EQ/D): Object Select key. Selects Aux D and EQ for punch-in and template configuration.
16. [Trim]: Automation Trim mode. Retains move data but allows relative level trim of element in record.
17. [ATO]: Currently unused.
18. [W in]: Write In. When lit, the object's level/position at punch out will be written back to 00:00:00.00.
19. [W out]: Write Out. When lit, the object's level/position at punch out will be written out to 24:00:00.00.
20. [ABS Offset]: Currently unused.
21. [MBR]: Monitor Before Record key. Allows audio preview before automation write.
22. [Move Rec]: Activates touch-record feature of the DSC moving faders.
23. [Glide]: Currently unused.
24. "All" keys: Applies in template modes, object selections and punch-in to all upper, all lower or all auxes.
7 - 8

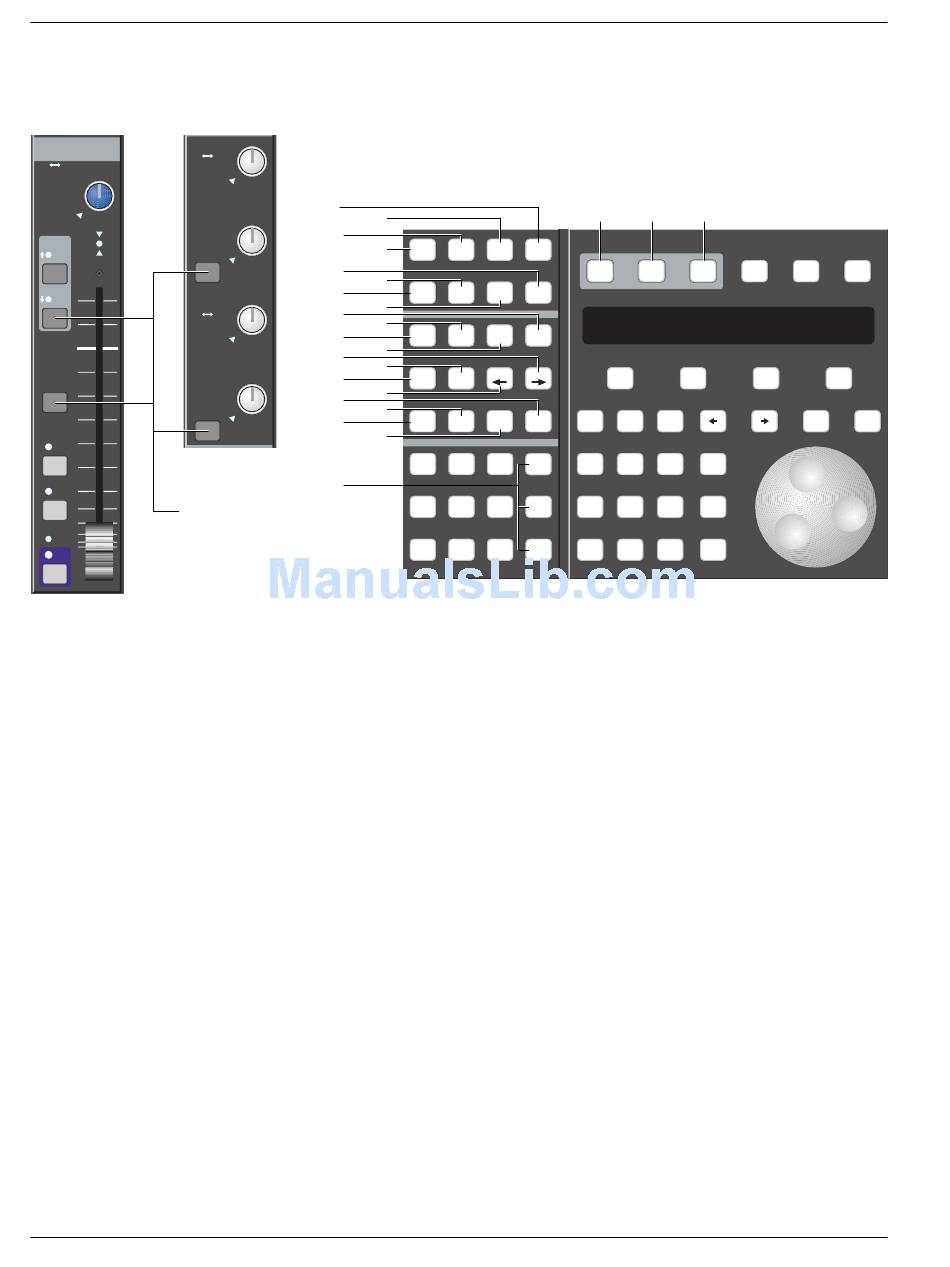

At the bottom of the DSC, are the Dedicated Automation keys. This is the
main control area for the automation system. The Dedicated Automation
keys and their functions are listed below. Mix On, Pass Rec, Pnch, and at
least one of the four Object Select Keys must be lit for automation to record
your moves. The Attn, Pnch and Tplt keys change the function of the console
A
block attention keys when in Pass Record mode.
PAN BAL
ovld
4
3
B
2
1
11
9
8
C 10
15
13
14
PAN BAL
19
ovld
17
16
D
18
23
21
20
22
24
Attn Pnch Tplt Auto
SS
Set Iso Dyn Safe
Fader Pan On
A B C D
Trim ATO W in W out
Abs MBR Move Glide 7
Offset Rec
M1 M2 DIR All
4
aux
L1 L2 ST1 All 1
upper
L3 L4 ST2 All
0
lower
Euphonix CS3000/2000 Operation Manual
5 6 7
Mix Pass Pass Grps
On Rec Ctrl
Setup Snap System
F1 F2 F3
8 9
+
5 6
Bus
-
2 3
DIR
Enter Del *
ST
Mtrs
Grps
F4
Clr Esc
