Stereo Dynamics Insert - Euphonix CS3000 Operation Manual

Section 9: Dynamics

Stereo Dynamics Insert

M1
M2
M1
M2
M1 PWR
M2 PWR
9 - 22

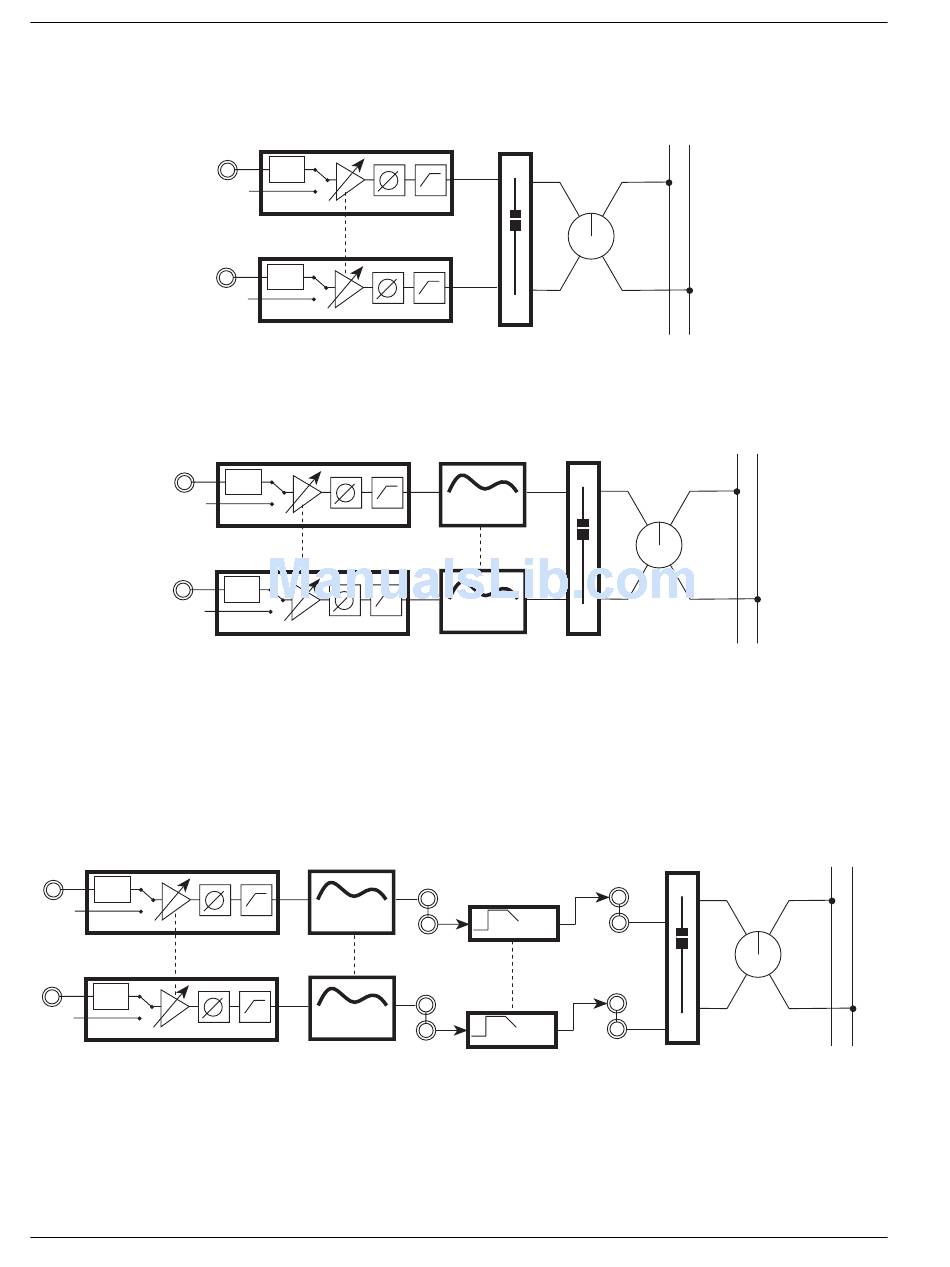

If two dynamics are available then they can be configured as one per fader
(upper and lower) or a single stereo dynamics unit on either fader. Set up a
stereo signal path:
PWR
Stereo Links
PWR
Now put a stereo EQ on this path by sourcing EQ1 from M1 and EQ2 from M2.
The EQs must be linked using the [*ST] key:
PWR
Stereo Links
PWR
To insert a stereo pair of dynamics that have been wired between OUT1/L1
and OUT2/L2, source OUT1 from M1 and OUT2 from M2. This sends the EQ'ed
M1 and M2 signal out to the dynamics inputs (Outs are post-EQ and pre-fader).
Now source the fader from L1 and L2 rather than M1 and M2. The fader will
now pick up the output of the dynamics.
EQ1
4 Band EQ
Stereo Links
4 Band EQ
EQ2
Dynamics inserted post-EQ
BAL
LF
EQ1
4 Band EQ
4 Band EQ
LF
EQ2
OUT1
DYN 1
DYN
OUT2
DYN
DYN 2
