Section 4: Tutorial

Talkback

ST1 A1 A3 A5
ST2 A2 A4 A6
BUS
Talkback/Oscillator
block attention key
1
2
4
6
8
ComMic
Talk
Talkback Mic
On keys

Oscillator

ST1 A1 A3 A5 A7
Patch
ST2 A2 A4 A6 A8
TB MIC
BUS
Oscillator
Talkback Menu
Oscillator Menu
4 - 50
While we are in the Master menu it is worth looking at a couple of the other
available options. Return to the Master menu by [Esc]aping back to the top-
level menu and pressing [F1] (Setup) and then [F1] (Mstr):
TB
F1
We have already looked at the EXT menus so let's examine the Talkback
options. Press [F1] or the Talkback/Osc block key:
mTB–>
F1

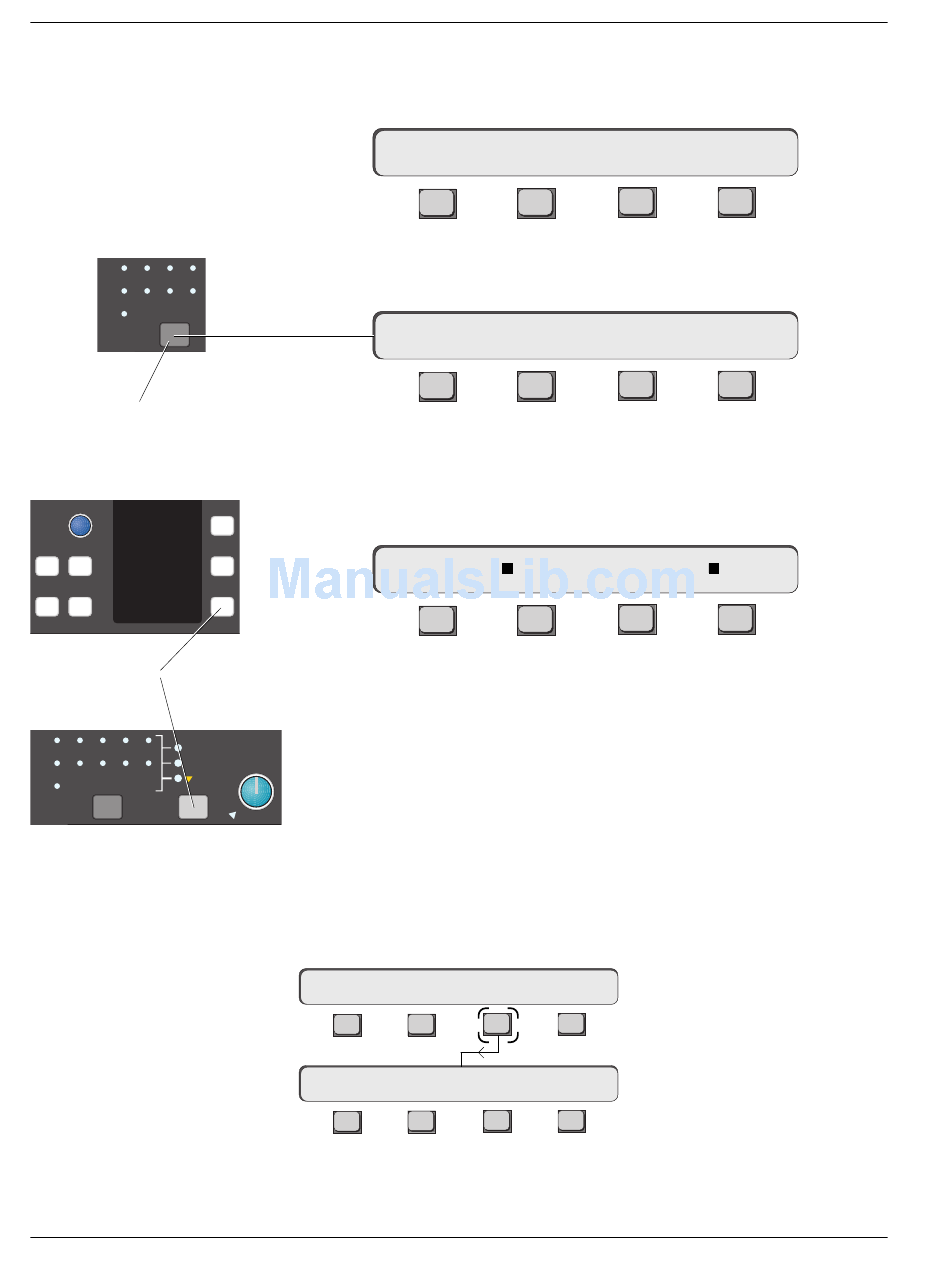

The menus allow up to three sources (Talkback mic, Oscillator, and a patched
mono external input) to be routed to the aux, multitrack, and main output
buses. The mic is keyed when either of the talkback ON keys is pressed. Press
[F2] to select which sources are to feed the buses:
mTB–>
F1
F2, F3, & F4 toggle the three sources on and off in any combination. For
example, F2 & F4 could give you talkback with a slate tone. Remember that
the SnapShot Recall system will store these settings with each snapshot.
Selected sources are indicated with a square in the SmartDisplay, as shown
above, and by lit LEDs in the talkback block.
The PATCH input allows any source to replace or add to the other two
sources such as a pink noise generator. It can be found on the lower row,
jack 92, of the Master patchbay (page 5-12). The talkback mic plugs into the
XLR input under the Mix Controller and is selected by pressing [F4].
From the Talkback menu, press [F4] (OSC):
mTB–> SRC
F1 F2
mTB–> OSC
F1 F2
EXT1 EXT2
F2 F3
SRC OSC
F2 F3
OSC PATCH
F2 F3
OSC ASGN
F3 F4
FREQ LEVEL
F3 F4
