Section 4: Tutorial
Universal Input
Amplifiers (UIAs)
M1 & M2
M1
Pwr
Pad
ovld
Mix Pass Pass Grps
On Rec Ctrl
Setup Snap System
F1 F2 F3
7 8 9
+
4 5 6
Bus
-
1 2 3
DIR
0 Enter Del *
ST
low gain
high gain
med gain
Stereo link asterisk above F2
SIDE NOTE:

Bus/Tape switching

Multitrack Return
PWR
M2
From Bus Summing Amp
4 - 10

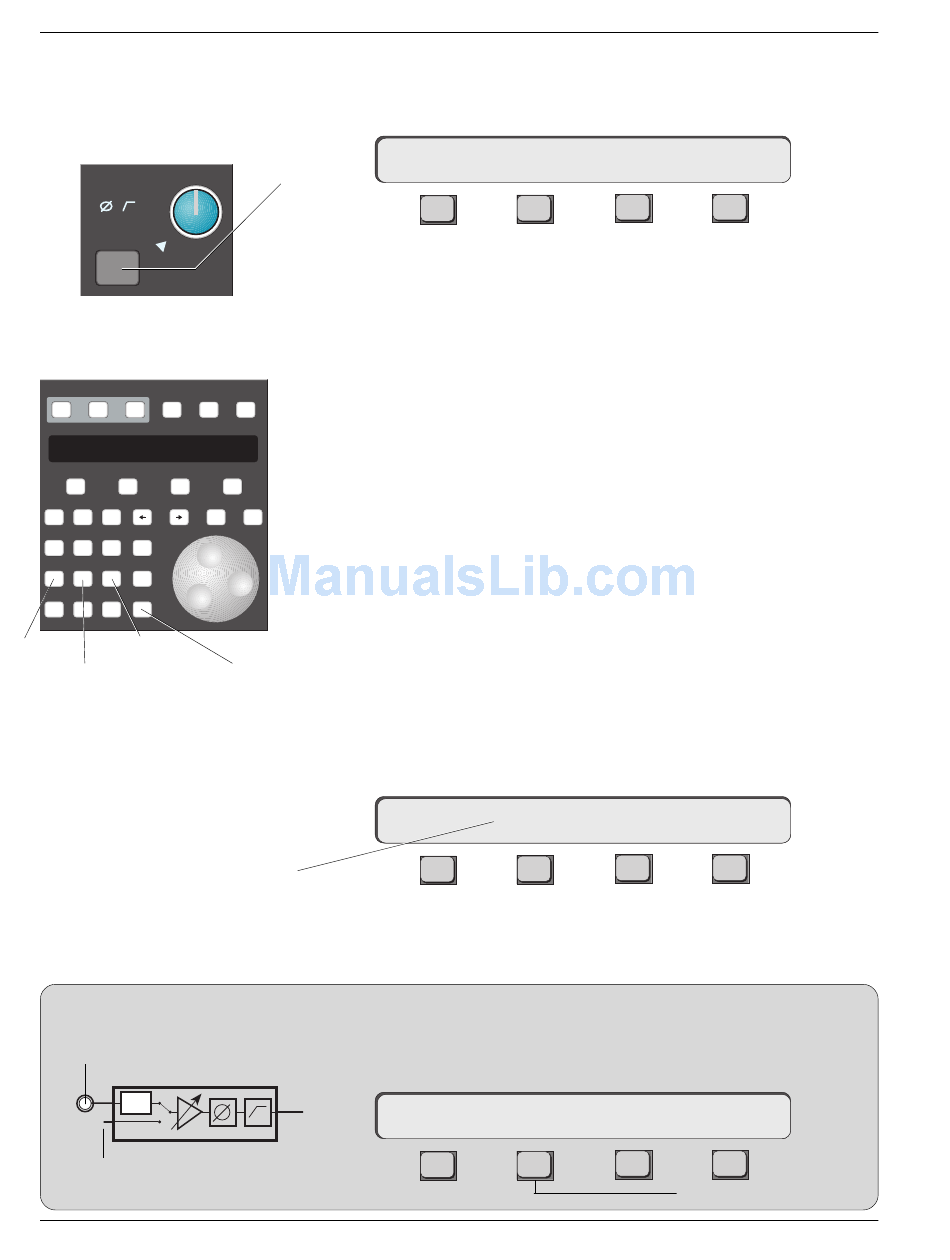

Let's return to the channel and adjust the input levels to assure a reasonable
gain structure. To do this we need to look in more detail at the Universal
Inputs (M1 & M2). Press M1's block key to access its control parameters.
U.I.A. Menu
Notice that the actual gain level is shown in dB, and that the level in the
display changes along with the signal level of the left channel as you rotate
the gain pot. The input amps can toggle between 3 gain ranges by pressing
keys 1, 2, or 3 on the numeric keypad or by pressing the DSC [+]/[–] keys. The
ranges are:
1/Low
2/Med
Mtrs
3/High
Grps
Set the gain now by turning the M1 gain pot until the null indicator goes out,
F4
and then adjust the level while watching the meters (about +12dB for a CD
player). If the gain is set too high, the clipping indicator will light in the
Clr Esc
respective input block. Clip Indicator threshold adjustment is covered later in
this section.
When using the two U.I.A.s as a stereo source (as we are), it may be prefer-
able to lock the two gain controls together to form a single stereo input gain
control. To do this, press the M1 or M2 block key. Press the [*ST] key on the
Stereo Link
Master Control Panel. This will lock the two controls, disable the M1 level
control, and allow the M2 level control to be the master. You should see an
asterisk (*) in the SmartDisplay above F2 and the null indicator on the M1
control becomes permanently lit, indicating that the M1 control is disabled.
They can be unlinked simply by pressing the [*ST] button again when in M1 or
M2 input menus. The * indication in the display goes away to show that the
input blocks are now separately controlled.
The M2 input can monitor the channel's bus signal. Press M2's block attention
key, then press [F2] below the SmartDisplay. If the multitrack return is
normalled into M2 then [F2] acts as a bus/tape switch.
16M1–> low/
F1 F2
0.0dB to +24.0dB
+20.0dB to +44.0dB
+40.0dB to +64.0dB
16M1–> *low/
F1 F2
16M2–> Bus/
F1 F2
Euphonix CS3000/2000 Operation Manual
0.0dB Cnfg
F3 F4
(lights PAD LED in M1 or M2 block)
(PAD LED off)
(PAD LED off)
4.0dB Cnfg
F3 F4
4.0dB Cnfg
F3 F4
Acts as bus/tape switch
