Appendix 8: Audio Tower Dimensions
Audio Tower
Dimensions
A - 10

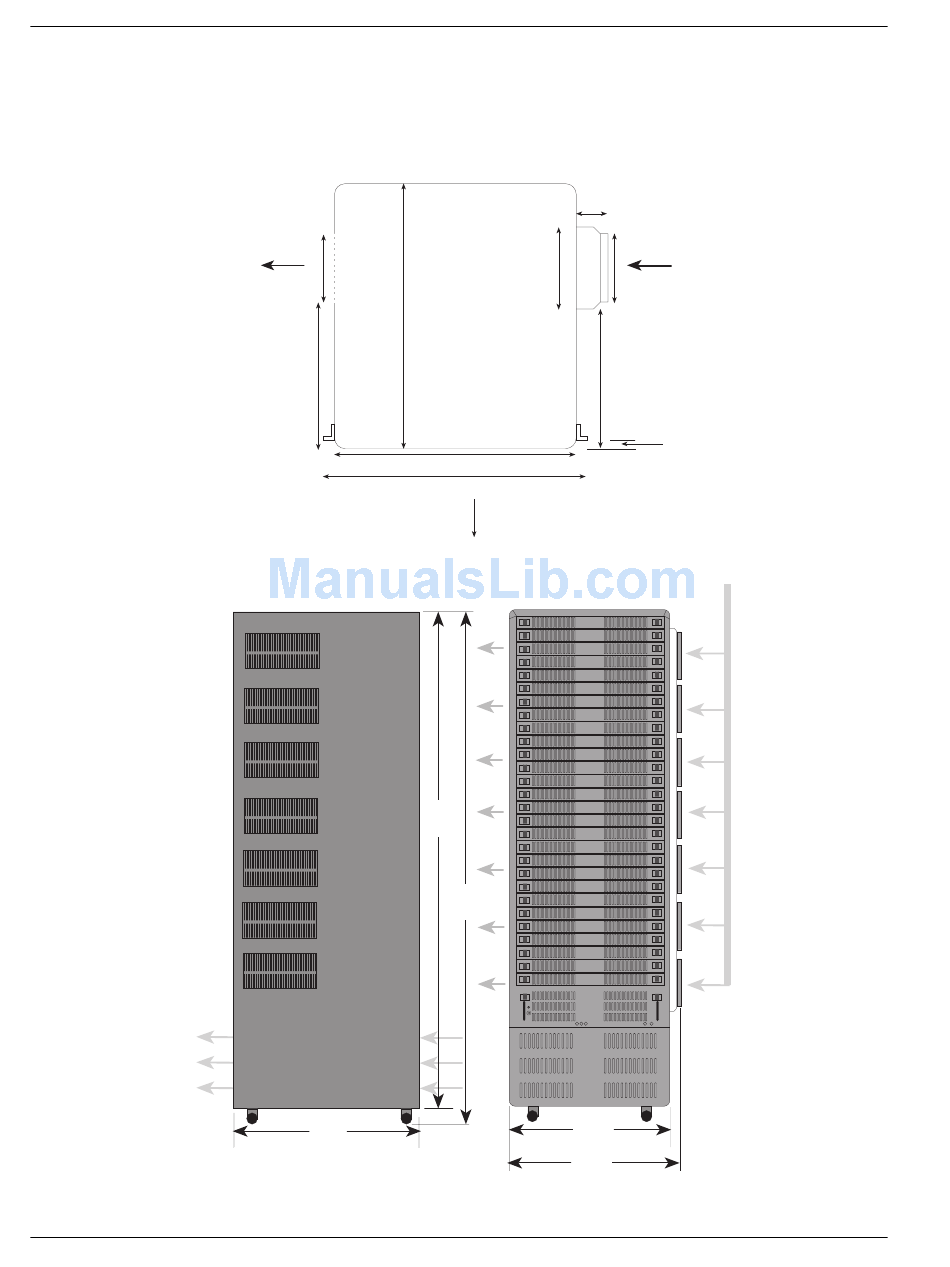

The illustration below shows the dimensions and air flow for the Euphonix
Audio Tower. The fans can be mounted on either side of the Tower enclosure.
For twin Tower systems you should make sure that the exhaust of the first
Tower is not blowing into the intake vents of the second.
Air Flow
Through
Side Vents
4.8"
122mm
10.6" 19.0"
270mm 483mm
19.0" / 483mm with Optional Rack Mount Flanges
Air Flow
Through Module
Front Vents
Left Side View
Power Supply
Tunnel Exhaust
19.00"
(483mm)

Audio Tower Dimensions

Back
2.2"
56mm
5.9"
150mm
Audio Tower
View from
Above
17.4" / 442mm
Front View
50.70"
(1288mm)
29U
53.00"
(1346mm)
(with casters)
17.40"
(442mm)
20.00"
(including fans)
Euphonix CS3000/2000 Operation Manual
Air Flow In
5.0"
126mm
10.2"
258mm
0.8"
20mm
Air Flow
