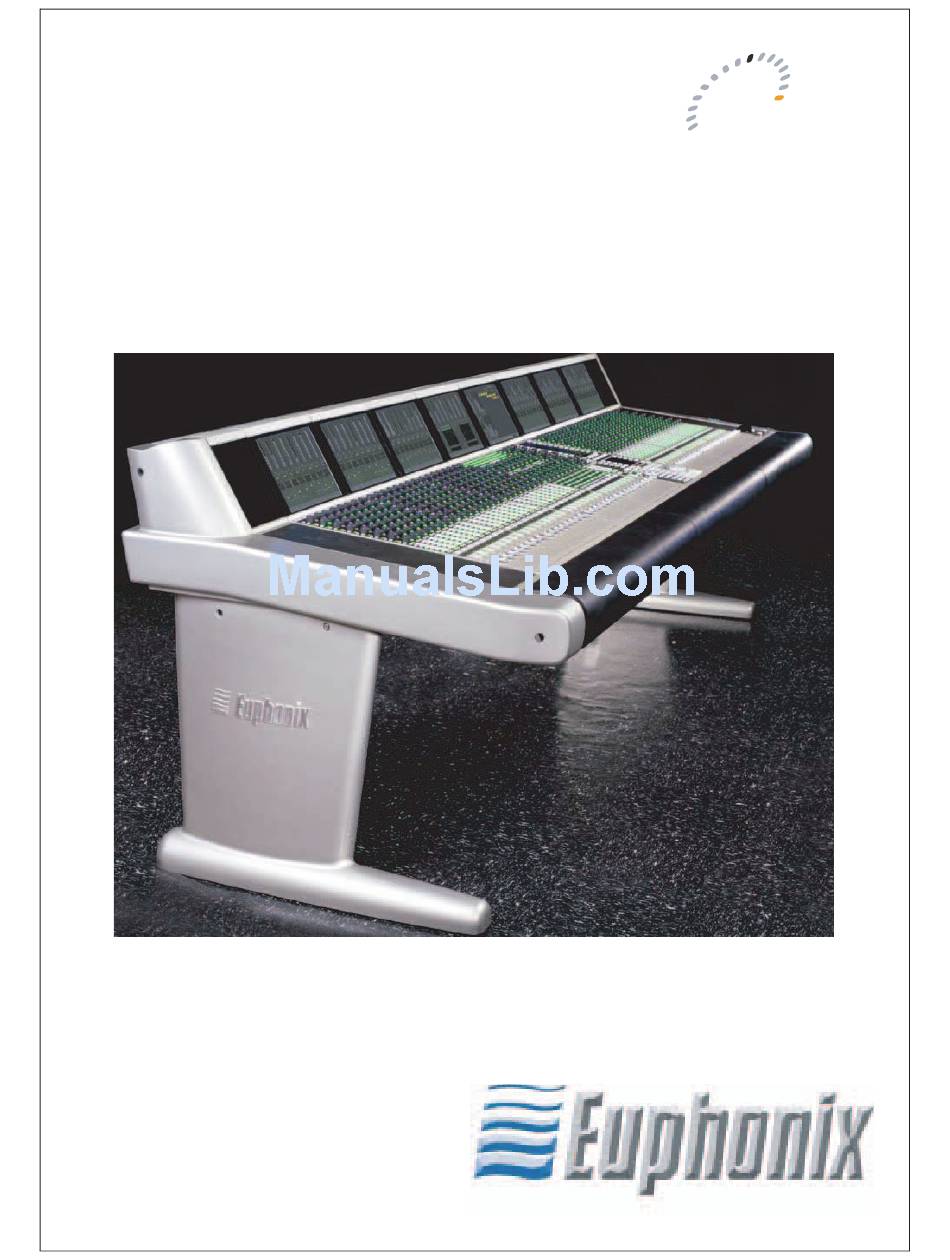

- Page 1 Euphonix System Installation Guide Document Revision: 2.5 Part Number: 840-07591-05 Release Date: March, 2007 Euphonix, Inc. 220 Portage Ave. Palo Alto, California 94306 Phone: 650-855-0400 Fax: 650 -855-0410 Web: http://www.euphonix.com e-mail: info@euphonix.com...
- Page 2 System 5, S-5, PatchNet, eMix, EuCon, R-1, Audio Deck, Studio Hub are trademarks of Euphonix, Inc. ©2002 Euphonix, Inc. All rights reserved worldwide. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without written permission of Euphonix, Inc.
-
Page 3: Table Of Contents
Number of CM408T Eight-channel Sections ..........14 I/O Specification ..................15 Chapter 2: Interconnecting System Components ..........17 Component Specifications ..................17 Typical Room and Equipment Layout for System 5 ..........20 Typical Console Layout ..................20 Console Dimensions ...................21 Suggested Rack Elevations .................23 Audio Hookup.....................25 Synchronization Hookup ..................26... - Page 4 Euphonix System 5 Installation Guide Chapter 3: System 5 Components ................33 DF66 SuperCore....................33 Sync Card....................35 DSP Line Card..................35 SP661 Signal Processor ................35 System 5 Console....................36 SC263 System Computer ..................38 PC254i Interface Computer ................39 MC524 Monitor Interface ...................40 Input/Output Connections ...............41 ML530 Mic/Line Interface .................46...
-
Page 5: List Of Figures
Euphonix System 5 Installation Guide List of Figures Typical Room and Equipment Layout for System 5 ............20 System 5 Console ......................20 Console Dimensions - Top ....................21 Console Dimensions - Side ....................21 Console Dimensions - Top..................22 S5MC S5MC Console Dimensions - Side.................. - Page 6 Euphonix System 5 Installation Guide 3-18 Failover Switch........................48 3-19 AM713 Front Panel ......................49 3-20 AM713 Rear Panel ......................50 3-21 MA703 Front Panel ......................52 3-22 MA703 Rear Panel ......................53 3-23 DM714 Front Panel ......................55 3-24 DM714 Rear Panel ......................56 3-25 DM714 Parallel AES/EBU Digital Inputs: Female DB-25 ..........57...
- Page 7 List of Tables DF66 Requirements ...................... 14 Summary of System 5 Components ................16 System 5 Components: Dimensions, Power Consumption, Heat Dissipation ....17 Fuse Ratings for System 5 Components ................ 19 Switch Functions ......................37 In 1 Elco 38 Pinout ......................41 In 2 Elco 90 Pinout ......................
- Page 8 Euphonix System 5 Installation Guide This page is intentionally blank. viii...
-
Page 9: Chapter 1: System 5 Overview
Chapter 1: System 5 Overview This chapter explains the basic elements of any digital audio mixing system and introduces the components of System 5. It concludes with a section explaining how to estimate your system’s requirements. Chapter 2: Interconnecting System Components illustrates how to connect the components, where to locate them, and lists technical information about the components. -
Page 10: Analog And Digital I/O
Euphonix System 5 Installation Guide System 5 Overview Inputs System 5 inputs may be mono, stereo, or any format up to 7.1, which means that a single input may use one to eight logical channels. Physical Faders Each CM408T Eight-channel Module contains eight physical faders. Each fader can control two inputs using a Swap button that switches the fader between the Swap and Main inputs. -
Page 11: Mic Inputs
Digital Sync A high quality digital sync source is required for the System 5 console. Some facilities may already have a digital master clock or house reference in place but others may require one. Euphonix has tested several digital sync generators and distribution amplifiers and can supply... -
Page 12: System Control Connections
Euphonix System 5 Installation Guide System 5 Overview We recommend following these guidelines: • It is important to minimize the timing differences between signal paths to avoid cumulative timing errors. It is good system engineering practice to send sync signals to all system components from one source. - Page 13 Euphonix System 5 Installation Guide System 5 Overview GPIO Control The GP132 provides GPIO control for the system. The GP132 connects via MIDI in and out to a MIDI Interface (supplied). This interface is connected to the SC263 System Com-...
-
Page 14: Estimating System Requirements
This section helps estimate the system requirements for a particular installation. Contact a Euphonix representative for an exact specification. Use following categories to determine the System 5 components necessary for your studio. Most of the studio details considered here are relevant to any digital mixing system. -
Page 15: I/O Specification
Euphonix System 5 Installation Guide System 5 Overview I/O Specification When considering I/O requirements, count the number of analog and AES/EBU inputs and outputs required to hook up all equipment and auxiliary panels for extra equipment. Do not specify I/O from the console perspective. For example, it is not efficient to specify one an- alog input and one analog output to be used as an insert point for each channel input. -
Page 16: Summary Of System 5 Components
Euphonix System 5 Installation Guide System 5 Overview Table 1-2 Summary of System 5 Components Component Function Number Notes CM401T Ethernet devices. CM40 1T includes Master Module These two modules make up the center section CM401T is TB Mic and expansion port for TB of the S5 console. -
Page 17: Chapter 2: Interconnecting System Components
Chapter 2: Interconnecting System Components This chapter summarizes technical information for System 5’s components, including size, weight, power consumption, cooling, and fuse requirements and shows their interconnections. To plan an installation, examine Figure 2-1 to learn about suggested equipment locations. - Page 18 Euphonix System 5 Installation Guide Interconnecting System Components 17”/432 mm 3.5” 17 lb MC524 18.5” 70 W 240 BTU/hr (19”/483 mm 89 mm 7.7 kg 470 mm Monitor Interface faceplate) 3.5” 17”/432 mm ML530 18.5” 17 lb 345 BTU/hr 100 W 89 mm (19”/483 mm...
-
Page 19: Fuse Ratings For System 5 Components
Euphonix System 5 Installation Guide Interconnecting System Components Table 2-2 Fuse Ratings for System 5 Components How to Change Component 100/115/120 VAC 220/230/240 VAC Voltage Setting CM401T T5 A T5 A autoranging CM402T T5 A T5 A autoranging CM403 T5 A... -
Page 20: Typical Room And Equipment Layout For System 5
Euphonix System 5 Installation Guide System 5 Components Typical Room and Equipment Layout for System 5 Figure 2-1 Typical Room and Equipment Layout for System 5 Typical Console Layout Figure 2-2 System 5 Console... -
Page 21: Console Dimensions
Euphonix System 5 Installation Guide Interconnecting System Components Console Dimensions 72.0 41.0 Figure 2-3 Console Dimensions - Top 30.5 39.5 29.5 24.2 Figure 2-4 Console Dimensions - Side... -
Page 22: S5Mc Console Dimensions - Top
Euphonix System 5 Installation Guide Interconnecting System Components Figure 2-5 S5MC Console Dimensions - Top Figure 2-6 S5MC Console Dimensions - Side... - Page 23 Euphonix System 5 Installation Guide Interconnecting System Components 1.75 2.43 120.0 9.12 9.69 24.63 60.0 100.0 1.61 3.08 2.49 29.52 11.96 33.65 Figure 2-7 CM40x Module Dimensions...
-
Page 24: Suggested Rack Elevations
Euphonix System 5 Installation Guide Interconnecting System Components Suggested Rack Elevations Leave Open EuCon Switch SC263 System PC Leave Open TT007 MIDI Interface Eucon Switch SC263 System PC DF66 SuperCore 1 TT007 Failover Switch MIDI Interface DF66 SuperCore DF66 SuperCore 1A... -
Page 25: Audio Hookup
Euphonix System 5 Installation Guide Interconnecting System Components Audio Hookup Microphone ML530 AM713 OUTPUTS INPUTS 48 Analog 1-12 48 Analog 13-24 Studio Mic Lines ML530 OUTPUTS INPUTS AM713 48 Analog 1-12 1-48 13-24 Mic Line Interface Analog to MADI Digital I/O... -
Page 26: Synchronization Hookup
Euphonix System 5 Installation Guide Interconnecting System Components Synchronization Hookup AM713 OUTPUTS ML530 INPUTS 1-12 W/C In Maximum Cable Distances: 13-24 Word: 165 ft (50 m) Alternate Sync Distances: AM713 ML530 OUTPUTS INPUTS 1-12 W/C In AES 110 ohm: 328 ft (100m) -
Page 27: Recommended Sync Distribution Method
• These sync generators may be set to internal or gen-locked to a video reference. • Use a Euphonix recommended distribution amp (see next page) to feed all sys- tem components and additional studio devices directly. • Cable runs from the master clock to the distribution amps should be equal in length (AES11-1997, 5.4) - Page 28 Euphonix System 5 Installation Guide Interconnecting System Components System Components That Require Digital Sync • DF66 DSP Cores • AM713 Analog to MADI Converters • MA703 MADI to Analog Converters • DM714 AES to MADI Converters • MD704 MADI to AES Converters •...
-
Page 29: Madi Hookup
Euphonix System 5 Installation Guide Interconnecting System Components MADI Hookup DF66 with 1 DSP Maximum MADI Line Card Cable Distance: 165 ft (50m) Source Destination DF66 MADI Inputs MADI Outputs MADI Inputs MADI Outputs MA703 MADI to Analog Converter for MC524... - Page 30 Euphonix System 5 Installation Guide Interconnecting System Components MA703/MC524 Sources Destinations Euphonix Failover DF66 #1 DF66 #1 Switch Outputs Inputs DF66 #1A DF66 #1A Outputs Inputs Figure 2-13 Failover System MADI Connections...
- Page 31 Although maximum recommended distan- ces over copper can be exceeded with the use of high performance compo- nents (including cables), it is not Euphonix's intention to endorse any particular brand or method of achieving the end result.
-
Page 32: Control Hookup
Euphonix System 5 Installation Guide Interconnecting System Components Control Hookup ESBus Lynx Sony 9-pi n Up to six additional Mic/Line Devices Interfaces TT007 Maximum Distances OUTPUTS INPUTS ML530 M2 In M2 Out 1-12 Ethernet: 100 m (330ft) 13-24 TCC Control: 228.6 m (750ft) USB: m (16.5ft) -
Page 33: Chapter 3: System 5 Components
Euphonix System 5 Installation Guide System 5 Components Chapter 3: System 5 Components This chapter discusses the System 5 components and all connectors necessary for operation. Pinouts for user-wired connections are shown for each component, along with the cables and connectors provided by Euphonix. -
Page 34: Sp662, 6X6 Bridge, And Sync Cards
Euphonix System 5 Installation Guide System 5 Components Figure 3-2 SP662, 6x6 Bridge, and Sync Cards... -
Page 35: Sync Card
Euphonix System 5 Installation Guide System 5 Components Sync Card AES Sync In (BNC): The DF66 SuperCore clocks to the signal at this port when the sync source is set to AES Sync. Connect this port to a digital sync reference. -
Page 36: System 5 Console
16-port BNC Bulkhead Panel System 5 Console The System 5 Console consists of several modular components: the CM401T and CM402T (console center section), the CM408T (contains eight physical faders and controls), the CM403 (contains the joystick panner panel and film monitor panel), and the CM409HTP Track Panner Module. -
Page 37: Typical Talkback Wiring
Euphonix System 5 Installation Guide System 5 Components Pin # Signal LED 1 output (active low) Switch 1 input (active high) LED 3 output (active low) Switch 3 input (active high) LED 5 output (active low) Switch 5 input (active high) -
Page 38: Sc263 System Computer
Euphonix System 5 Installation Guide System 5 Components SC263 System Computer ¡ Figure 3-7 SC263 Front and Rear Panels VGA Connector (DA-15): Main video monitor connection. Keyboard (PS/2): Main keyboard connection. Mouse (PS/2): Main trackball connection. Serial Port 1 (DE-9):... -
Page 39: Pc254I Interface Computer
Euphonix System 5 Installation Guide System 5 Components PC254i Interface Computer INTERFACE PILOT COMPUTER 254i Figure 3-8 PC254i Front and Rear Panels TCC Main Port (Lower DC-62): Connect TCC breakout cable (provided) to this port. This cable breaks out to four DA-15 connectors that provide control hookup for the MC524 Monitor Interface and three ML530 Mic/Line Interfaces. -
Page 40: Mc524 Monitor Interface
Listen pre, two Talk Back pre and two Solo channels . Output cable fans out to eight male XLRs. Control (DA15): Input for digital control signal from Interface Pilot (Euphonix TCC bi-di- rectional serial protocol). All patching, switching, and gain controls are communicated via this connection. -
Page 41: Input/Output Connections
Euphonix System 5 Installation Guide System 5 Components Input/Output Connections Table 3-2 In 1 Elco 38 Pinout Crk # Designator 24 X 32 High Talk 1 Talk 2 Listen 1 Listen 2 Listen 3 Listen 4 Figure 3-10 Elco 38 Connector, rear view... -
Page 42: Elco 90 Connector
Euphonix System 5 Installation Guide System 5 Components Table 3-3 In 2 Elco 90 Pinout Crk # Designator 24 X 32 High Cntrl Rm (L) Cntrl Rm (C) Cntrl Rm (R) Cntrl Rm (Sl) Cntrl Rm (Sr) Cntrl Rm (B) -
Page 43: Elco 90 Connector
Euphonix System 5 Installation Guide System 5 Components Table 3-4 Out 1 Elco 90 Pinout Crk # Designator 24 X 32 High BO11 Mon A (L) BO12 Mon A (C) BO17 Mon A (R) BO18 Mon A (Sl) BO19 Mon A (Sr) -
Page 44: Elco 90 Connector
Euphonix System 5 Installation Guide System 5 Components Table 3-5 Out 2 Elco 90 Pinout Crk # Designator 24 X 32 High BO31 Solo L BO32 Solo R Talk 1 Talk 2 Listen 1 Listen 2 Listen 3 Listen 4... -
Page 45: Out 3 Db-25 Pinout
Euphonix System 5 Installation Guide System 5 Components Table 3-6 Out 3 DB-25 Pinout Crk # Designator 24 X 32 High Solo L Solo R 10 9 8 Figure 3-14 DB-25 Connector... -
Page 46: Ml530 Mic/Line Interface
Euphonix System 5 Installation Guide System 5 Components ML530 Mic/Line Interface MIC LINE INTERFACE OUTPUTS INPUTS ML530 1-12 CONTROL 13-24 Figure 3-15 ML530 Front and Rear Panels Inputs (two 38-pin ELCO sockets): A total of 24 microphone inputs are received on two 38-pin ELCO connectors (connectors and pins provided). -
Page 47: Ml530 In 1/In 2 Pinout: Elco 38 Socket
Euphonix System 5 Installation Guide System 5 Components Signal Wiring Instruction & Description Mic In 1 / Mic In 13 From studio Mic 1 / 13 Mic In 2 / Mic In 14 From studio Mic 2 / 14 Mic In 3 / Mic In 15... -
Page 48: Failover Switch
Euphonix System 5 Installation Guide System 5 Components Failover Switch Figure 3-18 Failover Switch Network Port (RJ45): Connect to the Eucon Network Switch via the RJ-45 cable provided. MADI In / Out Ports (96 Combo D): Digital audio in and outs. See the MADI Hookup for details on these connections. -
Page 49: Am713 Analog To Madi Converter
Euphonix System 5 Installation Guide System 5 Components AM713 Analog to MADI Converter Front Panel Figure 3-19 AM713 Front Panel Signal Strength LEDs: Each of the 28 channels has a four-segment LED that represents the following signal levels: -42 dB, -18 dB, -6 dB (green), -0.05 dB (red). -
Page 50: Rear Panel
Euphonix System 5 Installation Guide System 5 Components Rear Panel AM713 DIGITAL ANALOG INPUTS INPUTS MADI Figure 3-20 AM713 Rear Panel Input Voltage Selector: This red switch allows the unit to operate in either 100/110/115 VAC or 220/230/240 VAC environments. A fuse must also be changed for 220/230/240 VAC operation. - Page 51 Euphonix System 5 Installation Guide System 5 Components MADI Out (BNC): Outputs the digital audio signal. 1–24: • Analog inputs 25–26: Aux analog inputs • • 27–28: Aux digital inputs NOTE: 28 channels are always transmitted; dual channels are not used.
-
Page 52: Ma703 Madi To Analog Converter
Euphonix System 5 Installation Guide System 5 Components MA703 MADI to Analog Converter Front Panel Figure 3-21 MA703 Front Panel Signal Strength LEDs: Each of the 28 channels has a four-segment LED that represents the following signal levels: -42 dB, -18 dB, -6 dB (green), -0.05 dB (red). -
Page 53: Rear Panel
Euphonix System 5 Installation Guide System 5 Components Rear Panel MA703 DIGITAL ANALOG OUTPUTS MADI OUTPUTS Figure 3-22 MA703 Rear Panel Input Voltage Selector: This red switch allows the unit to operate in either 100/110/ 115 VAC or 220/230/240 VAC environments. A fuse must also be changed for 220/ 230/240 VAC operation. - Page 54 Euphonix System 5 Installation Guide System 5 Components MADI In (BNC): Digital audio signal input. 1–24: analog outputs • 25–26: aux analog outputs • • 27–28: aux digital outputs.
-
Page 55: Dm714 Aes/Ebu To Madi Converter
Euphonix System 5 Installation Guide System 5 Components DM714 AES/EBU to MADI Converter Front Panel DIGITAL TO MADI Trim WORD 44.1 INTERNAL CUSTOM AUTO 9-16 17-24 TRIM CONV Figure 3-23 DM714 Front Panel Signal Strength LEDs: Each of the 28 channels has a four-segment LED that represents the following signal levels: -42 dB, -18 dB, -6 dB (green), -.05 dB (red). -
Page 56: Rear Panel
Euphonix System 5 Installation Guide System 5 Components Manual Selection Buttons: The button below each Sample Rate LED row manually selects the Sample Rate Source. The DM714 also allows manual selection of the Sample Rate. Power Switch: On/Off switch. Rear Panel... -
Page 57: Dm714 Parallel Aes/Ebu Digital Inputs: Female Db-25
Euphonix System 5 Installation Guide System 5 Components Word Out (BNC): Outputs a Word clock signal synchronized to the Sample Rate Source. In the presence of an external Word clock input, this connector provides a regenerated ver- sion of that input signal. Without an external sample rate source, this connector outputs the internally generated clock signal. -
Page 58: Md704 Madi To Aes/Ebu Converter
Euphonix System 5 Installation Guide System 5 Components MD704 MADI to AES/EBU Converter Front Panel MADI TO DIGITAL WORD 44.1 MADI AUTO CUSTOM TRIM Figure 3-26 MD704 Front Panel Signal Strength LEDs: Each of the 28 channels has a four-segment LED that represents the following signal levels: -42 dB, -18 dB, -6 dB (green), -.05 dB (red). -
Page 59: Rear Panel
Euphonix System 5 Installation Guide System 5 Components Rear Panel BIT-DEPTH REDUCTION MD704 PARALLEL AES/EBU INPUTS 7 / 8 5 / 6 3 / 4 5 / 6 7 / 8 3 / 4 DIGITAL AES/EBU OUTPUTS OUTPUTS MADI D1/D2... -
Page 60: Dm704 Parallel Aes/Ebu Digital Outputs: Female Db-25
Euphonix System 5 Installation Guide System 5 Components MADI In (BNC): Digital audio signal input. 1–24: • main digital outputs 25–26: aux analog outputs • • 27–28: aux digital outputs Bit-Depth Reduction: Sets the resolution to 16, 20, or 24 bits for the main AES/EBU channels. -
Page 61: Fc726 Format Converter
MADI A In 1 / MADI A Out 1 (two BNC): The MADI A In/Out Ports interface with non-Euphonix MADI devices. At 48 kH z, MADI A provides 56 channels of 24-bit audio; at 96 kHz, 28 channels of 24-bit audio channels (cable not provided). - Page 62 Euphonix System 5 Installation Guide System 5 Components SDIF-2 or Slave Clock In (BNC): This connector can receive either an SDIF or Slave Clock Sync signal (the FC726 automatically detects the signal type). An SDIF device must send a Word Sync signal to this connector to interface properly. Slave Clock is a sync signal (commonly implemented in Pro Tools systems and referred to as a super-clock) that runs at 256 times the sample rate.
-
Page 63: Aes/Ebu Db-25 Pinout
Euphonix System 5 Installation Guide System 5 Components Table 3-7 AES/EBU DB-25 Pinout Description Pin 1 Pin 2 Channel 1 / 2 In (COLD) Pin 3 Channel 3 / 4 In (GND) Pin 4 Channel 3 / 4 In (HOT) -
Page 64: Common Dd-50 Connector Pinout And Usage With Third-Party Devices
Euphonix System 5 Installation Guide System 5 Components Table 3-8 Common DD-50 Connector Pinout and Usage With Third-party Devices Common Connector (DD50 Female) SDIF usage TDIF usage ProDigi usage ADAT usage Pin # 1 In 1+ In 1+ In 1+... -
Page 65: Fc726 Tdif Cable Wiring Specification
Euphonix System 5 Installation Guide System 5 Components Table 3-9 FC726 TDIF Cable Wiring Specification Connector Pin Connection Description 1 NC 2 J2-1 In 1/2 3 NC 4 J2-2 In 3/4 5 NC 6 J2-3 In 5/6 7 NC 8 J2-4... - Page 66 Euphonix System 5 Installation Guide System 5 Components This page is intentionally blank.
-
Page 67: Fc726 Sdif Cable Wiring Specification
Euphonix System 5 Installation Guide System 5 Components Table 3-11 FC726 SDIF Cable Wiring Specification Connector Pin Connection Description In 1+ 1 J4-2 In 1- 2 J4-1 In 3+ 3 J4-6 In 3- 4 J4-5 In 5+ 5 J4-10 In 5-... -
Page 68: Gp132
Euphonix System 5 Installation Guide System 5 Components GP132 MIDI N.O. C.C. SysX EsBus EAddr Clear All Relays Only Setup GP132 Relays + Tallies NAddr S / R T: pulse T: -ve R: pulse R: NC GP132 MIDI AC I... -
Page 69: Connector Pinouts (Db-25 Rt1-Rt4)
Euphonix System 5 Installation Guide System 5 Components Connector Pinouts (DB-25 RT1–RT4) Table 3-12 GP132 Outputs Common Common Common Common Table 3-13 GP132 Inputs 3,6,9,12,14, Common Common Common Common 17,20,23 WARNING: If power fails on the GP132, none of the relays will function. After restoring... -
Page 70: Tt007
Euphonix System 5 Installation Guide System 5 Components TT007 The TT007 is an optional rack-mount device that provides machine control for all Eu- phonix consoles. The TT007 allows the console to become the single, centralized machine control hub within any studio. Virtually every machine, in or out of the control room, can be remotely controlled from the console at the press of a button. - Page 71 Euphonix System 5 Installation Guide System 5 Components The transport controls of the master machine can drive the network but the TT007 is unique in its ability to accept transport commands from additional control surfaces and relay those commands to the master machine. Any controller device in the studio defined as a controller (and on-line) has direct access to the master machine.
