Section 11: Hyper-Surround
The Assignable Keys
3P1->
F1
Pan Assign Menu
SIDE NOTE:
Press the key adjacent to the
assignable display BUS designa-
tor and then a panner key to put
that panner into direct busing
mode. Press the key adjacent to
the assignable display PAN
designator and then a panner key
to put that panner into pan mode.
11 - 8

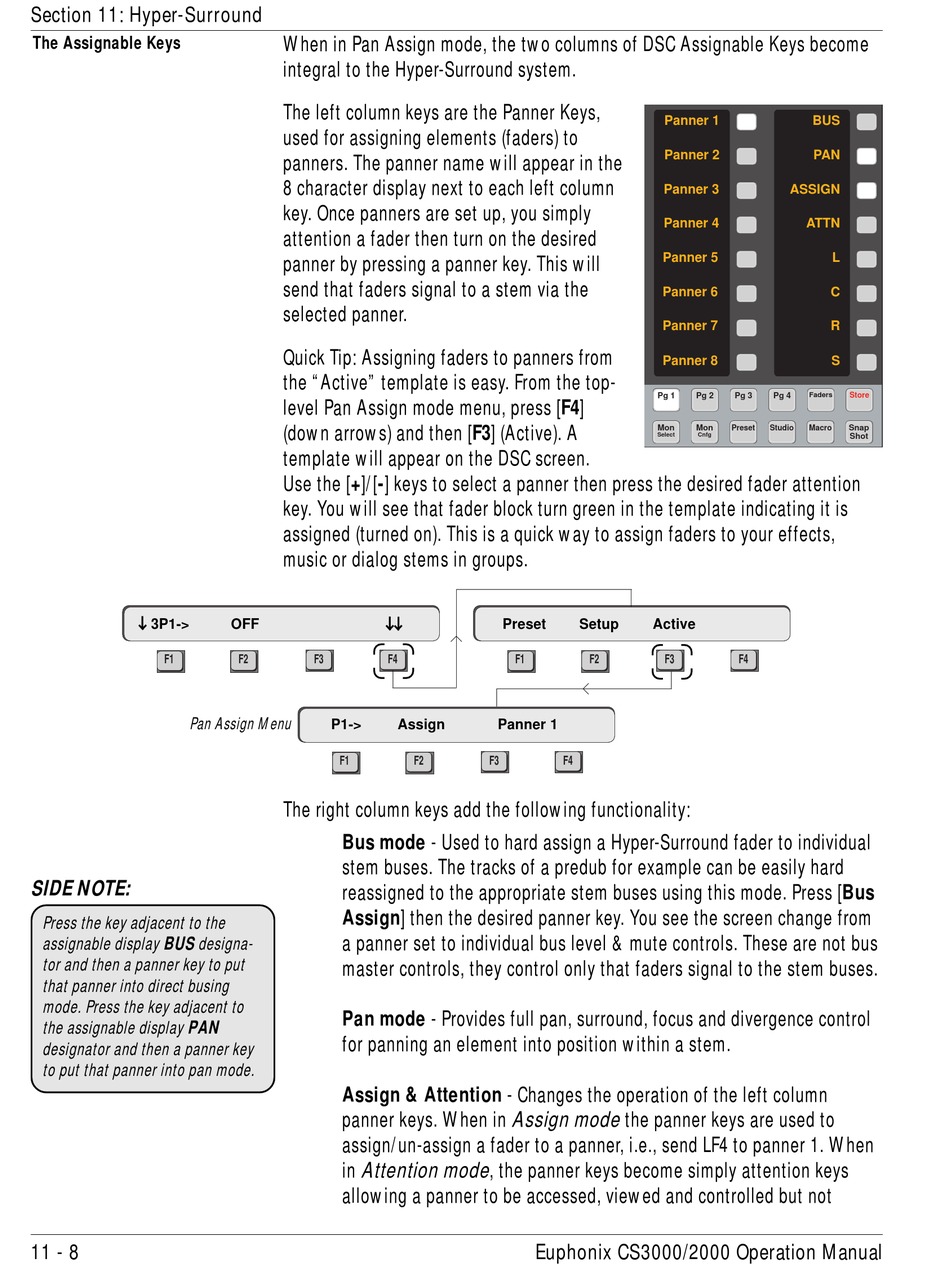

When in Pan Assign mode, the two columns of DSC Assignable Keys become
integral to the Hyper-Surround system.
The left column keys are the Panner Keys,
used for assigning elements (faders) to
panners. The panner name will appear in the
8 character display next to each left column
key. Once panners are set up, you simply
attention a fader then turn on the desired
panner by pressing a panner key. This will
send that faders signal to a stem via the
selected panner.
Quick Tip: Assigning faders to panners from
the "Active" template is easy. From the top-
level Pan Assign mode menu, press [F4]
(down arrows) and then [F3] (Active). A
template will appear on the DSC screen.
Use the [+]/[-] keys to select a panner then press the desired fader attention
key. You will see that fader block turn green in the template indicating it is
assigned (turned on). This is a quick way to assign faders to your effects,
music or dialog stems in groups.
OFF
F2 F3 F4
P1-> Assign
F1
The right column keys add the following functionality:
Bus mode - Used to hard assign a Hyper-Surround fader to individual
stem buses. The tracks of a predub for example can be easily hard
reassigned to the appropriate stem buses using this mode. Press [Bus
Assign] then the desired panner key. You see the screen change from
a panner set to individual bus level & mute controls. These are not bus
master controls, they control only that faders signal to the stem buses.
Pan mode - Provides full pan, surround, focus and divergence control
for panning an element into position within a stem.
Assign & Attention - Changes the operation of the left column
panner keys. When in Assign mode the panner keys are used to
assign/un-assign a fader to a panner, i.e., send LF4 to panner 1. When
in Attention mode , the panner keys become simply attention keys
allowing a panner to be accessed, viewed and controlled but not
Preset Setup
F1 F2
Panner 1
F2 F3 F4
