Section 4: Tutorial
Assign (Destination) Menu
ST1 A1 A3 A5
ST2 A2 A4 A6
BUS

CLIP Indicator Options

M1
Pwr
Pad
ovld
4 - 52

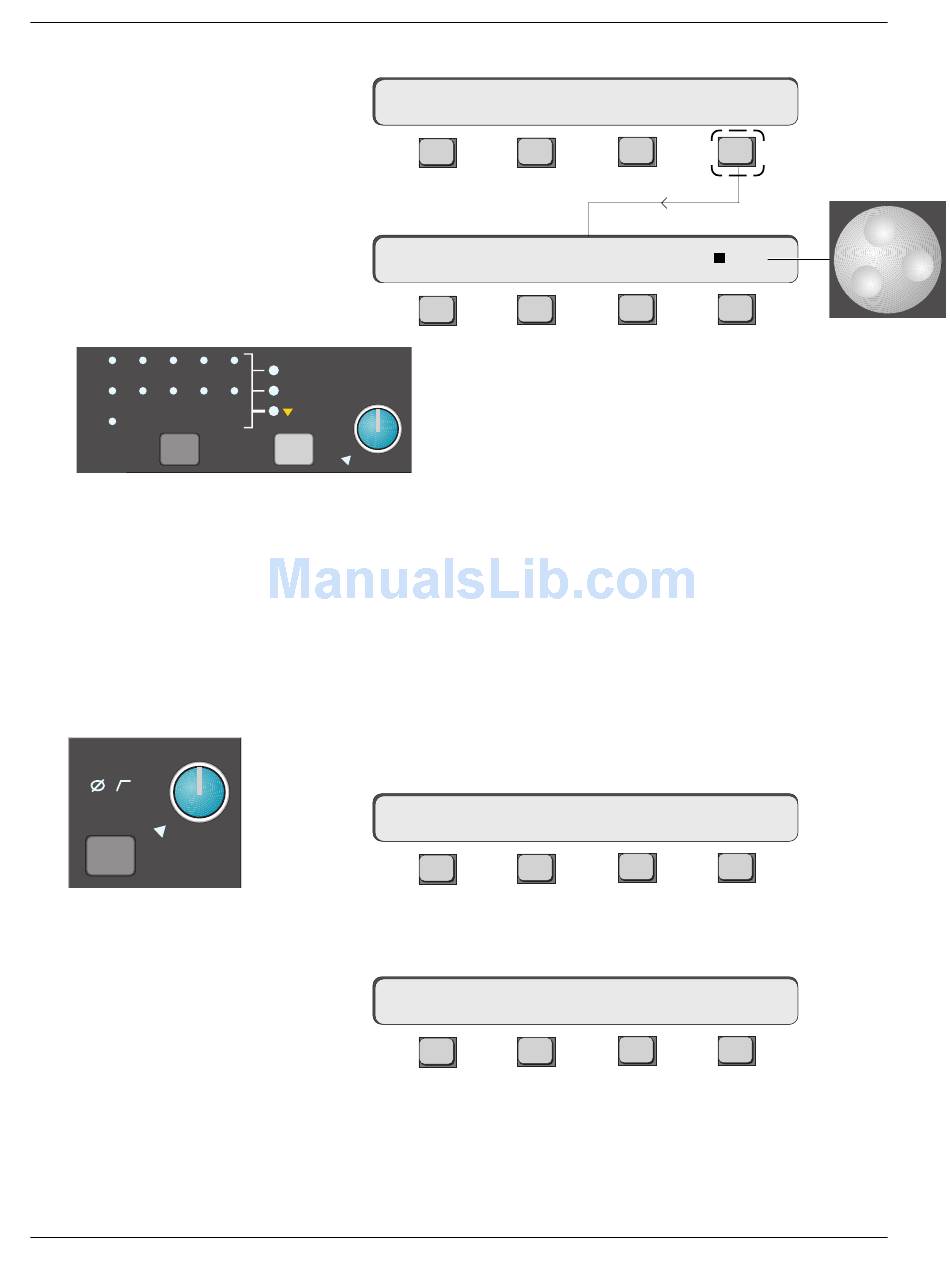

From the Talkback menu, press [F4] (ASGN):
Talkback Menu mTB–>
mTB–>
Oscillator
A7
Patch
A8
TB MIC
When the Talkback key is pressed the mic signal is sent to the selected
destinations. Any of the three monitors can be dimmed when the Talkback key
is pressed by setting this feature from the individual Monitor menus.
Each block has a level detect circuit which will light the CLIP LED when a
preset level has been exceeded. The threshold above the +4dBu nominal level
at which the CLIP indicator lights can be set for between +10dB and +24dB.
Return to the Master menu, either by [Esc]aping back up or by pressing the
Master Module [MASTER] key.
Above F4 is a row of dots showing that there are further menus available.
Press [F4] (...):
METER
Pressing [F1] (METER) allows the Master meters to be set. These options were
covered earlier in this section and the options available are detailed in Appen-
dix 9.
SRC
F1 F2
ASGN:
F1 F2
The SpinKnob will select the various destinations for the
selected talkback sources. To select an individual source,
press [F4]. A square appears next to the source in the
SmartDisplay and an indication of the destination is shown
on the Master Control Panel in the talkback block area.
TB EXT1
F1 F2
F1 F2
Euphonix CS3000/2000 Operation Manual
OSC ASGN
F3 F4
A1
F3 F4
...
EXT2
F3 F4
...
CLIP
F3 F4
