Euphonix Max Air Control Surface Manual
Hide thumbs
Also See for Max Air:
- Operation manual (188 pages) ,
- Manual (180 pages) ,
- Installation manual (63 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Euphonix Max Air
Summary of Contents for Euphonix Max Air

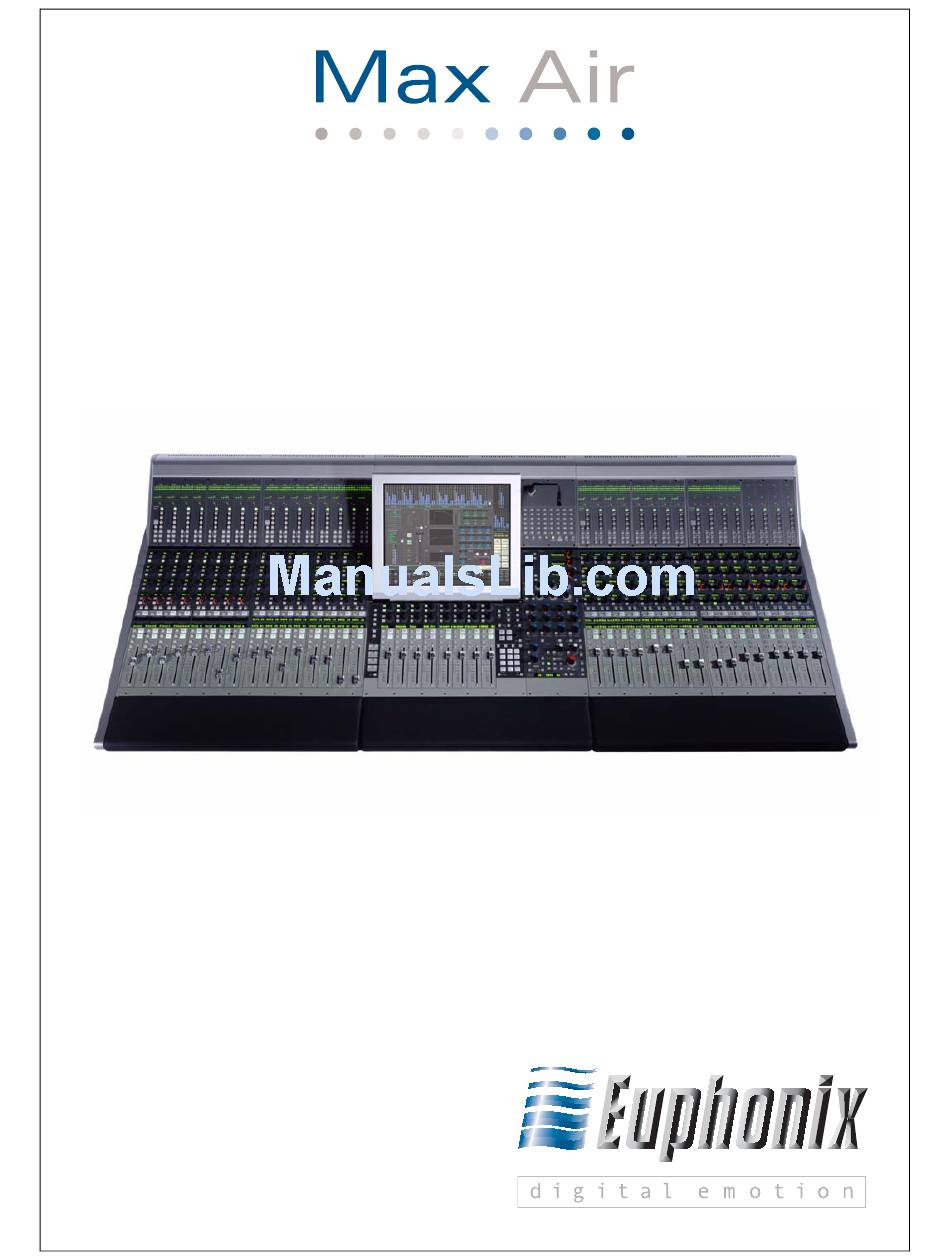

- Page 1 Control Surface Manual Document Revision: 1.1 Part Number: 840-08758-02 Release Date: September, 2003 Euphonix, Inc. 220 Portage Ave. Palo Alto, California 94306 Phone: 650-855-0400 Fax: 650-855-0410 http://www.euphonix.com Web: e-mail: info@euphonix.com...
- Page 2 Manual design by Rob Wenig. Manual written by Tim Driedger, Steve Milne, and Rob Wenig. ©2003 Euphonix, Inc. All rights reserved worldwide. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without written permission from Euphonix, Inc.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The lighting flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons. The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. - Page 4 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 5: Table Of Contents
Euphonix Max Air Control Surface Manual Table of Contents System Startup Sequence ..................7 Description ........................7 Overview......................7 Self Test Procedure ....................9 Initiating Self Test...................9 Switch and Knob Test ..................9 LED Test .......................10 Fader Test......................10 Display Test ....................11 Memory Test ....................11 Selecting and Adjusting the Onscreen Display ............12 Touchscreen Alignment ..................13... - Page 6 Euphonix Max Air Control Surface Manual List of Figures Typical Console Layout ......................7 CM404 Rear Panel ......................8 CM416 Rear Panel ......................8 Control surface self-test keys ....................9 Changing the CM416 ID ....................15 Side Dimensions .......................17 CM416 Bottom Dimensions .....................17 CM404 Bottom Dimensions .....................18 Max Air Top Dimensions ....................18...
-
Page 7: System Startup Sequence

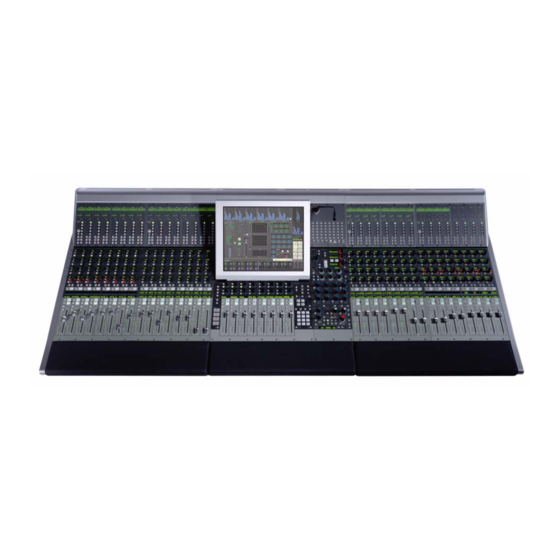

Euphonix Max Air Control Surface Manual System Startup Sequence See page 21 in the Max Air Operation Manual for the system startup sequence. Description The Max Air Console consists of a configurable number of Control Modules that com- prise the Control Surface. The Max Air Control Surface is the digital control center for all Max Air system components and communicates with them via Ethernet network connections. -
Page 8: Cm404 Rear Panel
Euphonix Max Air Control Surface Manual Rear Panels INTERNAL INTERNAL EXTERNAL EXTERNAL TALKBACK MIC TALKBACK MIC TALKBACK MIC TALKBACK MIC SERVICE SERVICE AC IN 1 AC IN 1 AC IN 2 AC IN 2 SERIAL 1 SERIAL 1 T 5.0 AH... -
Page 9: Self Test Procedure
Euphonix Max Air Control Surface Manual Self Test Procedure The following pages describe the operation of standalone self-test software for the Max Air control modules. The self-test code is designed to be invoked in a module right after power-up and before the Single Board Computer (SBC) downloads code. -
Page 10: Led Test
Euphonix Max Air Control Surface Manual LED Test LED loop This switch cycles through all the LED colors. Color Toggle These switches light all the LEDs of each color: green, red, yellow, orange All LEDS This turns all LEDs on. -
Page 11: Display Test
Euphonix Max Air Control Surface Manual Display Test Clear All Char Up Char Down Char E Char W Enumerate Memory Test ROM Test This test reads the ROM and computes and displays the checksum. The user/tester can match the checksum to a known good checksum (see below) to make sure ROM test is successful. -
Page 12: Selecting And Adjusting The Onscreen Display
Euphonix Max Air Control Surface Manual Selecting and Adjusting the Onscreen Display The Touchscreen image controls are found on the panel behind the Touchscreen. If the image needs adjustment, access press the Menu button and follow the onscreen instructions. Figure 5... -
Page 13: Touchscreen Alignment
Euphonix Max Air Control Surface Manual Touchscreen Alignment The Max Air Touchscreen can be calibrated using the Elo Touchscreen utility. Note that different users may have slightly different ways of touching the screen. If an oper- ator finds they often miss onscreen objects, re-calibrate the touchscreen: Select Control Panel from the Start menu. - Page 14 Euphonix Max Air Control Surface Manual Figure 8 3. Touch Align and follow the onscreen instructions. When asked to touch the targets on the screen, best results are achieved by touching the targets naturally without thinking too much about it. This aligns the touchscreen to an...
-
Page 15: Changing The Id Of A Cm416 Module
Euphonix Max Air Control Surface Manual Changing the ID of a CM416 Module 1. Power cycle the module and then simultaneously press and hold the two lower knobs on the first strip before the module connects to the System PC (you have about 15 seconds). -
Page 16: Technical Specifications
Euphonix Max Air Control Surface Manual Technical Specifications Power Voltage 90–254 VAC (RMS), 50/60 Hz Power Consumption 2 x 50 W per module 1.0 A (US 117 V) 0.5 A (Europe 230 V) 1.0 A (Japan 100 V) Inrush Current... -
Page 17: Dimensions
Euphonix Max Air Control Surface Manual Dimensions 16.25 75.00° Dimensions in inches 16.13 15.625 8.39 6.78 3.06 2.06 1.20 Figure 10 Side Dimensions .902 .900 KEEP CLEAR FOR VENTILATION 11.723 12.827 KEEP CLEAR FOR VENTILATION 1/4-20 THREADED INSERT 8 PLACES 23.400... -
Page 18: Cm404 Bottom Dimensions
Euphonix Max Air Control Surface Manual 1.79 KEEP CLEAR FOR PROPER VENTILATION 1/4-20 THREADED INSERT 8 PLACES 19.46 21.40 22.30 Figure 12 CM404 Bottom Dimensions 35.43 29.58 0.00 5.85 0.00 Figure 13 Max Air Top Dimensions... -
Page 19: User Reference
Euphonix Max Air Control Surface Manual User Reference Internal Components Dual Power Connections Power Distribution Dual Power Single Board Supplies Computer KVM Extender Figure 14 CM404 Dual Power Connections Dual Power Supplies Power Distribution Single Board Computer Figure 15 CM416... -
Page 20: Fans
Euphonix Max Air Control Surface Manual Fans The CM416 modules have low-noise internal fans and a thermal sensor between the displays on strips five and six. If a module gets too hot, the fans automatically turn on at a low or high speed depending on the temperature. The fans turn off automatically...
