CS3000 Frame Section
1455mm
Euphonix CS3000/2000 Operation Manual

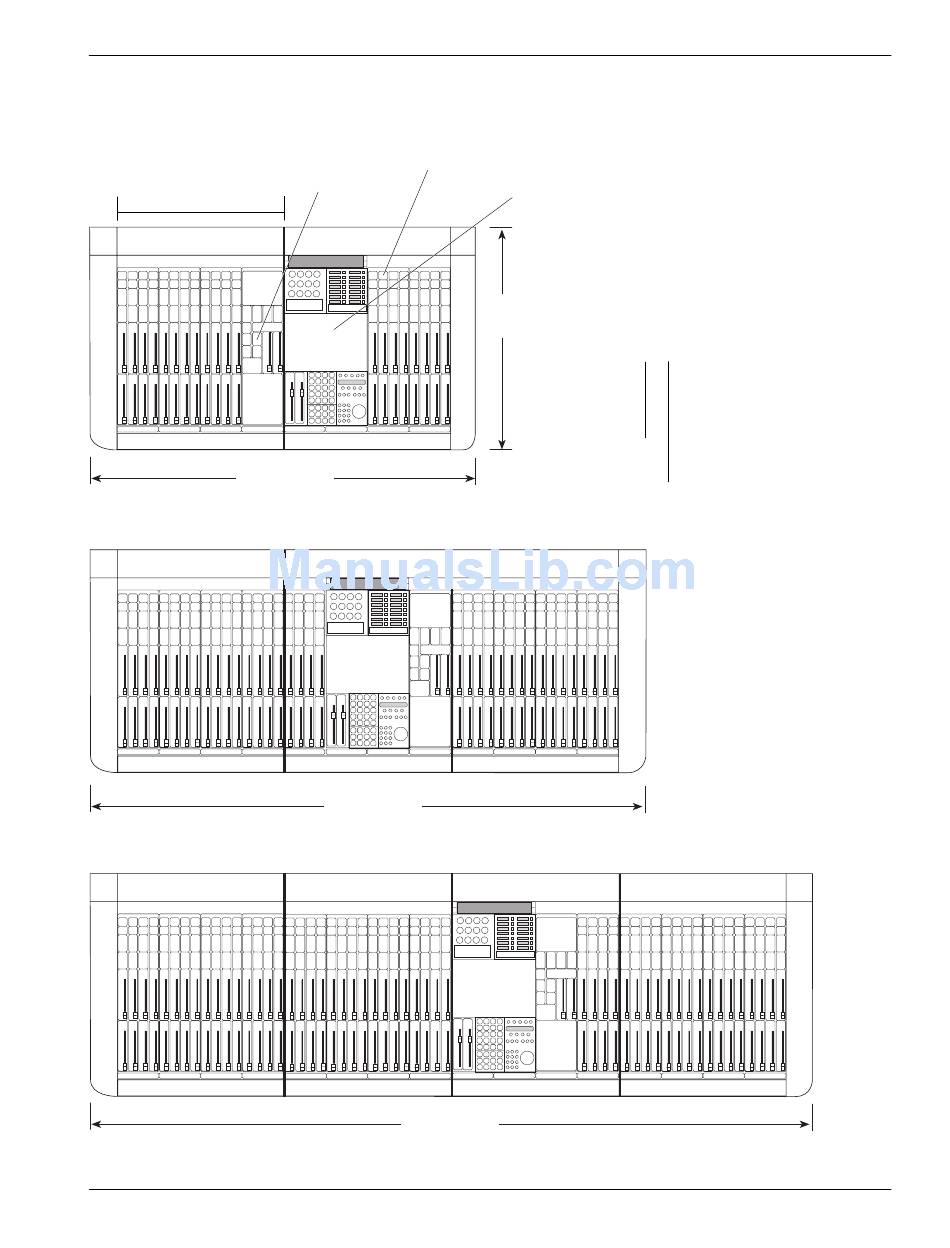

The diagram below shows two-, three-, and four-section CS3000 systems. The
Master controller may be placed on either side of the DSC.
I/O Controller
(4 channel strips)
Master Controller
DSC
57.4"
DSC
81.3"
2065mm
105.3"
2674mm
CS3000 Mix Controller Configurations
Appendix 7: CS3000 Mix Controller Configurations
Digital Studio Controller (DSC)
34.8"
883mm

CS3000-2-40

Number of 4-
module-wide
frame sections
DSC
Model #s
Number of
faders fitted

CS3000-3-72

CS3000-4-104
