Section 4: Tutorial
Insert Diagrams,
Pre- & Post-EQ
Insert send
patch points
Insert return
patch points
Insert send
patch points
Insert return
patch points
4 - 20

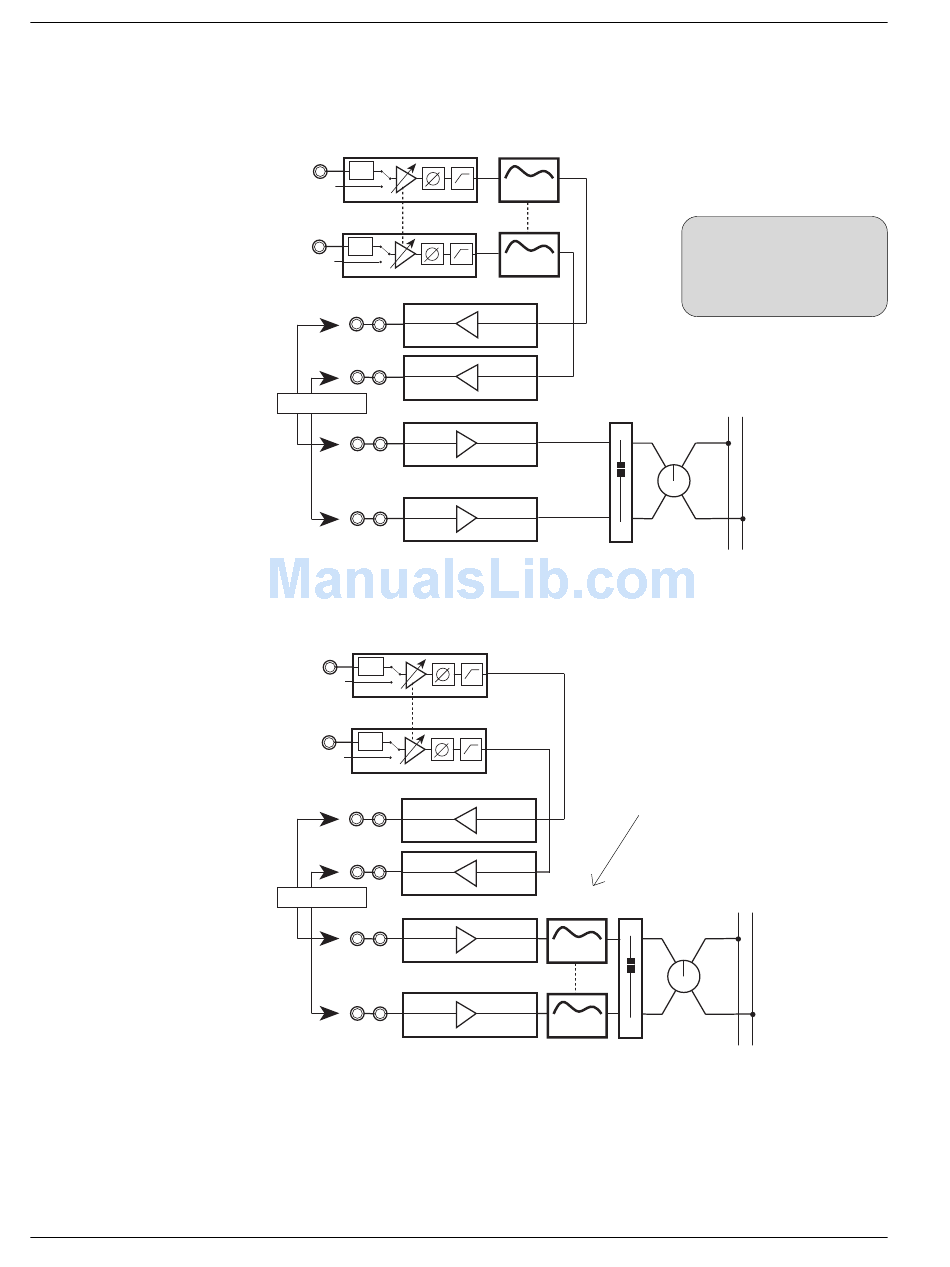

At this point, you should patch an external device, such as a stereo limiter,
across the Out1/L1 and Out2/L2 insert points. The signal flow looks like this:
PWR
M1
Stereo Links
M2 PWR
OUT1
OUT2
Stereo Limiter
L1
L2
To put the EQ post-insert point, change the EQ source from M1 & M2 to L1 &
L2 to produce this signal path:
M1 PWR
Stereo Links
M2 PWR
OUT1
OUT2
Stereo Limiter
L1
L2
To bypass the insert point, select M1 and M2 rather than L1 & L2 as the
sources for both the EQ and the fader (this can be done with one button press
using the SnapShot Recall system).
This concludes Exercise 2.
EQ1
4 Band EQ
4 Band EQ
EQ2
Line Input 1
Line Input 2
LF
EQ1 & EQ2 placed after L1 & L2
instead of M1 & M2
EQ1
Line Input 1
4 Band EQ
Line Input 2
4 Band EQ
LF
EQ2
Euphonix CS3000/2000 Operation Manual
SIDE NOTE:
When an EQ and an Out are
both assigned to the same
source, the EQ always comes
first in the signal path.
STEREO 1 BUS
L R
BAL
STEREO 1 BUS
L R
BAL
