So far we have mainly concentrated on routing within the Channel I/O Module.
It is worth just looking at the signal flow options available in the Master
Module and how the various outputs get to the patchbay.
There are two independent stereo buses called ST1 and ST2, both having
three independently buffered post-fader outputs. On the Master patchbay you
will see these outputs as ST1 - A, B, & C and ST2 - A, B, & C.
Notice on the Master patchbay that each of the Stereo C outputs is also
labeled (Ins. Send) and next to each Stereo C output is a pair of patch points
labeled (Ins. Rtn.). When the stereo insert is activated, the C output becomes
the pre-fader insert send and the Ins. Rtn. patch points return to the stereo

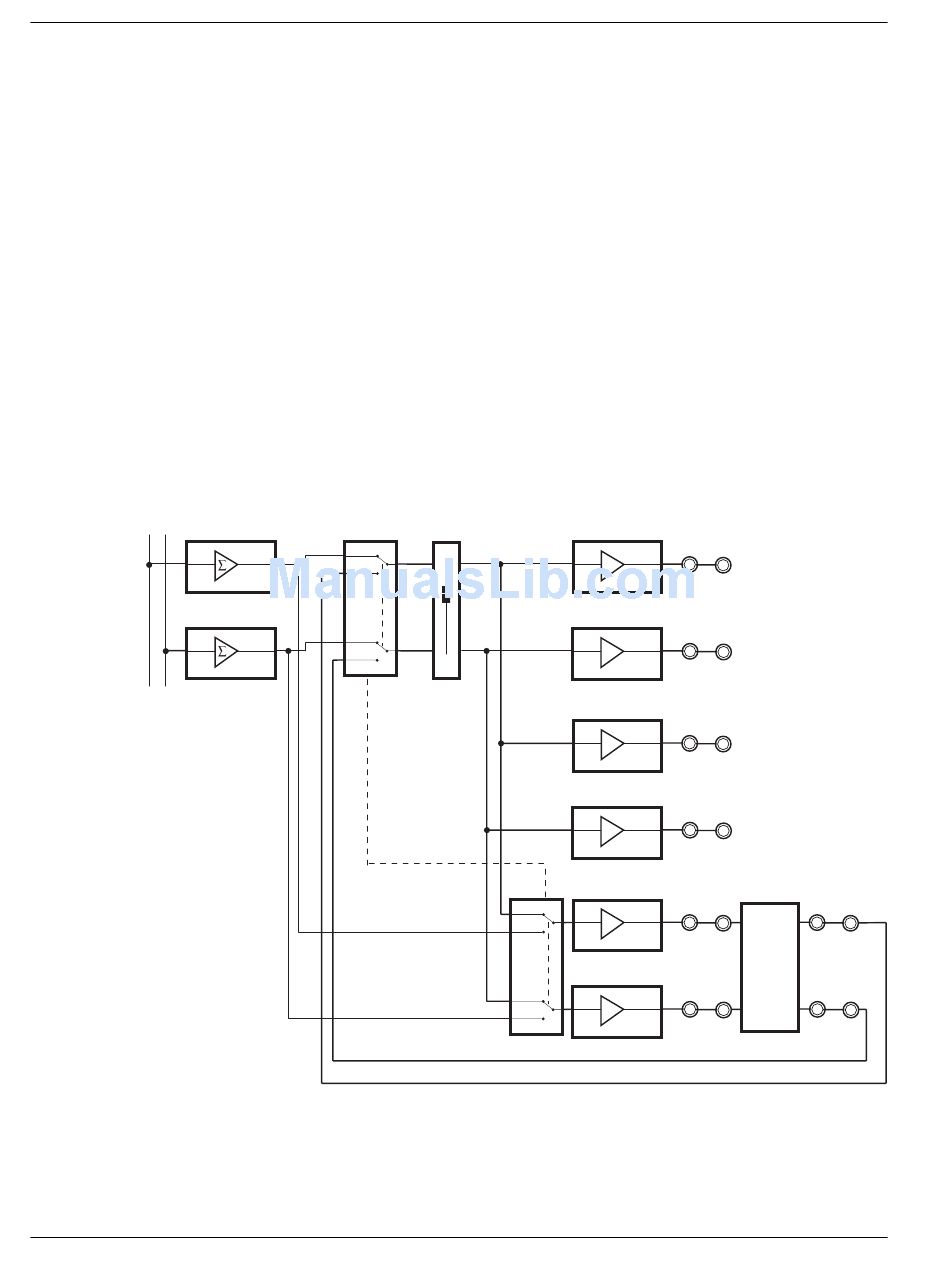

fader. The diagram below details the stereo insert send/return feature in a
block diagram.
The signal flow for Stereo 1 outputs is as follows:
BUS
AMP
BUS
AMP
Stereo
pre-fader
insert relays
linked together
ST1
Euphonix CS3000/2000 Operation Manual
ST1L(A)
Bal
Out
ST1R(A)
Bal
Out
ST1L(B)
Bal
Out
ST1R(B)
Bal
Out
ST1L(C)
Bal
Out
External
Stereo
Comp
ST1R(C)
Bal
Out
ST1L(INS)
ST1R(INS)
