Filters

This switches the filters
either to the side chain or
in the main signal path
Pressing this function
switch inserts the filters
(so does pressing L1)
Filters Pre-Compressor/
Gate

Filters Only

Euphonix CS3000/2000 Operation Manual

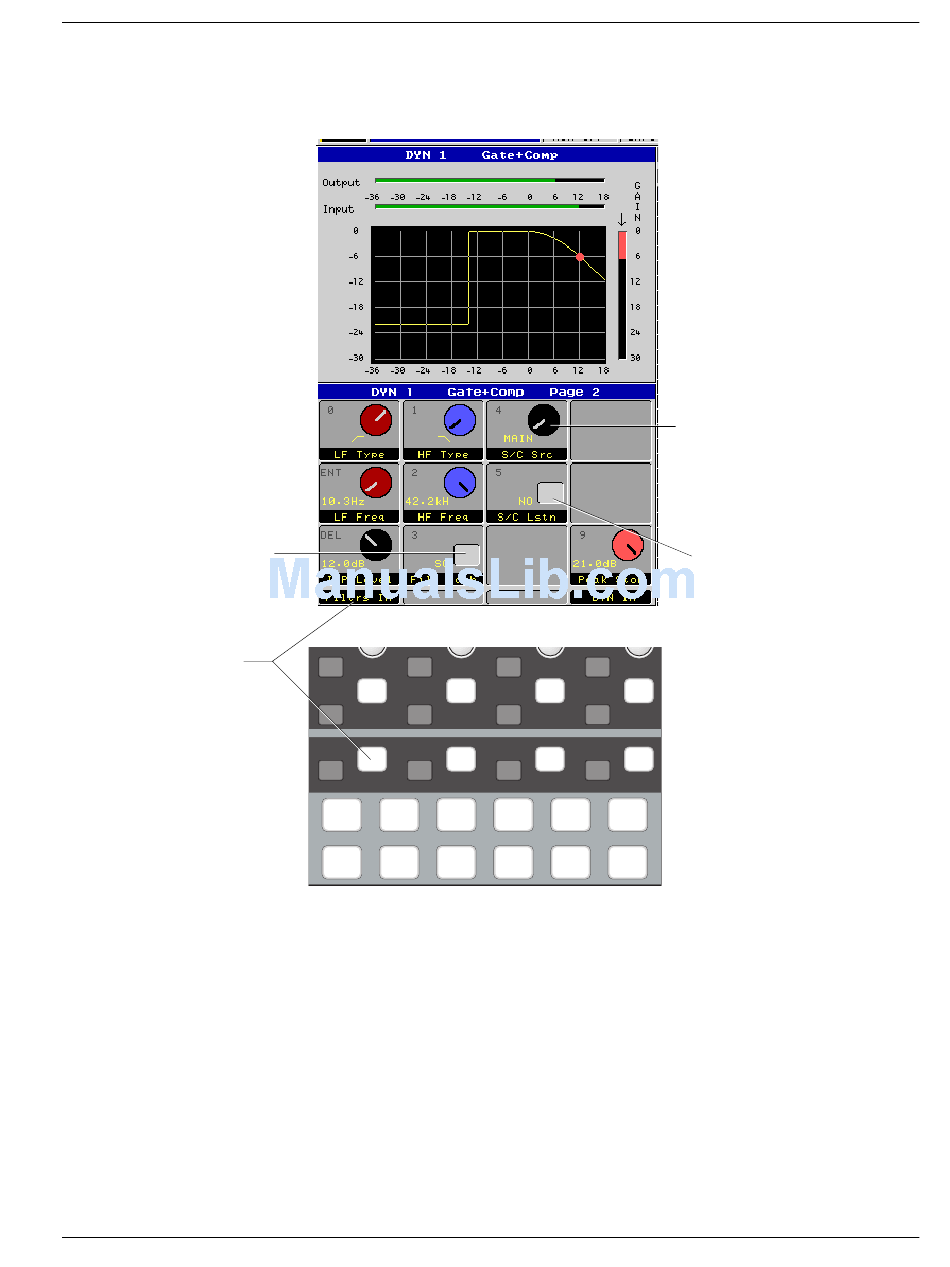

Each dynamics processor contains two high-quality digitally controlled analog
filters accessed from Page 2. Select the dynamics and then go to the Page 2
screen by pressing the DSC [Pg 2] key or toggling the [+]/[–] keys.
i i
i d t i d t
i d t i d t
Pg 1 Pg 2 Pg 3
EQ Dyn Aux
To use the filters in the main signal path before the compressor/gate:
1) Go to Page 2. Switch Filter Path to Main
2) Side Chain Source must be switched to Main
3) Side Chain Listen should be switched to "No" (Main VCA to output)
4) Switch the filters In
To use the filters alone in the main signal path without comp/gate :
a) As above, but switch the Side Chain Listen (unit output) to "Yes"
OR
b) Use Factory Preset #6 ("Filters") for the processor
i i
i d t i d t
i d t i d t
Pg 4 List
Pan Bus Chan
Assign Master
Section 9: Dynamics
The Side Chain Source. Can be
switched between Key input
(EXT) and the Main signal, or any
of the Main inputs to the other
processors in the same ES108A
The Side Chain Listen button
allows you to monitor the
side chain signal rather than
the VCA output.
