Section 9: Dynamics
Assigning Individual
Dynamics Processors
Toggling Assignments
9 - 16
The 1/Channel and 2/Channel dynamics assignment menu selections auto-
matically clear all dynamics assignments when they are selected, so the
additional step of clearing dynamics assignments before choosing these
macros is unnecessary.
Use the Patch menu when you need to tell the console that you have
crosspatched processors at the patchbay, and when you want to custom
configure your dynamics processors across the console.
From the Dynamics Assign menu, press [F1] (Clear) to clear all assignments
and confirm when prompted. Press [F4] (Patch):
Dyn1 or Dyn2
Desk Channel
12D1->
Select where on the console you want to put a dynamics processor by either
pressing the EQ•Dyn(1) or EQ•Dyn(2) key in the appropriate channel strip, or
using the DSC Route keys. Select the dynamics processor number with the
DSC's numeric keypad, pushing the [Enter] button on the keypad or the [F4]
key after each numbered entry (unique numbers [1-8, 9-16, 17-24, etc.] are
assigned to each ES108A unit according to dipswitch settings on the ES108A
Host Processor Board (See the ES108A Installation manual for more info).
When each assignment is completed, you should see the appropriate
EQ•Dyn(1) or EQ•Dyn(2) LED turn on in the channel strip, and the front display
of each of each processor will show its channel assignment. On the DSC
screen the Dynamics Configuration/Assignment window will also confirm
channel assignment information.
Note: Remember that the wiring for your ES108As has to support the
routing configuration of any new software assignments, either through
normalling or crosspatching at the patchbay.
There is actually a faster way to change individual dynamics assignments
when the SmartDisplay is in the Patch menu. Both the EQ•Dyn(1) and
EQ•Dyn(2) keys and the DSC Route keys can be used as toggle switches to
assign and de-assign available processors. The first press of the key gains
attention of the console dynamics, Dyn1 or Dyn2. The second press automati-
cally maps the next available dynamics processor to that location on the
console, or toggles an assignment on and off. A third press of the key de-
assigns the processor.

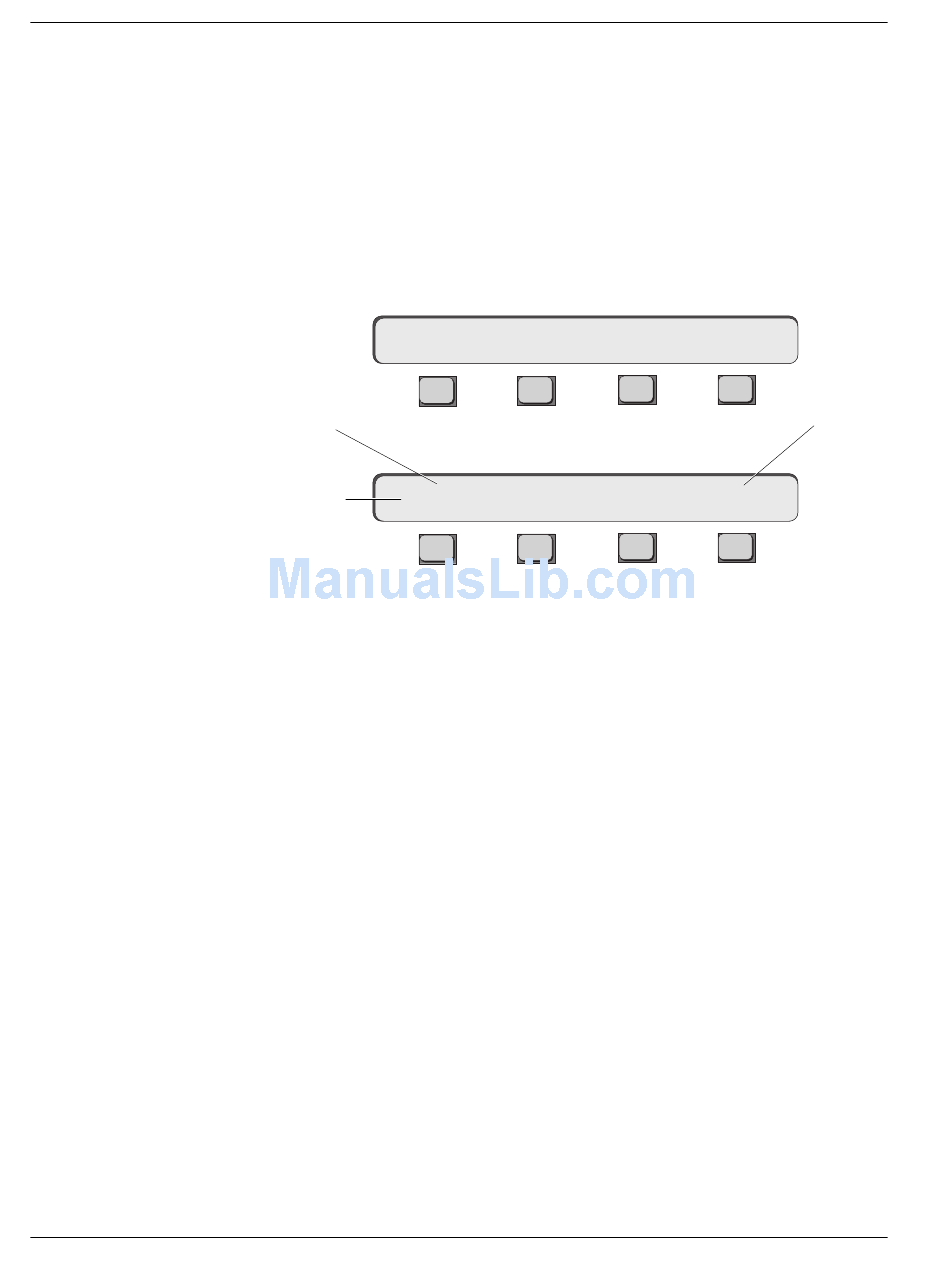

Clear 1/Ch
F1 F2
DYN CHAN ->
F1 F2
Euphonix CS3000/2000 Operation Manual
2/Ch Patch
F3 F4
[12]
F3 F4
New Processor
to Be Assigned
to Console
Channel 12 Dyn1
