Master Control Panel

Switches automation On/Off
Shows when automation is ready to
record any action (replaces the REC
key on the Master Control Panel).
Mix Pass
On Rec
Setup
F1
7 8 9
4 5 6
1 2 3
0 Enter Del
1 - 12

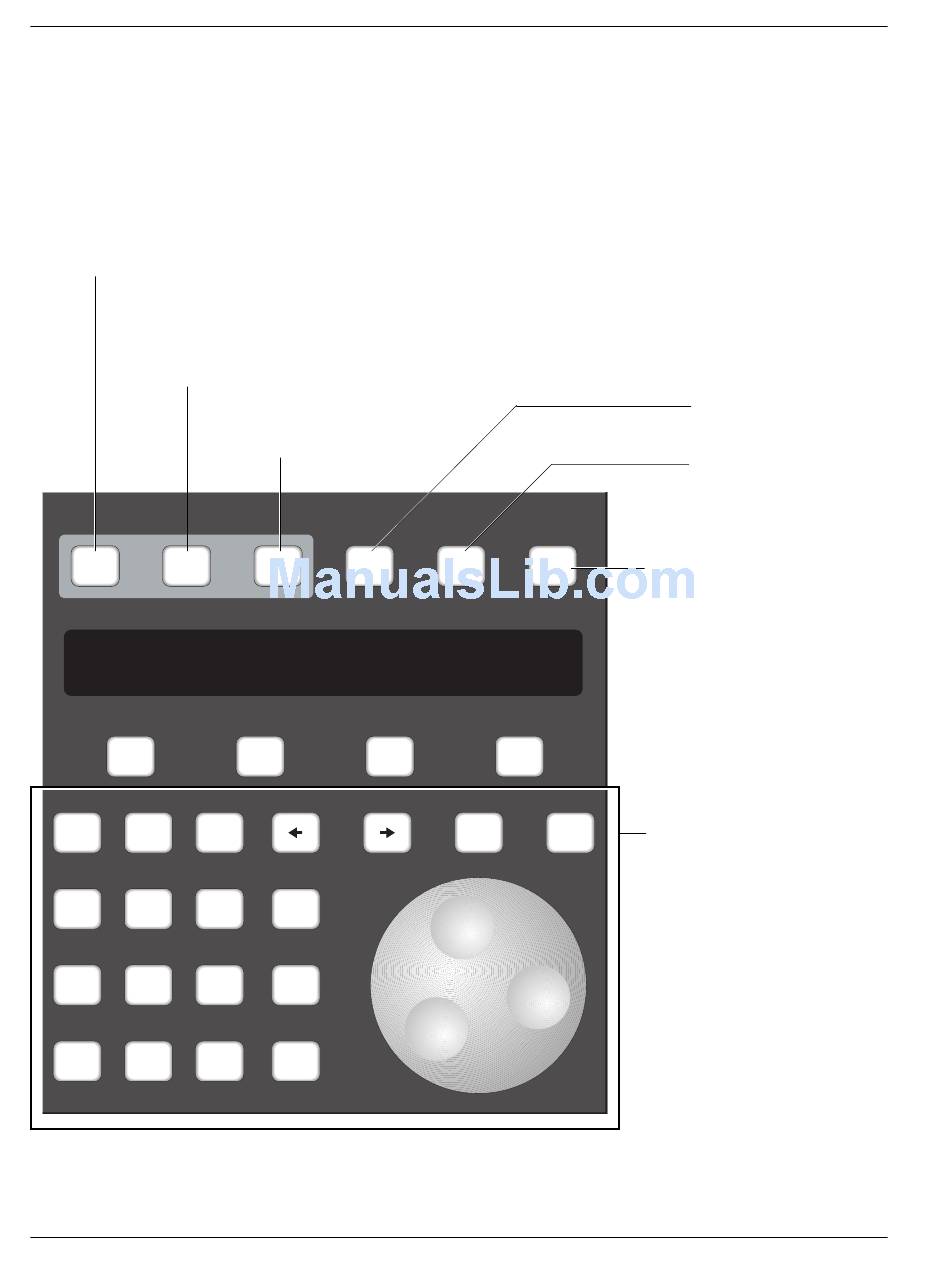

The Master Control Panel on the DSC is used in conjunction with the screen
display as the primary user interface for the console. The Function keys (F1,
F2, F3 and F4) below the SmartDisplay are used to access SmartDisplay
menus. The SpinKnob and +/– keys scroll through lists on the DSC screen.
Specific menu and key functions are detailed in the appropriate sections of
this manual.
Go to Pass menu
Pass Grps
Ctrl
Snap System
F2 F3
+
Bus
-
DIR
*
ST
Mtrs
Grps
F4
Clr Esc
Euphonix CS3000/2000 Operation Manual
Selects Group menu in
SmartDisplay.
Selects Meter menu in
SmartDisplay
Panic Key - Allows you to
regain control of the desk in the
event of support computer
malfunction. Audio level & pan,
routing, EQ, and snapshot
functions will operate normally.
Numeric keypad, SpinKnob,
+/– keys, and other keys in
this area are used to navi-
gate through SmartDisplay
menus and perform menu-
specific functions.
