Section 2: Getting Started

Status Bar

Currently Lower
Selected Fader
Channel Indicator Fader Name
Status Window
Memory Bar
Yellow <90% used
Red >90% used
[Alt-M] for Memory Status
With MIX ON
During RECORD
2 - 4

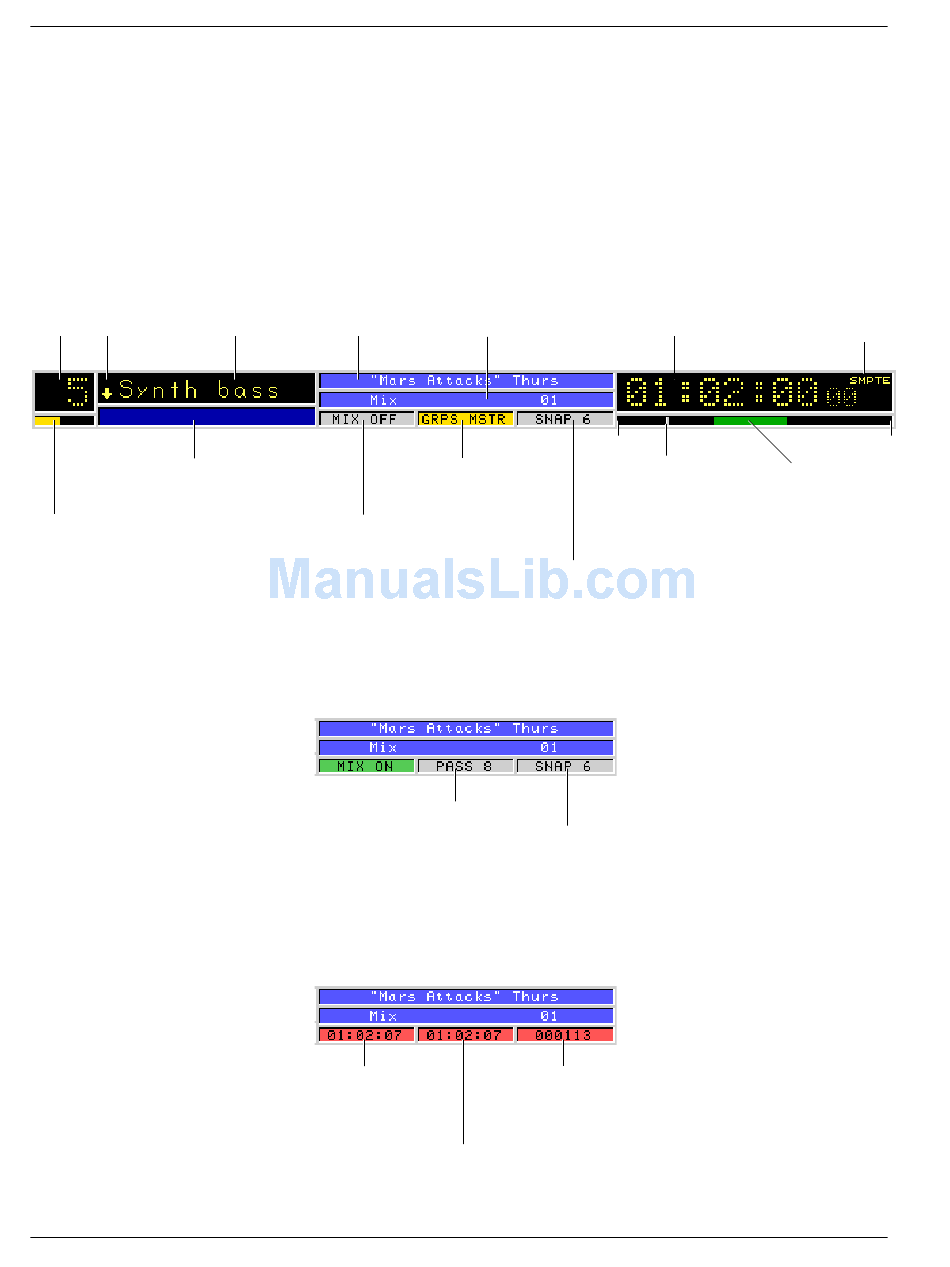

The Status Bar is an important part of the screen display, giving the user
comprehensive system feedback in a very compact space. The symbolic nature
of the information (the use of meaningful icons, colors, etc.) gives the operator
more information at a glance. Much of the information in this diagram will be
covered in the Tutorial and Automation sections, so don't worry about under-
standing everything now. This diagram is only to give you an overview of what
the graphics on the screen display represent.
Current Title Current Mix
Group Status
Gray - OFF
Yellow - ON
Mix Status
(MSTR/IND)
Gray - OFF
Green - ON
Red - ON + Pass Enabled
Current Pass
Gray <90 Passes
Red >90 Passes
Start Time Position
(of first punch-in)
End Time Position
(of last move)
TC Display
Title Head
Current Position Marker
relative to title head
and tail times
Last Recalled Snapshot
(includes Automated SnapShots)
Last Recalled Snapshot
(includes Automated SnapShots)
# of Moves
Total number of
moves recorded
Euphonix CS3000/2000 Operation Manual
SMPTE = 30 Frame
DROP = 30 Drop
EBU = 25 Frame
FILM = 24 Frame
Title Tail
Pass Bar Indicator
Green - Playback
Red - Recording
