Cube Metering

I/O
F1

Diagnostics Screen

Input/Output Specification
QBC with 32 inputs (each block
represents 16 inputs)
3 of 12 QBC Slots
occupied (12 Buses)
Euphonix CS3000/2000 Operation Manual
Selectable on-screen metering is available for every Cube bus. Meters can be
switched to read the Bus Out (pre-master control & insert send), Master In
(insert return), and Master Out. To select the Meter Source menu:
Bus Assign
F2 F3 F4
Meters-> Bus
F1
Press [F2], [F3] or [F4] to select a metering point.
The meters appear in the Aux, Aux Bus Master and Pan Bus Master screens
next to each knob. When viewing panners, the meters are displayed above
the knobs as a part of the panner field.

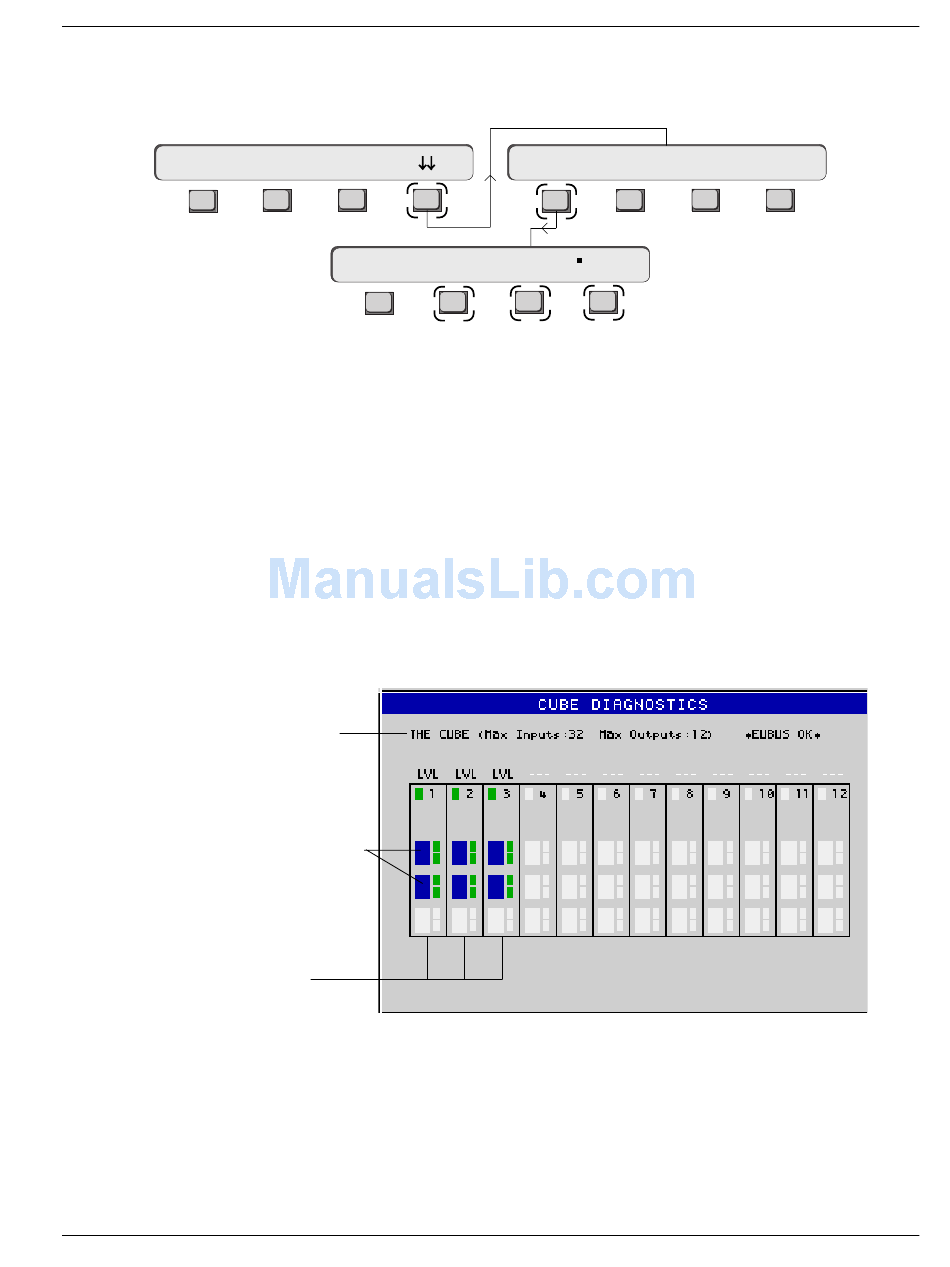

The Cube Diagnostics screen provides information about how the Cube is
equipped (inputs and buses) as well as the status of communications between
the Cube and the support computer. The information on this screen is also
useful during Cube setup.
For example, while viewing the Diagnostics screen you are able to see how
many inputs and output buses are in the Cube chassis.
You can see that this Cube is equipped with 3 QBC cards, each having 32 of
the maximum 48 inputs. This makes the Cube system 32 in by 12 out. "EUBUS
OK" indicates computer communications are good.
Meters
F1 F2
Min Mout
F2 F3 F4
