Switching Automation On; The Punch Key; Object Select Keys - Euphonix CS3000 Operation Manual

Switching
Automation On
Status Bar

The Punch key

2 R
BUS
DIR
ST1
ST2
Fader Block
Attention key
PFL

Object Select keys

Object Select keys
(at least one lit)

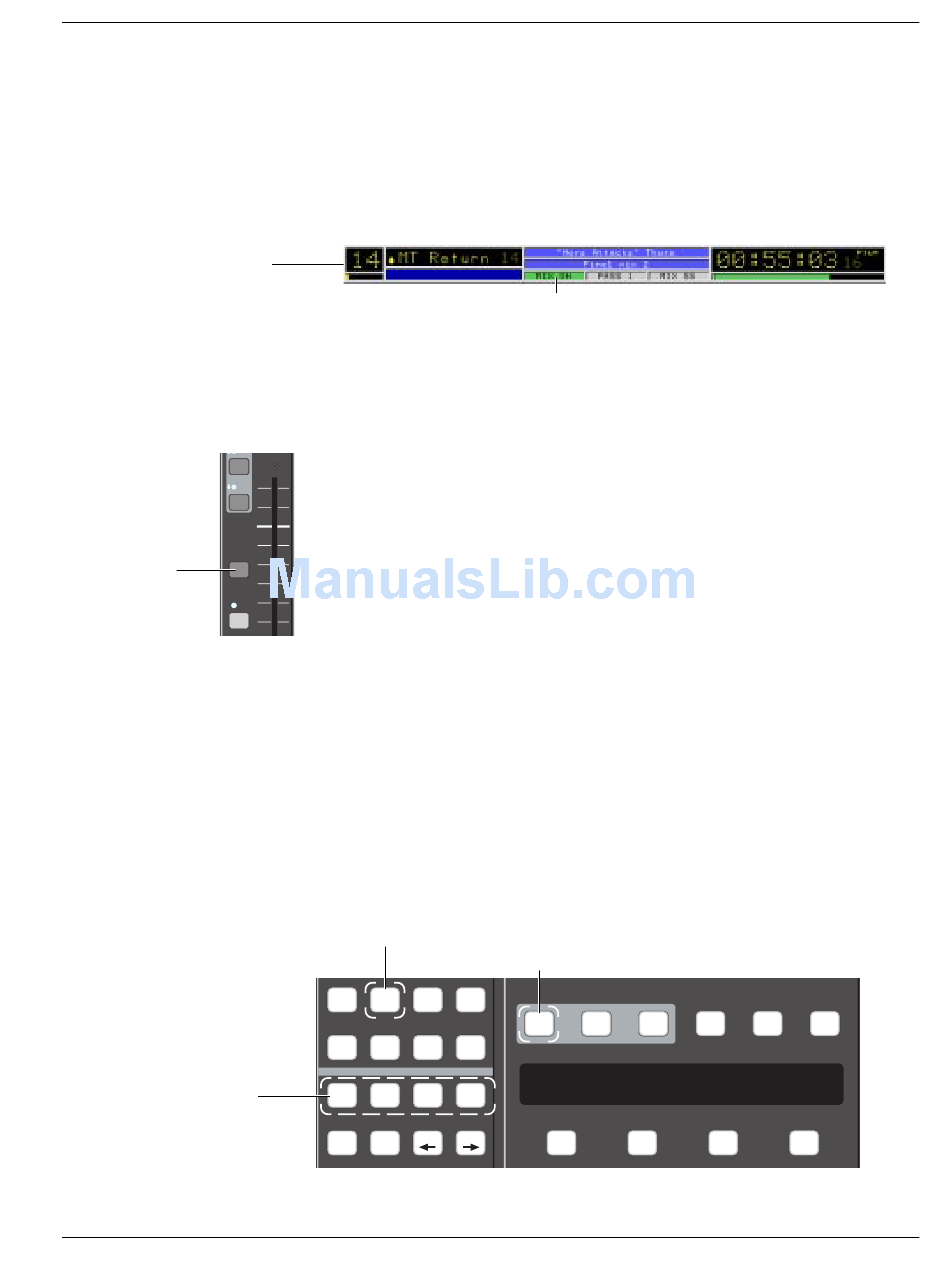

Euphonix CS3000/2000 Operation Manual
There are two possible automation modes; ABSolute and Trim. The first mode
we will work with is ABS. In this mode the absolute position of the fader or
control is recorded and any moves up or down are recorded as absolute level
changes.
Press the DSC [Mix On] key above the SmartDisplay. Observe that the grey
Mix Off indicator in the screen display status bar turns green and says Mix On.
The automation immediately resets all objects containing mix data to their
recorded level. With no mix data (no moves written), the levels of objects will
not change.
Normally the dark grey block keys on the I/O module function as attention keys
for source/mode/assign select. However with Mix turned on and the punch
light lit, they function as automation punch keys. This applies to the fader
block keys, the aux block keys and EQ1/EQ2. If it becomes necessary to change
channel routing or modes while Mix is on, the block keys can quickly be put
back into attention mode by pressing the DSC [Attn] key to the left of the
[Pnch] key. Automation is not affected and Punch mode can be just as quickly
reentered.
Besides knowing that you want to automate, MixView will need to know
what you want to automate. Using the object select keys (Fader/Aux A, Pan/
Aux B, On/Aux C, EQ/Aux D), choose the object(s) that you want to punch in
and automate. If you want to write a mute for example, press the [On/C]
object Select key. By then pressing a fader block key (Mute ON is part of the
fader block), only the mute will be punched-in and recorded. Aux C will not be
punched in because you have not pressed the Aux C/D block key (located on
the Aux C/D block). It is possible to record automation on more than one type
of object at a time if you so choose. This is done by turning on more Object
Select keys.
[Pnch] lit
Attn Pnch Tplt Auto
SS
Set Iso Dyn Safe
Fader Pan On
A B C D
Trim ATO W in W out
Mix On (lit green)
[Mix On] lit
Mix Pass Pass
On Rec Ctrl
Setup Snap
F1 F2
Section 7: Automation
Grps Mtrs
System Grps
F3 F4
7 - 9
