4.7 ACL Configuration

4.7.1 Understanding ACL

ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that specify individual
users or groups permitted or denied to specific traffic objects, such as a process or a program.
Each accessible traffic object contains an identifier to its ACL. The privileges determine whether there are specific traffic object
access rights.
ACL implementations can be quite complex, for example, when the ACEs are prioritized for the various situation. In networking,
the ACL refers to a list of service ports or network services that are available on a host or server, each with a list of hosts or
servers permitted or denied to use the service. ACL can generally be configured to control inbound traffic, and in this context,
they are similar to firewalls.
ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID.
There are three ACE frame types (Ethernet Type, ARP, and IPv4) and two ACE actions (permit and deny). The ACE also
contains many detailed, different parameter options that are available for individual application.
On the Access ACL configuration web page, you can view ACL management function information of the Managed PoE+ Switch
as the screen in Figure 4-7-1
ACL Configuration
Item
ACL Profile List
ACL Ctag Settings
ACL Stag Settings
ACL VLAN Settings
ACL Bandwidth Settings
ACL DSCP Settings
appears.

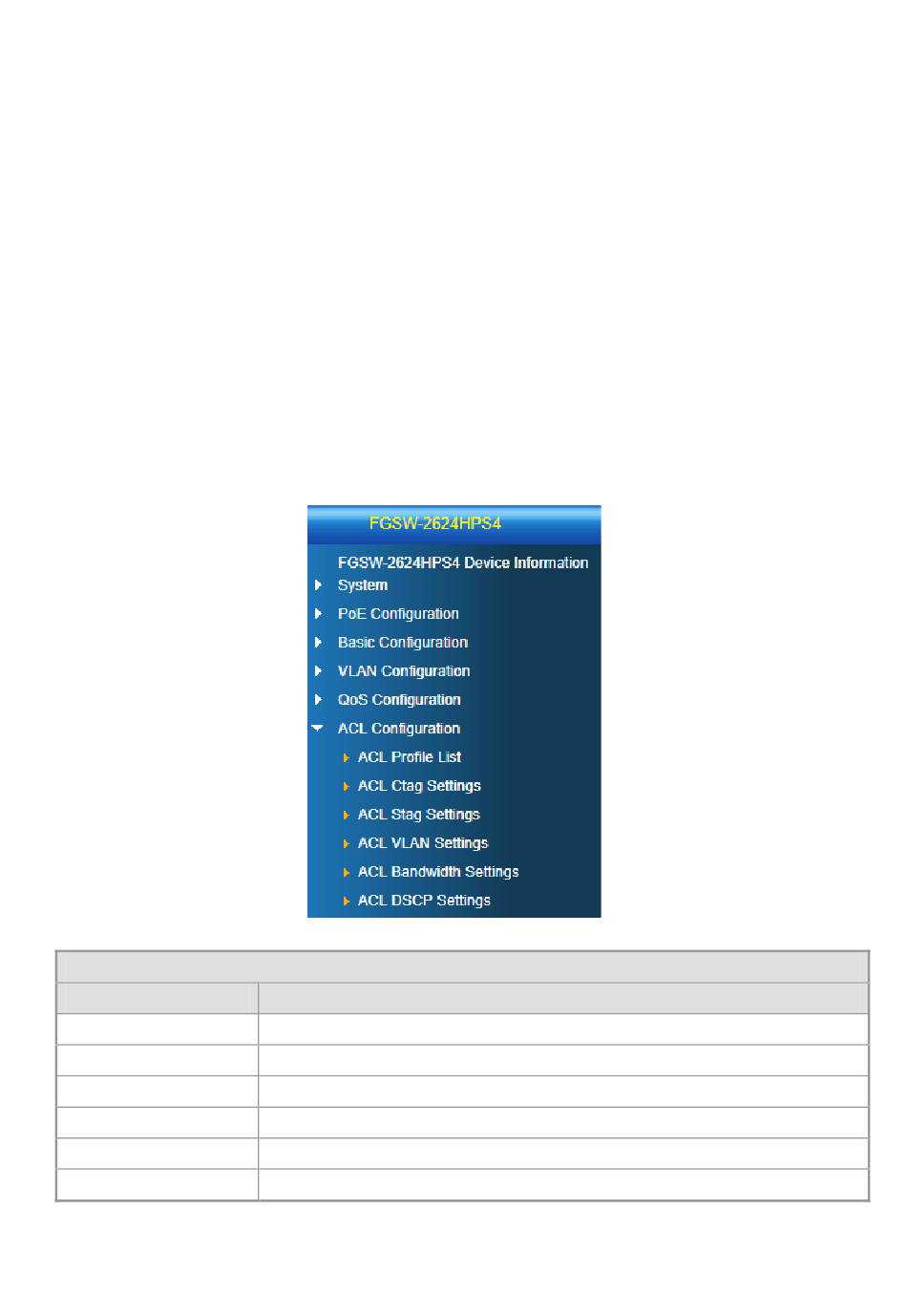

Figure 4-7-1: Managed PoE+ Switch ACL Configuration Web Page
Configure and display ACL Profile List configuration settings on this web page.
Configure and display ACL Ctag Settings configuration settings on this web page.
Configure and display ACL Stag Settings configuration settings on this web page.
Configure and display ACL VLAN Settings configuration settings on this web page.
Configure and display ACL Bandwidth Settings configuration settings on this web page.
Configure and display ACL DSCP Settings configuration settings on this web page.
Table 4-7-1: Desciptions of ACL Configuration
Description
