4.8.2.2 Port-MAC-IP Entry Setting

This page allows you to configure the Port-MAC-IP Entry settings for Managed PoE+ Switch as the screen in
appears.

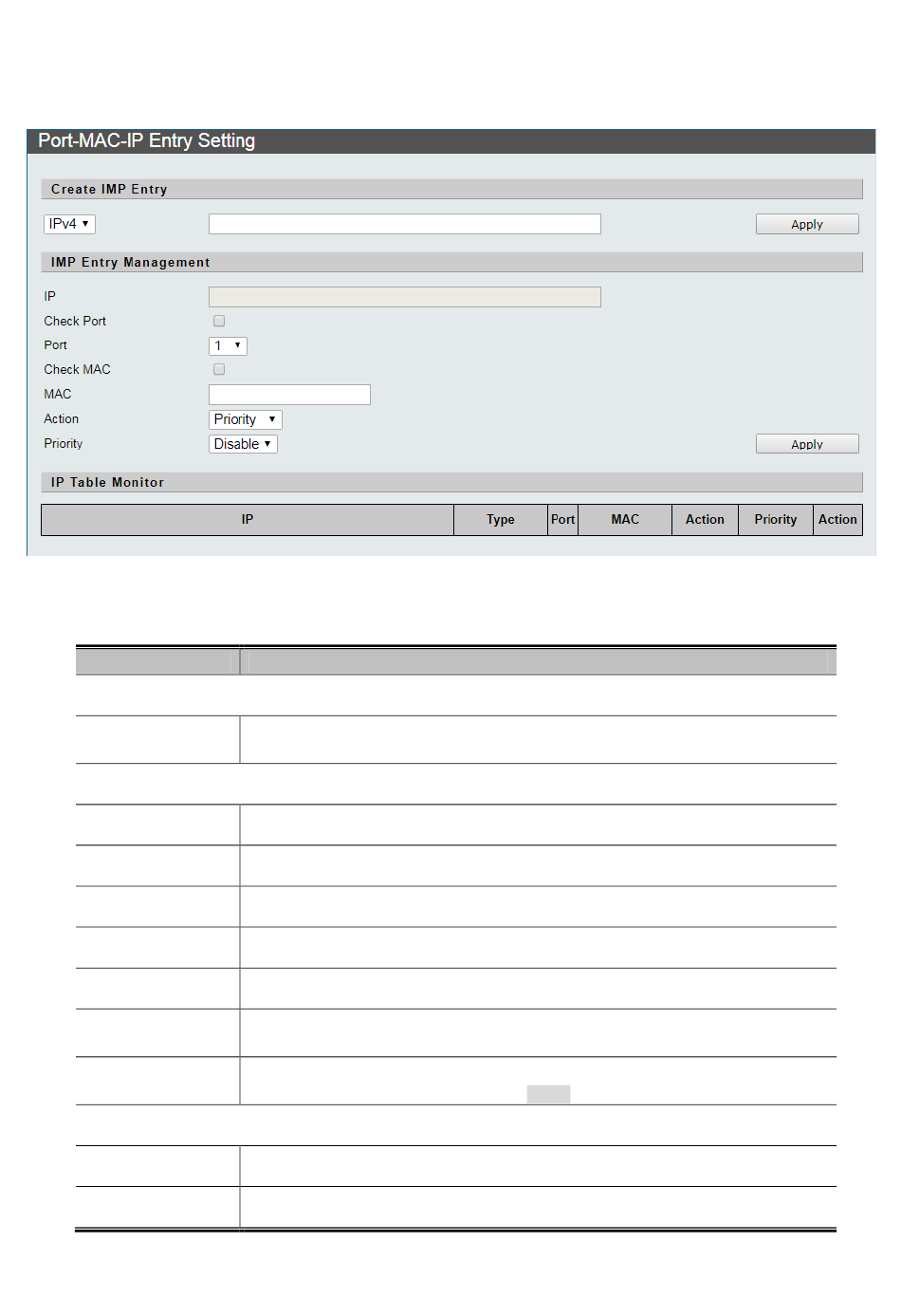

Figure 4-8-4: Port-MAC-IP Entry Setting Configuration Screen Page Screenshot
The page includes the following fields:
Object
Create IMP Entry
•
IPv4/IPv6
IMP Entry Management
• IP
• Check Port
• Port
• Check MAC
• MAC
• Action
• Priority
IP Table Monitor
• IP
• Type
Description
This column allows user to establish the IMP Entry as IPv4 or IPv6, and enter IPv4 or
IPv6 IP Address in the right space.
This column provides corresponding to the selected IMP Entry IP Address.
This column provides configuring enable or disable the check source port compliance.
This column provides selecting the port for this IP address.
This column provides configuring enable or disable the check source MAC compliance.
This column provides configuring the corresponding source MAC for this IP address.
This column provides configuring the corresponding action filter / priority when the
condition is met.
This column provides configuring the queue for this IMP Entry when the action is
selected as priority; the available range is 0 to 7.
Display the IPv4 or IPv6 address.
Display the type information.
