4.4.2 Port Mirroring

On this page, port mirroring provides monitoring network traffic that forwards a copy of each incoming or outgoing packet from
one port of a Managed PoE+ Switch to another port where the packet can be studied. It enables the manager to keep close
track of switch performance and alter it if necessary.
• To debug network problems, selected traffic can be copied, or mirrored, to a mirror port where a frame analyzer can be
attached to analyze the frame flow.
• The Managed PoE+ Switch can unobtrusively mirror traffic from any port to a monitor port. You can then attach a protocol
analyzer or RMON probe to this port to perform traffic analysis and verify connection integrity.
The traffic to be copied to the mirror port is selected as follows:
All frames received on a given port (also known as ingress or source mirroring).
All frames transmitted on a given port (also known as egress or destination mirroring).
Port Mirroring Configuration
The Port Mirroring screen in

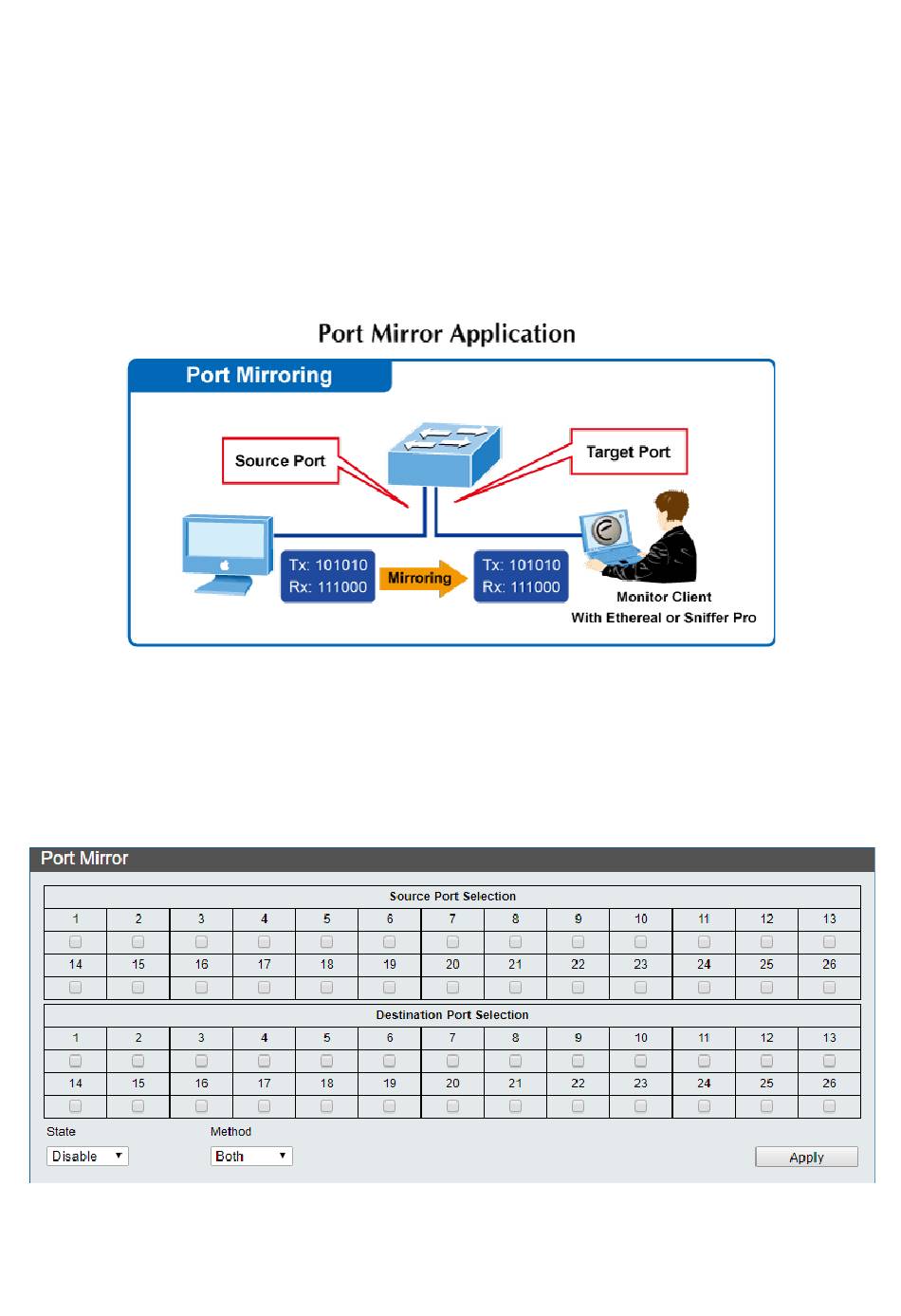

Figure 4-4-3: Port Mirroring Application
Figure 4-4-4
is shown below.
Figure 4-4-4: Port Mirroring Configuration Page Screenshot
74
User's Manual of FGSW-Series
