4.5.3 VLAN Mode

The VLAN Mode Page provide VLAN Mode configuration supported by the Managed PoE+ Switch as the VLAN Mode screen in
Figure 4-5-2 appears.
The Page includes the following fields:
Object
• VLAN Mode
• Tag Method
• Egress Frame
Button
: press this button to take effect.

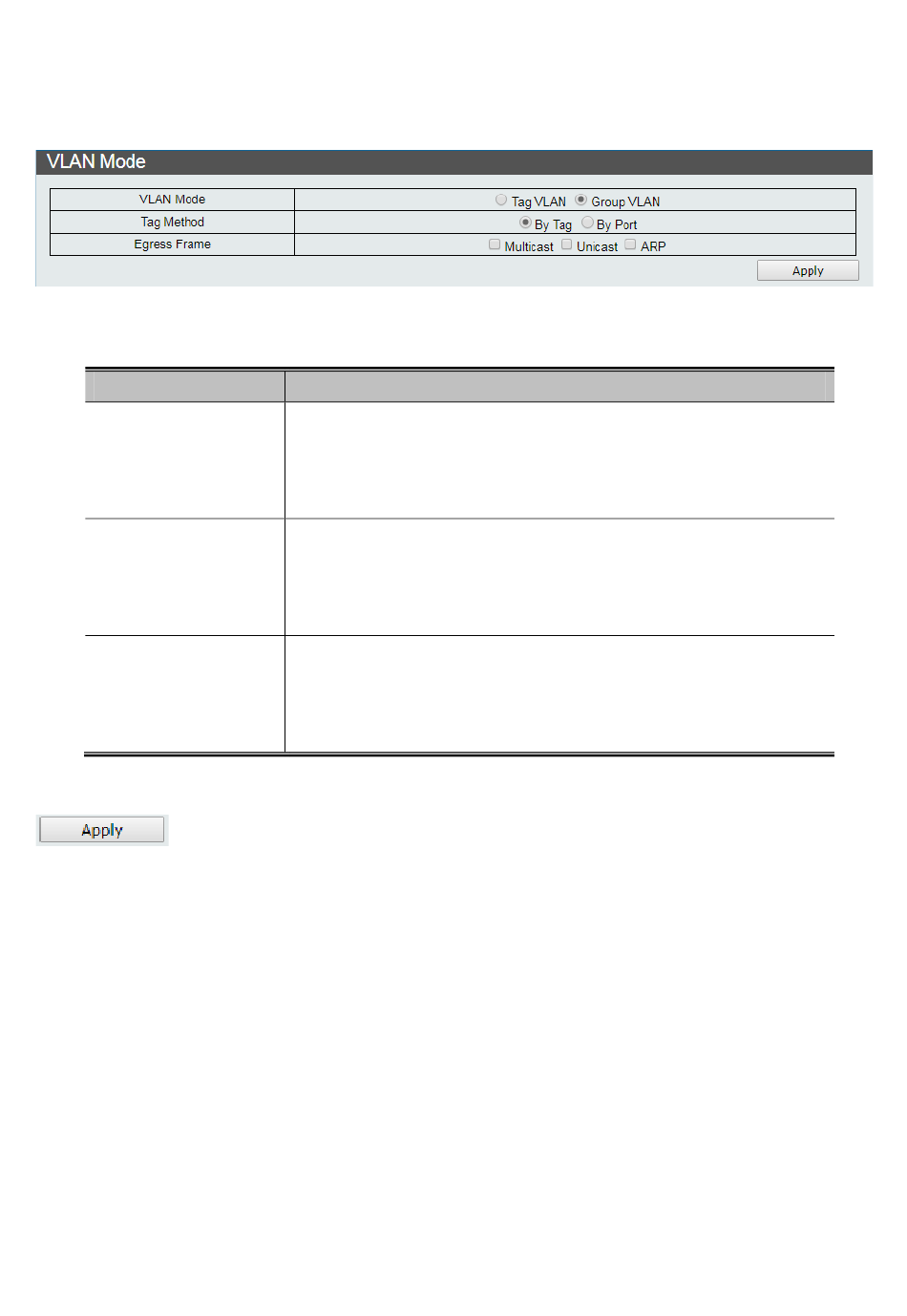

Figure 4-5-2: VLAN Mode Configuration Page Screenshot
Description
Display the current VLAN mode used by this Managed PoE+ Switch.

Tag VLAN determines the VID of each entry and those ports are VLAN
members of which VLAN based on the settings of the Tag-based Entry.

Group VLAN determines which port in each group is its VLAN member
based on the settings of the Group-based Entry.
This option only available in Tag VLAN mode.

By Tag- whether packet sent out add/remove tag is judged on the basis of
the value set by the port in the Tag-based entry.

By Port-whether the port sent out the packet add/remove tag is judged by
the tagging value set by the port in the VLAN port config web page
It could connect the selected packet type via engress rule to transport between
different VLAN groups. The available options are shown below:

Multicast

Unicast

ARP
