4.9.1.4 STP Instance Settings

This page allows you to configure the STP Instance settings for Managed PoE+ Switch as the screen in
The page includes the following fields:
Object
• MSTI ID
• Priority
• Instance Type
• Instance Priority
• Action
STP Instance Operational Status
• MSTP ID
• External Root Cost
• Internal Root Cost
• Root Port
• Forward Delay
• Designated Root Bridge
• Regional Root Bridge
• Designated Bridge
• Max. Age
• Max. Hops
Button
: press this button to take effect.

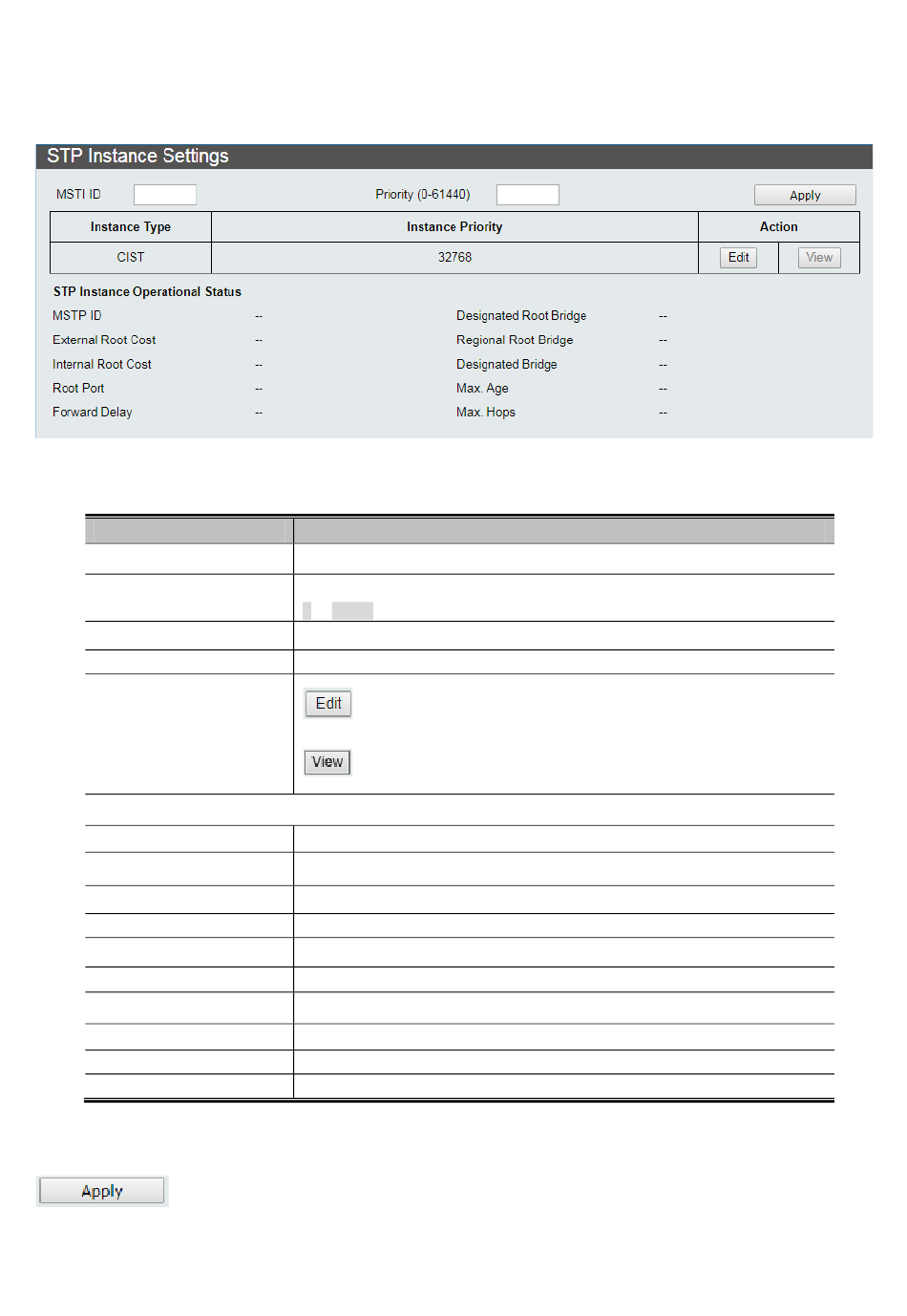

Figure 4-9-8: STP Instance Settings Configuration Page Screenshot
Description
This column provides configuring the MSTI ID settings.
This column provides configuring the Priority settings and the available range is
0 to 61440.
Display the instance type information.
Display the instance priority information.
: press this button to edit specific Instance ID Settings.
: press this button to view STP Instance operational status.
Display MSTP ID information.
Display External Root Cost information.
Display Internal Root Cost information.
Display Root Port information.
Display Forward Delay information.
Display Designated Root Bridge information.
Display Regional Root Bridge information.
Display Designated Bridge information.
Display Max. Age information.
Display Max. Hops information.
145
User's Manual of FGSW-Series
Figure 4-9-8 appears.
