4.9.9 Voice VLAN Setting

On this page. Voice VLAN Setting is enabled for voice traffic forwarding on the Voice VLAN. The Managed PoE+ Switch can
classify and schedule network traffic. It is recommended that there be two VLANs on a port -- one for voice and one for data.
Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly. It should be
configured through its own GUI. The Voice VLAN Setting configuration includes the Voice VLAN State, Voice VLAN Port Setting
and OUI list. Table 4-9-3 shows the items of Voice VLAN Setting functions.
Voice VLAN Setting Configuration
Item

Voice VLAN State

Voice VLAN Port Setting
OUI List
4.9.9.1 Voice VLAN State
This page allows you to configure the Voice VLAN State settings for Managed PoE+ Switch as the screen in
appears.
The page includes the following fields:
Object
•
State
• Voice VLAN ID
• Aging Time
• VLAN Priority
Button
: press this button to take effect.
Configure and display Voice VLAN State settings on this web page.
Configure and display Voice VLAN Port Setting on this web page.
Configure and display OUI List settings on this web page.
Table 4-9-3: Descriptions of Voice VLAN Setting Configuration

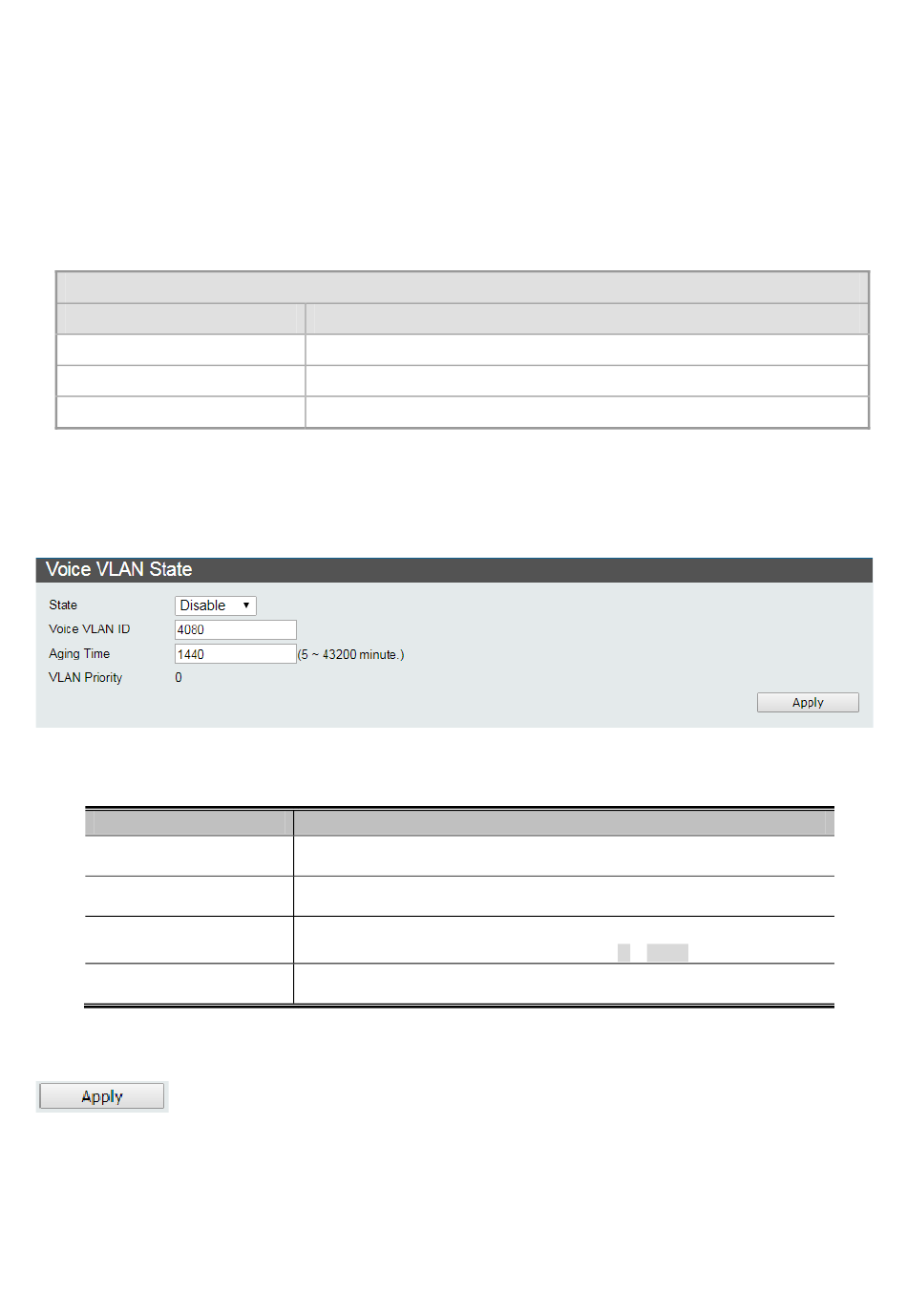

Figure 4-9-29: Voice VLAN State Settings Configuration Page Screenshot
Description
This column provides configuring enable or disable the Voice VLAN function.
This column provides inputting the Voice VLAN ID; the default value is 4080.
This column provides configuring the value for Bridge Max Age; the default
value is 1440 minute and the available range is 5 to 43200 minute.
This column provides displaying the VLAN priority information.
Description
169
User's Manual of FGSW-Series
Figure 4-9-29
