4.7.2.2 IP
The Access Control List configuration includes the function that is based on IP address as the screen in
The page includes the following fields:
Object
• Name
• Source IP Address
• Source IP Mask
• Source Port Range
• Destination Port Range
• Ingress Port
• Action
Button
: press this button to take effect.

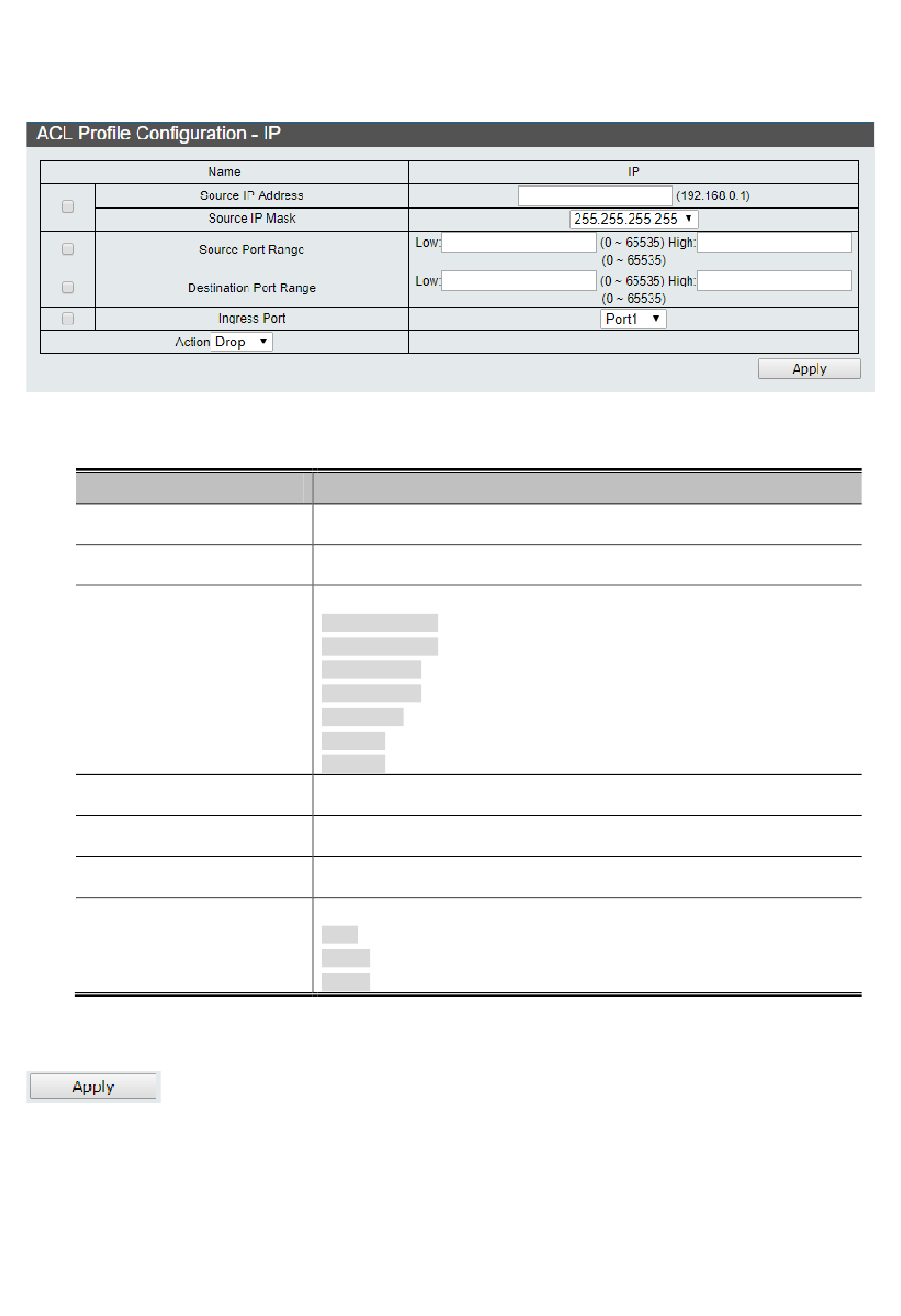

Figure 4-7-4: ACL Profile List-IP Configuration Page Screenshot
Description
Display the ACL profile name.
Configure the Source IP Address.
Configure the Source IP Mask and the available options are shown below:
255:255:255:255
255:255:255:240
255:255:255:0
255:255:240:0
255.255:0:0
255.0.0.0
240.0.0.0
Configure the Source Port Range of Low and High.
Configure the Destination Port Range of Low and High.
Select the specific port as Ingress port.
Select the action and the available options are shown below:
Drop
Type 1
Type 2
112
User's Manual of FGSW-Series
Figure 4-7-4
appears.
