4. WEB CONFIGURATION

This section introduces the configuration and functions of the Web-based management from Managed PoE+ Switch.
About Web-based Management
The Managed PoE+ Switch offers management features that allow users to manage the Managed PoE+ Switch from anywhere
on the network through a standard browser such as Microsoft Internet Explorer or Google Chrome.
The Managed PoE+ Switch can be configured through an Ethernet connection, making sure the manager PC must be set on the
same IP subnet address with the Managed PoE+ Switch.
For example, the default IP address of the Managed PoE+ Switch is 192.168.0.100, then the manager PC should be set at
192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.
If you have changed the default IP address of the Managed PoE+ Switch to 192.168.1.1 with subnet mask 255.255.255.0 via
console, then the manager PC should be set at 192.168.1.x (where x is a number between 2 and 254) to do the relative
configuration on manager PC.

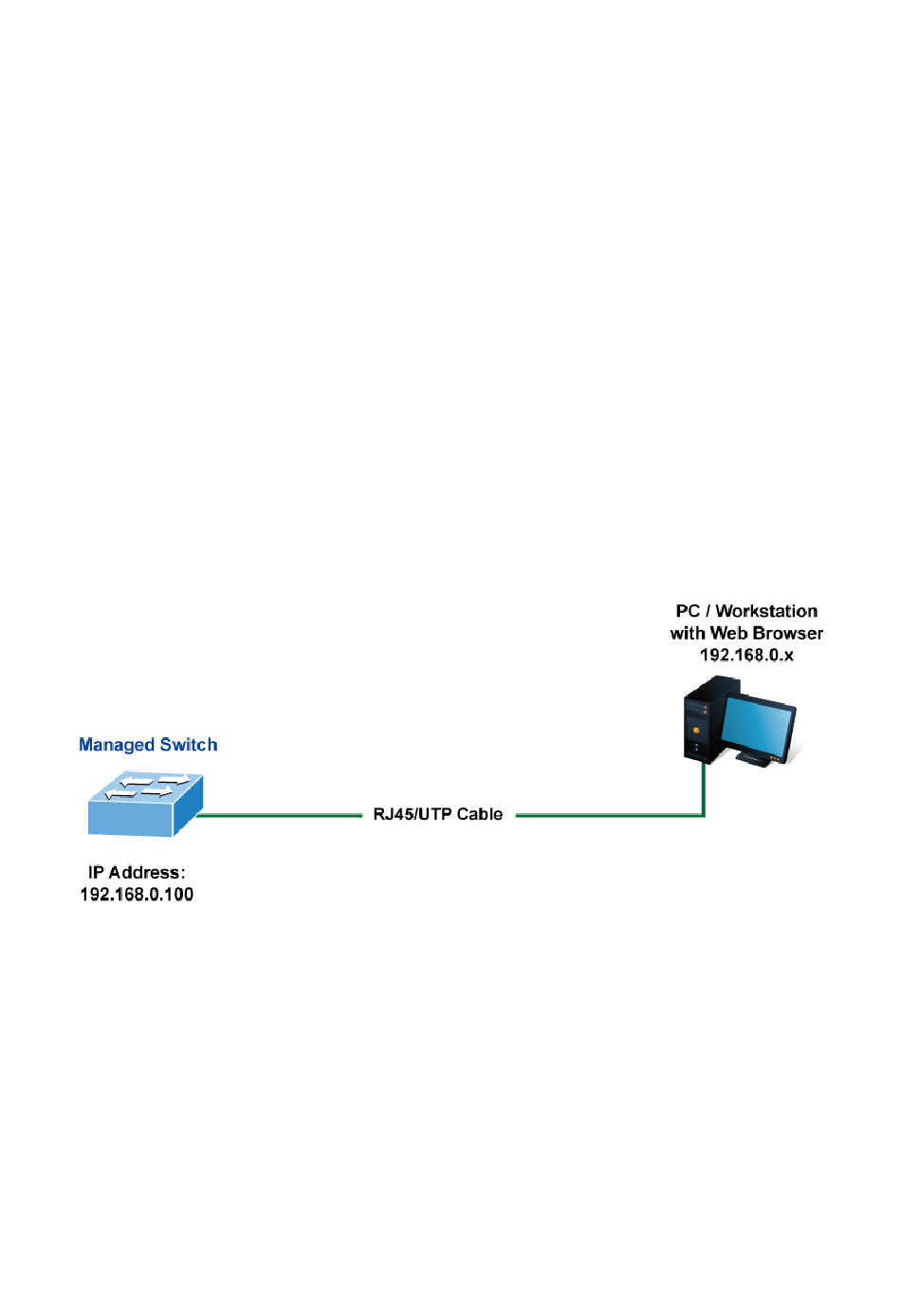

Figure 4-1-1: Web Management
