4.6.7 802.1p-based QoS

This page allows you to configure the 802.1p-based QoS settings for Managed PoE+ Switch as the 802.1p-based QoS screen
in Figure 4-6-7 appears.
The page includes the following fields:
Object
•
Earlier Edition
• 2005 Edition
• Exchange the priority
of 3'b001 for 2005
Edition
• Priority Field
• Earlier Edition
• 2005 Edition
Button
: press this button to take effect.

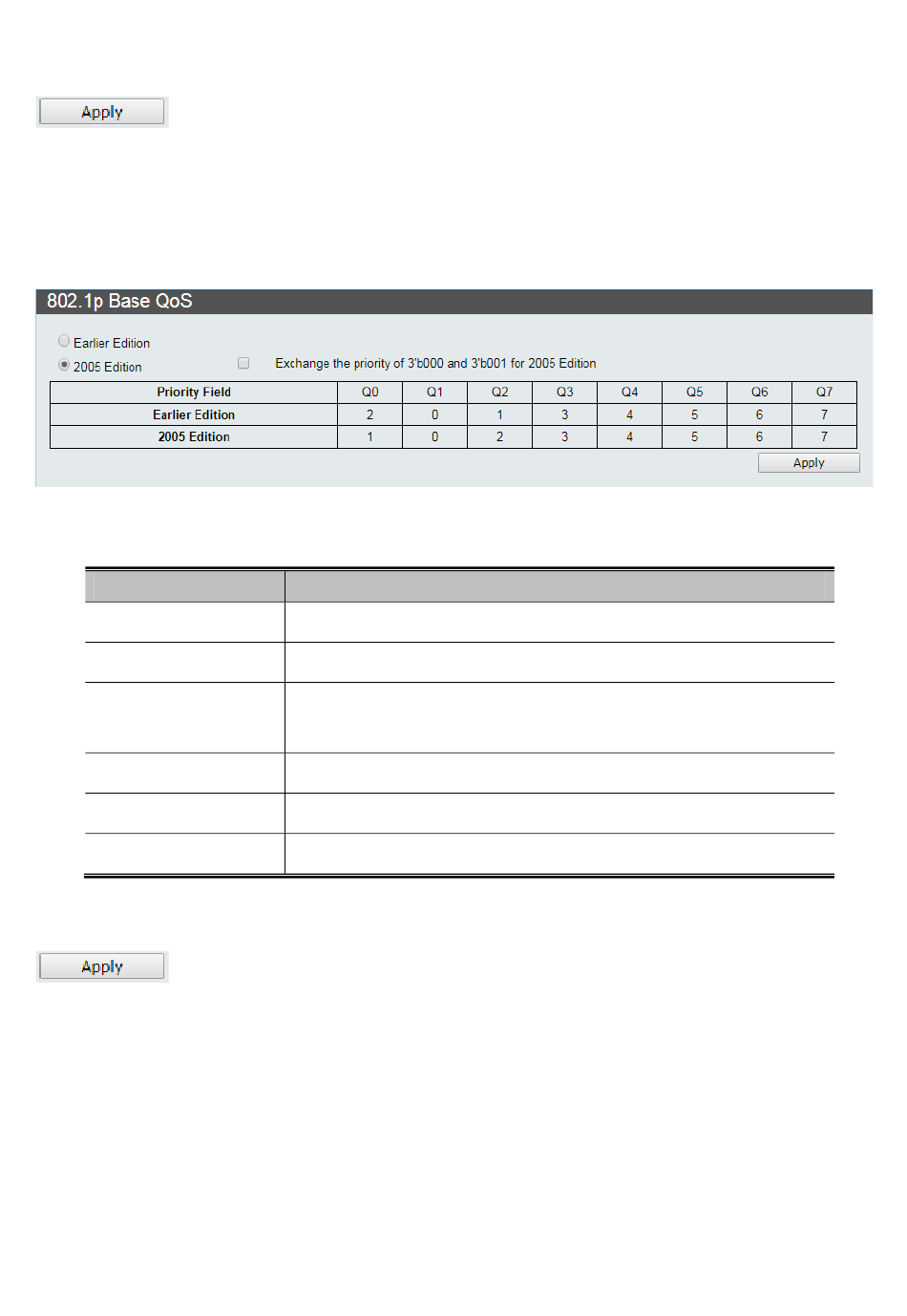

Figure 4-6-7: 802.1p-based QoS Configuration Page Screenshot
Description
Click to select the Eariler Edition for 802.1p-based QoS.
Click to select the 2005 Edition for 802.1p-based QoS.
Click to select the Exchange the priority of 3'b001 for 2005 Edition for
802.1p-base QoS.
Display priority field of Q0 to Q7.
Display earlier edition for 802.1p-based QoS.
Display 2005 edition for 802.1p-based QoS.
