4.7.2.1 MAC

The Access Control List configuration includes the function that is based on MAC address as the screen in
appears.
The page includes the following fields:
Object
• Name
• Source MAC Address
• Source MAC Mask
• Destination MAC Address
• Destination MAC Mask
• VID
• CoS
• Ethernet Type
• Ingress Port
• Action
Button
: press this button to take effect.

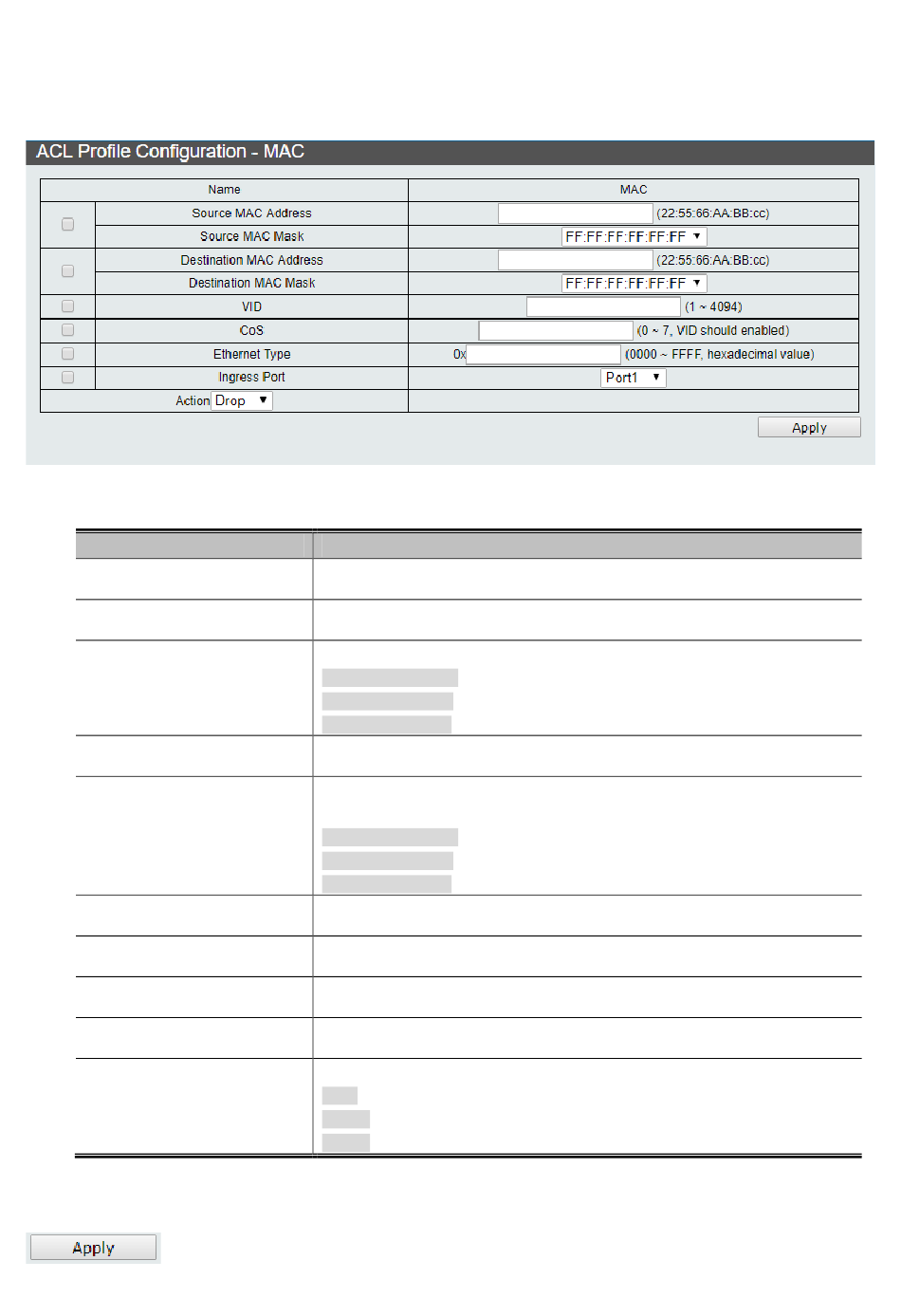

Figure 4-7-3: ACL Profile List-MAC Configuration Page Screenshot
Description
Display the ACL profile name.
Configure the Source MAC Address.
Configure the Source MAC Mask and the available options are shown below:
FF:FF:FF:FF:FF:FF
FF:FF:FF:00:00:00
FF:FF:00:00:00:00
Configure the Destination MAC Address.
Configure the Destination MAC Mask and the available options are shown
below:
FF:FF:FF:FF:FF:FF
FF:FF:FF:00:00:00
FF:FF:00:00:00:00
Configure the VID and the available range is 1-4094.
Configure the CoS and the available range is 0-7.
Configure the Ethernet Type.
Select the specific port as Ingress port.
Select the action and the available options are shown below:
Drop
Type 1
Type 2
