2.1.2 LED Indications

The front panel LEDs indicates instant status of power and system status, fan status, port links / PoE in-use and data activity;
helps monitor and troubleshoot when needed.

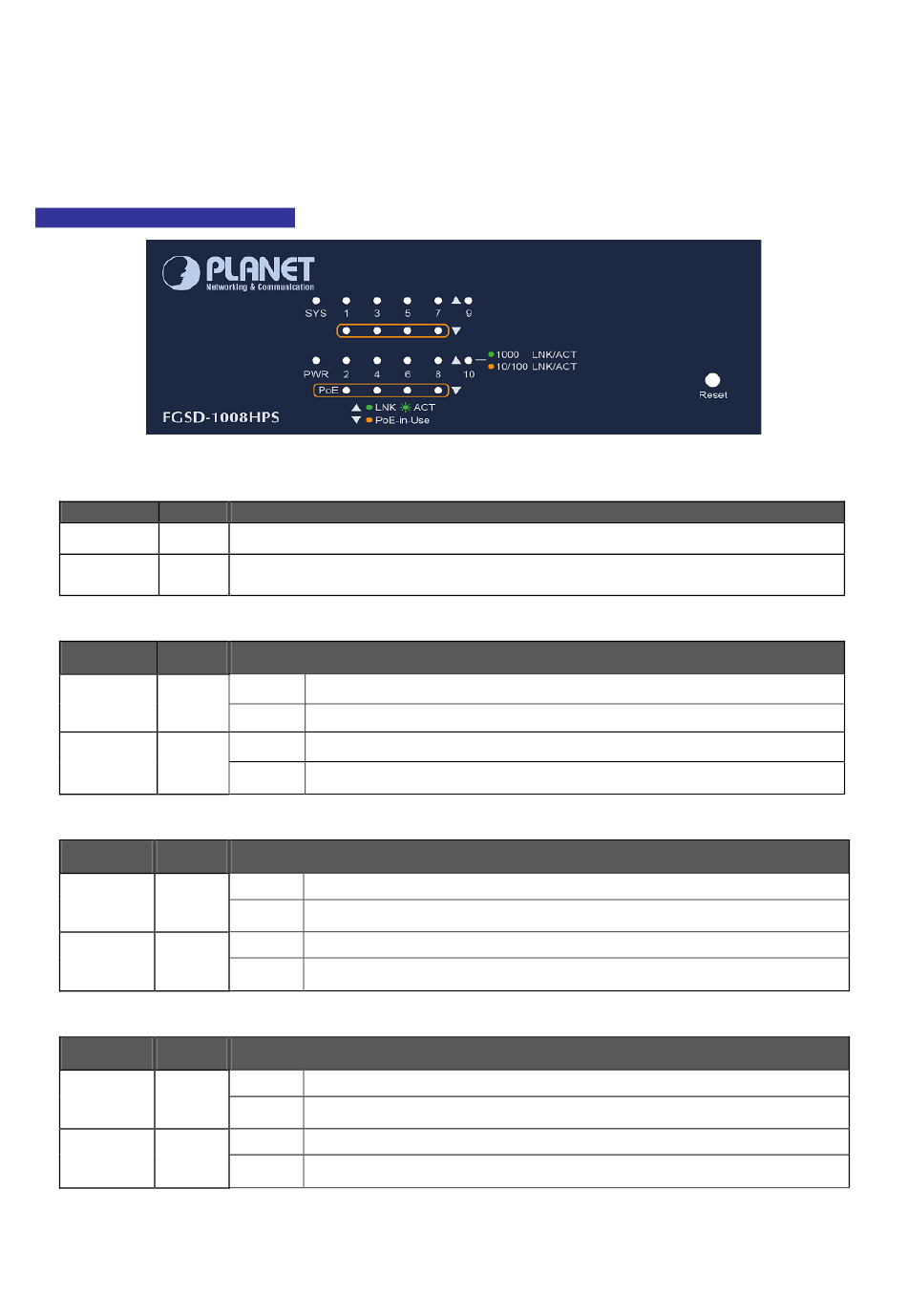

FGSD-1008HPS LED Indication

System
LED Color
PWR Green
SYS Green

Per 10/100Mbps Port with PoE Interfaces (Port1 to Port8)
LED Color
LNK/ACT Green
PoE In-Use Amber

Per 10/100/1000Mbps RJ45 Combo Interface (Port9 to Port10)
LED Color
1000
Green
LNK/ACT
10/100
Amber
LNK/ACT

Per 1000Mbps SFP Combo Interface (Port9 to Port10)
LED Color
1000
Green
LNK/ACT
10/100
Amber
LNK/ACT
Figure 2-2
Lights to indicate the Switch has power.
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights Indicates the link through that port is successfully established at 10/100Mbps.
Blink Indicates the Switch is actively sending or receiving data over that port.
Lights Indicates the port is providing PoE power.
Off Indicates the port is not providing PoE power.
Lights Indicates the port is successfully established.
Blink Indicates the Switch is actively sending or receiving data over that port.
Lights Indicates the port is successfully established.
Blink Indicates the Switch is actively sending or receiving data over that port.
Lights Indicates the port is successfully established.
Blink Indicates the Switch is actively sending or receiving data over that port.
Lights Indicates the port is successfully established.
Blink Indicates the Switch is actively sending or receiving data over that port.
shows the LED indications of the Managed PoE+ Switches.
Function
Function
Function
Function
25
User's Manual of FGSW-Series
