Planet Networking & Communication MGSW-28240F Command Manual

24-port 100/1000base-x sfp with 4-port 10g sfp+ managed metro ethernet switch
Hide thumbs Also See for MGSW-28240F:
1
Table Of Contents
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Command Guide of MGSW-28240F
-1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGSW-28240F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet Networking & Communication MGSW-28240F

Summary of Contents for Planet Networking & Communication MGSW-28240F

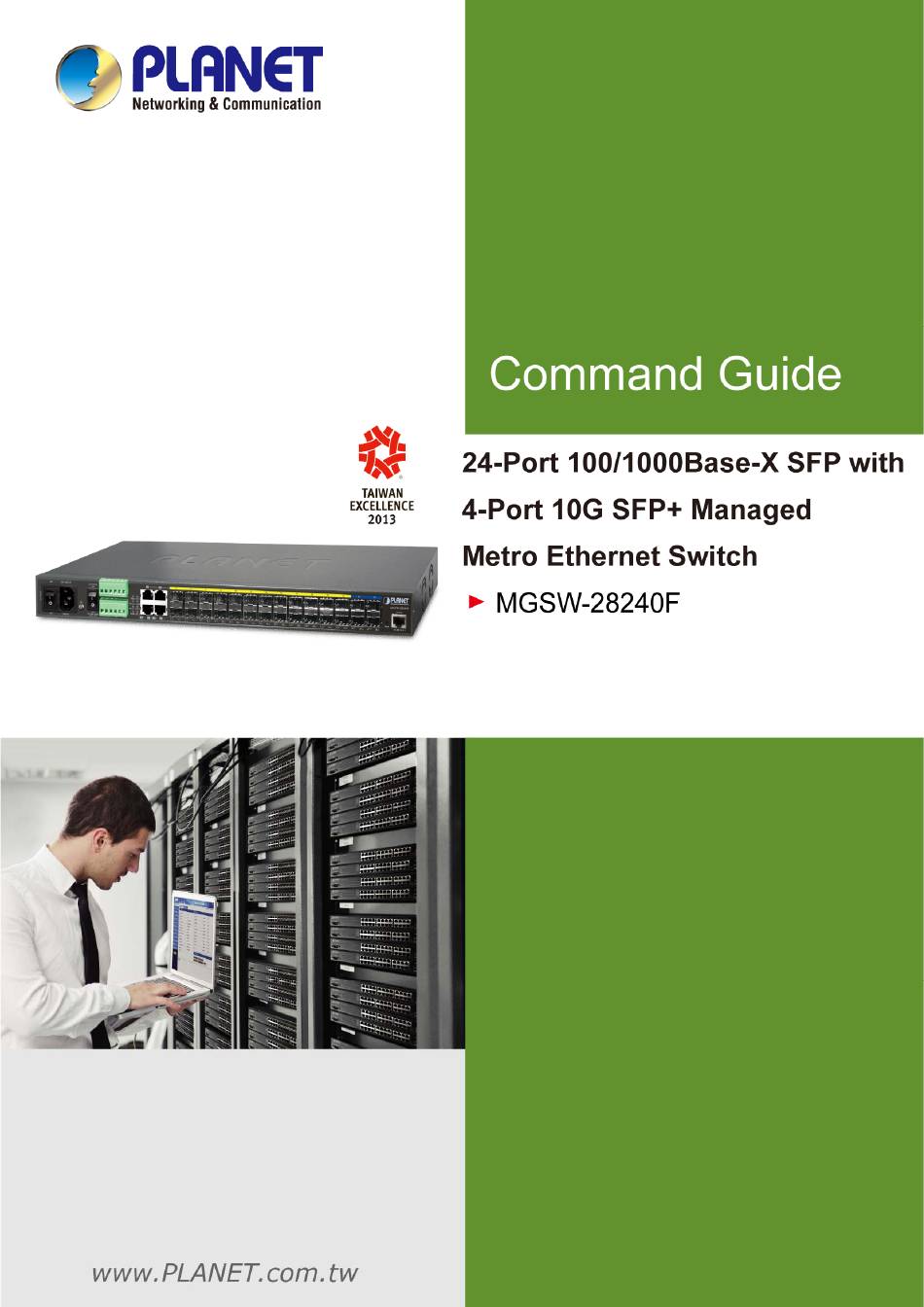

  • Page 1 Command Guide of MGSW-28240F...

  • Page 2: Table Of Contents

    Command Guide of MGSW-28240F Contents Chapter 1 COMMAND LINE INTERFACE............20 1.1 Accessing the CLI ....................... 20 1.2 Command Line Modes....................20 1.3 Requirements ......................21 Chapter 2 CONSOLE CLI MANAGEMENT............22 2.1 Terminal Setup ......................22 2.2 Logon to the Console ....................24 2.3 Configuring IP Address ....................
  • Page 3 Command Guide of MGSW-28240F 4.1.20 clear ip statistics icmp icmp-msg ........................36 4.1.21 clear ip statistics icmp interface vlan .........................36 4.1.22 clear ip statistics system icmp icmp-msg......................36 4.1.23 clear ip statistics system icmp interface vlan .....................37 4.1.24 clear ipv6 mld snooping statistics ........................37 4.1.25 clear ipv6 mld snooping vlan ..........................38...
  • Page 4 Command Guide of MGSW-28240F 4.2.6 aaa authentication login http tacacs ........................52 4.2.7 aaa authentication login ssh local........................53 4.2.8 aaa authentication login ssh radius ........................53 4.2.9 aaa authentication login ssh tacacs........................54 4.2.10 aaa authentication login telnet local........................54 4.2.11 aaa authentication login telnet radius ........................55 4.2.12 aaa authentication login telnet tacacs........................55...
  • Page 5 Command Guide of MGSW-28240F 4.2.47 erps <1-64> sub ..............................75 4.2.48 erps <1-64> topology-change propagate......................76 4.2.49 erps <1-64> topology-change propagate......................76 4.2.50 erps <1-64> vlan..............................77 4.2.51 exit..................................77 4.2.52 green-ethernet led interval..........................78 4.2.53 green-ethernet led on-event ..........................78 4.2.54 help..................................79 4.2.55 hostname................................80 4.2.56 interface * | 10GigabitEthernet | GigabitEthernet....................80 4.2.56.1 access-list action permit ..........................81...
  • Page 6 Command Guide of MGSW-28240F 4.2.56.32 ip igmp snooping max-groups .......................96 4.2.56.33 ip igmp snooping mrouter ........................97 4.2.56.34 ip verify source ............................97 4.2.56.35 ip verify source limit..........................98 4.2.56.36 ipv6 mld snooping filter..........................98 4.2.56.37 ipv6 mld snooping immediate-leave ......................99 4.2.56.38 ipv6 mld snooping max-groups......................99 4.2.56.39 ipv6 mld snooping mrouter ........................100...
  • Page 7 Command Guide of MGSW-28240F 4.2.56.73 poe pdcheck reboot-time ........................118 4.2.56.74 poe pdcheck retry-count ........................118 4.2.56.75 poe power limit ............................ 119 4.2.56.76 poe priority............................119 4.2.56.77 poe time-range ............................120 4.2.56.78 port-security............................121 4.2.56.79 port-security maximum ........................121 4.2.56.80 port-security violation ..........................122 4.2.56.81 port-security violation ..........................122...
  • Page 8 Command Guide of MGSW-28240F 4.2.56.114 spanning-tree restricted-role......................141 4.2.56.115 spanning-tree restricted-tcn.......................141 4.2.56.116 speed ..............................142 4.2.56.117 switchport access vlan ........................143 4.2.56.118 switchport forbidden vlan add......................143 4.2.56.119 switchport forbidden vlan remove......................144 4.2.56.120 switchport hybrid acceptable-frame-type ...................145 4.2.56.121 switchport hybrid allowed vlan......................145 4.2.56.122 switchport hybrid egress-tag......................146 4.2.56.123 switchport hybrid ingress-filtering ......................147...
  • Page 9 Command Guide of MGSW-28240F 4.2.57.21 ipv6 mld snooping last-member-query-interval..................167 4.2.57.22 ipv6 mld snooping priority........................167 4.2.57.23 ipv6 mld snooping querier election ......................168 4.2.57.24 ipv6 mld snooping query-interval......................168 4.2.57.25 ipv6 mld snooping query-max-response-time..................169 4.2.57.26 ipv6 mld snooping robustness-variable ....................170 4.2.57.27 ipv6 mld snooping unsolicited-report-interval ..................170 4.2.57.28 no ................................171...
  • Page 10 Command Guide of MGSW-28240F 4.2.69 ip igmp host-proxy ............................191 4.2.70 ip igmp host-proxy leave-proxy........................191 4.2.71 ip igmp snooping .............................192 4.2.72 ip igmp snooping vlan............................192 4.2.73 ip igmp ssm-range ............................193 4.2.74 ip igmp unknown-flooding..........................193 4.2.75 ip name-server ..............................194 4.2.76 ip name-server dhcp............................194 4.2.77 ip name-server dhcp interface vlan........................195...
  • Page 11 Command Guide of MGSW-28240F 4.2.94.9 length ..............................214 4.2.94.10 location ..............................215 4.2.94.11 motd-banner ............................215 4.2.94.12 no ................................216 4.2.94.13 privilege level............................216 4.2.94.14 width ..............................217 4.2.95 lldp holdtime ..............................218 4.2.96 lldp med datum ..............................218 4.2.97 lldp med fast ..............................219 4.2.98 lldp med location-tlv altitude ..........................219 4.2.99 lldp med location-tlv elin-addr ..........................220...
  • Page 12 Command Guide of MGSW-28240F 4.2.130 mep <Instance> meg-id..........................241 4.2.131 mep <Instance> mep-id..........................242 4.2.132 mep <Instance> peer-mep-id.........................243 4.2.133 mep <Instance> performance-monitoring ......................244 4.2.134 mep <Instance> tst ............................244 4.2.135 mep <Instance> up............................245 4.2.136 mep <Instance> vid ............................246 4.2.137 mep <Instance> voe ............................247 4.2.138 monitor destination ............................247...
  • Page 13 Command Guide of MGSW-28240F 4.2.167.4 no ................................267 4.2.167.5 periodic..............................268 4.2.167.6 reboot-only ............................269 4.2.168 port-security..............................269 4.2.169 port-security aging ............................270 4.2.170 port-security aging time ..........................270 4.2.171 privilege .................................271 4.2.172 qos map cos-dscp ............................272 4.2.173 qos map dscp-classify ...........................273 4.2.174 qos map dscp-cos ............................274 4.2.175 qos map dscp-egress-translation........................275...
  • Page 14 Command Guide of MGSW-28240F 4.2.197.9 version..............................299 4.2.198 spanning-tree aggregation..........................299 4.2.198.1 do ................................300 4.2.198.2 end ..............................301 4.2.198.3 exit...............................301 4.2.198.4 no ................................302 4.2.198.5 spanning-tree auto-edge ........................302 4.2.198.6 spanning-tree bpdu-guard ........................303 4.2.198.7 spanning-tree edge ..........................303 4.2.198.8 spanning-tree link-type ........................304 4.2.198.9 spanning-tree mst <instance> cost......................305 4.2.198.10 spanning-tree mst <instance>...
  • Page 15 Command Guide of MGSW-28240F 4.4 debug ......................... 323 4.4.1 debug ................................323 4.5 delete ......................... 324 4.5.1 delete.................................324 4.6 dir ..........................325 4.6.1 dir ..................................325 4.7 disable ........................326 4.7.1 disable ................................326 4.8 do ..........................326 4.8.1 do ..................................326 4.9 dot1x .......................... 327 4.9.1 dot1x initialize ..............................327...
  • Page 16 Command Guide of MGSW-28240F 4.19.2 reload defaults ..............................336 4.20 send ......................... 336 4.20.1 send.................................336 4.21 show......................... 337 4.21.1 show aaa .................................337 4.21.2 show access management ..........................338 4.21.3 show access-list ..............................339 4.21.4 show access-list ..............................340 4.21.5 show access-list ace-status ..........................341 4.21.6 show aggregation ............................343 4.21.7 show aggregation mode ..........................343...
  • Page 17 Command Guide of MGSW-28240F 4.21.37 show ip dhcp server declined-ip (GG) ......................367 4.21.38 show ip dhcp server statistics ........................367 4.21.39 show ip dhcp snooping ..........................369 4.21.40 show ip dhcp snooping table .........................369 4.21.41 show ip http server secure status ........................370 4.21.42 show ip igmp snooping ..........................370...
  • Page 18 Command Guide of MGSW-28240F 4.21.78 show port-security switch ..........................400 4.21.79 show privilege..............................400 4.21.80 show ptp <clockinst> .............................401 4.21.81 show ptp <clockinst> local-clock........................402 4.21.82 show ptp <clockinst> slave-cfg ........................403 4.21.83 show ptp <clockinst> slave-table-unicast ......................403 4.21.84 show ptp ext ..............................404 4.21.85 show pvlan ..............................404 4.21.86 show pvlan isolation ............................405...
  • Page 19 Command Guide of MGSW-28240F 4.22.3 terminal history size............................436 4.22.4 terminal length ..............................437 4.22.5 terminal width ..............................438 -19-...

  • Page 20: Chapter 1 Command Line Interface

    Command Guide of MGSW-28240F Chapter 1 COMMAND LINE INTERFACE 1.1 Accessing the CLI When accessing the management interface for the switch over a direct connection to the server’s console port, or via a Telnet connection, the switch can be managed by entering command keywords and parameters at the prompt. Using the switch's command-line interface (CLI) is very similar to entering commands on a UNIX system.

  • Page 21: Requirements

    Command Guide of MGSW-28240F The CLI provides the following modes:  User Mode When the operator logs into the CLI, the User Mode is the initial mode. The User Mode contains a limited set of commands. The command prompt shown at this level is: Command Prompt: switch>...

  • Page 22: Chapter 2 Console Cli Management

    Command Guide of MGSW-28240F Chapter 2 CONSOLE CLI MANAGEMENT 2.1 Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ-45 type of serial (console) port of the Managed Switch.
  • Page 23 Command Guide of MGSW-28240F Figure 2-3 Hyper Terminal COM Port Configuration You can change these settings, if desired, after you log on. This management method is often preferred because you can remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port, regardless of the interface through which the associated action was initiated.

  • Page 24: Logon To The Console

    Command Guide of MGSW-28240F 2.2 Logon to the Console Once the terminal is connected to the device, power on the Managed Switch, and the terminal will display “running testing procedures”. Then, the following message asks to log-in user name and password. The factory default user name and...
  • Page 25 Command Guide of MGSW-28240F  Show the current IP Address At the “#” prompt, enter “show ip interface brief”. The screen displays the current IP address and Subnet Mask as shown in Figure 3-2. Figure 3-2: IP Information Screen ...
  • Page 26 Command Guide of MGSW-28240F Repeat step 1 to check if the IP address is changed.  Store current switch configuration At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 3-4: Saving Current Configuration Command Screen If the IP is successfully configured, the Managed Switch will apply the new IP address setting immediately.

  • Page 27: Chapter 3 Telnet Cli Management

    Command Guide of MGSW-28240F Chapter 3 TELNET CLI MANAGEMENT 3.1 Telnet Login The Managed Switch also supports telnet for remote management. The switch asks for user name and password for remote login when using telnet, please use “admin” for username & password.

  • Page 28: Chapter 4 Commands For Cli Configuration

    Command Guide of MGSW-28240F Chapter 4 Commands for CLI Configuration 4.1 clear 4.1.1 clear access management statistics Command: clear access management statistics Default: Usage Guide: To clear the access management statistics. Example: To clear the Switch’s access management statistics. Switch# clear access management statistics 4.1.2 clear access-list ace statistics...

  • Page 29: Clear Dot1X Statistics Interface

    Command Guide of MGSW-28240F 4.1.3 clear dot1x statistics interface Command: clear dot1x statistics interface GigabitEthernet | 10GigabitEthernet Default: Usage Guide: To clear the dot1x statistics. Example: To clear the Switch’s GigabitEthernet 1/25 dot1x statistics. Switch# clear dot1x statistics interface GigabitEthernet 1/25 4.1.4 clear eps...

  • Page 30: Clear Erps Statistics

    Command Guide of MGSW-28240F Switch# # clear erps 1 statistics 4.1.6 clear erps statistics Command: clear erps statistics Default: Usage Guide: To clear the ERPS statistics. Example: To clear the Switch’s ERPS statistics. Switch# clear erps statistics 4.1.7 clear ip arp...

  • Page 31: Clear Ip Dhcp Detailed Statistics All

    Command Guide of MGSW-28240F 4.1.8 clear ip dhcp detailed statistics all Command: clear ip dhcp detailed statistics all Default: Usage Guide: To clear the DHCP detailed statistics for all. Example: To clear the Switch’s DHCP detailed statistics for all. Switch# clear ip dhcp detailed statistics all 4.1.9 clear ip dhcp detailed statistics client...

  • Page 32: Clear Ip Dhcp Detailed Statistics Server

    Command Guide of MGSW-28240F Default: Usage Guide: To clear the DHCP normal L2 or L3 forward statistics. Example: To clear the Switch’s DHCP normal L2 or L3 forward statistics. Switch# clear ip dhcp detailed statistics helper 4.1.11 clear ip dhcp detailed statistics server...

  • Page 33: Clear Ip Dhcp Relay Statistics

    Command Guide of MGSW-28240F Switch# clear ip dhcp detailed statistics snooping 4.1.13 clear ip dhcp relay statistics Command: clear ip dhcp relay statistics Default: Usage Guide: To clear the DHCP relay statistics. Example: To clear the Switch’s DHCP relay statistics.

  • Page 34: Clear Ip Dhcp Server Binding Expired

    Command Guide of MGSW-28240F Command: clear ip dhcp server binding automatic Default: Usage Guide: To clear the DHCP automatic bindings cache. Example: To clear the Switch’s DHCP automatic bindings cache. Switch# clear ip dhcp server binding automatic 4.1.16 clear ip dhcp server binding expired...

  • Page 35: Clear Ip Igmp Snooping Statistics

    Command Guide of MGSW-28240F Example: To clear the Switch’s DHCP server manual binding cache. Switch# clear ip dhcp server binding manual 4.1.18 clear ip igmp snooping statistics Command: clear ip igmp snooping statistics Default: Usage Guide: To clear the IGMP snooping statistics.

  • Page 36: Clear Ip Statistics Icmp Icmp-Msg

    Command Guide of MGSW-28240F 4.1.20 clear ip statistics icmp icmp-msg Command: clear ip statistics icmp icmp-msg <Type : 0~255> <Type : 0~255> ICMP message type ranges from 0 to 255 Default: Usage Guide: To clear the IPv4 ICMP traffic for designated message type.

  • Page 37: Clear Ip Statistics System Icmp Interface Vlan

    Command Guide of MGSW-28240F Default: Usage Guide: To clear the IPv4 ICMP statistics for specific ICMP message type. Example: To clear the Switch’s IPv4 ICMP statistics for specific ICMP message type 0. Switch# clear ip statistics system icmp icmp-msg 0 4.1.23 clear ip statistics system icmp interface vlan...

  • Page 38: Clear Ipv6 Mld Snooping Vlan

    Command Guide of MGSW-28240F Switch# clear ipv6 mld snooping statistics 4.1.25 clear ipv6 mld snooping vlan Command: clear ipv6 mld snooping vlan <vlan_list> statistics <vlan_list> VLAN identifier(s): VID Default: Usage Guide: To clear the ipv6 mld snooping statistics for specific VLAN.

  • Page 39: Clear Ipv6 Statistics Icmp Interface Vlan

    Command Guide of MGSW-28240F Command: clear ipv6 statistics icmp icmp-msg <Type : 0~255> <Type : 0~255> ICMP message type ranges from 0 to 255 Default: Usage Guide: To clear the IPv6 ICMP traffic for designated message type. Example: To clear the Switch’s IPv6 ICMP traffic for designated message type 0.

  • Page 40: Clear Ipv6 Statistics System Icmp Interface Vlan

    Command Guide of MGSW-28240F Usage Guide: To clear the IPv6 ICMP statistics for specific ICMP message type. Example: To clear the Switch’s IPv6 ICMP statistics for specific ICMP message type 0. Switch# clear ipv6 statistics system icmp icmp-msg 0 4.1.30 clear ipv6 statistics system icmp interface vlan...

  • Page 41: Clear Lldp Statistics

    Command Guide of MGSW-28240F 4.1.32 clear lldp statistics Command: clear lldp statistics Default: Usage Guide: To clear the lldp statistics. Example: To clear the Switch’s lldp statistics. Switch# clear lldp statistics 4.1.33 clear logging error info Command: clear logging error info...

  • Page 42: Clear Logging Info Error

    Command Guide of MGSW-28240F Default: Usage Guide: To clear the logging error warning. Example: To clear the Switch’s logging error warning. Switch# clear logging error warning 4.1.35 clear logging info error Command: clear logging info error Default: Usage Guide: To clear the logging info error.

  • Page 43: Clear Logging Warning Error

    Command Guide of MGSW-28240F Switch# clear logging info warning 4.1.37 clear logging warning error Command: clear logging warning error Default: Usage Guide: To clear the logging warning error. Example: To clear the Switch’s logging warning error. Switch# clear logging warning error 4.1.38 clear logging warning info...

  • Page 44: Clear Mep

    Command Guide of MGSW-28240F Command: clear mac address-table Default: Usage Guide: To clear the mac address-table. Example: To clear the Switch’s mac address-table. Switch# clear mac address-table 4.1.40 clear mep Command: clear mep <Inst : uint> <Inst : uint> The MEP instance.

  • Page 45: Clear Mvr Statistics

    Command Guide of MGSW-28240F 4.1.42 clear mvr statistics Command: clear mvr statistics Default: Usage Guide: To clear the mvr statistics. Example: To clear the Switch’s mvr statistics. Switch# clear mvr statistics 4.1.43 clear mvr vlan Command: clear mvr vlan <vlan_list> statistics <vlan_list>...

  • Page 46: Clear Spanning-Tree Detected-Protocols Interface

    Command Guide of MGSW-28240F Default: Usage Guide: To clear the ERPS WTR timer for a specific profile. Example: To clear the Switch’s ERPS WTR timer for a specific profile 1. Switch# clear network-clock clk-source 1 4.1.45 clear spanning-tree detected-protocols interface *...

  • Page 47: Clear Spanning-Tree Detected-Protocols Interface Gigabitethernet

    Command Guide of MGSW-28240F Switch# clear spanning-tree detected-protocols interface * 4.1.47 clear spanning-tree detected-protocols interface GigabitEthernet Command: clear spanning-tree detected-protocols interface GigabitEthernet <PORT_LIST> <PORT_LIST> Port list in X/X-XX Default: Usage Guide: To clear the spanning-tree detected-protocols for specific GigabitEthernet port.

  • Page 48: Clear Spanning-Tree Statistics Interface

    Command Guide of MGSW-28240F To clear the Switch’s spanning-tree detected-protocols for specific 10GigabitEthernet 1/1. Switch# clear spanning-tree detected-protocols interface 10GigabitEthernet 1/1 4.1.49 clear spanning-tree statistics interface * Command: clear spanning-tree statistics interface * Default: Usage Guide: To clear the spanning-tree statistics for all.

  • Page 49: Clear Spanning-Tree Statistics Interface 10Gigabitethernet

    Command Guide of MGSW-28240F 4.1.51 clear spanning-tree statistics interface 10GigabitEthernet Command: clear spanning-tree statistics interface 10GigabitEthernet <PORT_LIST> <PORT_LIST> Port list in X/X-XX Default: Usage Guide: To clear the spanning-tree statistics for specific 10GigabitEthernet port. Example: To clear the Switch’s spanning-tree statistics for specific 10GigabitEthernet 1/1.

  • Page 50: Clear Statistics 10Gigabitethernet

    Command Guide of MGSW-28240F Default: Usage Guide: To clear the statistics for specific GigabitEthernet port. Example: To clear the Switch’s statistics for specific GigabitEthernet 1/1. Switch# clear statistics GigabitEthernet 1/1 4.1.54 clear statistics 10GigabitEthernet Command: clear statistics 10GigabitEthernet <PORT_LIST> <PORT_LIST>...

  • Page 51: Aaa Authentication Login Console Radius

    Command Guide of MGSW-28240F Example: To authenticate the local account via console. Switch# configure terminal Switch (config)# aaa authentication login console local 4.2.2 aaa authentication login console radius Command: aaa authentication login console radius Default: console : local Usage Guide: To authenticate the radius account via console only.

  • Page 52: Aaa Authentication Login Http Local

    Command Guide of MGSW-28240F 4.2.4 aaa authentication login http local Command: aaa authentication login http local Default: http : local Usage Guide: To authenticate the local account via http only. Example: To authenticate the local account via http. Switch# configure terminal Switch (config)# aaa authentication login http local 4.2.5 aaa authentication login http radius...

  • Page 53: Aaa Authentication Login Ssh Local

    Command Guide of MGSW-28240F Default: http : local Usage Guide: To authenticate the tacacs account via http only. Example: To authenticate the local and radius and tacacs account via http. Switch# configure terminal Switch (config)# aaa authentication login http local radius tacacs 4.2.7 aaa authentication login ssh local...

  • Page 54: Aaa Authentication Login Ssh Tacacs

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# aaa authentication login ssh local radius 4.2.9 aaa authentication login ssh tacacs Command: aaa authentication login ssh tacacs Default: ssh : local Usage Guide: To authenticate the tacacs account via ssh only.

  • Page 55: Aaa Authentication Login Telnet Radius

    Command Guide of MGSW-28240F 4.2.11 aaa authentication login telnet radius Command: aaa authentication login telnet radius Default: telnet : local Usage Guide: To authenticate the radius account via telnet only. Example: To authenticate the local and radius account via telnet.

  • Page 56: Access-List Ace

    Command Guide of MGSW-28240F <AccessVid : 1-4095> The VLAN ID for the access management entry <AddrRangeStart : ipv4_addr> Start IPv4 address <AddrRangeStart : ipv6_addr> Start IPv6 address All services snmp SNMP service telnet TELNET/SSH service End address of the range...

  • Page 57: Access-List Ace Update

    Command Guide of MGSW-28240F are limited. next Insert the current ACE before the next ACE ID policy Policy rate-limiter Rate limiter redirect Redirect frame to specific port shutdown Shutdown incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags).

  • Page 58: Access-List Rate-Limiter

    Command Guide of MGSW-28240F ingress Ingress logging Logging frame information. Note: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the System Log memory size and logging rate are limited. next Insert the current ACE before the next ACE ID...

  • Page 59: Access-List Rate-Limiter Pps

    Command Guide of MGSW-28240F Usage Guide: To set pps rate for specific rate-limiter ID. Example: To set pps rate(10000 pps) for specific rate-limiter ID 1. Switch# configure terminal Switch (config)# access-list rate-limiter 1 pps 10000 4.2.17 access-list rate-limiter pps Command: access-list rate-limiter pps <PpsRate : 0-131071>...

  • Page 60: Aggregation Mode

    Command Guide of MGSW-28240F Default: SMAC : Enabled DMAC : Disabled : Enabled Port : Enabled Usage Guide: To configure static aggregation mode type. Example: To configure static aggregation mode type with Destination MAC affects the distribution and Source MAC affects the distribution only.

  • Page 61: Banner

    Command Guide of MGSW-28240F 4.2.20 banner Command: banner <LINE> <LINE> c banner-text c, where 'c' is a delimiting character Default: Usage Guide: To configure banner-text. Example: To configure banner-text with word “ddddd”. Switch# configure terminal Switch (config)# banner 1 Enter TEXT message. End with the character '1'.

  • Page 62: Banner Login

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# banner exec 1 Enter TEXT message. End with the character '1'. gggggg Telnet 192.168.0.100: Username: admin Password: gggggg 4.2.22 banner login Command: banner login <LINE> <LINE> c banner-text c, where 'c' is a delimiting character...

  • Page 63: Banner Motd

    Command Guide of MGSW-28240F Password: 4.2.23 banner motd Command: banner motd <LINE> <LINE> c banner-text c, where 'c' is a delimiting character Default: Usage Guide: To configure motd banner-text. Example: To configure motd banner-text with word “ffffff”. Switch# configure terminal Switch (config)# banner motd 1 Enter TEXT message.

  • Page 64: Clock Timezone

    Command Guide of MGSW-28240F <Timeend: hh:mm > <Offset minutes: 1-1440 > Default: Usage Guide: To set daylight saving. Example: To set daylight saving (Started time: Feb, 3. 2013 8:8AM, End time: Dec, 31. 2013 8:8AM, Offset time: 60 minutes). Switch# configure terminal Switch (config)# clock summer-time 1 date 2 3 2013 8:8 12 31 2013 8:8 60 4.2.25 clock timezone...

  • Page 65: Dot1X Authentication Timer Inactivity

    Command Guide of MGSW-28240F Usage Guide: To default the Rate limiter. Example: To default the Rate limiter ID 1. Switch# configure terminal Switch (config)# default access-list rate-limiter 1 4.2.27 dot1x authentication timer inactivity Command: dot1x authentication timer inactivity <10-1000000> Default:...

  • Page 66: Dot1X Feature

    Command Guide of MGSW-28240F Switch (config)# dot1x authentication timer re-authenticate 777 4.2.29 dot1x feature Command: dot1x feature guest-vlan | radius-qos | radius-vlan Default: Disable Usage Guide: To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server Example: To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server.

  • Page 67: Dot1X Guest-Vlan Supplicant

    Command Guide of MGSW-28240F 4.2.31 dot1x guest-vlan supplicant Command: dot1x guest-vlan supplicant supplicant The switch remembers if an EAPOL frame has been received on the port for the life-time of the port. Once the switch considers whether to enter the Guest VLAN, it will first check if this option is enabled or disabled.

  • Page 68: Dot1X Timeout Quiet-Period

    Command Guide of MGSW-28240F dot1x system-auth-control Default: Disable Usage Guide: To enable 802.1X service for Network Access Server Example: To enable 802.1X service for Network Access Server Switch# configure terminal Switch (config)# dot1x system-auth-control 4.2.34 dot1x timeout quiet-period Command: dot1x timeout quiet-period <10-1000000>...

  • Page 69: Enable Password

    Command Guide of MGSW-28240F To configure 802.1X EPOAL timeout for Network Access Server Example: To configure 802.1X EPOAL timeout (45 seconds) for Network Access Server Switch# configure terminal Switch (config)# dot1x timeout tx-period 45 4.2.36 enable password Command: enable password <WORD>...

  • Page 70: Enable Secret

    Command Guide of MGSW-28240F <1-15> Level number <WORD> The UNENCRYPTED (cleartext) password. Default: Disable Usage Guide: To configure enable password and specific level for user Example: To configure enable password(admin) and specific level(15) for user Switch# configure terminal Switch (config)# enable password level 15 admin...

  • Page 71: End

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# enable secret 0 level 15 cisco # show running-config Building configuration... enable secret 5 level 15 FC89368B9513DE0760290BCE9A1DA90A …………… Press ENTER to get started Username: Password: > enable Password: cisco 4.2.39 end...

  • Page 72: Erps <1-64> Holdoff

    Command Guide of MGSW-28240F <10-2000> Guard time in ms Default: Usage Guide: To configure the Guard Time for ERPS. Example: To configure the Guard Time(178 ms) for ERPS(Profile 1) Switch# configure terminal Switch (config)# erps 1 guard 178 4.2.41 erps <1-64> holdoff Command: erps <1-64>...

  • Page 73: Erps <1-64> Mep

    Command Guide of MGSW-28240F <1-64> ERPS group number interconnect Major ring is interconnected Default: Usage Guide: To create a profile and configure the Major ERPS interface port 0, port 1. Example: To create a profile 1 and configure the Major ERPS interface port 0(GigabitEthernet 1/1), port 1(GigabitEthernet 1/2)

  • Page 74: Erps <1-64> Mep

    Command Guide of MGSW-28240F 4.2.44 erps <1-64> mep Command: erps <1-64> revertive <wtr_time_minutes: 1-12> <1-64> ERPS group number <wtr_time_minutes: 1-12> Wait-to-restore time in minutes Default: Usage Guide: To configure WTR time for specific ERPS profile. Example: To configure WTR time(5 minuites) for specific ERPS profile 1.

  • Page 75: Erps <1-64> Sub

    Command Guide of MGSW-28240F Command: erps <1-64> rpl owner { port0 | port1 } port0 ERPS Port 0 interface port1 ERPS Port 1 interface Default: Usage Guide: To configure Ring Protection Link Owner Role for specific ERPS interface. Example: To configure Ring Protection Link Owner Role for specific ERPS interface..

  • Page 76: Erps <1-64> Topology-Change Propagate

    Command Guide of MGSW-28240F Example 2: To create a profile 2 and configure the Sub ERPS interface port 0(GigabitEthernet 1/3), port 1(GigabitEthernet 1/4) with interconnected mode and Major RIng group 1 and virtual-channel Switch# configure terminal Switch (config)# erps 1 sub port0 interface GigabitEthernet 1/3 interconnect 1 virtual-channel 4.2.48 erps <1-64>...

  • Page 77: Erps <1-64> Vlan

    Command Guide of MGSW-28240F Example: To configure ERPS version 1 for the specific profile 1. Switch# configure terminal Switch (config)# erps 1 version 1 4.2.50 erps <1-64> vlan Command: erps <1-64> vlan { none | [ add | remove ] <vlans> } <1-64>...

  • Page 78: Green-Ethernet Led Interval

    Command Guide of MGSW-28240F To exit configure terminal mode. Switch# configure terminal Switch (config)# exit 4.2.52 green-ethernet led interval Command: green-ethernet led interval <0~24> intensity <0-100> <0~24> Interval from 00.00 to 24.00 (00 is used to start at midnight, while 24 is used to stop at midnight).

  • Page 79: Help

    Command Guide of MGSW-28240F Default: Usage Guide: To configure LED Power on-event to trigger LED light Example: To configure LED Power on-event as tabled below: Switch# configure terminal Switch (config)# green-ethernet led on-event error link-change 55 4.2.54 help Command: help...

  • Page 80: Hostname

    Command Guide of MGSW-28240F 4.2.55 hostname Command: hostname < WORD > < WORD > This system's network name Default: Usage Guide: To configure switch’s hostname. Example: To configure switch’s hostname with “planetbestswitch” Switch# configure terminal Switch (config)# hostname planetbestswitch planetbestswitch(config)# 4.2.56 interface * | 10GigabitEthernet | GigabitEthernet...

  • Page 81: Access-List Action Permit

    Command Guide of MGSW-28240F 4.2.56.1 access-list action permit Command: access-list action permit action Access list action Default: Permit Usage Guide: To configure Permit for the ACL action. Example: To configure Permit ACL action for the GigabitEthernet X/X. Switch# configure terminal...

  • Page 82: Access-List Policy

    Command Guide of MGSW-28240F Command: access-list logging logging Logging frame information. Note: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the System Log memory size and logging rate is limited. Default:...

  • Page 83: Access-List Port-State

    Command Guide of MGSW-28240F 4.2.56.5 access-list port-state Command: access-list port-state port-state Re-enable shutdown port that was shutdown by access-list module Default: Enable Usage Guide: To enable Port-state function for the ACL. Example: To configure ACL Port-state function for the GigabitEthernet X/X.

  • Page 84: Access-List Redirect Interface

    Command Guide of MGSW-28240F 4.2.56.7 access-list redirect interface Command: access-list redirect interface 10GigabitEthernet <port_type_list> | GigabitEthernet <port_type_list> redirect Redirect frame to specific port Default: Disable Usage Guide: To redirect frames to specific Port. Example: To redirect GigabitEthernet X/X frames to GigabitEthernet 1/2.

  • Page 85: Aggregation Group

    Command Guide of MGSW-28240F 4.2.56.9 aggregation group Command: aggregation group <uint> aggregation Create an aggregation group Create an aggregation group <uint> The aggregation group id Default: Usage Guide: To configure aggregation group. Example: To configure aggregation group 7 for the GigabitEthernet X/X.

  • Page 86: Dot1X Guest-Vlan

    Command Guide of MGSW-28240F 4.2.56.11 do Command: do < exec commands > To run exec commands in config mode Default: Usage Guide: To run exec commands in configure terminal mode Example: To run “show aaa” in configure terminal mode. Switch# configure terminal...

  • Page 87: Dot1X Port-Control

    Command Guide of MGSW-28240F 4.2.56.13 dot1x port-control Command: dot1x port-control auto | force-authorized | force-unauthorized | mac-based | multi | single dot1x IEEE Standard for port-based Network Access Control port-control Sets the port security state. auto Port-based 802.1X Authentication force-authorized...

  • Page 88: Dot1X Radius-Vlan

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # dot1x radius-qos 4.2.56.15 dot1x radius-vlan Command: dot1x radius-vlan dot1x IEEE Standard for port-based Network Access Control radius-vlan Enables/disables per-port state of RADIUS-assigned VLAN. Default: Disable Usage Guide: To enable RADIUS-assigned VLAN for 802.1X...

  • Page 89: Duplex

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # dot1x re-authenticate 4.2.56.17 duplex Command: duplex auto | full | half duplex Interface duplex auto Auto negotiation of duplex mode. full Forced full duplex. half Forced half duplex.

  • Page 90: Excessive-Restart

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # end Switch# 4.2.56.19 excessive-restart Command: excessive-restart excessive-restart Restart backoff algorithm after 16 collisions (No excessive-restart means discard frame after 16 collisions) Default: Discard Usage Guide:...

  • Page 91: Flowcontrol

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # exit Switch (config)# 4.2.56.21 flowcontrol Command: flowcontrol off | on flowcontrol Traffic flow control. Disable flow control. Enable flow control. Default: Disable Usage Guide: To enable Flow-control for specific interface...

  • Page 92: Green-Ethernet Short-Reach(Gg)

    Command Guide of MGSW-28240F Example: To enable power saving for ports with no link for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # green-ethernet energy-detect 4.2.56.23 green-ethernet short-reach(GG) Command: green-ethernet short-reach green-ethernet Green ethernet (Power reduction) short-reach Enable power saving for ports which is connect to link partner with short cable.

  • Page 93: Gvrp Leave-Request Vlan(Gg)

    Command Guide of MGSW-28240F Example: To send GVRP Join-Request(VLAN 1) to GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # gvrp join-request vlan 1 4.2.56.25 gvrp leave-request vlan(GG) Command: gvrp leave-request vlan <vlan_list> gvrp Enable GVRP on port(s)

  • Page 94: Ip Arp Inspection Logging

    Command Guide of MGSW-28240F To configure Check-VLAN mode into ARP inspection for specific interface Example: To configure Check-VLAN mode (Enabled) into ARP inspection for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip arp inspection check-vlan 4.2.56.27 ip arp inspection logging...

  • Page 95: Ip Dhcp Snooping Trust

    Command Guide of MGSW-28240F Default: Trusted Usage Guide: To configure Trusted into ARP inspection for specific interface Example: To configure Trusted into ARP inspection for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip arp inspection trust 4.2.56.29 ip dhcp snooping trust...

  • Page 96: Ip Igmp Snooping Immediate-Leave

    Command Guide of MGSW-28240F Usage Guide: To apply the IGMP Snooping filter ID for specific interface Example: To apply the IGMP Snooping filter ID 1 for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip igmp snooping filter 1 4.2.56.31 ip igmp snooping immediate-leave...

  • Page 97: Ip Igmp Snooping Mrouter

    Command Guide of MGSW-28240F Example: To limit 5 groups of IGMP for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip igmp snooping max-groups 5 4.2.56.33 ip igmp snooping mrouter Command: ip igmp snooping mrouter [ automatic | fix | none ]...

  • Page 98: Ip Verify Source Limit

    Command Guide of MGSW-28240F To enable IP Source Guard for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip verify source 4.2.56.35 ip verify source limit Command: ip verify source limit <0-2> <0-2> the number of limit...

  • Page 99: Ipv6 Mld Snooping Immediate-Leave

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ipv6 mld snooping filter 1 4.2.56.37 ipv6 mld snooping immediate-leave Command: ipv6 mld snooping immediate-leave Default: Disabled Usage Guide: To enable MLD Snooping Immediate-leave (Fast Leave) for specific interface...

  • Page 100: Ipv6 Mld Snooping Mrouter

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ipv6 mld snooping max-groups 5 4.2.56.39 ipv6 mld snooping mrouter Command: ipv6 mld snooping mrouter [ automatic | fix | none] mrouter Multicast router port configuration...

  • Page 101: Lacp Key

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lacp 4.2.56.41 lacp key Command: lacp key <1-65535> | auto lacp Enable LACP on this interface Key of the LACP aggregation <1-65535> Key value auto...

  • Page 102: Lacp Role

    Command Guide of MGSW-28240F Example: To configure LACP port-priority (555) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lacp port-priority 555 4.2.56.43 lacp role Command: lacp role active | passive lacp Enable LACP on this interface...

  • Page 103: Lldp Cdp-Aware

    Command Guide of MGSW-28240F Default: Fast Usage Guide: To configure LACP timeout type for specific interface Example: To enable LACP timeout type (slow) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lacp timeout slow 4.2.56.45 lldp cdp-aware...

  • Page 104: Lldp Med Transmit-Tlv

    Command Guide of MGSW-28240F media-vlan Media VLAN assignment policy-list Assignment of policies <v_range_list> Policies to assign to the interface Default: Usage Guide: To apply MED Media-VLAN policy of LLDP for specific interface Example: To apply MED Media-VLAN policy 2 of LLDPfor GigabitEthernet X/X...

  • Page 105: Lldp Receive

    Command Guide of MGSW-28240F 4.2.56.48 lldp receive Command: lldp receive lldp LLDP configurations receive Enable/Disable decoding of received LLDP frames. Default: Both (Tx +Rx) Usage Guide: To configure LLDP Rx only mode for specific interface Example: To configure LLDP Rx only mode for GigabitEthernet X/X...

  • Page 106: Lldp Tlv-Select Port-Description

    Command Guide of MGSW-28240F 4.2.56.50 lldp tlv-select port-description Command: lldp tlv-select port-description lldp LLDP configurations tlv-select To transmit which optional TLVs. port-description Enable/Disable transmission of port description. Default: Enabled Usage Guide: To enable port-description of LLDP TLV for specific interface...

  • Page 107: Lldp Tlv-Select System-Description

    Command Guide of MGSW-28240F Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lldp tlv-select system-capabilities 4.2.56.52 lldp tlv-select system-description Command: lldp tlv-select system-description lldp LLDP configurations tlv-select To transmit which optional TLVs. system-description Enable/Disable transmission of system description. Default: Enabled...

  • Page 108: Lldp Transmit

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lldp tlv-select system-name 4.2.56.54 lldp transmit Command: lldp transmit lldp LLDP configurations transmit Enable/Disabled transmision of LLDP frames. Default: Both (Tx +Rx) Usage Guide: To configure LLDP Tx only mode for specific interface...

  • Page 109: Loop-Protect Action

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # loop-protect 4.2.56.56 loop-protect action Command: loop-protect action [log] [shutdown] loop-protect Loop protection configuration action Action if loop detected Generate log shutdown Shutdown port Default: Shutdown...

  • Page 110: Loop-Protect Tx-Mode

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # loop-protect tx-mode 4.2.56.58 loop-protect tx-mode Command: loop-protect tx-mode loop-protect Loop protection configuration tx-mode Actively generate PDUs Default: Enabled Usage Guide: To enable tx-mode of Loop protection for specific interface...

  • Page 111: Media-Type

    Command Guide of MGSW-28240F To enable learning of MAC address table for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # mac address-table learning 4.2.56.60 media-type Command: media-type dual | rj45 | sfp media-type Media type.

  • Page 112: Mvr Immediate-Leave

    Command Guide of MGSW-28240F To configure MTU sizes for specific interface Example: To configure MTU sizes (9000) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # mtu 9000 4.2.56.62 mvr immediate-leave Command: mvr immediate-leave Multicast VLAN Registration configuration...

  • Page 113: Mvr Vlan

    Command Guide of MGSW-28240F Default: Inactive Usage Guide: To configure port role of specific MVR profile for specific interface Example: To configure port role (source) of MVR profiles (111) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # mvr name 111 type source 4.2.56.64 mvr vlan...

  • Page 114: Ping Ip

    Command Guide of MGSW-28240F network-clock synchronization ssm network-clock network-clock synchronization SSM enable/disable. SSM enable/disable. Default: Disable Usage Guide: To enable SSM of SyncE for specific interface Example: To enable SSM of SyncE for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # network-clock synchronization ssm 4.2.56.66 no...

  • Page 115: Poe Mode

    Command Guide of MGSW-28240F ping ip <ipv4_addr> size <size: 2-1452> ping The ping command allows you to test connectivity to a network host from the appliance <ipv4_addr> IP address size size <size: 2-1452> Default is 56 (excluding MAC, IP and ICMP headers)

  • Page 116: Poe Pdcheck Ip

    Command Guide of MGSW-28240F 4.2.56.69 poe pdcheck IP Command: poe pdcheck IP <ipv4_addr> Power Over Ethernet. pdcheck Allows user to enable or disable per port PD Alive Check function. To set PoE device IP address here for system making ping to the PoE device.

  • Page 117: Poe Pdcheck Enable

    Command Guide of MGSW-28240F Example: To configure PD Ping Alive Check Action (Alarm) of PoE for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe pdcheck action alarm 4.2.56.71 poe pdcheck enable Command: poe pdcheck enable Power Over Ethernet.

  • Page 118: Poe Pdcheck Reboot-Time

    Command Guide of MGSW-28240F Default: Usage Guide: To configure PD Ping Alive Check interval of PoE for specific interface. Example: To configure PD Ping Alive Check interval (100 seconds) of PoE for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe pdcheck interval 100 4.2.56.73 poe pdcheck reboot-time...

  • Page 119: Poe Power Limit

    Command Guide of MGSW-28240F pdcheck Allows user to enable or disable per port PD Alive Check function. retry-count set how many times system retry ping to PD. <1-5> retry-count <1-5> Default: Usage Guide: To configure PD Ping Alive Check retry count of PoE for specific interface.

  • Page 120: Poe Time-Range

    Command Guide of MGSW-28240F Command: poe priority { low | high | critical } Power Over Ethernet. priority Interface priority. critical Set priority to critical. high Set priority to high. Set priority to low. Default: Usage Guide: To configure interface priority of PoE for specific interface.

  • Page 121: Port-Security

    Command Guide of MGSW-28240F Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe time-range profile3 4.2.56.78 port-security Command: port-security port-security Enable/disable port security per interface. Default: Disabled Usage Guide: To enable Port-security for specific interface Example: To enable Port-security for GigabitEthernet X/X...

  • Page 122: Port-Security Violation

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # port-security maximum 100 4.2.56.80 port-security violation Command: port-security violation [protect | shutdown | trap | trap-shutdown] port-security Enable/disable port security per interface. violation The action involved with exceeding the limit.

  • Page 123: Pvlan

    Command Guide of MGSW-28240F Default: None (Protected) Usage Guide: To configure protected mode of Port-security for specific interface Example: To configure protected mode (trap-shutdown) of Port-security for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # port-security violation trap-shutdown 4.2.56.82 pvlan...

  • Page 124: Qos Cos

    Command Guide of MGSW-28240F Default: None Usage Guide: To enable PVLAN isolation for specific interface Example: To enable PVLAN isolation for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # pvlan isolation 4.2.56.84 qos cos Command: qos cos <Cos : 0-7>...

  • Page 125: Qos Dpl

    Command Guide of MGSW-28240F Default: Usage Guide: To configure DEI of QoS for specific interface Example: To configure DEI (1) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos dei 1 4.2.56.86 qos dpl Command: qos dpl <Dei : 0-1>...

  • Page 126: Qos Dscp-Remark

    Command Guide of MGSW-28240F dscp-classify DSCP ingress classification Classify to new DSCP always selected Classify to new DSCP if classify is enabled for specific DSCP value in global dscp-classify map zero Classify to new DSCP if DSCP is 0 Default:...

  • Page 127: Qos Dscp-Translate

    Command Guide of MGSW-28240F 4.2.56.89 qos dscp-translate Command: qos dscp-translate Quality of Service dscp-translate DSCP ingress translation Default: Disabled Usage Guide: To configure DSCP ingress translation of QoS for specific interface Example: To configure DSCP ingress translation of QoS for GigabitEthernet X/X...

  • Page 128: Qos Map Tag-Cos

    Command Guide of MGSW-28240F To configure (QoS class, DP level) to (PCP, DEI) Mapping of QoS for specific interface Example: To configure (QoS class, DP level) to (PCP, DEI) Mapping of QoS as below table for GigabitEthernet X/X Switch# configure terminal...

  • Page 129: Qos Pcp

    Command Guide of MGSW-28240F Switch (config-if) # qos map tag-cos pcp 4 dei 0 cos 5 dpl 1 4.2.56.92 qos pcp Command: qos pcp <Pcp : 0-7> Quality of Service Priority Code Point configuration <Pcp : 0-7> Specific Priority Code Point...

  • Page 130: Qos Queue-Policer Queue

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos policer 9999 4.2.56.94 qos queue-policer queue Command: qos queue-policer queue <Queue : 0~7> <Rate : 100-13200000> Quality of Service queue-policer Queue policer configuration queue Specify queue <Queue : 0~7>...

  • Page 131: Qos Shaper

    Command Guide of MGSW-28240F Usage Guide: To configure Egress Queue Shapers Rate of QoS for specific interface Example: To configure Egress Queue (4) Shapers Rate (9999 Kbps) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos queue-shaper queue 4 9999 4.2.56.96 qos shaper...

  • Page 132: Qos Storm Unicast

    Command Guide of MGSW-28240F Quality of Service storm Storm policer broadcast Police broadcast frames <Rate : 100-13200000> Policer rate (default kbps) Rate is fps Default: Usage Guide: To configure Broadcast Frames Storm Control Rate of QoS for specific interface Example:...

  • Page 133: Qos Storm Unknown

    Command Guide of MGSW-28240F 4.2.56.99 qos storm unknown Command: qos storm unknown <Rate : 100-13200000> [fps] Quality of Service storm Storm policer unknown Police unknown (flooded) frames <Rate : 100-13200000> Policer rate (default kbps) Rate is fps Default: Usage Guide:...

  • Page 134: Qos Tag-Remark Mapped

    Command Guide of MGSW-28240F Example: To enable Tag-remark default mode (PCP:1 , DEI:1) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos tag-remark pcp 1 dei 1 4.2.56.101 qos tag-remark mapped Command:...

  • Page 135: Qos Trust Tag

    Command Guide of MGSW-28240F Usage Guide: To enable DSCP Classification of QoS for specific interface Example: To enable DSCP Classification of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos trust dscp 4.2.56.103 qos trust tag...

  • Page 136: Rmon Collection Stats

    Command Guide of MGSW-28240F history Configure history buckets Requested buckets of intervals. Default is 50 buckets interval Interval to sample data for each bucket. Default is 1800 seconds Default: Usage Guide: To configure RMON History Configuration for specific interface Example:...

  • Page 137: Shutdown

    Command Guide of MGSW-28240F Switch (config-if) # rmon collection stats 2 4.2.56.106 shutdown Command: shutdown shutdown Shutdown of the interface. Default: No shutdown Usage Guide: To shut down specific interface Example: To shut down GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # shutdown 4.2.56.107 spanning-tree...

  • Page 138: Spanning-Tree Auto-Edge

    Command Guide of MGSW-28240F 4.2.56.108 spanning-tree auto-edge Command: spanning-tree auto-edge spanning-tree Spanning Tree protocol auto-edge Auto detects edge status Default: Enabled Usage Guide: To enable Auto Edge of CIST Normal Port Configuration for specific interface Example: To enable Auto Edge of CIST Normal Port Configuration for GigabitEthernet X/X...

  • Page 139: Spanning-Tree Edge

    Command Guide of MGSW-28240F 4.2.56.110 spanning-tree edge Command: spanning-tree edge spanning-tree Spanning Tree protocol edge Edge port Default: Non-Edge Usage Guide: To enable edge port of CIST Normal Port Configuration for specific interface Example: To enable edge port of CIST Normal Port Configuration for GigabitEthernet X/X...

  • Page 140: Spanning-Tree Mst Cost

    Command Guide of MGSW-28240F Switch (config)# interface GigabitEthernet X/X Switch (config-if) # spanning-tree edge 4.2.56.112 spanning-tree mst <Instance : 0-7> cost Command: spanning-tree mst <Instance : 0-7> cost <Cost : 1-200000000> | auto spanning-tree Spanning Tree protocol STP bridge instance <Instance : 0-7>...

  • Page 141: Spanning-Tree Restricted-Role

    Command Guide of MGSW-28240F auto Use auto cost Default: Auto Usage Guide: To configure Path Cost of CIST / MST Normal Port Configuration for specific interface Example: To enable Path Cost (32) of CIST / MST Normal Port Configuration (CIST) for GigabitEthernet X/X...

  • Page 142: Speed

    Command Guide of MGSW-28240F Command: spanning-tree restricted-tcn spanning-tree Spanning Tree protocol restricted-tcn Restrict topology change notifications Default: Disabled Usage Guide: To enable Restrict topology change notifications of CIST Normal Port Configuration for specific interface Example: To enable Restrict topology change notifications of CIST Normal Port Configuration for GigabitEthernet X/X...

  • Page 143: Switchport Access Vlan

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # speed 1000 4.2.56.117 switchport access vlan Command: switchport access vlan <vlan_id> switchport Switching mode characteristics access Set access mode characteristics of the interface vlan Set VLAN when interface is in access mode <vlan_id>...

  • Page 144: Switchport Forbidden Vlan Remove

    Command Guide of MGSW-28240F Default: Usage Guide: To add forbidden VLAN ID for specific interface Example: To add forbidden VLAN ID (5) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport forbidden vlan add 5 4.2.56.119 switchport forbidden vlan remove...

  • Page 145: Switchport Hybrid Acceptable-Frame-Type

    Command Guide of MGSW-28240F 4.2.56.120 switchport hybrid acceptable-frame-type Command: switchport hybrid acceptable-frame-type all | tagged | untagged switchport Switching mode characteristics hybrid Change PVID for hybrid port acceptable-frame-type Set acceptable frame type on a port. Allow all frames tagged Allow only tagged frames...

  • Page 146: Switchport Hybrid Egress-Tag

    Command Guide of MGSW-28240F Default: Usage Guide: To configure VLAN list of Hybrid VLAN for specific interface Example: To configure VLAN list (None) of Hybrid VLAN for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport hybrid allowed vlan none 4.2.56.122 switchport hybrid egress-tag...

  • Page 147: Switchport Hybrid Ingress-Filtering

    Command Guide of MGSW-28240F 4.2.56.123 switchport hybrid ingress-filtering Command: switchport hybrid ingress-filtering switchport Switching mode characteristics hybrid Change PVID for hybrid port ingress-filtering VLAN Ingress filter configuration Default: Enabled Usage Guide: To enable Ingress-filtering with Hybrid VLAN mode for specific interface...

  • Page 148: Switchport Hybrid Port-Type

    Command Guide of MGSW-28240F Example: To enable PVID (5) in Hybrid VLAN mode for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport hybrid native vlan 5 4.2.56.125 switchport hybrid port-type Command: switchport hybrid port-type c-port | s-custom-port | s-port | unaware...

  • Page 149: Switchport Vlan Ip-Subnet

    Command Guide of MGSW-28240F switchport mode c-port | s-custom-port | s-port | unaware switchport Switching mode characteristics mode Set mode of the interface port-type Set port type c-port Customer port s-custom-port Custom Provider port s-port Provider port unaware Port in not aware of VLAN tags.

  • Page 150: Switchport Vlan Mac

    Command Guide of MGSW-28240F Usage Guide: To configure IP Subnet-based VLAN for specific interface Example: To configure IP Subnet-based VLAN as below table for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport vlan ip-subnet id 1 192.168.1.0/255.255.255.0 vlan 5 4.2.56.128 switchport vlan mac...

  • Page 151: Switchport Vlan Mapping

    Command Guide of MGSW-28240F Switch (config-if) # switchport vlan mac 00:55:44:33:22:11 vlan 5 4.2.56.129 switchport vlan mapping Command: switchport vlan mapping <group id : 1-29> switchport Switching mode characteristics vlan VLAN commands mapping Maps an interface to a VLAN translation group.

  • Page 152: Switchport Voice Vlan Discovery-Protocol

    Command Guide of MGSW-28240F None Usage Guide: To configure VLAN protocol group for specific interface Example: To configure VLAN protocol group as tabled below for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport vlan protocol group 8081 vlan 5 4.2.56.131 switchport voice vlan discovery-protocol...

  • Page 153: Switchport Voice Vlan Mode

    Command Guide of MGSW-28240F 4.2.56.132 switchport voice vlan mode Command: switchport voice vlan mode auto | disable | force switchport Switching mode characteristics voice Voice appliance attributes vlan Vlan for voice traffic mode Set Voice VLAN port mode auto Enable auto detect mode...

  • Page 154: Interface Vlan

    Command Guide of MGSW-28240F Default: Disabled Usage Guide: To enable Voice VLAN security for specific interface Example: To enable Voice VLAN security for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport voice vlan security 4.2.57 interface vlan...

  • Page 155: End

    Command Guide of MGSW-28240F 4.2.57.1 do Command: do < exec commands > To run exec commands in config mode Default: Usage Guide: To run exec commands in configure terminal mode Example: To run “show aaa” in configure terminal mode. Switch# configure terminal...

  • Page 156: Exit

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# end Switch# 4.2.57.3 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode. Switch# configure terminal...

  • Page 157: Ip Address Dhcp

    Command Guide of MGSW-28240F Usage Guide: To configure IP address mode for specific VLAN Example: To configure IP address mode (192.168.1.10/24) for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip address 192.168.1.10 255.255.255.0 4.2.57.5 ip address dhcp...

  • Page 158: Ip Dhcp Server

    Command Guide of MGSW-28240F Interface Internet Protocol config commands address Address configuraton dhcp Enable DHCP <ipv4_addr> DHCP fallback address <ipv4_netmask> DHCP fallback netmask Default: None Usage Guide: To configure DHCP fallback IP address for specific VLAN Example: To configure DHCP fallback IP address (192.168.1.10/24) for VLAN X...

  • Page 159: Ip Igmp Snooping

    Command Guide of MGSW-28240F 4.2.57.8 ip igmp snooping Command: ip igmp snooping Interface Internet Protocol config commands igmp Internet Group Management Protocol snooping Snooping IGMP Default: Disabled Usage Guide: To enable IGMP snooping for specific VLAN Example: To enable IGMP snooping for VLAN X...

  • Page 160: Ip Igmp Snooping Last-Member-Query-Interval

    Command Guide of MGSW-28240F Auto Usage Guide: To configure IGMP snooping version for specific VLAN Example: To configure IGMP snooping V2 for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping compatibility v2 4.2.57.10 ip igmp snooping last-member-query-interval Command: ip igmp snooping last-member-query-interval <IpmcLmqi : 0-31744>...

  • Page 161: Ip Igmp Snooping Querier Address

    Command Guide of MGSW-28240F Command: ip igmp snooping priority <CosPriority : 0-7> Interface Internet Protocol config commands igmp Internet Group Management Protocol snooping Snooping IGMP priority Interface CoS priority <CosPriority : 0-7> CoS priority ranges from 0 to 7 Default:...

  • Page 162: Ip Igmp Snooping Querier Election

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping querier address 192.168.1.15 4.2.57.13 ip igmp snooping querier election Command: ip igmp snooping querier election Interface Internet Protocol config commands igmp Internet Group Management Protocol...

  • Page 163: Ip Igmp Snooping Query-Max-Response-Time

    Command Guide of MGSW-28240F query-interval Query Interval in seconds <IpmcQi : 1-31744> 1 - 31744 seconds Default: Usage Guide: To configure Querier-interval of IGMP snooping for specific VLAN Example: To configure Querier-interval (600 seconds) of IGMP snooping for VLAN X...

  • Page 164: Ip Igmp Snooping Robustness-Variable

    Command Guide of MGSW-28240F 4.2.57.16 ip igmp snooping robustness-variable Command: ip igmp snooping robustness-variable <IpmcRv : 1-255> Interface Internet Protocol config commands igmp Internet Group Management Protocol snooping Snooping IGMP robustness-variable Robustness Variable <IpmcRv : 1-255> Packet loss tolerance count from 1 to 255...

  • Page 165: Ipv6 Address

    Command Guide of MGSW-28240F Example: To configure Unsolicited-Report-Interval (99 seconds) of IGMP snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping unsolicited-report-interval 99 4.2.57.18 ipv6 address Command: Ipv6 address X:X:X:X::X/<0-128> ipv6 IPv6 configuration commands...

  • Page 166: Ipv6 Mld Snooping Compatibility

    Command Guide of MGSW-28240F Default: Disabled Usage Guide: To enable MLD snooping for specific VLAN Example: To enable MLD snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ipv6 mld snooping 4.2.57.20 ipv6 mld snooping compatibility...

  • Page 167: Ipv6 Mld Snooping Last-Member-Query-Interval

    Command Guide of MGSW-28240F 4.2.57.21 ipv6 mld snooping last-member-query-interval Command: ipv6 mld snooping last-member-query-interval <IpmcLmqi : 0-31744> ipv6 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD last-member-query-interval Last Member Query Interval in tenths of seconds <IpmcLmqi : 0-31744> 0 - 31744 tenths of seconds...

  • Page 168: Ipv6 Mld Snooping Querier Election

    Command Guide of MGSW-28240F Usage Guide: To configure CoS priority of MLD snooping for specific VLAN Example: To configure CoS priority (5) of MLD snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ipv6 mld snooping priority 5 4.2.57.23 ipv6 mld snooping querier election...

  • Page 169: Ipv6 Mld Snooping Query-Max-Response-Time

    Command Guide of MGSW-28240F Multicast Listener Discovery snooping Snooping MLD query-interval Query Interval in seconds <IpmcQi : 1-31744> 1 - 31744 seconds Default: Usage Guide: To configure Querier-interval of MLD snooping for specific VLAN Example: To configure Querier-interval (600 seconds) of MLD snooping for VLAN X...

  • Page 170: Ipv6 Mld Snooping Robustness-Variable

    Command Guide of MGSW-28240F Switch (config-if-vlan)# ipv6 mld snooping query-max-response-time 600 4.2.57.26 ipv6 mld snooping robustness-variable Command: ipv6 mld snooping robustness-variable <IpmcRv : 1-255> ipv6 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD robustness-variable Robustness Variable <IpmcRv : 1-255>...

  • Page 171: Ip Arp Inspection

    Command Guide of MGSW-28240F Usage Guide: To configure Unsolicited-Report-Interval of MLD snooping for specific VLAN Example: To configure Unsolicited-Report-Interval (99 seconds) of MLD snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ipv6 mld snooping unsolicited-report-interval 99 4.2.57.28 no...

  • Page 172: Ip Arp Inspection Entry Interface

    Command Guide of MGSW-28240F Address Resolution Protocol inspection ARP inspection Default: Usage Guide: To enable ARP inspection Example: To enable ARP inspection Switch# configure terminal Switch (config)# ip arp inspection 4.2.59 ip arp inspection entry interface Command: ip arp inspection entry interface [10GigabitEthernet | GigabitEthernet] <vlan_id>...

  • Page 173: Ip Arp Inspection Translate

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# inspection entry interface GigabitEthernet 00:11:22:33:44:55 192.168.0.18 4.2.60 ip arp inspection translate Command: ip arp inspection translate Internet Protocol Address Resolution Protocol inspection ARP inspection translate arp inspection translate all entries Default: Usage Guide: To translate dynamic entries into static ARP inspection table.

  • Page 174: Ip Arp Inspection Vlan

    Command Guide of MGSW-28240F Internet Protocol Address Resolution Protocol inspection ARP inspection translate arp inspection translate all entries interface arp inspection entry interface config GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port <vlan_id> Select a VLAN id to configure <mac_ucast>...

  • Page 175: Ip Dhcp Excluded-Address

    Command Guide of MGSW-28240F Default: Usage Guide: To configure VLAN mode of ARP inspection. Example: To configure VLAN mode (VLAN 1, Log type: Permit) of ARP inspection. Switch# configure terminal Switch (config)# ip arp inspection vlan 1 logging permit 4.2.63 ip dhcp excluded-address Command: ip dhcp excluded-address <A.B.C.D>...

  • Page 176: Broadcast

    Command Guide of MGSW-28240F ip dhcp pool <WORD> Internet Protocol dhcp Dynamic Host Configuration Protocol pool Configure DHCP address pools <WORD> Pool name in 32 characters Default: Usage Guide: To create a DHCP pool. Example: To create a DHCP pool (Name: planetbestswitch).

  • Page 177: Client-Identifier Fqdn

    Command Guide of MGSW-28240F 4.2.64.2 client-identifier fqdn Command: client-identifier fqdn <LINE> client-identifier Client identifier fqdn FQDN type of client identifier <LINE> FQDN in 128 characters Default: None Usage Guide: To configure FQDN of DHCP Server Example: To configure FQDN (123) of DHCP Server for pool “planetbestswitch”...

  • Page 178: Client-Name

    Command Guide of MGSW-28240F To configure Bind IP to MAC (00:11:22:33:44:55) of DHCP Server for pool “planetbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# client-identifier mac-address 00:11:22:33:44:55 4.2.64.4 client-name Command: client-name client-name Client host name Default:...

  • Page 179: Dns-Server

    Command Guide of MGSW-28240F Example: To configure Default Gateway (192.168.0.1) of DHCP Server for pool “planetbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# default-router 192.168.0.1 4.2.64.6 dns-server Command: dns-server <A.B.C.D> dns-server DNS servers <A.B.C.D> Server's IP address...

  • Page 180: Domain-Name

    Command Guide of MGSW-28240F Usage Guide: To run exec commands Example: To run “show aaa”. Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# do show aaa console : local telnet : local : local http : local 4.2.64.8 domain-name...

  • Page 181: Exit

    Command Guide of MGSW-28240F Command: Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# end Switch# 4.2.64.10 exit...

  • Page 182: Hardware-Address

    Command Guide of MGSW-28240F 4.2.64.11 hardware-address Command: hardware-address <MAC> hardware-address Client hardware address <MAC> Client MAC address Default: None Usage Guide: To configure MAC address of DHCP Server while the pool is in the host type. Example: To configure MAC address (00:11:22:33:44:55) of DHCP Server for pool “planetbestswitch” while the pool is in the host type.

  • Page 183: Lease

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# host 192.168.1.10 255.255.255.0 4.2.64.13 lease Command: lease <0-365> <0-23> <0-59> | infinite lease Address lease time <0-365> Days <0-23> Hours <0-59> Minutes infinite Infinite lease...

  • Page 184: Netbios-Node-Type

    Command Guide of MGSW-28240F Usage Guide: To configure NetBIOS Name Server of DHCP Server. Example: To configure NetBIOS Name Server (192.168.1.10) of DHCP Server for pool “planetbestswitch”. Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# netbios-name-server 192.168.1.10 4.2.64.15 netbios-node-type...

  • Page 185: Network

    Command Guide of MGSW-28240F netbios-scope NetBIOS scope <LINE> Netbios scope identifier, in 128 characters Default: None Usage Guide: To configure NetBIOS scope of DHCP Server. Example: To configure NetBIOS scope (planet) of DHCP Server for pool “planetbestswitch”. Switch# configure terminal...

  • Page 186: Nis-Domain-Name

    Command Guide of MGSW-28240F 4.2.64.18 nis-domain-name Command: nis-domain-name <word128> nis-domain-name NIS domain name <word128> Domain name Default: None Usage Guide: To configure NIS Domain Name of DHCP Server Example: To configure NIS Domain Name (planet.com) of DHCP Server for pool “planetbestswitch”...

  • Page 187: Ntp-Server

    Command Guide of MGSW-28240F Switch (config-dhcp-pool)# nis-server 1.1.1.1 4.2.64.20 no Command: Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (nis-domain-name planet.com) for pool “planetbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# no nis-domain-name planet.com...

  • Page 188: Vendor

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# ntp-server 1.1.1.1 4.2.64.22 vendor Command: vendor class-identifier <”0x “> specific-info <HEX-VALUE> vendor Vendor configuration class-identifier Vendor class identifier "<0x >" Class identifier in 64 characters...

  • Page 189: Ip Helper-Address

    Command Guide of MGSW-28240F Default: Disabled Usage Guide: To enable DNS proxy. Example: To enable DNS proxy. Switch# configure terminal Switch (config)# ip dns proxy 4.2.66 ip helper-address Command: ip helper-address <Ip : ipv4_ucast> Internet Protocol helper-address DHCP relay server <Ip : ipv4_ucast>...

  • Page 190: Ip Http Secure-Server

    Command Guide of MGSW-28240F Internet Protocol http Hypertext Transfer Protocol secure-redirect Secure HTTP web redirection Default: Disabled Usage Guide: To redirect WebUI from HTTP to HTTPs Example: To redirect WebUI from HTTP to HTTPs Switch# configure terminal Switch (config)# ip http secure-redirect 4.2.68 ip http secure-server...

  • Page 191: Ip Igmp Host-Proxy

    Command Guide of MGSW-28240F 4.2.69 ip igmp host-proxy Command: ip igmp host-proxy Internet Protocol igmp Internet Group Management Protocol host-proxy IGMP proxy configuration Default: Disabled Usage Guide: To enable IGMP Proxy Example: To enable IGMP Proxy. Switch# configure terminal Switch (config)# ip igmp host-proxy 4.2.70 ip igmp host-proxy leave-proxy...

  • Page 192: Ip Igmp Snooping

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# ip igmp host-proxy leave-proxy 4.2.71 ip igmp snooping Command: ip igmp snooping Internet Protocol igmp Internet Group Management Protocol snooping Snooping IGMP Default: Disabled Usage Guide: To enable IGMP Snooping. Example: To enable IGMP Snooping.

  • Page 193: Ip Igmp Ssm-Range

    Command Guide of MGSW-28240F Usage Guide: To enable IGMP Snooping for specific VLAN. Example: To enable IGMP Snooping for VLAN 1. Switch# configure terminal Switch (config)# ip igmp snooping vlan 1 4.2.73 ip igmp ssm-range Command: ip igmp ssm-range <ipv4_mcast> <Ipv4PrefixLength : 4-32>...

  • Page 194: Ip Name-Server

    Command Guide of MGSW-28240F unknown-flooding Flooding unregistered IPv4 multicast traffic Default: Enabled Usage Guide: To flood unregistered IPv4 multicast traffic. Example: To flood unregistered IPv4 multicast traffic. Switch# configure terminal Switch (config)# ip igmp unknown-flooding 4.2.75 ip name-server Command: ip name-server <ipv4_ucast>...

  • Page 195: Ip Name-Server Dhcp Interface Vlan

    Command Guide of MGSW-28240F ip name-server dhcp Internet Protocol name-server Domain Name System dhcp Dynamic Host Configuration Protocol Default: None Usage Guide: To configure DNS IP address via DHCP Server. Example: To configure DNS IP address via DHCP Server. Switch# configure terminal Switch (config)# ip name-server 8.8.8.8...

  • Page 196: Ip Route

    Command Guide of MGSW-28240F 4.2.78 ip route Command: ip route <ipv4_addr> <ipv4_netmask> <ipv4_gateway> Internet Protocol route Add IP route <ipv4_addr> Network <ipv4_netmask> Netmask <ipv4_gateway> Gateway Default: None Usage Guide: To configure static route Example: To configure static route as below table.

  • Page 197: Ip Source Binding Interface

    Command Guide of MGSW-28240F Usage Guide: To enable IP routing Example: To enable IP routing Switch# configure terminal Switch (config)# ip routing 4.2.80 ip source binding interface Command: ip source binding interface 10GigabitEthernet | GigabitEthernet <port_type_id> <ipv4_ucast> <ipv4_netmask> Internet Protocol...

  • Page 198: Ip Ssh

    Command Guide of MGSW-28240F 4.2.81 ip ssh Command: ip ssh Internet Protocol Secure Shell Default: None Usage Guide: To enable SSH service Example: To enable SSH service Switch# configure terminal Switch (config)# ip ssh 4.2.82 ip verify source Command: ip verify source...

  • Page 199: Ip Verify Source Translate

    Command Guide of MGSW-28240F To enable IP Source Guard Switch# configure terminal Switch (config)# ip verify source 4.2.83 ip verify source translate Command: ip verify source translate Internet Protocol verify verify command source verify source translate ip verify source translate all entries...

  • Page 200: Ipmc Profile

    Command Guide of MGSW-28240F Usage Guide: To enable IPMC profile Example: To enable IPMC profile Switch# configure terminal Switch (config)# ipmc profile 4.2.85 ipmc profile <word16> Command: ipmc profile <word16> ipmc IPv4/IPv6 multicast configuration profile IPMC profile configuration <word16> Profile name...

  • Page 201: Description

    Command Guide of MGSW-28240F <EntryName : word16> Range entry name Default: None Usage Guide: To default IPMC Profile Rule for specific IPMC Profile Example: To default IPMC Profile Rule (Entry 1) for specific IPMC Profile (planet) Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)# default range 1 4.2.85.2 description...

  • Page 202: End

    Command Guide of MGSW-28240F Command: do < exec commands > To run exec commands in config mode Default: Usage Guide: To run exec commands Example: To run “show aaa”. Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)# do show aaa...

  • Page 203: Exit

    Command Guide of MGSW-28240F Switch (config-ipmc-profile)#end Switch# 4.2.85.5 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode. Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)# exit Switch (config)# 4.2.85.6 no...

  • Page 204: Range

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)# no description 999 4.2.85.7 range Command: range <EntryName : word16> deny | permit description Additional description about the profile <EntryName : word16> Range entry name deny...

  • Page 205: Ipv6 Mld Host-Proxy Leave-Proxy

    Command Guide of MGSW-28240F Disabled Usage Guide: To enable MLD Proxy Example: To enable MLD Proxy. Switch# configure terminal Switch (config)# ipv6 mld host-proxy 4.2.87 ipv6 mld host-proxy leave-proxy Command: ipv6 mld host-proxy leave-proxy ipv6 IPv6 configuration commands Multicast Listener Discovery...

  • Page 206: Ipv6 Mld Snooping Vlan

    Command Guide of MGSW-28240F Multicast Listener Discovery snooping Snooping MLD Default: Disabled Usage Guide: To enable MLD Snooping. Example: To enable MLD Snooping. Switch# configure terminal Switch (config)# ipv6 mld snooping 4.2.89 ipv6 mld snooping vlan Command: ipv6 mld snooping vlan <vlan_list>...

  • Page 207: Ipv6 Mld Unknown-Flooding

    Command Guide of MGSW-28240F Command: ipv6 mld ssm-range <ipv6_mcast> <Ipv6PrefixLength : 8-128> ipv6 IPv6 configuration commands Multicast Listener Discovery ssm-range IPv6 address range of Source Specific Multicast <ipv6_mcast> Valid IPv6 multicast address <Ipv6PrefixLength : 8-128> Prefix length ranges from 8 to 128...

  • Page 208: Ipv6 Route

    Command Guide of MGSW-28240F 4.2.92 ipv6 route Command: Ipv6 route <X:X:X:X::X/<0-128>> {<X:X:X:X::X>, interface vlan <vlan_id> <FE80::X:X:X >} ipv6 IPv6 configuration commands route Add IP route <X:X:X:X::X/<0-128>> IPv6 prefix x:x::y/z <X:X:X:X::X> IPv6 unicast address (except link-local address) of next-hop interface Select an interface to configure...

  • Page 209: Lacp System-Priority

    Command Guide of MGSW-28240F 4.2.93 lacp system-priority Command: lacp system-priority <1-65535> lacp LACP settings system-priority System priority <1-65535> Priority value, lower means higher priority Default: 32768 Usage Guide: To configure LACP system-priority. Example: To configure LACP system-priority (99). Switch# configure terminal Switch (config)# lacp system-priority 99 4.2.94 line...

  • Page 210: Editing

    Command Guide of MGSW-28240F To enter line mode (vty 1) Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# 4.2.94.1 do Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”.

  • Page 211: End

    Command Guide of MGSW-28240F Enabled Usage Guide: To allow user editing command line. Example: To allow user editing command line. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# editing 4.2.94.3 end Command: Go back to EXEC mode Default:...

  • Page 212: Exec-Timeout

    Command Guide of MGSW-28240F exec-banner Enable the display of the EXEC banner Default: Enabled Usage Guide: To enable the display of the EXEC banner Example: To enable the display of the EXEC banner Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# exec-banner 4.2.94.5 exec-timeout...

  • Page 213: Exec-Timeout

    Command Guide of MGSW-28240F 4.2.94.6 exec-timeout Command: exec-timeout <0-1440> exec-timeout Set the EXEC timeout <0-1440> Timeout in minutes Default: Usage Guide: To configure EXEC timeout Example: To configure EXEC timeout (10 minutes) Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# exec-timeout 10 4.2.94.7 exit...

  • Page 214: History Size

    Command Guide of MGSW-28240F Switch (config-line)# exit Switch (config)# 4.2.94.8 history size Command: history size <0-32> history Control the command history function size Set history buffer size <0-32> Number of history commands, 0 means disable Default: None Usage Guide: To exit current mode Example: To exit current mode.

  • Page 215: Location

    Command Guide of MGSW-28240F To configure displayed lines on a screen. Example: To configure displayed lines on a screen. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# length 10 4.2.94.10 location Command: location <LINE> location Enter terminal location description <LINE>...

  • Page 216: Privilege Level

    Command Guide of MGSW-28240F Enabled Usage Guide: To enable MOTD banner. Example: To enable MOTD banner.. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# motd-banner 4.2.94.12 no Command: Negate a command or set its defaults Default: Usage Guide:...

  • Page 217: Width

    Command Guide of MGSW-28240F level Assign default privilege level for line <0-15> Default privilege level for line Default: Usage Guide: To configure privilege level Example: To configure privilege level (5) for vty 1. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# privilege level 5 4.2.94.14 width...

  • Page 218: Lldp Holdtime

    Command Guide of MGSW-28240F 4.2.95 lldp holdtime Command: lldp holdtime <2-10> lldp LLDP configurations. holdtime Sets LLDP hold time (The neighbor switch will discarded the LLDP information after "hold time" multiplied with "timer" seconds ). <2-10> 2-10 seconds Default: Usage Guide:...

  • Page 219: Lldp Med Fast

    Command Guide of MGSW-28240F To configure Datum type of LLDP Example: To configure Datum type (nad83-mllw) of LLDP Switch# configure terminal Switch (config)# lldp med datum nad83-mllw 4.2.97 lldp med fast Command: lldp med fast <1-10> lldp LLDP configurations. Media Endpoint Discovery fast Number of times to repeat LLDP frame transmission at fast start.

  • Page 220: Lldp Med Location-Tlv Elin-Addr

    Command Guide of MGSW-28240F floors Specify the altitude in floor. <Meters or floors> Altitude value. meters Specify the altitude in meters. Default: Usage Guide: To configure altitude of LLDP-MED Example: To configure altitude (Floors 5) of LLDP-MED Switch# configure terminal Switch (config)# lldp med location-tlv altitude floors 5 4.2.99 lldp med location-tlv elin-addr...

  • Page 221: Lldp Med Location-Tlv Latitude

    Command Guide of MGSW-28240F 4.2.100 lldp med location-tlv latitude Command: lldp med location-tlv latitude north <Degrees> | south <Degrees> lldp LLDP configurations. Media Endpoint Discovery location-tlv LLDP-MED Location Type Length Value parameter latitude Latitude parameter north Setting latitude direction to north.

  • Page 222: Lldp Med Media-Vlan-Policy

    Command Guide of MGSW-28240F Default: North, 0 Usage Guide: To configure longitude direction of LLDP-MED Example: To configure longitude direction (east, 5) of LLDP-MED Switch# configure terminal Switch (config)# lldp med location-tlv longitude east 5 4.2.102 lldp med media-vlan-policy Command: lldp med media-vlan-policy <Index : 0-31>...

  • Page 223: Lldp Reinit

    Command Guide of MGSW-28240F Default: Usage Guide: To configure media-VLAN-policy of LLDP-MED Example: To configure media-VLAN-policy as below table of LLDP-MED Switch# configure terminal Switch (config)# lldp med media-vlan-policy 1 guest-voice tagged 1 dscp 45 l2-priority 4.2.103 lldp reinit Command: lldp reinit <1-10>...

  • Page 224: Lldp Transmission-Delay

    Command Guide of MGSW-28240F Command: lldp timer <5-32768> lldp LLDP configurations. timer Sets LLDP TX interval (The time between each LLDP frame transmitted in seconds) <5-32768> 5-32768 seconds. Default: Usage Guide: To configure Tx interval time of LLDP Example: To configure Tx interval time (555) of LLDP...

  • Page 225: Logging Host

    Command Guide of MGSW-28240F 4.2.106 logging host Command: logging host <hostname> | <ipv4_ucast> logging Syslog host host <hostname> Domain name of the log server <ipv4_ucast> IP address of the log server Default: Usage Guide: To configure address of log server...

  • Page 226: Logging On

    Command Guide of MGSW-28240F Example: To configure level of log server Switch# configure terminal Switch (config)# logging level error 4.2.108 logging on Command: logging on logging Syslog Enable syslog server Default: Disabled Usage Guide: To enable log server Example: To enable log server...

  • Page 227: Loop-Protect Shutdown-Time

    Command Guide of MGSW-28240F Usage Guide: To enable Loop Protection Example: To enable Loop Protection Switch# configure terminal Switch (config)# loop-protect 4.2.110 loop-protect shutdown-time Command: loop-protect shutdown-time <0-604800> loop-protect Loop protection configuration shutdown-time Loop protection shutdown time interval <0-604800> Shutdown time in second...

  • Page 228: Mac Address-Table Aging-Time

    Command Guide of MGSW-28240F Default: Usage Guide: To configure Transmission Time of Loop Protection Example: To configure Transmission Time (8) of Loop Protection Switch# configure terminal Switch (config)# loop-protect transmit-time 8 4.2.112 mac address-table aging-time Command: mac address-table aging-time <0,10-1000000>...

  • Page 229: Mep Ais

    Command Guide of MGSW-28240F <port_type_list> | GigabitEthernet <port_type_list> MAC table entries/configuration address-table MAC table entries/configuration static Static MAC address <mac_addr> 48 bit MAC address: xx:xx:xx:xx:xx:xx vlan VLAN keyword <vlan_id> VLAN IDs 1-4095 interface Select an interface to configure All switches or All ports...

  • Page 230: Mep Aps

    Command Guide of MGSW-28240F Default: None Usage Guide: To configure AIS of MEP Example: To configure AIS of MEP 1 as below table Switch# configure terminal Switch (config)# mep 1 ais fr1s 4.2.115 mep <Instance> aps Command: mep <Instance> aps <prio> [ multi | uni ] { laps | { raps [ octet <octet> ] } } Maintenance Entity Point <Instance>...

  • Page 231: Mep Cc

    Command Guide of MGSW-28240F To configure APS of MEP 1 as below table Switch# configure terminal Switch (config)# mep 1 aps 7 laps 4.2.116 mep <Instance> cc Command: mep <Instance> cc <Prio : 0-7> fr100s | fr10s | fr1m | fr1s | fr300s | fr6h | fr6m Maintenance Entity Point <Instance>...

  • Page 232: Mep Client Domain

    Command Guide of MGSW-28240F 4.2.117 mep <Instance> client domain Command: mep <Instance> client domain { evc | vlan } Maintenance Entity Point <Instance> The MEP instance number. client Transport layer Client EVC Domain. vlan Vlan Domain Default: Usage Guide: To configure Client Domain of MEP...

  • Page 233: Mep Dm

    Command Guide of MGSW-28240F <Lckprio : 0-7> LCK injection priority value. lck-highest Request the highest possible LCK priority. Default: Usage Guide: To configure Client Flow of MEP Example: To configure Client Flow of MEP 1 as below table. Switch# configure terminal Switch (config)# mep 1 client flow 5 level 4 ais-prio ais-highest lck-prio 3 4.2.119 mep <Instance>...

  • Page 234: Mep Dm Ns

    Command Guide of MGSW-28240F OAM PDU is transmitted with unicast MAC. The MAC is taken from peer MEP MAC database. mep-id Peer MEP-ID for unicast DM. The MAC is taken from peer MEP MAC database. <Mepid : uint> Peer MEP-ID value last-n The last N dalays used for average last N calculation.

  • Page 235: Mep Dm Overflow-Reset

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# mep 1 dm ns 4.2.121 mep <Instance> dm overflow-reset Command: mep <Instance> dm overflow-reset Maintenance Entity Point <Instance> The MEP instance number. Delay Measurement overflow-reset Reset all Delay Measurement results on total delay counter overflow.

  • Page 236: Mep Dm Syncronized

    Command Guide of MGSW-28240F proprietary Proprietary Delay Measurement Default: Standard Usage Guide: To configure Tx mode (proprietary) of MEP. Example: To configure Tx mode (proprietary) of MEP 1 Switch# configure terminal Switch (config)# mep 1 dm proprietary 4.2.123 mep <Instance> dm syncronized Command: mep <Instance>...

  • Page 237: Mep Lb

    Command Guide of MGSW-28240F Command: mep <Instance> [ mip ] down domain { port | evc | vlan } [ vid <vid> ] flow <flow> level <level> interface <port_type> <port> Maintenance Entity Point This MEP instance is a half-MIP <Instance>...

  • Page 238: Mep Lck

    Command Guide of MGSW-28240F Loop Back <Prio : 0-7> Priority in case of tagged OAM. In the EVC domain this is the COS-ID. count The number of LBM PDU to send in one loop test. The value 0 indicate infinite transmission (test behavior). This is HW based LBM/LBR and Requires VOE.

  • Page 239: Mep Level

    Command Guide of MGSW-28240F mep <Instance> lck fr1m | fr1s Maintenance Entity Point <Instance> The MEP instance number. Locked Signal fr1m Frame rate is 1 f/min. fr1s Frame rate is 1 f/s. Default: 1 frame/sec Usage Guide: To configure Locked Frame Rate of MEP.

  • Page 240: Mep Lm

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# mep 2 level 2 4.2.128 mep <Instance> lm Command: mep <Instance> lm <prio> [ multi | uni ] [ single | dual ] [ fr10s | fr1s | fr6m | fr1m | fr6h ] [ flr <flr>...

  • Page 241: Mep Lt

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# mep 2 lm 5 uni flr 4 4.2.129 mep <Instance> lt Command: mep <Instance> lt <prio> { { mep-id <mepid> } | { mac <mac> } } ttl <ttl> Maintenance Entity Point <Instance>...

  • Page 242: Mep Mep-Id

    Command Guide of MGSW-28240F mep <Instance> meg-id <megid> { itu | itu-cc | { ieee [ name <name> ] } } Maintenance Entity Point <Instance> The MEP instance number. meg-id The ITU/IEEE MEG-ID <Megid : word> The MEG-ID string. This is either the ITU MEG-ID or the IEEE Short MA, depending on the selected MEG-ID format.

  • Page 243: Mep Peer-Mep-Id

    Command Guide of MGSW-28240F Default: None Usage Guide: To configure MEP-ID of MEP. Example: To configure MEP-ID (5) of MEP 1. Switch# configure terminal Switch (config)# mep 1 mep-id 5 4.2.132 mep <Instance> peer-mep-id Command: mep <Instance> peer-mep-id <mepid> [ mac <mac> ] Maintenance Entity Point <Instance>...

  • Page 244: Mep Performance-Monitoring

    Command Guide of MGSW-28240F 4.2.133 mep <Instance> performance-monitoring Command: mep <Instance> performance-monitoring Maintenance Entity Point <Instance> The MEP instance number. performance-monitoring Performance monitoring Data Set collection (MEF35) Default: Disabled Usage Guide: To enable Performance Monitoring of MEP. Example: To enable Performance Monitoring of MEP 1...

  • Page 245: Mep Up

    Command Guide of MGSW-28240F one-zero Test pattern is set to 10101010. rate The TST frame transmission bit rate - in Mega bits pr. second. Limit on Caracal is 400 Mbps. Limit on Serval is 1Gbps. This is the bit rate of a standard frame without any encapsulation. If 1 Mbps rate is selected in a EVC MEP, the added tag will give a <Rate : uint>...

  • Page 246: Mep Vid

    Command Guide of MGSW-28240F <flow > The flow instance number when not in the port domain. In case the MEP is a port Up-MEP or a EVC customer MIP the VID must be given. <Vid : vlan_id> The port Domain MEP VID. This is required for a Port Up-MEP.

  • Page 247: Mep Voe

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# mep 1 vid 8 4.2.137 mep <Instance> voe Command: mep <Instance> voe Maintenance Entity Point <Instance> The MEP instance number. MEP is VOE based Default: Usage Guide: To set VOE of MEP.

  • Page 248: Monitor Source

    Command Guide of MGSW-28240F Example: To set Mirroring Port (GigabitEthernet 1/2) Switch# configure terminal Switch (config)# monitor destination interface GigabitEthernet 1/2 4.2.139 monitor source Command: monitor source interface * | 10GigabitEthernet <port_type_list> | GigabitEthernet <port_type_list> { both | rx | tx }...

  • Page 249: Mvr Name Channel

    Command Guide of MGSW-28240F Example: To enable MVR Switch# configure terminal Switch (config)# mvr 4.2.141 mvr name <mvr_name> channel Command: mvr name <mvr_name> channel <ProfileName : word16> Multicast VLAN Registration configuration name MVR multicast name <MvrName : word16> MVR multicast VLAN name...

  • Page 250: Mvr Name Frame Tagged

    Command Guide of MGSW-28240F frame MVR control frame in TX priority Interface CoS priority <CosPriority : 0-7> CoS priority ranges from 0 to 7 Default: Usage Guide: To configure frame priority of MVR profile Example: To configure frame priority (5) of MVR profile (123)

  • Page 251: Mvr Name Igmp-Address

    Command Guide of MGSW-28240F 4.2.144 mvr name <mvr_name> igmp-address Command: mvr name <mvr_name> igmp-address <ipv4_ucast> Multicast VLAN Registration configuration name MVR multicast name <MvrName : word16> MVR multicast VLAN name igmp-address MVR address configuration used in IGMP <ipv4_ucast> A valid IPv4 unicast address Default: 0.0.0.0...

  • Page 252: Mvr Name Mode

    Command Guide of MGSW-28240F To configure the Last Member Query Interval of MVR profile Example: To configure the Last Member Query Interval (50 seconds) of MVR profile (123) Switch# configure terminal Switch (config)# mvr name 123 last-member-query-interval 500 4.2.146 mvr name <mvr_name> mode Command: mvr name <mvr_name>...

  • Page 253: Mvr Vlan Channel

    Command Guide of MGSW-28240F <vlan_list> MVR multicast VLAN list Default: None Usage Guide: To create a profile of MVR VLAN Example: To create a profile of MVR VLAN (5) Switch# configure terminal Switch (config)# mvr vlan 5 4.2.148 mvr vlan <vlan_list> channel Command: mvr vlan <vlan_list>...

  • Page 254: Mvr Vlan Frame Priority

    Command Guide of MGSW-28240F 4.2.149 mvr vlan <vlan_list> frame priority Command: mvr vlan <vlan_list> frame priority <CosPriority : 0-7> Multicast VLAN Registration configuration vlan MVR multicast vlan <vlan_list> MVR multicast VLAN list frame MVR control frame in TX priority Interface CoS priority <CosPriority : 0-7>...

  • Page 255: Mvr Vlan Igmp-Address

    Command Guide of MGSW-28240F To enable the IGMP/MLD frame tagged of MVR VLAN (123) Switch# configure terminal Switch (config)# mvr vlan 123 tagged 4.2.151 mvr vlan <vlan_list> igmp-address Command: mvr vlan <vlan_list> igmp-address <ipv4_ucast> Multicast VLAN Registration configuration vlan MVR multicast vlan <vlan_list>...

  • Page 256: Mvr Vlan Mode

    Command Guide of MGSW-28240F <IpmcLmqi : 0-31744> 0 - 31744 tenths of seconds Default: Usage Guide: To configure the Last Member Query Interval of MVR VLAN Example: To configure the Last Member Query Interval (50 seconds) of MVR VLAN (123)

  • Page 257: Mvr Vlan Name

    Command Guide of MGSW-28240F 4.2.154 mvr vlan <vlan_list> name Command: mvr vlan <vlan_list> name Multicast VLAN Registration configuration vlan MVR multicast vlan <vlan_list> MVR multicast VLAN list name MVR multicast name Default: None Usage Guide: To configure profile name of MVR VLAN...

  • Page 258: Network-Clock Clk-Source Hold-Timeout

    Command Guide of MGSW-28240F Example: To configure preferred negotiation (slave) of network-clock (source 1) Switch# configure terminal Switch (config)# network-clock clk-source 1 aneg-mode slave 4.2.156 network-clock clk-source <clk-source> hold-timeout Command: network-clock clk-source <clk-source> hold-timeout <3-18> network-clock network-clock clk-source clk-source - commands related to a specific clock source.

  • Page 259: Network-Clock Clk-Source Priority

    Command Guide of MGSW-28240F nominate Nominate a clk input to become a selectable clock source. clk-in Nominate the station clock input as a source. The PCB104 SyncE module supports 10 MHz station clock input interface Nominate an ethernet interface as a source...

  • Page 260: Network-Clock Clk-Source Ssm-Overwrite

    Command Guide of MGSW-28240F 4.2.159 network-clock clk-source <clk-source> ssm-overwrite Command: network-clock clk-source <clk-source> ssm-overwrite { prc | ssua | ssub | eec2 | eec1 | dnu } network-clock network-clock clk-source clk-source - commands related to a specific clock source. <clk-source : 1-2>...

  • Page 261: Network-Clock Selector

    Command Guide of MGSW-28240F Default: None Usage Guide: To configure EEC options of network-clock Example: To configure EEC options (eec1) of network-clock Switch# configure terminal Switch (config)# network-clock option eec1 4.2.161 network-clock selector Command: network-clock selector { { manual clk-source <clk-source : 1-2> } | selected |...

  • Page 262: Network-Clock Ssm-Freerun

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# network-clock selector freerun 4.2.162 network-clock ssm-freerun Command: network-clock ssm-freerun { prc | ssua | ssub | eec2 | eec1 | dnu | inv } network-clock network-clock ssm-freerun Free Running SSM overwrite...

  • Page 263: Network-Clock Wait-To-Restore

    Command Guide of MGSW-28240F eec1 eec1 eec2 eec2 ssua ssua ssub ssub Default: None Usage Guide: To configure Hold Over SSM overwrite Mode of network-clock Example: To configure Hold Over SSM overwrite Mode (DNU) of network-clock Switch# configure terminal Switch (config)# network-clock ssm-holdover dnu 4.2.164 network-clock wait-to-restore...

  • Page 264: Ntp

    Command Guide of MGSW-28240F Switch (config)# network-clock wait-to-restore 6 4.2.165 no Command: Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (loop-protect) Switch# configure terminal Switch (config)# no loop-protect 4.2.166 ntp...

  • Page 265: Ntp Server

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# ntp 4.2.167 ntp server Command: ntp server <1-5> ip-address { <ipv4_var> | <ipv6_var> | <name_var> } Configure NTP server Configure NTP server <1-5> index number <hostname> domain name <ipv4_ucast> ipv4 address <ipv6_ucast>...

  • Page 266: End

    Command Guide of MGSW-28240F Usage Guide: To run exec commands Example: To run “show aaa”. Switch# configure terminal Switch (config)# poe-time-range profile1 Switch (config-poe-time-range)#do show aaa console : local telnet : local : local http : local 4.2.167.2 end Command:...
  • Page 267 Command Guide of MGSW-28240F Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode. Switch# configure terminal Switch (config)# poe-time-range profile1 Switch (config-poe-time-range)#exit Switch (config)# 4.2.167.4 no Command: Negate a command or set its defaults...

  • Page 268: Periodic

    Command Guide of MGSW-28240F 4.2.167.5 periodic Command: periodic { Mon | Tue | Wed | Thu | Fri | Sat | Sun } <start_h> <start_m> to <end_h> <end_m> [ reboot <reboot_h> <reboot_m> ] periodic To create a periodic mode time-range for the PoE time-range of the switch.

  • Page 269: Reboot-Only

    Command Guide of MGSW-28240F 4.2.167.6 reboot-only Command: reboot-only { Mon | Tue | Wed | Thu | Fri | Sat | Sun } <reboot_h> <reboot_m> reboot-only To create a periodic mode time-range for the PoE time-range of the switch. Periodic Mode, with Friday.

  • Page 270: Port-Security Aging

    Command Guide of MGSW-28240F Usage Guide: To enable the Port Security Example: To enable the Port Security Switch# configure terminal Switch (config)# port-security 4.2.169 port-security aging Command: port-security aging port-security Enable/disable port security globally aging Enable/disable port security aging Default:...

  • Page 271: Privilege

    Command Guide of MGSW-28240F <10-10000000> seconds Default: 3600 Usage Guide: To configure the Aging Period of Port Security Example: To configure the Aging Period (159) of Port Security Switch# configure terminal Switch (config)# port-security aging time 159 4.2.171 privilege Command: privilege { exec | configure | config-vlan | line | interface | if-vlan | ipmc-profile | snmps-host | stp-aggr | dhcp-pool | rfc2544-profile } level <privilege>...

  • Page 272: Qos Map Cos-Dscp

    Command Guide of MGSW-28240F Example: To configure the Privilege Level (DHCP Pool mode, Level 12, Command: host) for Command Line Switch# configure terminal Switch (config)# privilege dhcp-pool level 12 host 4.2.172 qos map cos-dscp Command: qos map cos-dscp <cos> dpl <dpl> dscp { <dscp_num> | { be | af11 | af12 | af13 | af21...

  • Page 273: Qos Map Dscp-Classify

    Command Guide of MGSW-28240F Expedited Forwarding PHB(DSCP 46) Voice Admit PHB(DSCP 44) Default: Usage Guide: To configure the DSCP Classification Example: To configure the DSCP Classification (QoS Class 3: DSCP CS1) Switch# configure terminal Switch (config)# qos map cos-dscp 3 dscp cs1 4.2.173 qos map dscp-classify...

  • Page 274: Qos Map Dscp-Cos

    Command Guide of MGSW-28240F Class Selector PHB CS3 precedence 3(DSCP 24) Class Selector PHB CS4 precedence 4(DSCP 32) Class Selector PHB CS5 precedence 5(DSCP 40) Class Selector PHB CS6 precedence 6(DSCP 48) Class Selector PHB CS7 precedence 7(DSCP 56) Expedited Forwarding PHB(DSCP 46)

  • Page 275: Qos Map Dscp-Egress-Translation

    Command Guide of MGSW-28240F af41 Assured Forwarding PHB AF41(DSCP 34) af42 Assured Forwarding PHB AF42(DSCP 36) af43 Assured Forwarding PHB AF43(DSCP 38) Default PHB(DSCP 0) for best effort traffic Class Selector PHB CS1 precedence 1(DSCP 8) Class Selector PHB CS2 precedence 2(DSCP 16)

  • Page 276: Qos Map Dscp-Ingress-Translation

    Command Guide of MGSW-28240F dscp-egress-translation Map for dscp egress translation <DscpNum : 0-63> Specific DSCP af11 Assured Forwarding PHB AF11(DSCP 10) af12 Assured Forwarding PHB AF12(DSCP 12) af13 Assured Forwarding PHB AF13(DSCP 14) af21 Assured Forwarding PHB AF21(DSCP 18) af22...
  • Page 277 Command Guide of MGSW-28240F Command: qos map dscp-ingress-translation { <dscp_num> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } to { <dscp_num_tr>...

  • Page 278: Qos Qce

    Command Guide of MGSW-28240F Switch (config)# qos map dscp-ingress-translation af11 to af12 4.2.177 qos qce Command: qos qce <qce_id> [ { next <qce_id_next> } | last ] [ interface ( <port_type> [ <port_list> ] ) ] [ smac { <smac> | <smac_24> | any } ] [ dmac { <dmac> | unicast | multicast | broadcast | any } ] [ tag { [ type { untagged | tagged | c-tagged | s-tagged | any } ] [ vid { <ot_vid>...

  • Page 279: Qos Qce Update

    Command Guide of MGSW-28240F To configure the QCE Example: To configure the QCE 1 (below table) for interface GigabitEthernet 1/1-2 Switch# configure terminal Switch (config)# qos qce 1 interface GigabitEthernet 1/1-2 tag type tagged vid 5 pcp 3 dei 1 dmac unicast frame-type ipv4 proto udp dscp 19 frag no sport 55 action cos 0 dpl 1 dscp 4 4.2.178 qos qce update...

  • Page 280: Qos Qce Refresh

    Command Guide of MGSW-28240F udp | any } ] [ sip { <sip6> | any } ] [ dip { <dip6> | any } ] [ dscp { <dscp6> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } | any } ] [ sport { <sp6>...

  • Page 281: Qos Wred

    Command Guide of MGSW-28240F refresh Refresh QCE tables in hardware Default: None Usage Guide: To refresh the QCE Example: To refresh the QCE. Switch# configure terminal Switch (config)# qos qce refresh 4.2.180 qos wred Command: qos wred queue <queue> min-th <min_th> mdp-1 <mdp_1> mdp-2 <mdp_2> mdp-3 <mdp_3>...

  • Page 282: Radius-Server Attribute 32

    Command Guide of MGSW-28240F Usage Guide: To configure the Weighted Random Early Detection Example: To configure the Weighted Random Early Detection (below table) Switch# configure terminal Switch (config)# qos wred queue 1 min-th 2 mdp-1 3 mdp-2 4 mdp-3 5 4.2.181 radius-server attribute 32...

  • Page 283: Radius-Server Attribute 4

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# radius-server attribute 32 planet 4.2.182 radius-server attribute 4 Command: radius-server attribute 4 <Ipv4 : ipv4_ucast> radius-server Configure RADIUS NAS-IP-Address Default: None Usage Guide: To configure the NAS-IP-Address Example: To configure the NAS-IP-Address (7.7.7.7) Switch# configure terminal Switch (config)# radius-server attribute 4 7.7.7.7...

  • Page 284: Radius-Server Deadtime

    Command Guide of MGSW-28240F Example: To configure the NAS-IPv6-Address (2001::7788) Switch# configure terminal Switch (config)# radius-server attribute 95 2001::7788 4.2.184 radius-server deadtime Command: radius-server deadtime <Minutes : 1-1440> radius-server Configure RADIUS deadtime Time to stop using a RADIUS server that doesn't respond <Minutes : 1-1440>...

  • Page 285: Radius-Server Key

    Command Guide of MGSW-28240F <AcctPort : 0-65535> UDP port number auth-port UDP port for RADIUS authentication server <AuthPort : 0-65535> UDP port number Server specific key (overrides default) <Key : line1-63> The shared key retransmit Specify the number of retries to active server (overrides default) <Retries : 1-1000>...

  • Page 286: Radius-Server Retransmit

    Command Guide of MGSW-28240F To configure the Key (123456789) of Radius-Server Switch# configure terminal Switch (config)# radius radius-server key 123456789 4.2.187 radius-server retransmit Command: radius-server retransmit <Retries : 1-1000> radius-server Configure RADIUS retransmit Specify the number of retries to active server <Retries : 1-1000>...

  • Page 287: Rmon Alarm

    Command Guide of MGSW-28240F Usage Guide: To configure the timeout of Radius-Server Example: To configure the timeout (10) of Radius-Server Switch# configure terminal Switch (config)# radius-server timeout 10 4.2.189 rmon alarm Command: rmon alarm <id> {<oid_str> | {{ ifInOctets | ifInUcastPkts | ifInNUcastPkts | ifInDiscards | ifInErrors | ifInUnknownProtos | ifOutOctets | ifOutUcastPkts | ifOutNUcastPkts | ifOutDiscards | ifOutErrors } <ifIndex>}} <interval: 1-2147483647>...

  • Page 288: Rmon Event

    Command Guide of MGSW-28240F ifOutNUcastPkts The number of broad-cast and multi-cast packets that request to transmit ifOutOctets The number of octets transmitted out of the interface, including framing characters <uint> ifIndex <interval: 1-2147483647> Sample interval absolute Test each sample directly...

  • Page 289: Sfp Temperature-Threshold

    Command Guide of MGSW-28240F <description> Event description Generate RMON log when the event fires trap Generate SNMP trap when the event fires <community> SNMP community string Default: None Usage Guide: To configure the Event of RMON Example: To configure the Event (below table) of RMON...

  • Page 290: Snmp-Server

    Command Guide of MGSW-28240F 4.2.192 snmp-server Command: snmp-server snmp-server Set SNMP server's configurations Default: Enabled Usage Guide: To enable the SNMP Service Example: To enable the SNMP Service Switch# configure terminal Switch (config)# snmp-server 4.2.193 snmp-server access Command: snmp-server access <group_name> model { v1 | v2c | v3 | any } level { auth | noauth | priv } [ read <view_name>...

  • Page 291: Snmp-Server Community

    Command Guide of MGSW-28240F <ViewName : word255> read view name write specify a write view for the group <WriteName : word255> write view name Default: None Usage Guide: To configure the Access of SNMP Example: To configure the Access (below table) of SNMP...

  • Page 292: Snmp-Server Contact

    Command Guide of MGSW-28240F To configure the Read / Write / Source network Community of SNMP Example: To configure the Read / Write / Source network Community (below table) of SNMP Switch# configure terminal Switch (config)# snmp-server community v3 public 192.168.0.15 255.255.255.0 4.2.195 snmp-server contact...

  • Page 293: Snmp-Server Host

    Command Guide of MGSW-28240F snmp-server Set SNMP server's configurations engine-id Set SNMP engine ID local Set SNMP local engine ID <Engineid : word10-32> local engine ID Default: None Usage Guide: To configure the Engine IDof SNMP Example: To configure the Engine ID (1234567890) of SNMP...

  • Page 294: End

    Command Guide of MGSW-28240F Switch (config)# snmp-server host planet Switch (config-snmps-host)# 4.2.197.1 do Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”. Switch# configure terminal Switch (config)# snmp-server host planet...

  • Page 295: Exit

    Command Guide of MGSW-28240F Example: To back to EXEC mode Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)#end Switch# 4.2.197.3 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode.
  • Page 296 Command Guide of MGSW-28240F <ipv6_ucast> IP address of SNMP trap host <UdpPort : 1-65535> UDP port of the trap messages informs Send Inform messages to this host traps Send Trap messages to this host Default: None Usage Guide: To configure Trap Host of SNMP...

  • Page 297: Informs

    Command Guide of MGSW-28240F Switch (config)# snmp-server host planet Switch (config-snmps-host)# no ip address dhcp 4.2.197.6 informs Command: informs retries <retries> timeout <timeout> informs Send Inform messages to this host retries retires inform messages <Retries : 0-255> retires times timeout timeout parmater <Timeout : 0-2147>...

  • Page 298: Traps

    Command Guide of MGSW-28240F Disabled Usage Guide: To disable Trap mode of SNMP Example: To disable Trap mode of SNMP Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)# shutdown 4.2.197.8 traps Command: traps [ aaa authentication ] [ system [ coldstart ] [ warmstart ] ] [ switch [ stp ]...

  • Page 299: Version

    Command Guide of MGSW-28240F 4.2.197.9 version Command: version { v1 [ <v1_comm> ] | v2 [ <v2_comm> ] | v3 [ probe | engineID <v_word10_to_32> ] [ <securtyname> ] } version Set SNMP trap version SNMP trap version 1 <V1Comm : word127>...
  • Page 300 Command Guide of MGSW-28240F spanning-tree aggregation spanning-tree Spanning Tree protocol aggregation Aggregation mode Default: None Usage Guide: To enter aggregation mode of STP Example: To enter aggregation mode of STP Switch# configure terminal Switch (config)# spanning-tree aggregation Switch (config-stp-aggr)# 4.2.198.1 do Command: do <...

  • Page 301: End

    Command Guide of MGSW-28240F http : local 4.2.198.2 end Command: Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# spanning-tree aggregation Switch (config-stp-aggr)#end Switch# 4.2.198.3 exit...

  • Page 302: Spanning-Tree Auto-Edge

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# spanning-tree aggregation Switch (config-stp-aggr)#exit Switch (config)# 4.2.198.4 no Command: Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (spanning-tree auto-edge) Switch# configure terminal...

  • Page 303: Spanning-Tree Bpdu-Guard

    Command Guide of MGSW-28240F Enabled Usage Guide: To enable the Auto Edge of CIST Aggregated Port Example: To enable the Auto Edge of CIST Aggregated Port Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)# spanning-tree auto-edge 4.2.198.6 spanning-tree bpdu-guard...

  • Page 304: Spanning-Tree Link-Type

    Command Guide of MGSW-28240F edge Edge port Default: Disabled Usage Guide: To enable the Admin Edge of CIST Aggregated Port Example: To enable the Admin Edge of CIST Aggregated Port Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)# spanning-tree edge 4.2.198.8 spanning-tree link-type...

  • Page 305: Spanning-Tree Mst Cost

    Command Guide of MGSW-28240F 4.2.198.9 spanning-tree mst <instance> cost Command: spanning-tree mst <instance> cost { <cost> | auto } spanning-tree Spanning Tree protocol STP bridge instance <Instance : 0-7> instance 0-7 (CIST=0, MST1=1...) cost STP Cost of this port <Cost : 1-200000000>...

  • Page 306: Spanning-Tree Restricted-Role

    Command Guide of MGSW-28240F To configure the Port Priority of MSTI Port Example: To configure the Port Priority (96) of MSTI Port (MST 2) Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)# spanning-tree mst 2 port-priority 96 4.2.198.11 spanning-tree restricted-role...

  • Page 307: Switchport Vlan Mapping

    Command Guide of MGSW-28240F Default: Disabled Usage Guide: To enable the Restricted TCN of CIST Example: To enable the Restricted TCN of CIST Switch# configure terminal (config)# spanning-tree aggregation (config-stp-aggr)# spanning-tree restricted-tcn 4.2.199 switchport vlan mapping Command: switchport vlan mapping <group> <vlan_list> <translation_vlan>...

  • Page 308: Tacacs-Server Deadtime

    Command Guide of MGSW-28240F 4.2.200 tacacs-server deadtime Command: tacacs-server deadtime <minutes> tacacs-server Configure TACACS+ deadtime Time to stop using a TACACS+ server that doesn't respond <Minutes : 1-1440> Time in minutes Default: Usage Guide: To configure the Deadtime of TACACS+ Server...

  • Page 309: Transport Email Authentication

    Command Guide of MGSW-28240F Default: None Usage Guide: To configure the Host of TACACS+ Server Example: To enable the Host (below table) of TACACS+ Server Switch# configure terminal Switch (config)# tacacs-server host planet.com port 55 timeout 6 key 7788 4.2.202 transport email authentication Command: transport email authentication username <username>...

  • Page 310: Transport Email From

    Command Guide of MGSW-28240F 4.2.203 transport email from Command: transport email from <mail_addr> subject <title> transport Enable or disable transport email function. email Enable or disable transport email function. from sender's email address <mail_addr> mail address subject subject/title of the email <title>...

  • Page 311: Transport Email To

    Command Guide of MGSW-28240F Usage Guide: To configure SMTP Server address and port number. Example: To configure SMTP Server address (mail.planet.com.tw) and port number (123) Switch# configure terminal Switch (config)# transport email smtp-server mail.planet.com.tw port 123 4.2.205 transport email to Command: transport email to <1 | 2>...

  • Page 312: Upnp Advertising-Duration

    Command Guide of MGSW-28240F Command: upnp upnp Set UPnP's configurations Default: Disabled Usage Guide: To enable the UPnP service Example: To enable the UPnP service Switch# configure terminal Switch (config)# upnp 4.2.207 upnp advertising-duration Command: upnp advertising-duration <100-86400> upnp Set UPnP's configurations...

  • Page 313: Upnp Ttl

    Command Guide of MGSW-28240F 4.2.208 upnp ttl Command: upnp ttl <1-255> upnp Set UPnP's configurations Set TTL value <1-255> TTL value Default: Usage Guide: To configure the TTL of UPnP Example: To configure the TTL (8) of UPnP Switch# configure terminal Switch (config)# upnp ttl 8 4.2.209 username...

  • Page 314: Vlan

    Command Guide of MGSW-28240F None Usage Guide: To configure the Profiles of Username Example: To configure the Profiles of Username (Username: 1234, Password: 1234, Privilege Level: 15) Switch# configure terminal Switch (config)# username 1234 privilege 15 password unencrypted 1234 Press ENTER to get started...

  • Page 315: End

    Command Guide of MGSW-28240F 4.2.210.1 do Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”. Switch# configure terminal Switch (config)# vlan 5 Switch (config-vlan)#do show aaa console : local...

  • Page 316: Exit

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# vlan 5 Switch (config-vlan)#end Switch# 4.2.210.3 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode Switch# configure terminal Switch (config)# vlan 5...

  • Page 317: Vlan Ethertype S-Custom-Port

    Command Guide of MGSW-28240F To configure description of VLAN Example: To configure description (FAE) of VLAN Switch# configure terminal Switch (config)# vlan 5 Switch (config-vlan)# name FAE 4.2.210.5 no Command: Negate a command or set its defaults Default: Usage Guide:...

  • Page 318: Vlan Protocol

    Command Guide of MGSW-28240F Default: 0x88A8 Usage Guide: To create the Ethernet type of Custom S-ports Example: To create the Ethernet type (0x88A9) of Custom S-ports Switch# configure terminal Switch (config)# vlan ethertype s-custom-port 0x88a9 4.2.212 vlan protocol Command: vlan protocol { { eth2 { <etype> | arp | ip | ipx | at } } | { snap { <oui> | rfc-1042 | snap-8021h } <pid>...

  • Page 319: Voice Vlan

    Command Guide of MGSW-28240F Usage Guide: To configure the Protocol-based VLAN Example: To configure the Protocol-based VLAN (below table) Switch# configure terminal Switch (config)# vlan protocol llc 0x55 0x66 group 3 4.2.213 voice vlan Command: voice vlan voice Voice appliance attributes...

  • Page 320: Voice Vlan Class

    Command Guide of MGSW-28240F aging-time Set secure learning aging time <AgingTime : 10-10000000> Aging time, 10-10000000 seconds Default: 86400 Usage Guide: To configure the Aging Time of Voice VLAN Example: To configure the Aging Time of Voice VLAN Switch# configure terminal Switch (config)# voice vlan aging-time 8888 4.2.215 voice vlan class...

  • Page 321: Voice Vlan Oui

    Command Guide of MGSW-28240F 4.2.216 voice vlan oui Command: voice vlan oui <oui> [ description <description> ] voice Voice appliance attributes vlan Vlan for voice traffic OUI configuration <oui> OUI value description Set description for the OUI <Description : line32>...

  • Page 322: Web Privilege Group

    Command Guide of MGSW-28240F Example: To configure the VID (66 ) of Voice VLAN Switch# configure terminal Switch (config)# voice vlan vid 66 4.2.218 web privilege group Command: web privilege group <group_name> level { [ cro <cro: 0-15> ] [ crw <crw: 0-15> ] [ sro <sro: 0-15>...

  • Page 323: Copy

    Command Guide of MGSW-28240F Switch# configure terminal Switch (config)# web privilege group Aggregation level cro 3 crw 4 sro 3 srw 5 4.3 copy 4.3.1 copy Command: copy { startup-config | running-config | <source_path> } { startup-config | running-config | <destination_path> } [ syntax-check ]...

  • Page 324: Delete

    Command Guide of MGSW-28240F Command: debug prompt <debug_prompt> debug Debugging functions prompt Set prompt for testing <debug_prompt> Word for prompt Default: None Usage Guide: To configure Description of Debug Prompt Example: To configure Description (1233) of Debug Prompt Switch # debug prompt 1233 1233# 4.5 delete...

  • Page 325: Dir

    Command Guide of MGSW-28240F % Saving 1833 bytes to flash:222 Switch # dir Directory of flash: r- 1970-01-01 00:00:00 648 default-config rw 1970-01-01 07:26:26 1833 startup-config rw 1970-01-01 00:18:40 1833 222 3 files, 4314 bytes total. Switch # delete flash:222...

  • Page 326: Disable

    Command Guide of MGSW-28240F r- 1970-01-01 00:00:00 648 default-config rw 1970-01-01 07:26:26 1833 startup-config 2 files, 2481 bytes total. 4.7 disable 4.7.1 disable Command: disable disable Turn off privileged commands Default: None Usage Guide: To exit enable mode Example: To exit enable mode Switch # disable Switch >...

  • Page 327: Dot1X

    Command Guide of MGSW-28240F Example: To run “show aaa”. Switch# do show aaa console : local telnet : local : local http : local 4.9 dot1x 4.9.1 dot1x initialize Command: dot1x initialize [ interface ( <port_type> [ <plist> ] ) ]...

  • Page 328: Erps

    Command Guide of MGSW-28240F Command: enable enable Turn on privileged commands Default: None Usage Guide: To enter enable mode Example: To enter enable mode Switch > enable Switch # 4.11 erps 4.11.1 erps Command: erps <group> command { force | manual | clear } { port0 | port1 }...

  • Page 329: Exit

    Command Guide of MGSW-28240F To configure Instance Command (below table) of Group (1) Switch # erps 1 command force port0 4.12 exit 4.12.1 exit Command: exit exit Exit from EXEC mode Default: None Usage Guide: To exit EXEC mode Example:...

  • Page 330: Firmware Upgrade

    Command Guide of MGSW-28240F Command: firmware swap firmware Firmware upgrade/swap swap Swap between Active and Alternate firmware image Default: None Usage Guide: To swap Active and Alternate firmware image Example: To swap Active and Alternate firmware image Switch # firmware swap 4.13.2 firmware upgrade...

  • Page 331: Ip Dhcp Retry Interface Vlan

    Command Guide of MGSW-28240F 4.14 ip 4.14.1 ip dhcp retry interface vlan Command: ip dhcp retry interface vlan <vlan_id> IPv4 commands dhcp Dhcp commands retry Restart the DHCP query process interface Interface vlan Vlan interface <vlan_id> Vlan ID Default: None...

  • Page 332: More

    Command Guide of MGSW-28240F Usage Guide: To exit EXEC mode Example: To exit EXEC mode Switch # logout Press ENTER to get started 4.16 more 4.16.1 more Command: more <path> more Display file <Path> File in FLASH or on TFTP server...

  • Page 333: Ping

    Command Guide of MGSW-28240F 4.17 no 4.17.1 no Command: Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (erps 1 command force port0) Switch# no erps 1 command force port0 4.18 ping...

  • Page 334: Ping Ipv6

    Command Guide of MGSW-28240F repeat Specify repeat count <Count : 1-60> 1-60; Default is 5 size Specify datagram size <Size : 2-1452> 2-1452; Default is 56 (excluding MAC, IP and ICMP headers) Default: Usage Guide: To run the IPv4 Ping function Example: To run the IPv4 Ping (192.168.0.78) function...

  • Page 335: Reload

    Command Guide of MGSW-28240F Default: Usage Guide: To run the IPv6 Ping function Example: To run the IPv6 Ping (2001::7788) function Switch# ping ipv6 2001::7788 PING6 server 2001::7788, 56 bytes of data. recvfrom: Operation timed out recvfrom: Operation timed out...

  • Page 336: Reload Defaults

    Command Guide of MGSW-28240F 4.19.2 reload defaults Command: reload defaults [ keep-ip ] reload Reload system defaults Reload defaults without rebooting. keep-ip Attempt to keep VLAN1 IP setup. Default: Usage Guide: To store the device factory default settings. Example: To store the device factory default settings.

  • Page 337: Show

    Command Guide of MGSW-28240F To send message for command line user. Example: To send message ( hi, I will upgrade the firmware, OK? ) for command line user (All). Switch # send * 1 Enter TEXT message. End with the character '1'.

  • Page 338: Show Access Management

    Command Guide of MGSW-28240F console : local telnet : local : local http : local 4.21.2 show access management Command: show access management [ statistics | <access_id_list> ] show Show running system information access Access management management Access management configuration <AccessIdList : 1~16>...

  • Page 339: Show Access-List

    Command Guide of MGSW-28240F 4.21.3 show access-list Command: show access-list [ interface [ ( <port_type> [ <v_port_type_list> ] ) ] ] [ rate-limiter [ <rate_limiter_list> ] ] [ ace statistics [ <ace_list> ] ] show Show running system information access...

  • Page 340: Show Access-List

    Command Guide of MGSW-28240F Switch access-list rate limiter ID 16 is 1 pps GigabitEthernet 1/1 : --------------------- GigabitEthernet 1/1 access-list action is permit GigabitEthernet 1/1 access-list policy ID is 0 GigabitEthernet 1/1 access-list rate limiter ID is disabled GigabitEthernet 1/1 access-list redirect is disabled...

  • Page 341: Show Access-List Ace-Status

    Command Guide of MGSW-28240F Switch access-list rate limiter ID 1 is 1 pps Switch access-list rate limiter ID 2 is 1 pps Switch access-list rate limiter ID 3 is 1 pps Switch access-list rate limiter ID 4 is 1 pps...
  • Page 342 Command Guide of MGSW-28240F conflicts The ACEs that did not get applied to the hardware due to hardware limitations dhcp The ACEs that are configured by DHCP module ip-source-guard The ACEs that are configured by IP Source Guard module ipmc...

  • Page 343: Show Aggregation

    Command Guide of MGSW-28240F 4.21.6 show aggregation Command: show aggregation [ mode ] show Show running system information aggregation Aggregation port configuration mode Traffic distribution mode Default: Usage Guide: To display the Aggregation status. Example: To display the Aggregation status.

  • Page 344: Show Clock

    Command Guide of MGSW-28240F Example: To display the Aggregation mode status. Switch # show aggregation mode Aggregation Mode: SMAC : Enabled DMAC : Disabled : Enabled Port : Enabled 4.21.8 show clock Command: show clock show Show running system information...
  • Page 345 Command Guide of MGSW-28240F show clock detail show Show running system information clock Configure time-of-day clock detail Display detailed information Default: Usage Guide: To display the detailed system time. Example: To display the detailed system time. Switch # show clock detail...

  • Page 346: Show Dot1X Statistics

    Command Guide of MGSW-28240F 4.21.10 show dot1x statistics Command: show dot1x statistics show Show running system information dot1x IEEE Standard for port-based Network Access Control statistics Shows statistics for either eapol or radius Show all dot1x statistics eapol Show EAPOL statistics...

  • Page 347: Show Dot1X Status

    Command Guide of MGSW-28240F Rx Auth. Successes: Rx Auth. Failures: 4.21.11 show dot1x status Command: show dot1x status [ interface ( <port_type> [ <v_port_type_list> ] ) ] [ brief ] show Show running system information dot1x IEEE Standard for port-based Network Access Control status Shows dot1x status, such as admin state, port state and last source.

  • Page 348: Show Eps

    Command Guide of MGSW-28240F Admin State Port State Last Source Last ID ------------------ --------------------- ----------------- ------------- Force Authorized Globally Disabled Current Radius QOS Current Radius VLAN Current Guest VLAN -------------------- -------------------- -------------------- 4.21.12 show eps Command: show eps [ <inst> ] [ detail ]...

  • Page 349: Show Erps

    Command Guide of MGSW-28240F Inst Archi Wflow Pflow Wmep Pmep Port 1plus1 APSmep Direct Revert Hold 4.21.13 show erps Command: show erps [ <groups> ] [ detail | statistics ] show Show running system information erps Ethernet Ring Protection Switching <groups>...

  • Page 350: Show Evc

    Command Guide of MGSW-28240F Hold-Off Timeout Guard Timeout :500 Node Type :Major Reversion :Revertive Version ERPSv2 Administrative Command :None FSM State :PENDING Port 0 Link Status :Link Up Port 1 Link Status :Link Up Port 0 Block Status :BLOCKED Port 1 Block Status...

  • Page 351: Show Evc Statistics

    Command Guide of MGSW-28240F EVC ID Status ------ ------ Active 4.21.15 show evc statistics Command: show green-ethernet [ interface ( <port_type> [ <port_list> ] ) ] show Show running system information green-ethernet Green ethernet (Power reduction) Default: Usage Guide: To display the EVC statistics.

  • Page 352: Show Green-Ethernet Energy-Detect

    Command Guide of MGSW-28240F Default: Usage Guide: To display the Green Ethernet status. Example: To display the Green Ethernet status for all. Switch # show green-ethernet interface * 4.21.17 show green-ethernet energy-detect Command: show green-ethernet energy-detect [ interface ( <port_type> [ <port_list> ] ) ]...

  • Page 353: Show History

    Command Guide of MGSW-28240F show green-ethernet short-reach [ interface ( <port_type> [ <port_list> ] ) ] show Show running system information green-ethernet Green ethernet (Power reduction) short-reach Shows green ethernet short-reach status for a specific or ports interface Shows green ethernet status for a specific port or ports.

  • Page 354: Show Interface Capabilities

    Command Guide of MGSW-28240F show green-ethernet energy-detect show green-ethernet show green-ethernet short-reach interface * show history 4.21.20 show interface <port_type> <port_type_list> capabilities Command: show interface ( <port_type> [ <port_type_list> ] ) capabilities show Show running system information interface Interface status and configuration...

  • Page 355: Show Interface Status

    Command Guide of MGSW-28240F interface Interface status and configuration statistics Display statistics counters bytes Show byte statistics. discards Show discard statistics. down Show ports which are down errors Show error statistics. filtered Show filtered statistics. packets Show packet statistics. priority...

  • Page 356: Show Interface Switchport

    Command Guide of MGSW-28240F Example: To display the port status for interface GigabitEthernet 1/1. Switch # show interface GigabitEthernet 1/1 status Interface Mode Speed & Duplex Max Frame Excessive Link ---------------------- ------- --------------- --------- --------- -------- GigabitEthernet 1/1 enabled Auto...

  • Page 357: Show Interface Veriphy

    Command Guide of MGSW-28240F Acceptable Frame Type: All Ingress filter: Disabled Egress tagging: All except-native Hybrid Native Mode VLAN: 1 Hybrid VLANs Enabled: 1-4095 4.21.24 show interface <port_type> <port_type_list> veriphy Command: show interface <port_type> <port_type_list> veriphy show Show running system information...

  • Page 358: Show Interface Vlan

    Command Guide of MGSW-28240F interface Interface status and configuration veriphy Run cable diagnostics and show result. Default: Usage Guide: To display the result of Cable Diagnostics. Example: To display the result of Cable Diagnostics for interface GigabitEthernet 1/1. Switch # show interface GigabitEthernet 1/1 veriphy...

  • Page 359: Show Ip Arp

    Command Guide of MGSW-28240F Switch # show interface vlan VLAN1 LINK: 00-30-4F-00-99-00 Mtu:1500 <UP BROADCAST RUNNING MULTICAST> IPv4: 192.168.0.100/24 192.168.0.255 IPv6: fe80:2::201:c1ff:fe00:9900/64 <ANYCAST TENTATIVE AUTOCONF> 4.21.27 show ip arp Command: show ip arp show Show running system information Internet Protocol...

  • Page 360: Show Ip Arp Inspection

    Command Guide of MGSW-28240F Default: Usage Guide: To display the ARP Inspection Configuration. Example: To display the ARP Inspection Configuration. Switch # show ip arp inspection ARP Inspection Mode : disabled Port Port Mode Check VLAN Log Type ---- ---------...

  • Page 361: Show Ip Arp Inspection Entry

    Command Guide of MGSW-28240F Switch # show ip arp inspection ARP Inspection Mode : disabled Port Port Mode Check VLAN Log Type ---- --------- ---------- -------- GigabitEthernet 1/1 disabled disabled NONE GigabitEthernet 1/2 disabled disabled NONE 4.21.30 show ip arp inspection entry Command: show ip arp inspection entry [ dhcp-snooping | static ] [ interface ( <port_type>...
  • Page 362 Command Guide of MGSW-28240F show ip dhcp detailed statistics { server | client | snooping | relay | normal-forward | combined } [ interface ( <port_type> [ <port_list> ] ) ] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol...

  • Page 363: Show Ip Dhcp Excluded-Address

    Command Guide of MGSW-28240F Rx Inform: Tx Inform: Rx Lease Query: Tx Lease Query: Rx Lease Unassigned: Tx Lease Unassigned: Rx Lease Unknown: Tx Lease Unknown: Rx Lease Active: Tx Lease Active: Rx Lease Active: Tx Lease Active: Rx Discarded checksum error: 4.21.32 show ip dhcp excluded-address...

  • Page 364: Show Ip Dhcp Pool

    Command Guide of MGSW-28240F 4.21.33 show ip dhcp pool Command: show ip dhcp pool [ <pool_name> ] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol pool DHCP pools information Default: Usage Guide: To display the DHCP pools information.

  • Page 365: Show Ip Dhcp Relay

    Command Guide of MGSW-28240F Client name is - 4.21.34 show ip dhcp relay Command: show ip dhcp relay [ statistics ] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol relay DHCP relay agent configuration statistics Traffic statistics...

  • Page 366: Show Ip Dhcp Server Binding (Gg)

    Command Guide of MGSW-28240F Usage Guide: To display the DHCP Server Mode Configuration. Example: To display the DHCP Server Mode Configuration. Switch # show ip dhcp server DHCP server is globally disabled. All VLANs are disabled. 4.21.36 show ip dhcp server binding (GG)

  • Page 367: Show Ip Dhcp Server Declined-Ip (Gg)

    Command Guide of MGSW-28240F Example: To display the DHCP Server binding configuration. Switch # show ip dhcp server binding 4.21.37 show ip dhcp server declined-ip (GG) Command: show ip dhcp server declined-ip show Show running system information Internet Protocol dhcp...
  • Page 368 Command Guide of MGSW-28240F Default: Usage Guide: To display the DHCP Server statistics. Example: To display the DHCP Server statistics. Switch # show ip dhcp server statistics Database Counters ========================= POOL Excluded IP Declined IP ========================= Binding Counters ========================= Automatic...

  • Page 369: Show Ip Dhcp Snooping

    Command Guide of MGSW-28240F 4.21.39 show ip dhcp snooping Command: show ip dhcp snooping [interface ( <port_type> [ <port_list> ] )] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol snooping DHCP snooping interface Select an interface to configure...

  • Page 370: Show Ip Http Server Secure Status

    Command Guide of MGSW-28240F To display the DHCP Snooping table. Example: To display the DHCP Snooping table. Switch # show ip dhcp snooping table 4.21.41 show ip http server secure status Command: show ip http server secure status show Show running system information...

  • Page 371: Show Ip Igmp Snooping Mrouter

    Command Guide of MGSW-28240F [ <port_type_list> ] ) ] [ sfm-information ] ] [ detail ] show Show running system information Internet Protocol igmp Internet Group Management Protocol snooping Snooping IGMP vlan Search by VLAN group-database Multicast group database from IGMP...

  • Page 372: Show Ip Interface Brief

    Command Guide of MGSW-28240F Usage Guide: To display the IGMP Router Port information. Example: To display the IGMP Router Port information. Switch # show ip igmp snooping mrouter IGMP Snooping is disabled to stop snooping IGMP control plane. Switch-1 IGMP Router Port Status Gi 1/1: Static and Dynamic Router Port 4.21.44 show ip interface brief...

  • Page 373: Show Ip Name-Server

    Command Guide of MGSW-28240F 4.21.45 show ip name-server Command: show ip name-server show Show running system information Internet Protocol name-server Domain Name System Default: Usage Guide: To display the DNS Server information. Example: To display the DNS Server information. Switch # show ip name-server Current DNS server is 8.8.8.8 set by STATIC.

  • Page 374: Show Ip Source Binding

    Command Guide of MGSW-28240F Switch # show ip route 11.11.11.0/24 via 192.168.0.14 <UP GATEWAY HW_RT> 127.0.0.1/32 via 127.0.0.1 <UP HOST> 192.168.0.0/24 via VLAN1 <UP HW_RT> 224.0.0.0/4 via 127.0.0.1 <UP> 4.21.47 show ip source binding Command: show ip source binding [ dhcp-snooping | static ] [ interface ( <port_type>...

  • Page 375: Show Ip Statistics

    Command Guide of MGSW-28240F Command: show ip ssh show Show running system information Internet Protocol Secure Shell Default: Usage Guide: To display the SSH Management status. Example: To display the SSH Management status. Switch # show ip ssh Switch SSH is enabled 4.21.49 show ip statistics...
  • Page 376 Command Guide of MGSW-28240F IPv4 statistics: Rcvd: 9751 total in 1454882 bytes 9606 local destination, 0 forwarding 0 header error, 0 address error, 0 unknown protocol 0 no route, 0 truncated, 145 discarded Sent: 8087 total in 2703484 bytes 8087 generated, 0 forwarded...

  • Page 377: Show Ip Verify Source

    Command Guide of MGSW-28240F Rcvd: 0 Packet Sent: 2618 Packets IPv4 ICMP Message: Echo Rcvd: 2618 Packets Sent: 0 Packet 4.21.50 show ip verify source Command: show ip verify source [ interface ( <port_type> [ <port_type_list> ] ) ] show...

  • Page 378: Show Ipmc Range

    Command Guide of MGSW-28240F ipmc IPv4/IPv6 multicast configuration profile IPMC profile configuration <ProfileName : word16> Profile name detail Detail information of a profile Default: Usage Guide: To display the IP Multicast Profile. Example: To display the IP Multicast Profile. Switch # show ipmc profile IPMC Profile is now enabled to start filtering.

  • Page 379: Show Ipv6 Interface

    Command Guide of MGSW-28240F Switch # show ipmc range Range Name Start Address: 224.24.24.24 End Address : 224.24.24.25 4.21.53 show ipv6 interface Command: show ipv6 interface [ vlan <vlan_list> { brief | statistics } ] show Show running system information...

  • Page 380: Show Ipv6 Mld Snooping

    Command Guide of MGSW-28240F 0 header error, 0 address error, 0 unknown protocol 0 no route, 0 truncated, 0 discarded Sent: 17 total in 1104 bytes 17 generated, 0 forwarded 0 discarded Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble)

  • Page 381: Show Ipv6 Mld Snooping Mrouter

    Command Guide of MGSW-28240F MLD Snooping is disabled to stop snooping MLD control plane. Multicast streams destined to unregistered MLD groups will be flooding. 4.21.55 show ipv6 mld snooping mrouter Command: show ip igmp snooping mrouter [ detail ] show...

  • Page 382: Show Ipv6 Route

    Command Guide of MGSW-28240F vlan VLAN of IPv6 interface Default: Usage Guide: To display the IPv6 neighbor information. Example: To display the IPv6 neighbor information. Switch # show ipv6 neighbor 2001::7766 via VLAN1: 00-30-4F-00-99-00 Permanent/REACHABLE fe80::201:c1ff:fe00:9900 via VLAN1: 00-30-4F-00-99-00 Permanent/REACHABLE 4.21.57 show ipv6 route...

  • Page 383: Show Ipv6 Statistics

    Command Guide of MGSW-28240F 2001::7766/128 via 1:c100:9900:: <UP HOST> 2002::/64 via 2001::7788 <UP GATEWAY HW_RT> 4.21.58 show ipv6 statistics Command: show ipv6 statistics [ system ] [ interface vlan <vlan_list> ] [ icmp ] [ icmp-msg <type> ] show Show running system information...
  • Page 384 Command Guide of MGSW-28240F Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble) 0 fragment (0 fragmented, 0 couldn't fragment) 0 fragment created Mcast: 24 received in 2064 bytes 34 sent in 2208 bytes Bcast: 0 received, 0 sent IP interface statistics:...

  • Page 385: Show Lacp

    Command Guide of MGSW-28240F 4.21.59 show lacp Command: show lacp { internal | statistics | system-id | neighbour } show Show running system information lacp LACP configuration/status internal Internal LACP configuration neighbour Neighbour LACP status statistics Internal LACP statistics system-id...

  • Page 386: Show Link-Oam

    Command Guide of MGSW-28240F Usage Guide: To display the VTY information. Example: To display the VTY information. Switch # show line alive Line is con 0. * You are at this line now. Alive from Console. Default privileged level is 2.

  • Page 387: Show Lldp Med Media-Vlan-Policy

    Command Guide of MGSW-28240F Usage Guide: To display the Link OAM information. Example: To display the Link OAM statistics for GigabitEthernet 1/1. Switch # show link-oam statistics interface GigabitEthernet 1/1 GigabitEthernet 1/1 ----------------------------------------- PDU stats ----------- Information PDU TX: Information PDU RX:...

  • Page 388: Show Lldp Med Remote-Device

    Command Guide of MGSW-28240F show lldp med media-vlan-policy [<0~31>] show Show running system information lldp Display LLDP neighbors information Display LLDP-MED neighbors information media-vlan-policy Display media vlan policies <0~31> List of policies Default: Usage Guide: To display the LLDP-MED policy information.

  • Page 389: Show Lldp Neighbors

    Command Guide of MGSW-28240F No LLDP-MED entries found 4.21.64 show lldp neighbors Command: show lldp neighbors [ interface ( <port_type> [ <port_type_list> ] ) ] show Show running system information lldp Display LLDP neighbors information neighbors Display LLDP neighbors information...

  • Page 390: Show Logging

    Command Guide of MGSW-28240F Usage Guide: To display the LLDP statistics information. Example: To display the LLDP statistics information for GigabitEthernet 1/1. Switch # show lldp statistics interface GigabitEthernet 1/1 Interface Frames Frames Errors --------- ------ ------ ------ GigabitEthernet 1/1...

  • Page 391: Show Loop-Protect

    Command Guide of MGSW-28240F : 235861 Level : Warning Time : 1970-01-01T13:33:57+00:00 Message: Loop Detected: Port 5 shut down 4.21.67 show loop-protect Command: show loop-protect [ interface ( <port_type> [ <port_list> ] ) ] show Show running system information loop-protect...

  • Page 392: Show Mac Address-Table

    Command Guide of MGSW-28240F Transmit mode is enabled. No loop. The number of loops is 12390. Time of last loop is at 1970-01-01T14:58:28+00:00 Status is down. 4.21.68 show mac address-table Command: show mac address-table [ conf | static | aging-time | { { learning | count } [ interface ( <port_type>...

  • Page 393: Show Mep

    Command Guide of MGSW-28240F Dynamic 1 d4:3d:7e:fd:e3:ac GigabitEthernet 1/21 Static 1 ff:ff:ff:ff:ff:ff GigabitEthernet 1/1-25 10GigabitEthernet 1/1-4 CPU 4.21.69 show mep Command: show mep [ <instance> ] [ peer | cc | lm | dm | lt | lb | tst | aps | client | ais | lck ]...

  • Page 394: Show Mvr

    Command Guide of MGSW-28240F 4.21.70 show mvr Command: show mvr [ vlan <vlan_list> | name <mvr_name> ] [ group-database [ interface ( <port_type> [ <port_type_list> ] ) ] [ sfm-information ] ] [ detail ] show Show running system information...

  • Page 395: Show Network-Clock

    Command Guide of MGSW-28240F Querier status is IDLE RX MLD Query:0 V1Report:0 V2Report:0 V1Done:0 TX MLD Query:0 / (Source) Specific Query:0 Interface Channel Profile: <No Associated Profile> 4.21.71 show network-clock Command: show network-clock show Show running system information network-clock Show selector state...

  • Page 396: Show Ntp Status

    Command Guide of MGSW-28240F 4.21.72 show ntp status Command: show ntp status show Show running system information Configure NTP status status Default: Usage Guide: To display the NTP Server information. Example: To display the NTP Server information. Switch # show ntp status NTP Mode : enabled Server IP host address (a.b.c.d) or a host name string...

  • Page 397: Show Platform Phy Failover

    Command Guide of MGSW-28240F interface Search by port Default: Usage Guide: To display the PHY information. Example: To display the PHY information for GigabitEthernet 1/1. Switch # show platform phy interface GigabitEthernet 1/1 Port API Inst WAN/LAN/1G Mode Duplex Speed...

  • Page 398: Show Platform Phy Id

    Command Guide of MGSW-28240F 4.21.75 show platform phy id Command: show platform phy id [ interface ( <port_type> [ <port_type_list> ] ) ] show Show running system information platform Platform specific information PHYs' information interface Search by port Default: Usage Guide: To display the PHY ID.

  • Page 399: Show Port-Security Port

    Command Guide of MGSW-28240F Usage Guide: To display the PHY status. Example: To display the PHY status. Switch # show platform phy status interface GigabitEthernet 1/1 Port Issues seen during 1G PHY warmstart Issues during 10G PHY WS ---- ----------------------------------- ------------------------ 4.21.77 show port-security port...

  • Page 400: Show Port-Security Switch

    Command Guide of MGSW-28240F 4.21.78 show port-security switch Command: show port-security switch [ interface ( <port_type> [ <port_type_list> ] ) ] show Show running system information port-security port-security switch Show Port Security status interface Search by port Default: Usage Guide: To display the status of Port Security.

  • Page 401: Show Ptp

    Command Guide of MGSW-28240F Usage Guide: To display the Privilege information. Example: To display the Privilege information. Switch # show privilege 4.21.80 show ptp <clockinst> Command: show ptp <clockinst> { default | current | parent | time-property | filter | servo | clk | ho | uni | master-table-unicast | slave | { { port-state | port-ds | wireless | foreign-master-record } [ interface ( <port_type>...

  • Page 402: Show Ptp Local-Clock

    Command Guide of MGSW-28240F Example: To display the PTP default information for PTP instance 0. Switch # show ptp 0 default ClockId DeviceType 2StepFlag Ports ClockIdentity ------- ---------- --------- ----- ----------------------- Ord-Bound True 00:01:c1:ff:fe:00:99:00 ClockQuality Pri1 Pri2 ------------------------- ---- ----...

  • Page 403: Show Ptp Slave-Cfg

    Command Guide of MGSW-28240F 4.21.82 show ptp <clockinst> slave-cfg Command: show ptp <clockinst> slave-cfg show Show running system information Precision time Protocol (1588) <Clockinst : 0-3> Show various PTP data slave-cfg Show slave lock configuration Default: Usage Guide: To display the slave lock configuration.

  • Page 404: Show Ptp Ext

    Command Guide of MGSW-28240F To display the unicast slave table. Example: To display the unicast slave table for PTP instance 0. Switch # show ptp 0 slave-table-unicast ip_addr mac_addr port Ann Sync --------------- ----------------- ---- ----- 4.21.84 show ptp ext...

  • Page 405: Show Pvlan Isolation

    Command Guide of MGSW-28240F Usage Guide: To display the Private VLAN membership configuration. Example: To display the Private VLAN membership configuration for all VLANs. Switch # show pvlan PVLAN ID Ports -------- ----------------------------------------------------------------------------- GigabitEthernet 1/1, GigabitEthernet 1/2, GigabitEthernet 1/3, 4.21.86 show pvlan isolation Command: show pvlan isolation [ interface ( <port_type>...

  • Page 406: Show Qos

    Command Guide of MGSW-28240F 4.21.87 show qos Command: show qos [ { interface [ ( <port_type> [ <port> ] ) ] } | wred | { maps [ dscp-cos ] [ dscp-ingress-translation ] [ dscp-classify ] [ cos-dscp ] [ dscp-egress-translation ] } | { qce [ <qce>...
  • Page 407 Command Guide of MGSW-28240F qos map tag-cos pcp 2 dei 0 cos 2 dpl 0 qos map tag-cos pcp 2 dei 1 cos 2 dpl 1 qos map tag-cos pcp 3 dei 0 cos 3 dpl 0 qos map tag-cos pcp 3 dei 1 cos 3 dpl 1...

  • Page 408: Show Radius-Server

    Command Guide of MGSW-28240F qos map cos-tag cos 4 dpl 0 pcp 4 dei 0 qos map cos-tag cos 4 dpl 1 pcp 4 dei 1 qos map cos-tag cos 5 dpl 0 pcp 5 dei 0 qos map cos-tag cos 5 dpl 1 pcp 5 dei 1...

  • Page 409: Show Rmon Alarm

    Command Guide of MGSW-28240F Global RADIUS Server Attribute 4 : Global RADIUS Server Attribute 95 : Global RADIUS Server Attribute 32 : No hosts configured! 4.21.89 show rmon alarm Command: show rmon alarm [ <id_list> ] show Show running system information...

  • Page 410: Show Rmon Event

    Command Guide of MGSW-28240F 4.21.90 show rmon event Command: show rmon event [ <id_list> ] show Show running system information rmon RMON statistics event Display the RMON event table Default: Usage Guide: To display the RMON Event configuration. Example: To display the RMON Event ID 1 configuration.

  • Page 411: Show Rmon Statistics

    Command Guide of MGSW-28240F Example: To display the RMON History ID 1 configuration. Switch # show rmon history 1 History ID : ------------------ Data Source : .1.3.6.1.2.1.2.2.1.1.5 Data Bucket Request : 50 Data Bucket Granted : 50 Data Interval : 1800 4.21.92 show rmon statistics...

  • Page 412: Show Running-Config

    Command Guide of MGSW-28240F etherStatsPkts : 127086 etherStatsBroadcastPkts : 45280 etherStatsMulticastPkts : 70008 etherStatsCRCAlignErrors etherStatsUndersizePkts etherStatsOversizePkts etherStatsFragments etherStatsJabbers etherStatsCollisions etherStatsPkts64Octets : 26017 etherStatsPkts65to127Octets : 101063 etherStatsPkts128to255Octets : 5 etherStatsPkts256to511Octets : 1 etherStatsPkts512to1023Octets : 0 etherStatsPkts1024to1518Octets: 0 4.21.93 show running-config Command: show running-config [ all-defaults ] [feature <feature_name>...
  • Page 413 Command Guide of MGSW-28240F vlan VLAN line Show line settings console Console Default: Usage Guide: To display the running-config. Example 1: To display the running-config. Switch # show running-config Building configuration... username admin privilege 15 password none loop-protect loop-protect transmit-time 2...

  • Page 414: Show Snmp

    Command Guide of MGSW-28240F 4.21.94 show snmp Command: show snmp show Show running system information snmp Display SNMP configurations Default: Usage Guide: To display the SNMP information. Example: To display the SNMP information Switch # show snmp SNMP Configuration SNMP Mode...
  • Page 415 Command Guide of MGSW-28240F Privacy Protocol : None SNMPv3 Groups Table; Security Model : v1 Security Name : public Group Name : default_ro_group Security Model : v1 Security Name : private Group Name : default_rw_group Security Model : v2c Security Name : public...

  • Page 416: Show Snmp Access

    Command Guide of MGSW-28240F OID Subtree : .1 View Type : included 4.21.95 show snmp access Command: show snmp access [ <group_name> { v1 | v2c | v3 | any } { auth | noauth | priv } ] show...

  • Page 417: Show Snmp Community V3

    Command Guide of MGSW-28240F Security Model : any Security Level : NoAuth, NoPriv Read View Name : default_view Write View Name : default_view 4.21.96 show snmp community v3 Command: show snmp community v3 [ <community> ] show Show running system information...

  • Page 418: Show Snmp Mib Context

    Command Guide of MGSW-28240F snmp Display SNMP configurations host Set SNMP host's configurations <ConfName : word32> Name of the host configuration AAA event group interface Interface event group switch Switch event group system System event group Default: Usage Guide: To display the SNMP Host information.
  • Page 419 Command Guide of MGSW-28240F BRIDGE-MIB : - dot1dBase (.1.3.6.1.2.1.17.1) - dot1dTp (.1.3.6.1.2.1.17.4) Dot3-OAM-MIB : - dot3OamMIB (.1.3.6.1.2.1.158) ENTITY-MIB : - entityMIBObjects (.1.3.6.1.2.1.47.1) EtherLike-MIB : - transmission (.1.3.6.1.2.1.10) IEEE8021-MSTP-MIB : - ieee8021MstpMib (.1.3.111.2.802.1.1.6) IEEE8021-PAE-MIB : - ieee8021paeMIB (.1.0.8802.1.1.1.1) IEEE8023-LAG-MIB : - lagMIBObjects (.1.2.840.10006.300.43.1) IF-MIB : - ifMIB (.1.3.6.1.2.1.31)

  • Page 420: Show Snmp Mib Ifmib Ifindex

    Command Guide of MGSW-28240F Q-BRIDGE-MIB : - qBridgeMIB (.1.3.6.1.2.1.17.7) RADIUS-ACC-CLIENT-MIB : - radiusAccClientMIBObjects (.1.3.6.1.2.1.67.2.2.1) RADIUS-AUTH-CLIENT-MIB : - radiusAuthClientMIBObjects (.1.3.6.1.2.1.67.1.2.1) RFC1213-MIB : - system (.1.3.6.1.2.1.1) - interfaces (.1.3.6.1.2.1.2) - ip (.1.3.6.1.2.1.4) - snmp (.1.3.6.1.2.1.5) - tcp (.1.3.6.1.2.1.6) - udp (.1.3.6.1.2.1.7) RMON-MIB : - statistics (.1.3.6.1.2.1.16.1)
  • Page 421 Command Guide of MGSW-28240F MIB(Management Information Base) ifmib IF-MIB ifIndex The IfIndex that is defined in IF-MIB Default: Usage Guide: To display the SNMP MIB ifIndex contexts. Example: To display the SNMP MIB ifIndex contexts. Switch # show snmp mib ifmib ifIndex...

  • Page 422: Show Snmp Security-To-Group

    Command Guide of MGSW-28240F 26 Switch 1 - Port 26 10GigabitEthernet 1/2 27 Switch 1 - Port 27 10GigabitEthernet 1/3 28 Switch 1 - Port 28 10GigabitEthernet 1/4 29 Switch 1 - Port 29 GigabitEthernet 1/25 50001 VLAN vlan 1...

  • Page 423: Show Snmp User

    Command Guide of MGSW-28240F Security Name : public Group Name : default_ro_group Security Model : v2c Security Name : private Group Name : default_rw_group Security Model : v3 Security Name : default_user Group Name : default_rw_group 4.21.101 show snmp user Command: show snmp user [ <username>...

  • Page 424: Show Snmp View

    Command Guide of MGSW-28240F 4.21.102 show snmp view Command: show snmp view [ <view_name> <oid_subtree> ] show Show running system information snmp Display SNMP configurations view MIB view configuration <ViewName : word32> MIB view name <OidSubtree : word255> MIB view OID...

  • Page 425: Show Switchport Forbidden

    Command Guide of MGSW-28240F summary STP summary Configuration configuration STP bridge instance no (0-7, CIST=0, MST1=1...) <Instance : 0-7> Choose port Default: Usage Guide: To display the STP information. Example: To display the STP information. Switch # show spanning-tree CIST Bridge STP Status Bridge ID : 32768.00-30-4F-00-99-00...

  • Page 426: Show Tacacs-Server

    Command Guide of MGSW-28240F Default: Usage Guide: To display the VLAN Forbidden port entry. Example: To display the VLAN Forbidden port entry. Switch # show switchport forbidden Interfaces ---- ---------- 4.21.105 show tacacs-server Command: show tacacs-server show Show running system information...

  • Page 427: Show Upnp

    Command Guide of MGSW-28240F Command: show terminal show Show running system information terminal Display terminal configuration parameters Default: Usage Guide: To display the your login information. Example: To display the your login information. Switch # show terminal Line is con 0.

  • Page 428: Show Users

    Command Guide of MGSW-28240F Default: Usage Guide: To display the UPnP information. Example: To display the UPnP information. Switch # show upnp UPnP Mode : Disabled UPnP TTL UPnP Advertising Duration : 100 4.21.108 show users Command: show users [ myself ]...

  • Page 429: Show Version

    Command Guide of MGSW-28240F Line is vty 0. Connection is from 192.168.0.45:49527 by Telnet. User name is admin. Privilege is 15. Elapsed time is 0 day 0 hour 8 min 46 sec. Idle time is 0 day 0 hour 8 min 42 sec.

  • Page 430: Show Vlan

    Command Guide of MGSW-28240F Alternate Image --------------- Image : managed.bk Version : 000 Date : 2013-10-02T15:15:04+02:00 Product : Planet Best Switch Software Version : 000 Build Date : 2013-12-06T15:22:03+01:00 4.21.110 show vlan Command: show vlan [ id <vlan_list> | name <name> | brief ]...

  • Page 431: Show Vlan Ip-Subnet

    Command Guide of MGSW-28240F 4.21.111 show vlan ip-subnet Command: show vlan ip-subnet [ id <subnet_id> ] show Show running system information vlan VLAN status ip-subnet Show VLAN ip-subnet entries Show a specific ip-subnet entry Default: Usage Guide: To display the IP-based VLAN information.

  • Page 432: Show Vlan Protocol

    Command Guide of MGSW-28240F Example: To display the MAC-based VLAN information. Switch # show vlan mac MAC Address Interfaces ----------- ---------- 00-40-55-00-00-00 1 GigabitEthernet 1/1 4.21.113 show vlan protocol Command: show vlan protocol [ eth2 { <etype> | arp | ip | ipx | at } ] [ snap { <oui> | rfc-1042 | snap-8021h } <pid>...

  • Page 433: Show Voice Vlan

    Command Guide of MGSW-28240F Switch # show vlan protocol Protocol Type Protocol (Value) Group ID ------------- ------------------------ -------- LLC_SNAP OUI-00:e0:2b; PID:0x1 Switch 1 --------- Group ID Ports ---------------- ---- ----- GigabitEthernet 1/1 4.21.114 show voice vlan Command: show voice vlan [ oui <oui> | interface ( <port_type> [ <port_list> ] ) ]...

  • Page 434: Show Web Privilege Group

    Command Guide of MGSW-28240F GigabitEthernet 1/1 switchport voice discovery protocol is oui 4.21.115 show web privilege group Command: show web privilege group [ <group_name> ] level show Show running system information privilege Web privilege group Web privilege group <group_name> Valid words are 'Aggregation' 'DHCP' 'Debug' 'Dhcp_Client'...

  • Page 435: Terminal

    Command Guide of MGSW-28240F ETH_LINK_OAM 5 10 5 10 5 10 5 10 Green_Ethernet 5 10 5 10 5 10 5 10 IPMC_Snooping 5 10 5 10 LACP 5 10 5 10 LLDP 5 10 5 10 Loop_Protect 5 10...

  • Page 436: Terminal Exec-Timeout

    Command Guide of MGSW-28240F terminal Set terminal line parameters editing Enable command line editing Default: Enabled Usage Guide: To enable editing mode for current terminal session. Example: To enable editing mode for current terminal session. Switch # terminal editing 4.22.2 terminal exec-timeout Command: terminal exec-timeout <min>...

  • Page 437: Terminal Length

    Command Guide of MGSW-28240F Command: terminal history size <history_size> terminal Set terminal line parameters history Control the command history function size Set history buffer size <history_size> Number of history commands, 0 means disable Default: Usage Guide: To configure history buffer side for current terminal session.

  • Page 438: Terminal Width

    Command Guide of MGSW-28240F -- more --, next page: Space, continue: g, quit: ^C 4.22.5 terminal width Command: terminal width <lines> terminal Set terminal line parameters width Set width of the display terminal <lines:0 or 40-512> Number of characters on a screen line (0 for unlimited width)
