4.6.6 Class of Service

This page allows you to configure the QoS Class of Service settings for all switch ports as the QoS Class of Servic screen in
Figure 4-6-6 appears.
The page includes the following fields:
Object
•
Port Selection
• ACL
• IGMP
• IP Addr
• MAC Addr
• VID
• TCP/UDP Port
• DSCP
• 802.1p
• Physical Port
• Port No.

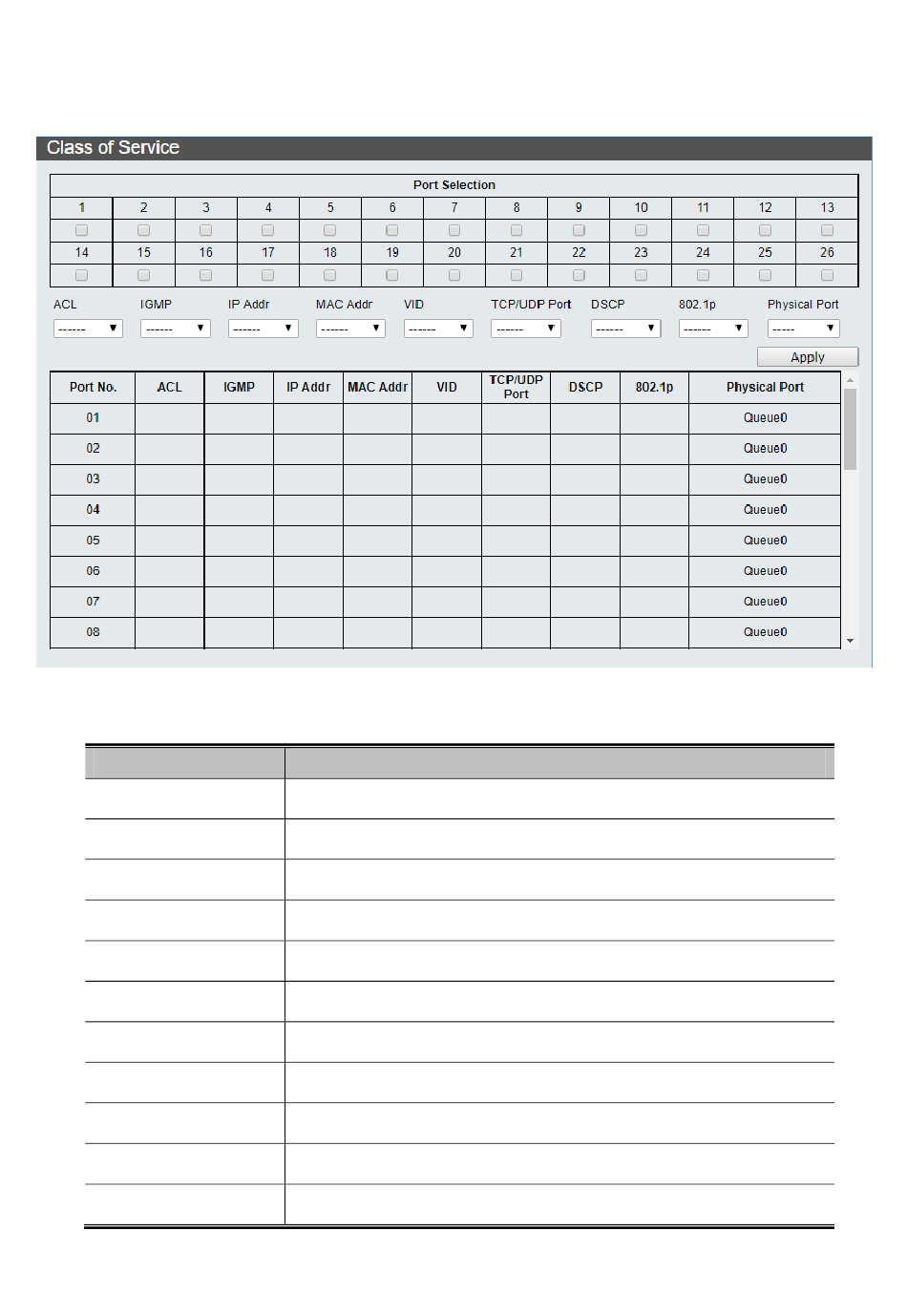

Figure 4-6-6: QoS Class of Service Configuration Page Screenshot
Description
Select specific port for QoS Class of Service settings.
Enable or disable the ACL function for specific port.
Also display per port ACL status.
Enable or disable the IGMP function for specific port.
Also display per port ICMP status.
Enable or disable the IP Address function for specific port.
Also display per port IP Address status.
Enable or disable the MAC Address function for specific port.
Also display per port MAC Address status.
Enable or disable the VID function for specific port.
Also display per port VID status.
Enable or disable the TCP/UDP Port function for specific port.
Also display per port TCP/UDP Port status.
Enable or disable the DSCP function for specific port.
Also display per port DSCP status.
Enable or disable the 802.1p function for specific port.
Also display per port 802.1p status.
Select Queue ratio for specific port and the available range is Queue0-Queue7.
Also display per port Queue status.
Display per port list.
