Buttons
: press this button to create a new specific VLAN group.
: press this button to modify a specific VLAN group.
: press this button to edit specific VLAN group.
: press this button to delete specific VLAN group.

4.5.5 VLAN Tag-based Entry Config

Use the VLAN Tag-based entry config to configure port members function for the selected VLAN index. The VLAN Tag-based
Entry config configuration can be monitored and modified here. Up to 26 VLANs are supported. This page allows for adding and
deleting VLANs as well as configure port members function of each VLAN as the VLAN Tag-based Entry Config screen in
4-5-4 appears.

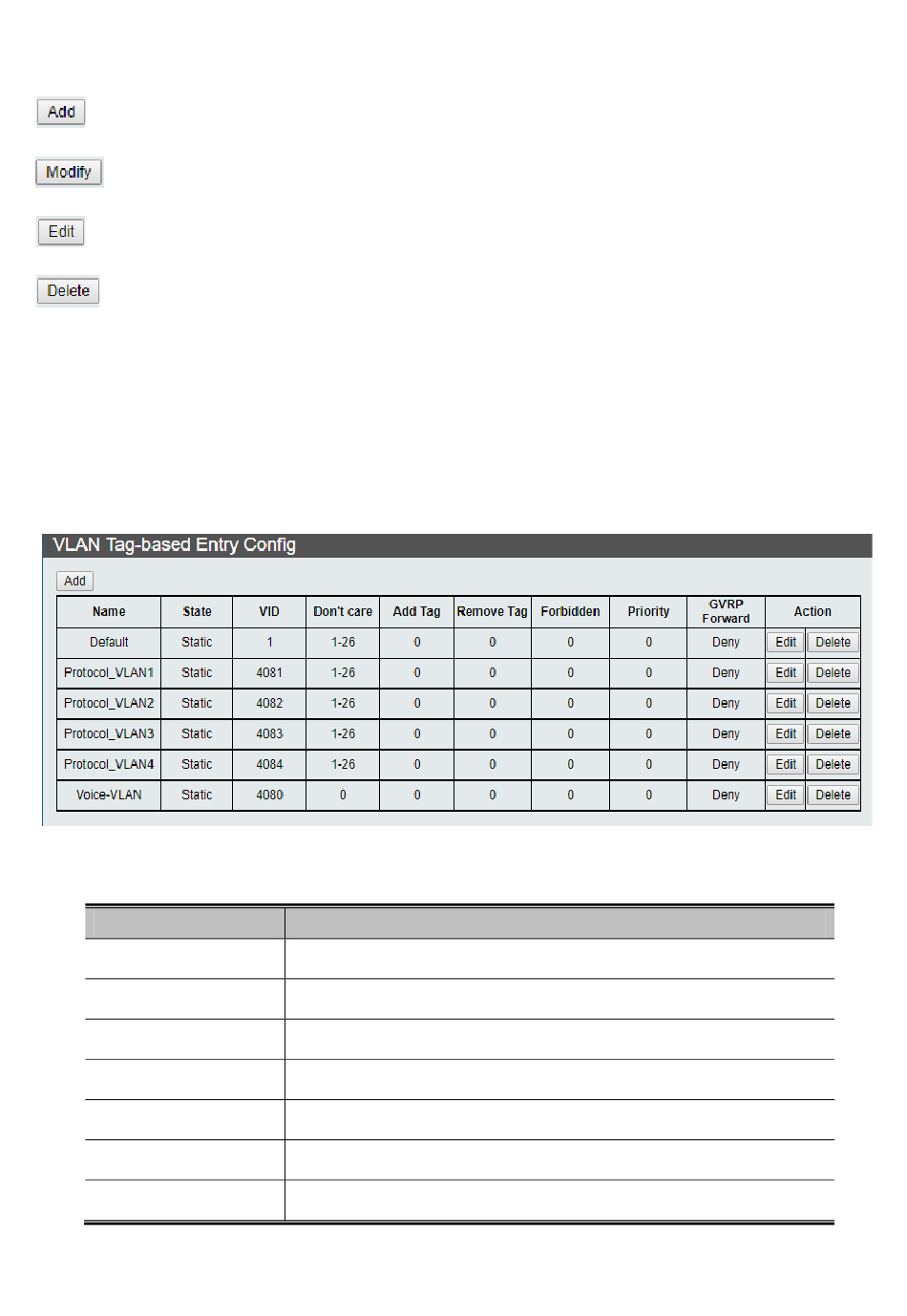

Figure 4-5-4: VLAN Tag-based Entry Config Configuration Page Screenshot
The page includes the following fields:
Object
• Name
• Static
• VID
• Don't care
• Add Tag
• Remove Tag
• Forbidden
Description
Display the name of specific VLAN group.
Display the state of specific VLAN group.
Display the VLAN ID of specific VLAN group.
Display the per port Don't care information of specific VLAN group.
Display the per port Add Tag state of specific VLAN group.
Display the per port Remove Tag state of specific VLAN group.
Display the per port Forbidden state of specific VLAN group.
87
User's Manual of FGSW-Series
