User's Manual of FGSW-Series
PoE Port Sequence
To prevent all the PoE ports of the Managed PoE+ Switch from being active at the same time when the Switch has booted up,
the PoE ports of the Managed PoE+ Switch can be configured to allow each port to be activated at an interval time. In addition,
the "Delay" setting is to delay power feeding on each port when the Managed PoE+ Switch has completely booted up.
Ethernet Data Transmission Distance Extension
In the "Extended" operation mode, the Managed PoE+ Switch operates on a per-port basis at 10Mbps duplex operation but can
support PoE power output over a distance of up to 250 meters overcoming the 100 meters limit on Ethernet UTP cable.

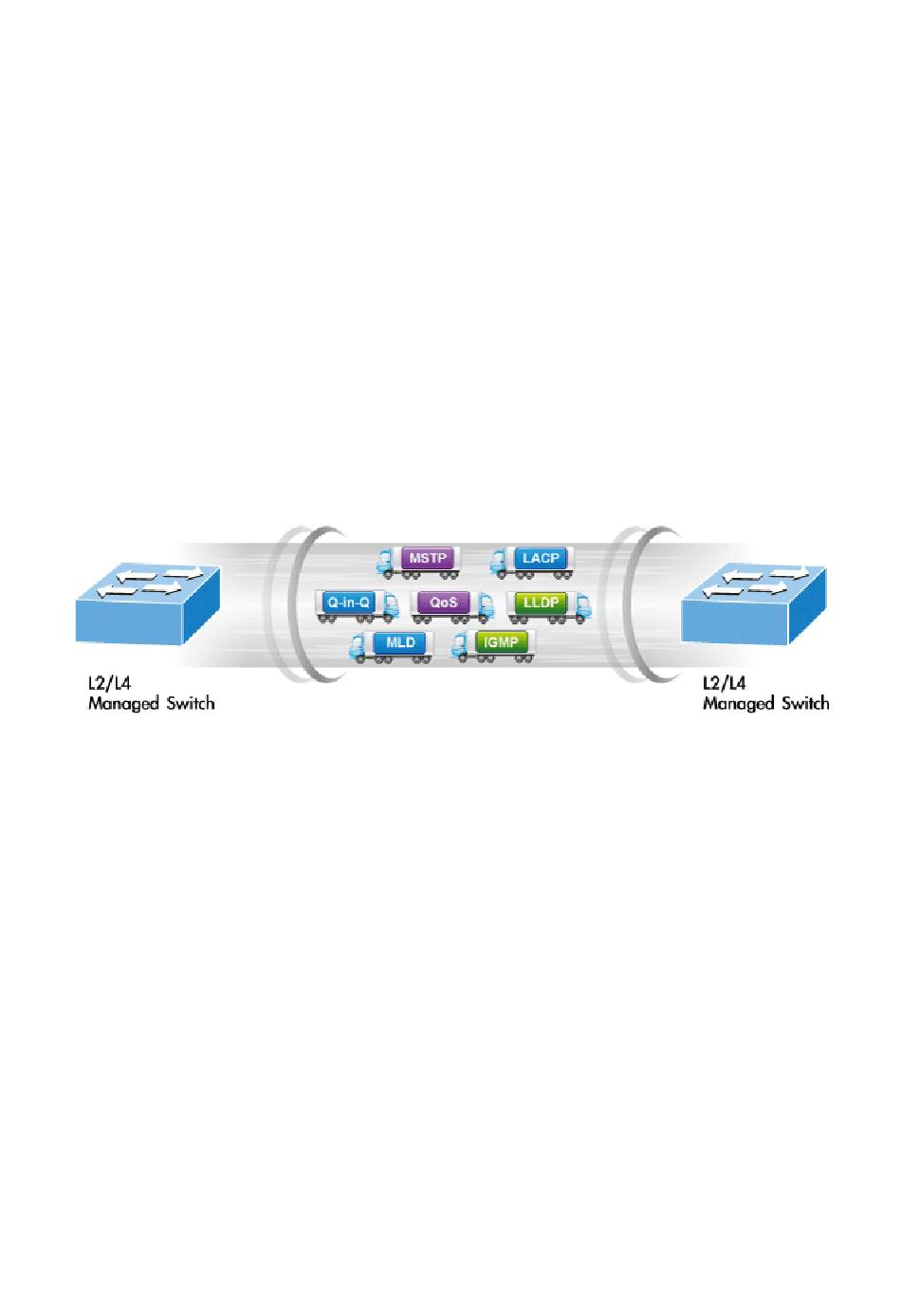

Robust Layer 2 Features
The Managed PoE+ Switch can be programmed for advanced switch management functions, such as Multiple Spanning Tree
Protocol (MSTP), BPDU filtering, BPDU Guard, dynamic port link aggregation, IGMP/MLD snooping, DHCP relay agent, loop
detection and GVRP, voice VLAN and the Link Layer Discovery Protocol (LLDP). The Layer 2 protocol included is to help
discover basic information about neighboring devices in the local broadcast domain. Other features included are the
port-based/802.1Q VLAN and Q-in-Q VLAN, Layer 2/4 QoS, port mirroring, broadcast storm control and bandwidth control.
Enhanced Security and Traffic Control
The Managed PoE+ Switch offers the comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to
the edge. It can be used to restrict network access by denying packets based on source and destination IP/MAC address or
.
defined typical network applications The Managed PoE+ Switch also provides DHCP Snooping, ARP Inspection and MAC
Verification functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Also included are
per port MAC/IP address binding and MAC address binding. The network administrator can now build highly-secure corporate
networks with considerably less time and effort than before.
Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity features that virtually need no effort and cost to have included the protection of the switch management and
the enhanced security of the mission-critical network. Both SSH and SSL protocols are utilized to provide strong protection
against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably
less time and effort than before.
Efficient Management
For efficient management, the Managed PoE+ Switch is equipped with Web, Telnet and SNMP management interfaces. With
the built-in Web-based management interface, the Managed PoE+ Switch offers an easy-to-use, platform-independent
management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the
